Маленькая пайка с двойной

Specifications

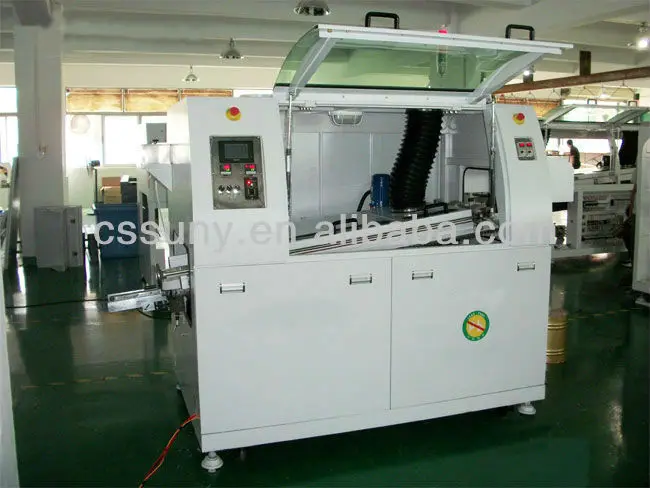

SUNY-THT250W

Transporting system

PC Broad width

within Max250mm

PCB conveyor height

750±20mm

PCB conveyor speed

0-1.8m/min

PCB conveyor direction

L→R(R→L option)

Spray system

Spray fashion

SMC cylinder stator & ST-6 nozzle

Flux storage tank

Max3.2L

Preheating system

Preheating length

600-800mm

Preheating zone quantity

infrared preheating

Preheating Temperatures

Max. normal temperature--220°C

Preheating capacity

4KW

Welding system

Suitable solder type

Lead-free or standard

Solder volume

about 280KG

Wave solder pot power

6KW

Unit parameter

Power requirements

3P, 380V(220V option)

Air supply

4-7kg/cm2 12.5L/min

Power for heating up

10W

Power for operation

about 3W/hour

Temperature control

Japan RKC module

Control fashion

XINJE PLC + touch panel

Weight

Max 800KG

Body Dimensions

L1800x W1200xH1600

Total Dimensions

L2500x W1200xH1600
