Инжекционный механический упаковщик
- Категория: Гидроизоляционные материалы >>>
- Поставщик: Shanghai,Ruth,Constructional,Materials,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.8 $* | 0.97 $* |
| Aug-16-2025 | 0.94 $* | 0.86 $* |
| Jul-16-2025 | 0.71 $* | 0.69 $* |
| Jun-16-2025 | 0.41 $* | 0.93 $* |
| May-16-2025 | 0.29 $* | 0.35 $* |
| Apr-16-2025 | 0.4 $* | 0.82 $* |
| Mar-16-2025 | 0.61 $* | 0.38 $* |
| Feb-16-2025 | 0.2 $* | 0.93 $* |
| Jan-16-2025 | 0.90 $* | 0.78 $* |
Характеристики

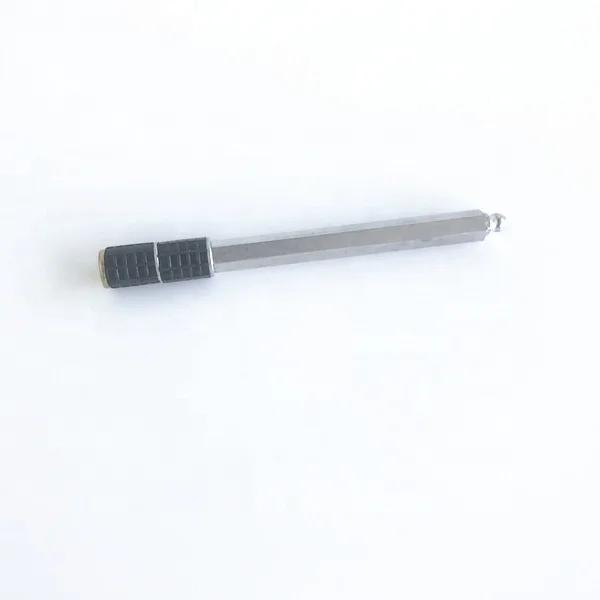

High Pressure Injection Grouting Packer
Product Introduction
Injection packer, make from Aluminum, it can work at 10 MPa / 1465 psi / 100 bar pressure, easy to use, easy to inject, can use at low temperatures; single component grouting, simple construction, easy to clean up. The sealing agent can be water base polyurethane, oil base polyurethane and epoxy resin. We have four normal sizes, 10*80mm, 13*85mm, 13*100mm, 13*150mm. All the other sizes are available. Long packer over 15cm is for loose structure;Short packer 8.5cm or 10cm is for dense structures.
Product Description
1. Product Name: Injection Packer
2. Type: Aluminum injection packer
3. Working Pressure: 10MPa/1465 psi / 100 bar
4. Normal Sizes: 10*75mm,13*85mm,13*100mm,13*150mm
5. Loose structure: 15cm
6. Dense structure: 10cm
Specification
Normal Sizes | 10*80mm | 13*85 mm | 13*100mm | 13*150 mm |
Net Weight | 19 kgs | 22.5 kgs | 24.5 kgs | 18kgs |
Gross Weight | 20 kgs | 23 kgs | 25 kgs | 19kgs |
Package | 1500pcs/ carton | 1000pcs / carton | 1000pcs/carton
| 600pcs/carton
|
Materials of Application
Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.
Notes when Grouting
a. Stop infusing if polyurethane does not emitting from the cracks after 5 minutes. And try again later. If not yet filled, should check whether the buried pipeline cross-drilled or floor have holes and so on.
b. Infusion should be closely watched gauge of work perfusion machine, if more than the rated pressure (45Mpa above), should be shut down, if pressure remained high, cracks should check whether the drilling cross with cracks.
Application Field
Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc., water stop projects.
Transportation / Packing
Packing Size: 1500pcs/ Carton or 1000pcs/Carton
Transportation by Air: Arrival within 2-7 days upon receipt of payment,excluding weekends and holidays.
Transportation by Ship: Delivery within 2-5 days upon receipt of payment, excluding weekends and holidays.
Detail:40 cartons per pallet (1*1 M)
