Irregular glass shape grinding/beveling/polishing machine

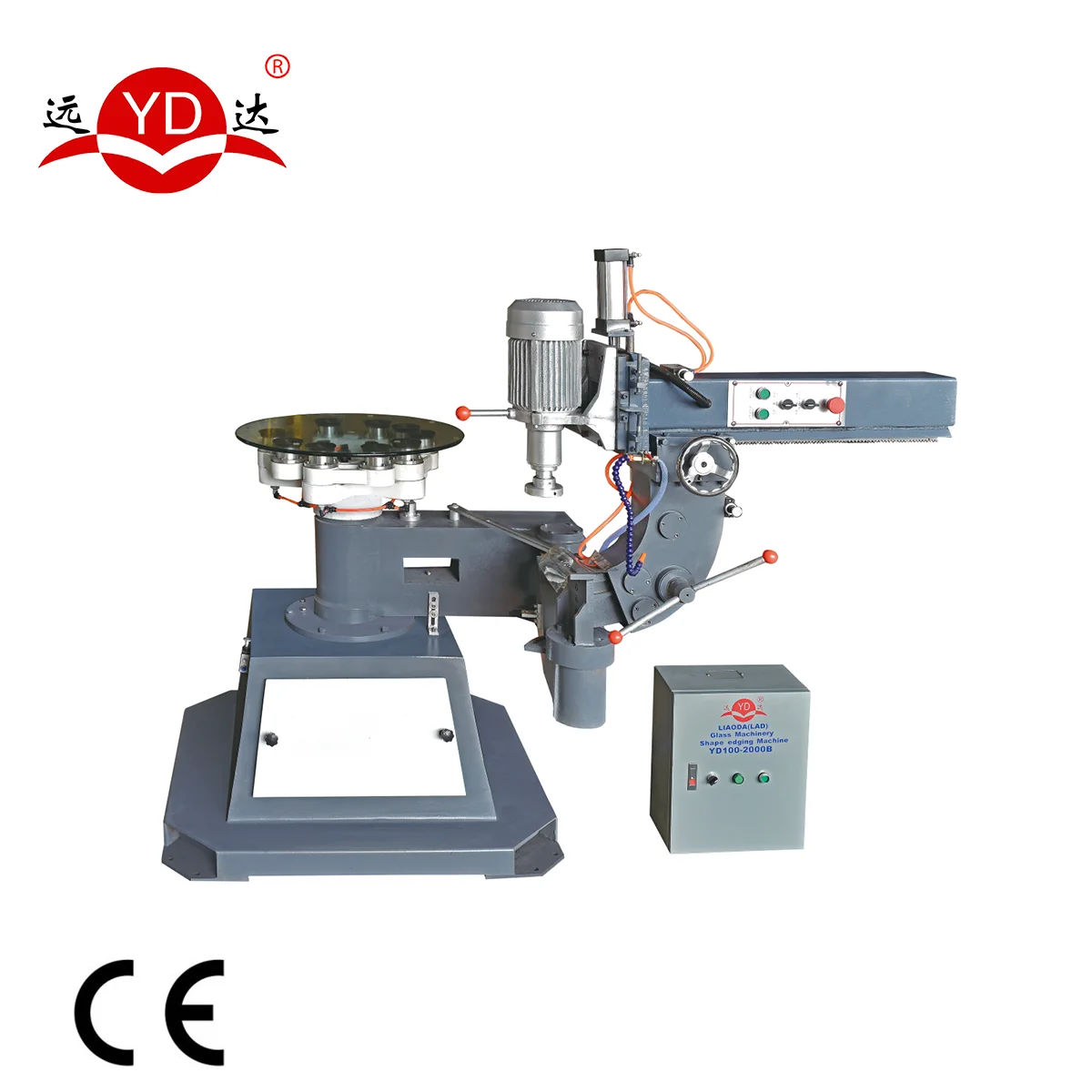

YD100-2000B shape edging machine is applicable for processing abnormity edge and bevel edges of plate glass.

It can process round, rectangle or even small size ground glass (diameter 100mm).







With changes of different wheels, it can process round, straight edge with arris, OG and beveling edge.



Technical specification

Model Number	YD100-2000B
Glass diagonal size(mm)	100-2000
Bevel angle(degree)	0-30
Max.bevel width(mm)	40
Min.internal hole(mm)	100
Max.glass thickness(mm)	30
Compressed air consumption(L/min)	<1.5
Pressure(kg/cm2)	8
Power (KW)	2.6
Outer dimension(m)	1.2x1.2x1.6
Weight (kg)	800
