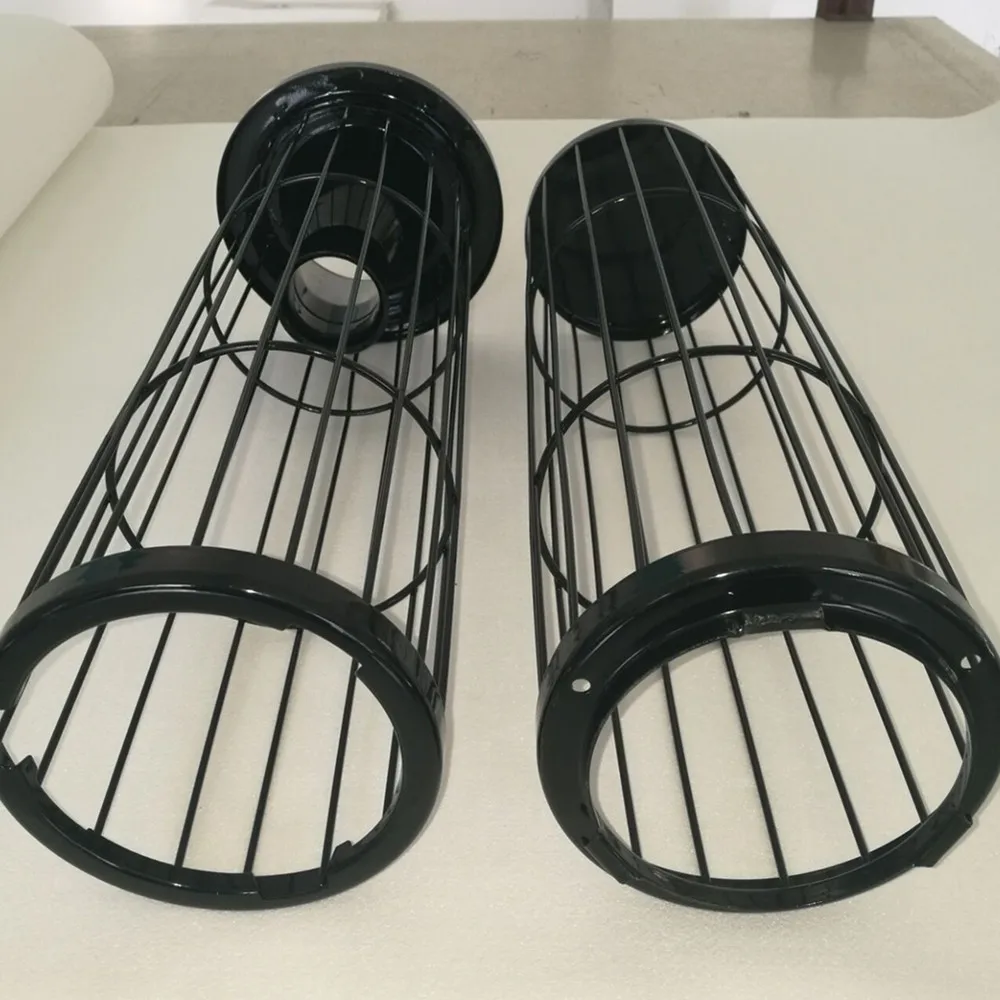

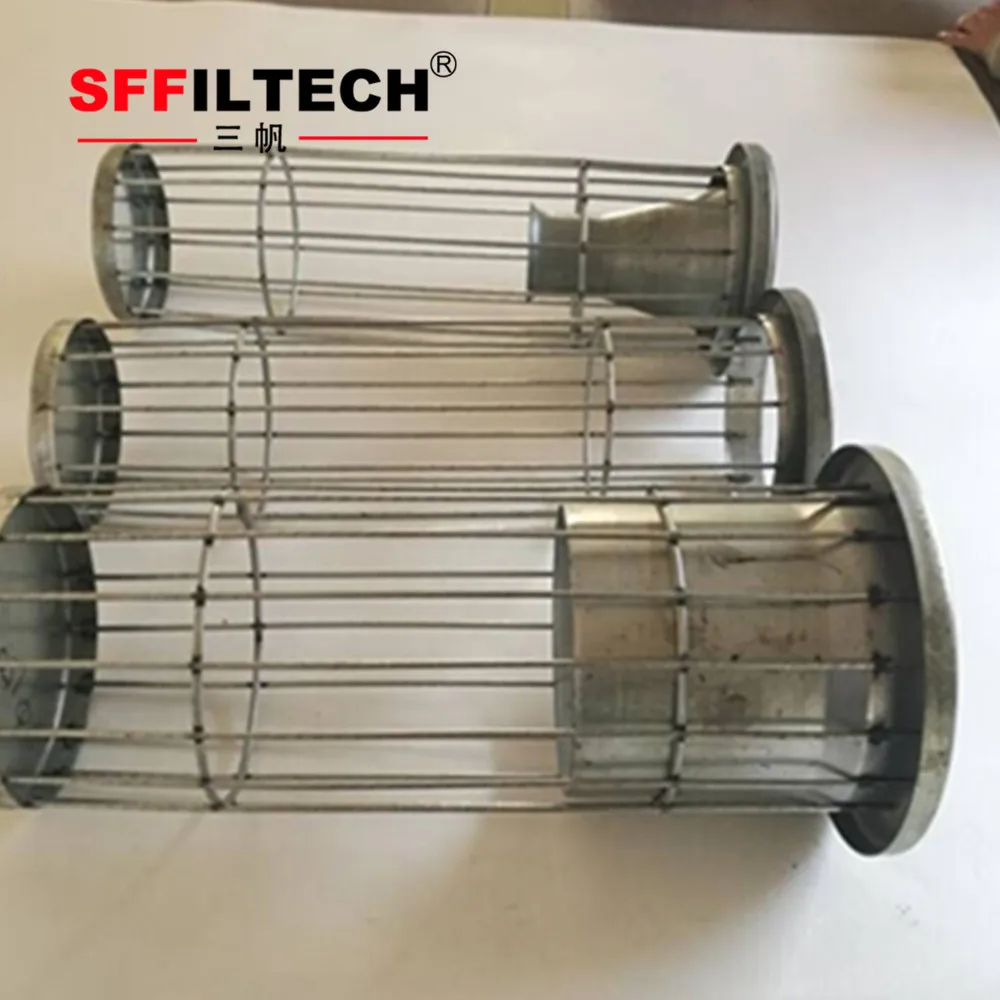

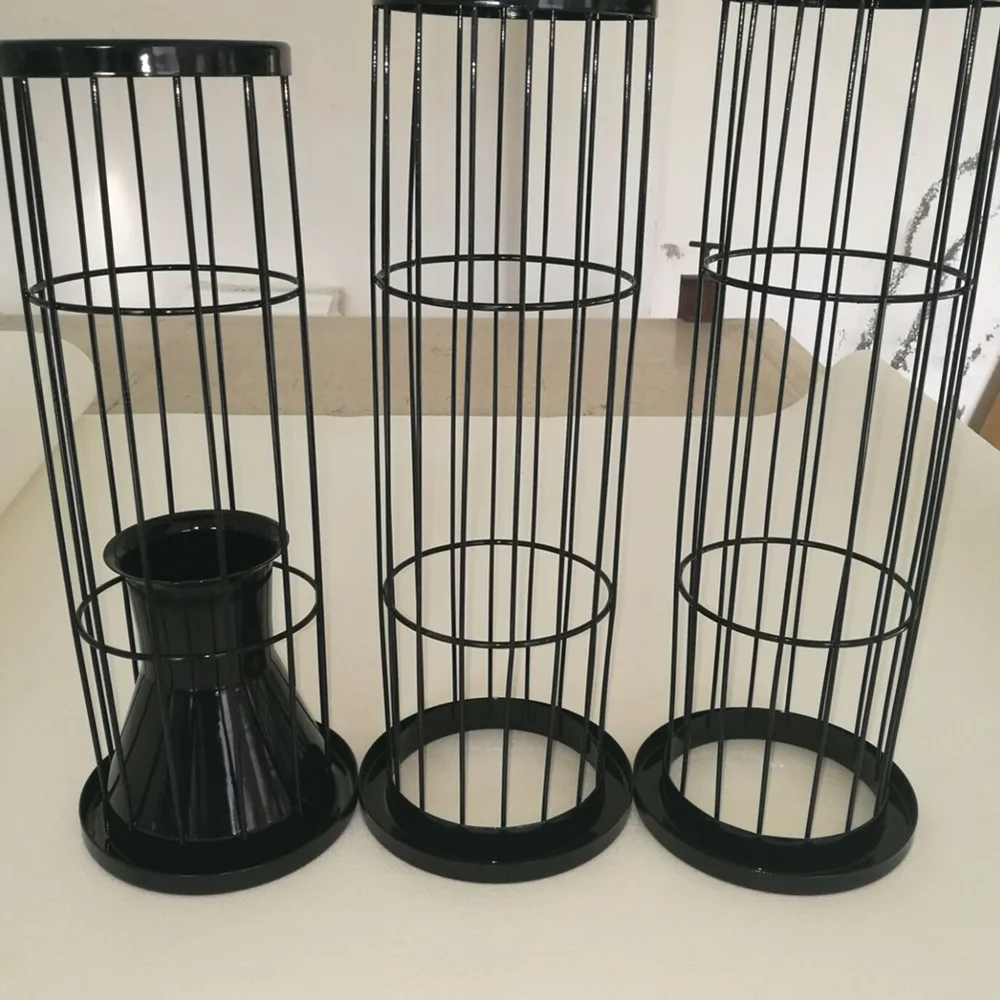

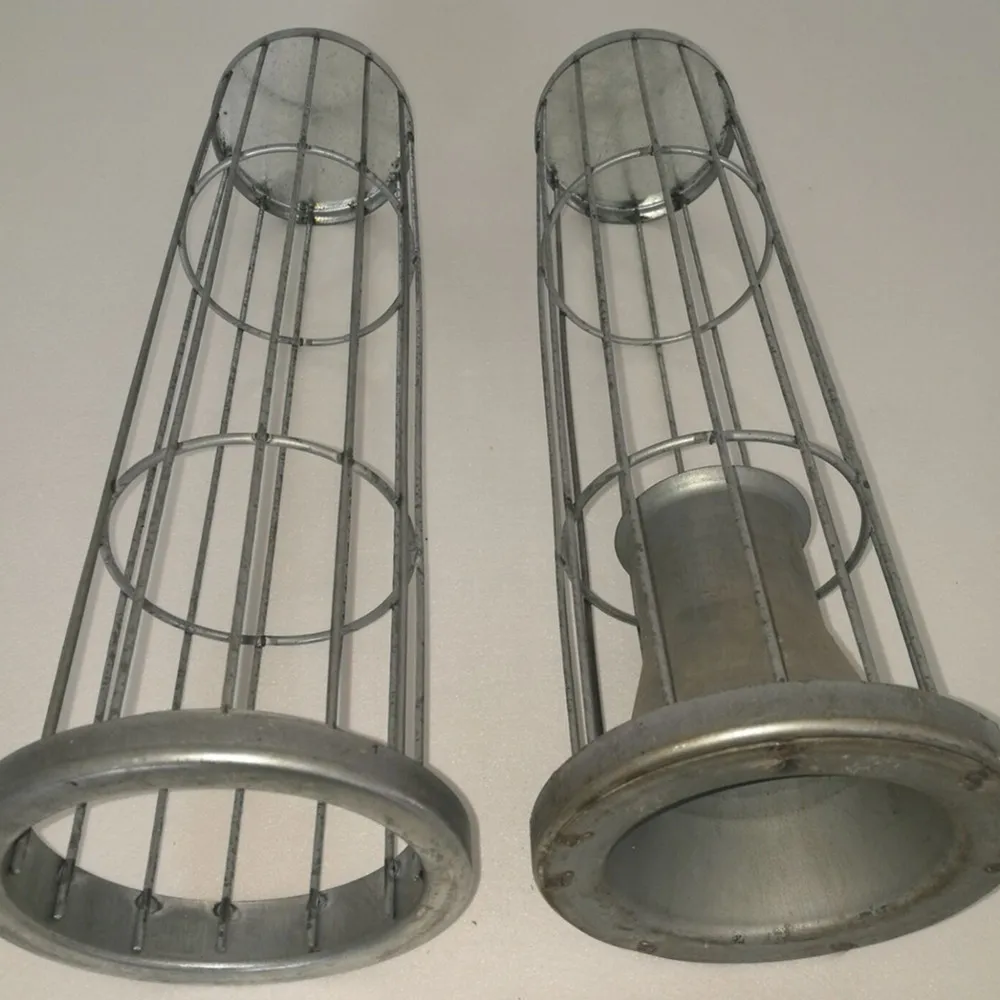

Клетка для фильтра с venturi

Specifications For Filter bag Cage

Types:

Round Style/Flat Style/Envelope Style/ Special Style

Number Of Wires:

8/10/12/16/20/24 vertical wires

Ring Space:

Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)

Cage Diameter:

Cage diameters range from 4 inch to 8 inch (100mm to 200mm)

Wire thickness:

Wire thickness ranges are 2mm to 5mm

Material:

Carbon Stee, Galvanized Steel, Stainless Steel

Finishment:

Epoxy, PVC vinyl coating

Packaging:

Cages are packed in custom designed cartons

Usage:

Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

Advantages:

1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing 6.easy to install
7.no ventury installation required

Standard Technical Data

Round Style

Diameter(mm)

Bag Diameter(mm)

Length(mm)

115

120

2000,2400 2800,
3200,3600,4000,
4400,4800,5200,
5600,6000,7000

125

130

147

152

195

200

Flat Style

Perimeter

Bag Perimeter

Length(mm)

800

800

2000 3000 4000
5000 6000

900

900

Envelope Style

Length Width Thickness

Bag Length Width Thickness

1500X750x25mm

1500X750x25mm
