Шэньчжэнь 18 мм микро вентилятор 3 в бесщеточный супер тонкий маленький охлаждающий 1804 5 В dc низкий уровень
- Категория: >>>
- Поставщик: Shenzhen,Tenkai,Special,Electromechanical,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.79 $* | 0.93 $* |
| Aug-16-2025 | 0.67 $* | 0.6 $* |
| Jul-16-2025 | 0.46 $* | 0.21 $* |
| Jun-16-2025 | 0.53 $* | 0.94 $* |
| May-16-2025 | 0.30 $* | 0.11 $* |
| Apr-16-2025 | 0.32 $* | 0.63 $* |
| Mar-16-2025 | 0.25 $* | 0.35 $* |
| Feb-16-2025 | 0.63 $* | 0.79 $* |
| Jan-16-2025 | 0.48 $* | 0.81 $* |
Характеристики

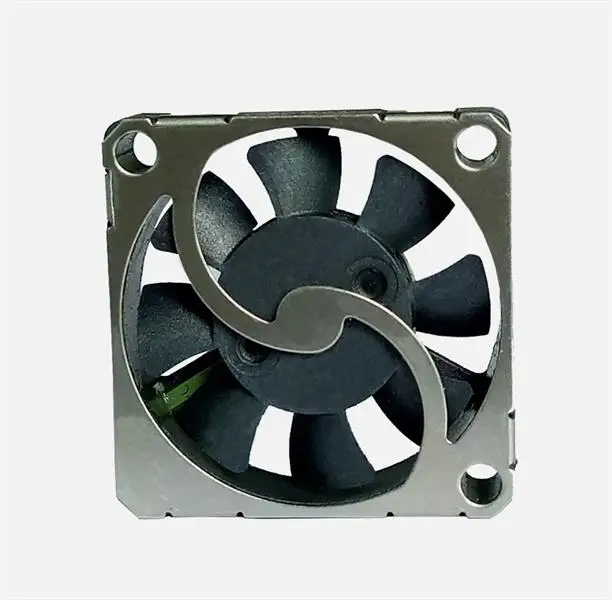

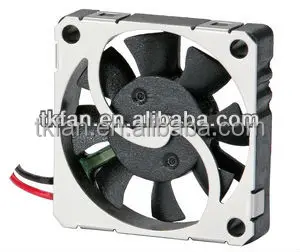

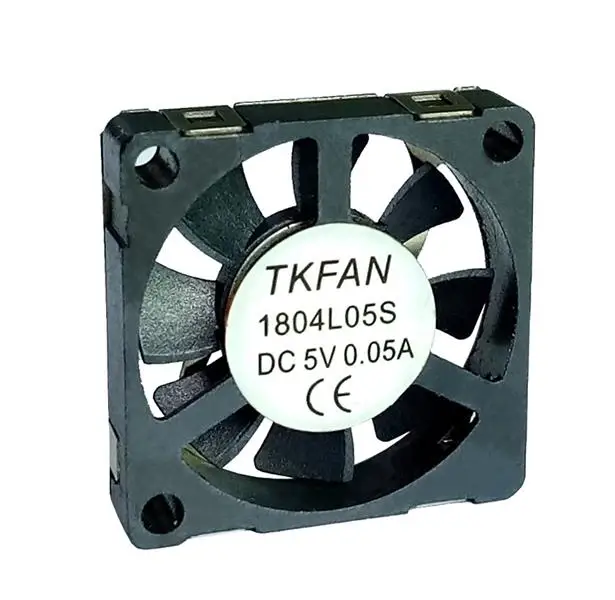

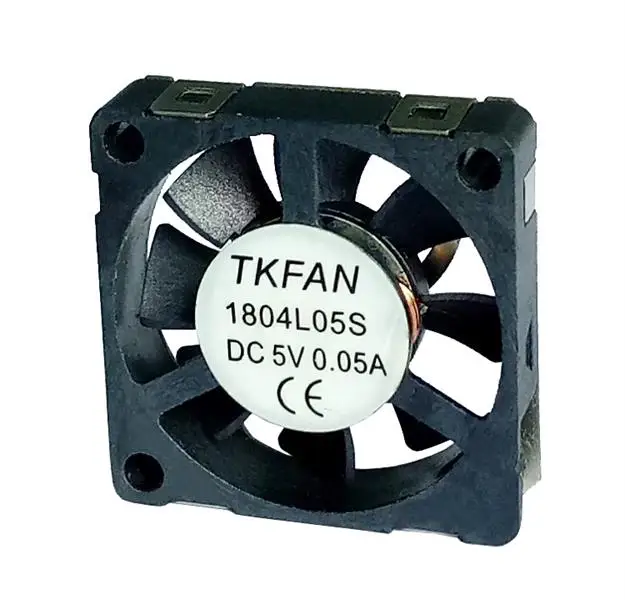

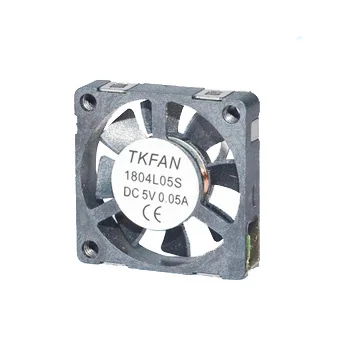

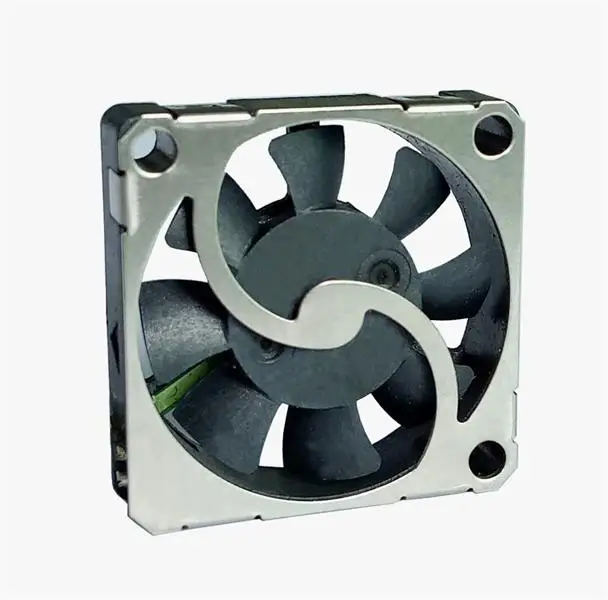

18*18*4 18mm 5v DC cooling mini electric fan
Model
| Rated Voltage | Operating Voltage | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | IN H2O | dB-A | |
DAM1804L33S | 3.3 | 2.8~3.6 | 0.032 | 0.1056 | 8500 | 0.019 | 0.65 | 1.95 | 0.077 | 25 |
DAM1804L05S | 5.0 | 4.5~5.5 | 0.045 | 0.225 | 13000 | 0.026 | 0.9 | 3.5 | 0.138 | <35 |
18*18*4 18mm dc fan 5v mini fan Drawing
Other size fan
| size | maximum |
| 17×17×8mm | 0.021-0.029m³ /min |
| 18×18×4mm | 0.004-0.006m³ /min |
| 25×25×7mm | 0.029-0.192m³ /min |
| 30×30×10mm | 0.067-0.110m³ /min |
| 35×35×10mm | 0.098-0.307m³ /min |
| 40×40×10mm | 0.111-0.198m³ /min |
| 40×40×20mm | 0.057-0.113m³ /min |
| 50×50×15mm | 0.298-0.425m³ /min |
| 50×50×20mm | 0.157-0.447m³ /min |
| 50×50×25mm | 0.087-0.151m³ /min |
| 60×60×10mm | 0.329-0.547m³ /min |
| 60×60×20mm | 0.510-0.710m³ /min |
| 60×60×25mm | 0.410-0.946m³ /min |
| 60×60×38mm | 0.738-1.890m³ /min |
| 70×70×10mm | 0.250-0.380m³ /min |
| 70×70×25mm | 0.640-1.260m³ /min |
| 80×80×10mm | 0.510-0.670m³ /min |
| 80×80×25mm | 0.690-1.710m³ /min |
| 80×80×32mm | 1.413-3.034m³ /min |
| 80×80×38mm | 1.280-2.370m³ /min |
| 92×92×25mm | |
| 97×97×33mm | 0.490-0.600m³ /min |
| 120×120×25mm | 1.820-3.041m³ /min |
| 171×153×51mm | 6.340-12.88m³ /min |
| 254×254×89mm | 579.0-1576m³ /hr |
| 120×120×38mm | 2.400-6.900m³ /min |
Company Information
Shenzhen tenkai group limited is a brushless motor product related enterprises in shenzhen city, the registered capital of RMB10.2 million, registered trademark TKFAN and TENKAI,has safety certification such as UL, CE, ROHS,Through the ISO9001:2008 quality management system certification, no bad credit records.
TKFAN mainly make high-quality brushless fan, brushless motor .Product series are tiny fan ,quiet fan,waterproof fan,high power fan,high voltage fan,long life fan,etc.
We provide following products:
| DC Brushless Fan | DC Brushless Blower | DC Centrifugal Fan | EC Centrifugal Fan |
| AC Brushless Fan | AC Brushless Blower | Squirrel Cage Fan | Metal Blades Fan |
| Fan Parts | In-line Fan | Other Brand |
