Аппарат для сварки труб из

Категория: Стыковой сварочный аппарат >>>
Поставщик: Zeau,International

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.20 $*	0.87 $*
Aug-19-2025	0.70 $*	0.52 $*
Jul-19-2025	0.96 $*	0.26 $*
Jun-19-2025	0.54 $*	0.93 $*
May-19-2025	0.5 $*	0.1 $*
Apr-19-2025	0.27 $*	0.13 $*
Mar-19-2025	0.38 $*	0.72 $*
Feb-19-2025	0.0 $*	0.29 $*
Jan-19-2025	0.77 $*	0.74 $*

Характеристики

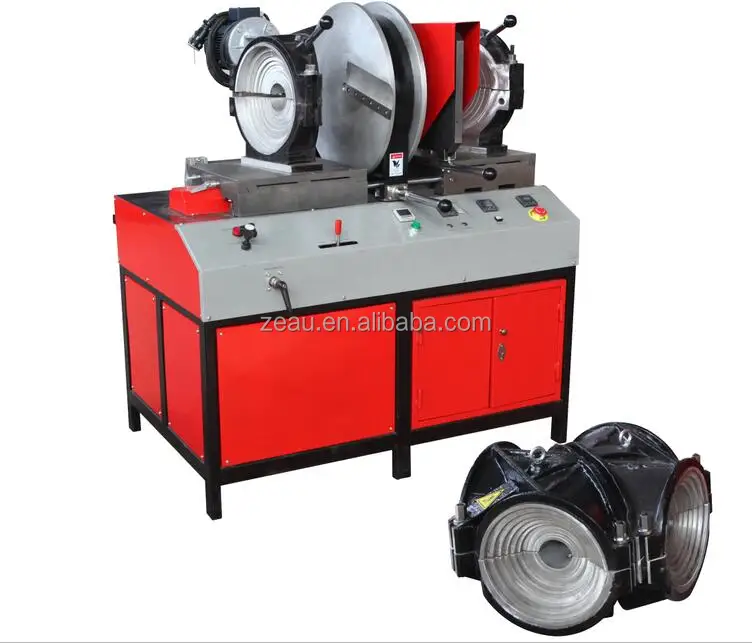

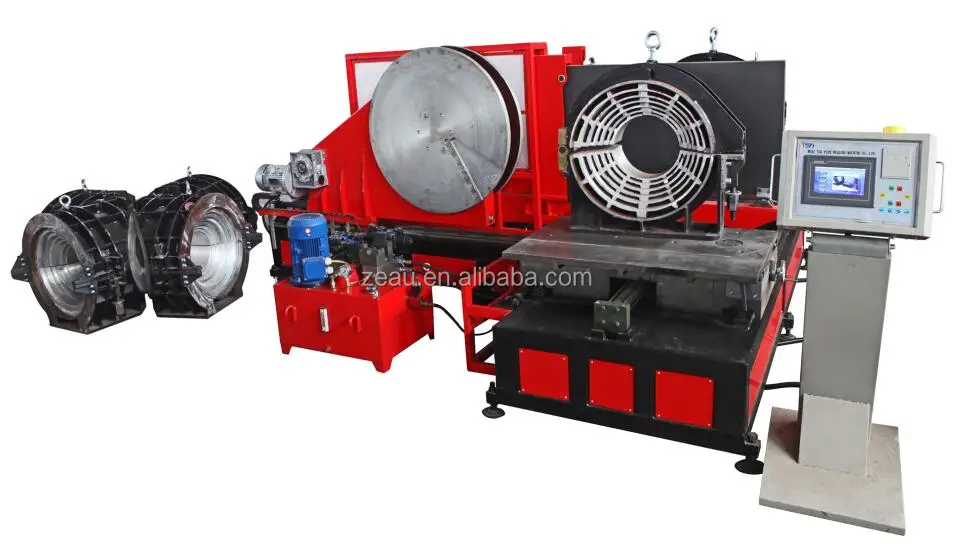

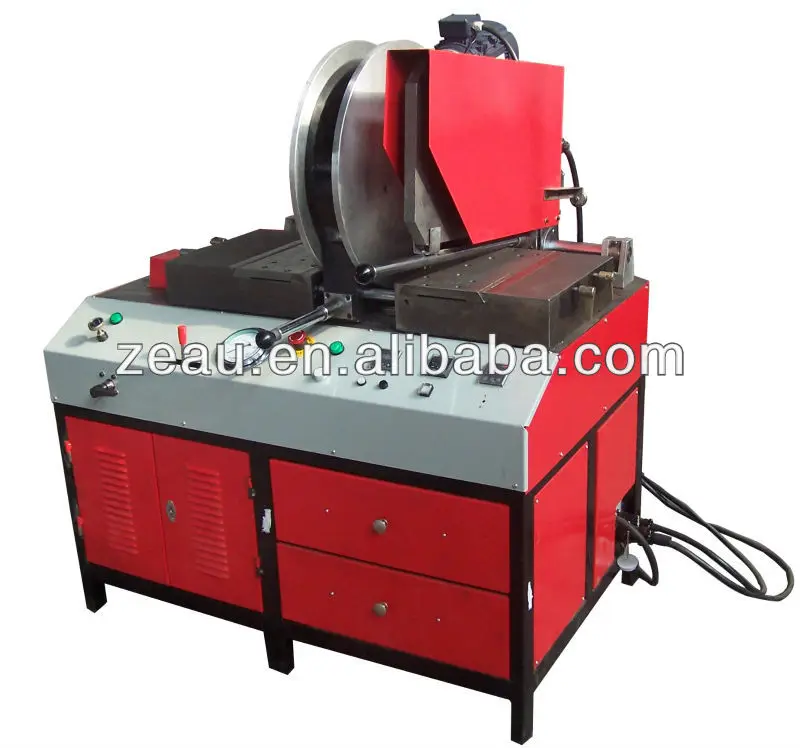

Workshop PE pipe fittings welding machine

Application and Features:

Suitable for fabricating elbow,tee,cross and Y shape(45degree and 60degree) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fititngs and make an integrated fittings.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.
Removable PTFE coated heating plate
Electric facing tool with safety limit switch.
Low starting pressure and high reliable seal structure.
Separate two-channel timer records times in soaking and cooling phases.

Model	ZEAU-F315	ZEAU-F450	ZEAU-F630
Pipe sizes(mm)	90,110,125,140,160,180, 200,225,250,280&315mm	200,225,250,280,315, 355,400,450mm	315,355,400,450,500, 560,630mm
Application	0-90°C Elbow,tee,cross,45 and Y shape(optional parts should be used)
Heating plate max.temp.	270°C	270°C	270°C
Temp.deviation in surface(170-250°C)	<±7°C	<±7°C	<±7°C
Pressure adjustable ranges	0-6Mpa	0-16Mpa	0-16Mpa
Working voltage	380V,50HZ	380V,50HZ	380V,50HZ
Heating plate power	5KW	12.2KW	22.2KW
Hydraulic unit power	1.5KW	2.2KW	3KW
Planing tool power	0.75KW	3.0KW	4.0KW
Total power	7.25KW	17.4KW	29.2KW
