PVC plastic pipe making machine Features :

1.PVC plastic pipe making machine is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable layietc

 2.he set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.

3.The extruder and haul-off machine adopt the imported AC frequency control device,The vacuum pump and hauling motor employ superior goods.

4Haul-off machine of different specifications, such as two caterpillars, three caterpillars, four caterpillars, six caterpillars etc are designed for different requirements.

5.It is additionally attched with length measuring apparatus and thickness increasing device

6.The unit is of reliable performance and high production efficiency .



PVC plastic pipe making machine Main Technical Parameters



Pipe range	20-63mm single	20-63mm dual	75-160mm	110-315mm	315-630mm
Extruder	SJZ51/105	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188
Extruder power	18.5kw	37kw	37kw	55kw	110kw
Extrusion capacity	120kg/h	250kg/h	250kg/h	360kg/h	800kg/h
Max. Production speed	12m/min	10m/min	6 m/min	3 m/min	1.2m/min

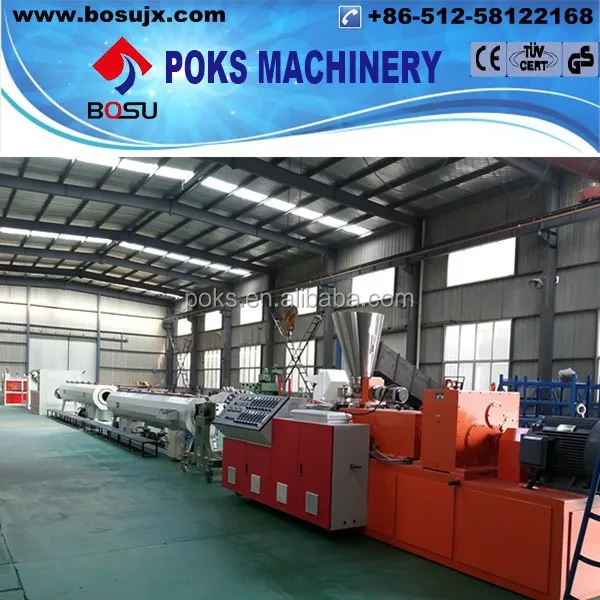

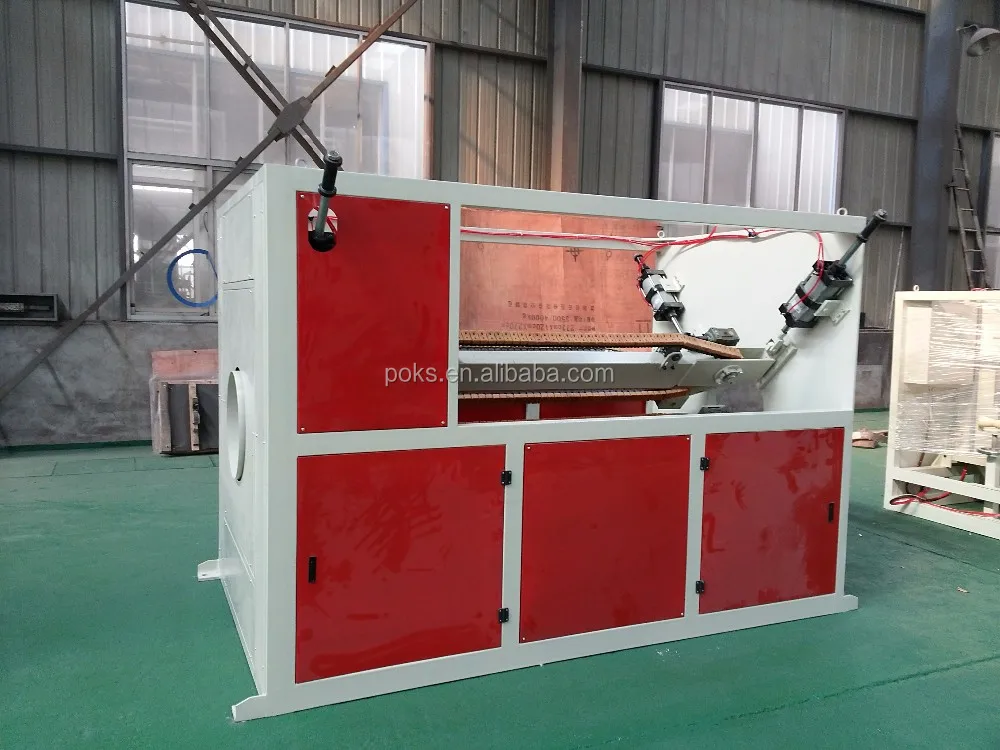

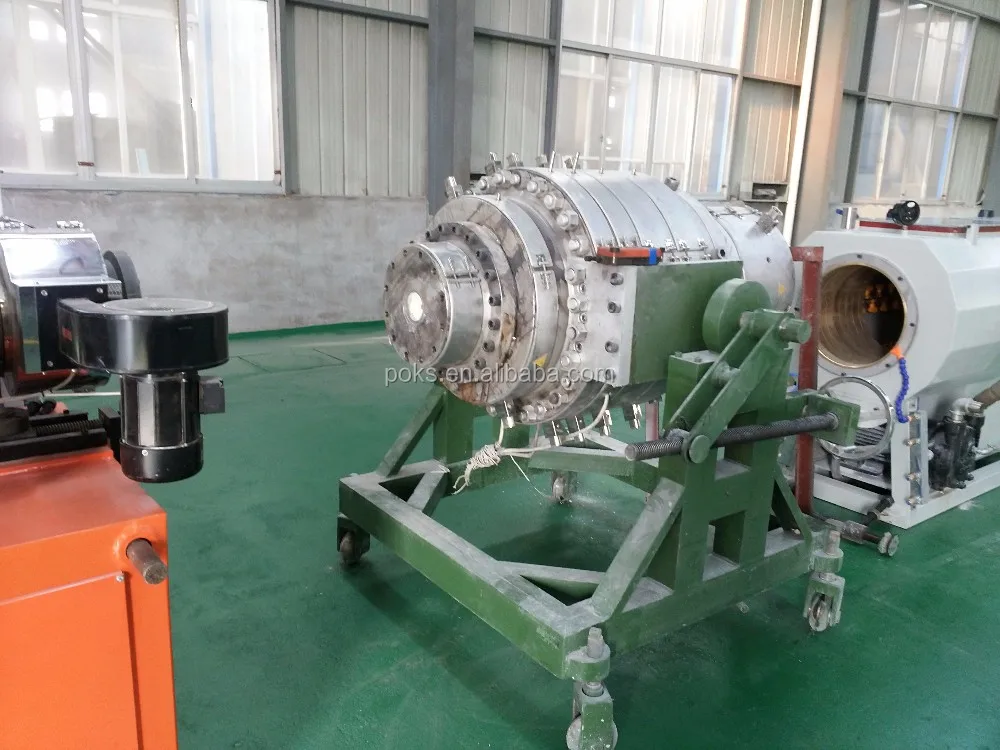

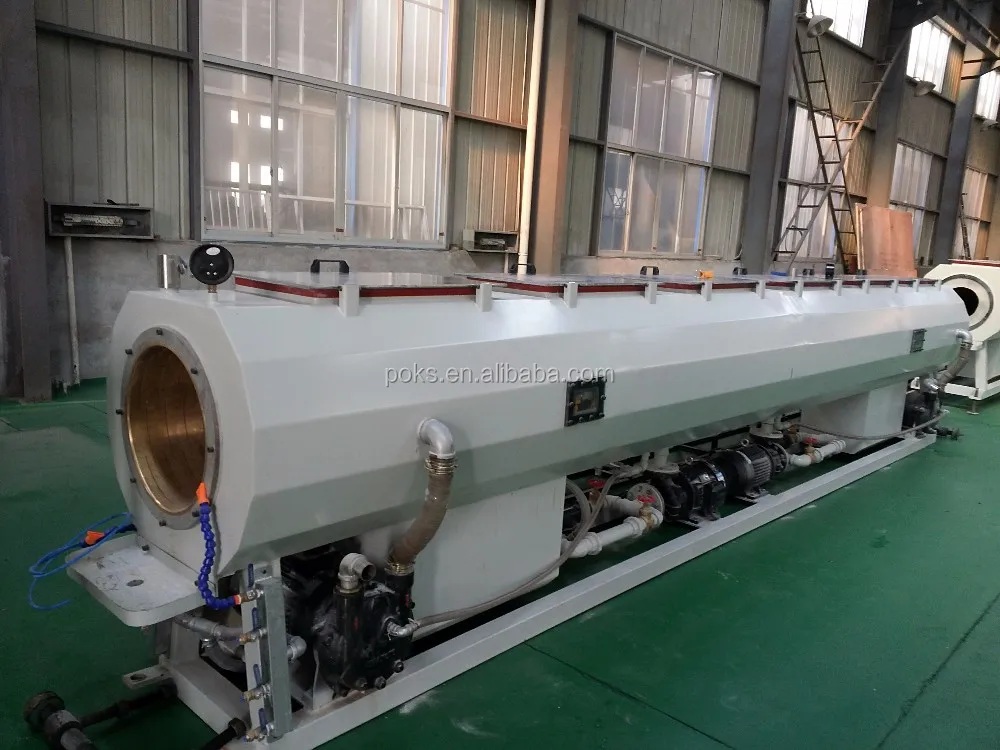

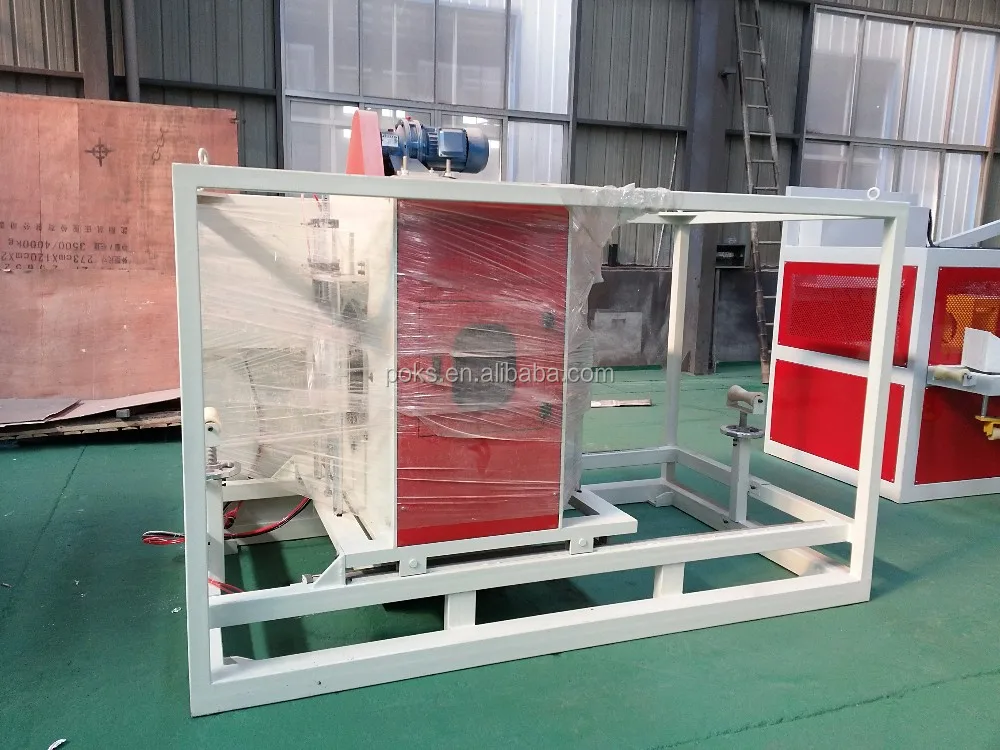

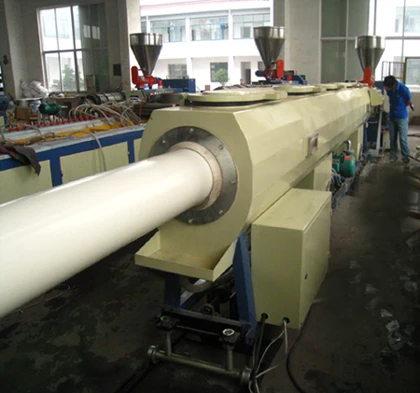

PVC plastic pipe making machine PICTURES
