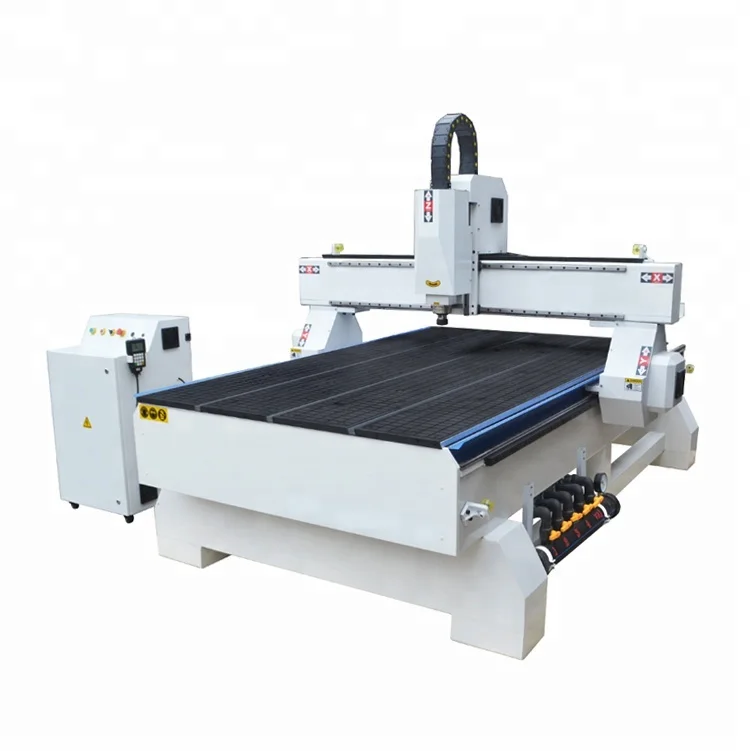

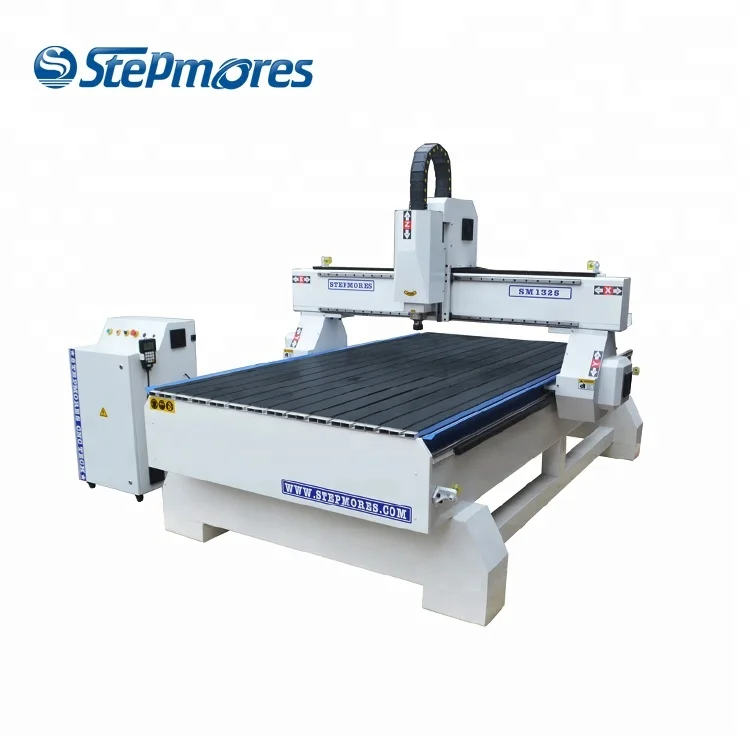

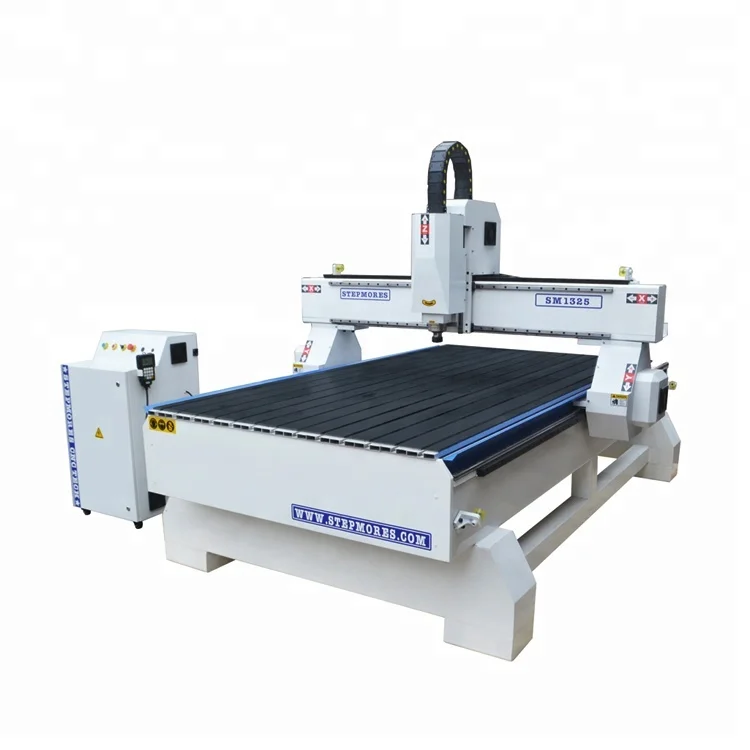

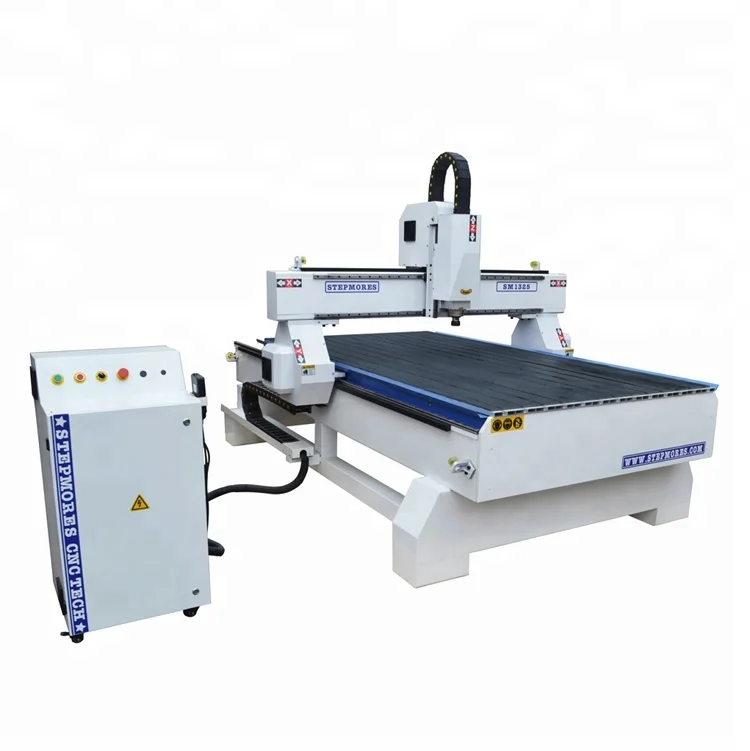

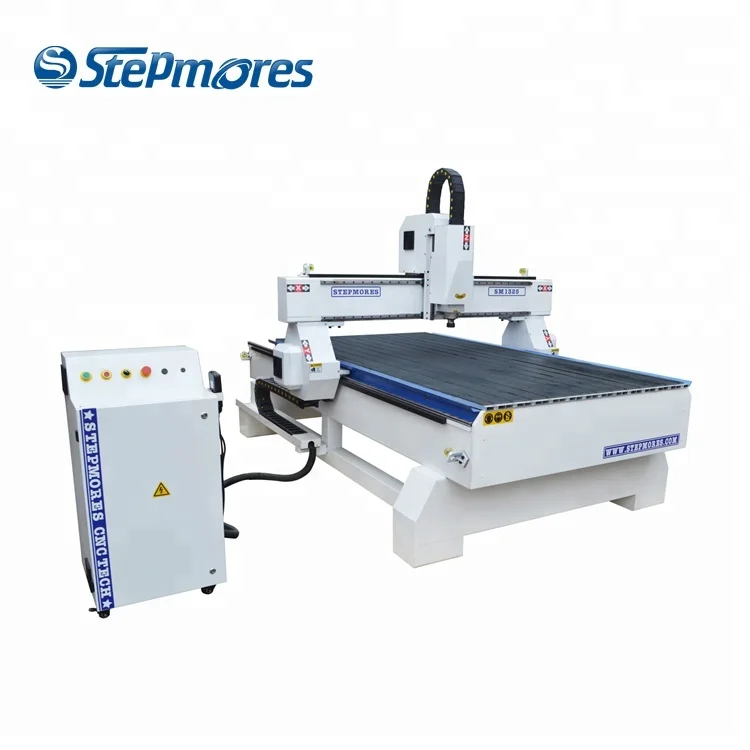

1325 desktop woodworking Engraver machine wood cnc machine





cnc 1325 04





cnc 1325 03





cnc 1325 01





introtext:
Application: Furniture processing industry, Decoration, Wooden art crafts ,Wooden door, cabinet making


Suitable Materials: Wood , Plastic , Aluminum , acrylic, PVC, Composite panel , MDF, etc








Advantage Feature:


1)integrally cast lathe bed, solid and stable ,high rigidity and high accuracy.


2)Imported high accuracy ball screw ensures more stable movement and high accuracy.


3)watercooling brushless spindle, low noise, vigorous cutting strength and long time mass processing


4)Compatible software: Open style software interface. Our software is compatible with TYPE3/ARTCAM/


CASTMATE/UG and many other kinds of CAD/CAM software, can change the working file into G code,


guarantee that the design does not have the barrier.





Wide range of application


It is mainly designed for woodworking,any kinds of wood and plastic material processing work, door


making,furniture making etc.





Suitable for Materials


Engrave and cut on hard wood, MDF, Aluminum and plastic composite panel,Acrylic sheet, ABS double


color sheet, PVC foam sheet, wooden sheet,PCB Aluminum sheet etc.





Features:


Stepmores SM-1325 woodworking CNC Router adopt steel structure body,use Rack and Pinion and


Linear Guide ways, are equipped with high speed water cooling spindle (or air cooling spindle)


and High speed stepper motor( or Japan Servo motor)





Specifications:






































































Model



SM-1325



X Y working area



1300 x 2500 mm



Feeding height



200 mm



Structure



steel tube welded



Motor



Stepper motor (servo or hybrid motors optional)



X Y Z



 X Y Gear rack,   Z ball screw


X Y Z ----- Square linear guide rails



Spindle  power



4.5kw water cooling   (bigger power / air cooled / Italian spindle optional)



 Working table



vacuum absorption



Dust collector



double bag type



Control system



Mach3



Working Speed



0-10,000mm/min



Working precision



0.05mm/300mm



Command code



HPGL, G code



Repeatability



0.01 mm



Power



AC220V/380v ±10% / 50~60Hz



Customize service


Machine specifications can be customized according to your needs.





Details image


Details of the cnc router :


Our stepmores machine use high quality parts, make sure long lifetime of the whole cnc router machine
Here is the Details of Wood ATC CNC Router











 750x600  DSP 750x750











Working samples


Applicable industry and materials of the atc cnc router :


Stepmores atc cnc router machine with high efficiency and accuracy for wood/MDF/acrylic, can be used for


cutting and engraving solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door,


cupboard door and window, beside cabinet, folding screen, ect.





1.Wooden door and furniture decoration industry:


Solid wood door, compound door, cupboard door, large area plank plane carving, wood carve designs,


board type furniture engraving, archaize annatto furniture engraving, solid wood art mural engraving and so on.





2.Wooden crafts processing:


Clock frame, picture frame, calligraphy plaque, electrical counter face, thin aluminum board cutting/engrving.





3.Electronic product industry:


Circuit board, insulation materials, the LED display, home appliance ( color TV sets, washing machines,


refrigerators) shell or model engraving and cutting.





4.Instrument industry:


Engraving instruments 3D surface, appearance cutting, such as cello, violin panel and head, guitar, erhu 3D


surface engraving and cutting.





5.Other industries:


The building model, the block, aviation block, propellers, car foam mold.





Sample show of the cnc router:


00








Certifications



CE certificated for stepmores cnc router machine


we promise the good quality for our machine with long lifetime,


our machine is cerificated by Ente Certificazione Macchine SRL as European quality, here is CE certification


CE certification 1000x1300





looking for agents from all over the world


We are cnc router OEM !


All of our CNC routers can be customized as your requirements.






Buyer Feedback





2 These days I learning to use the new router and I send pictures of my first works.


1. The model with large tank to send to exhibition  to airport.(600X900X200 mm)


2. Badges for wedding ceremony


Machine is working prefectly and I happy with this.----Bruno





01





3. we are very satisfied with your company and with your products.We believe that our market has a big


sales potential for your products. We would be interested in cooperation with your company in a long term


period.We would be happy to become an exclusive representative of your company in our country -----Aidrich





feedback11.16





4.  I have ordered my machine it is the SM variant of the CNC 3040, which has marginally better specs


than most.The machine comes powdercoated to stop oxidization from the factory.So far customer service has


been quite good via MSN & E-Mail and whats nice is the sales lady speaks very good english too!


 (which isn't very common for most cheap exporting chinese companies).


---Miguel (he is very satisfied with our machine quality and service and introduced many customers to us.


very thanksful to him )





customer feedback 04
