Metalizing arc spray gun for metal wire spray

Product information

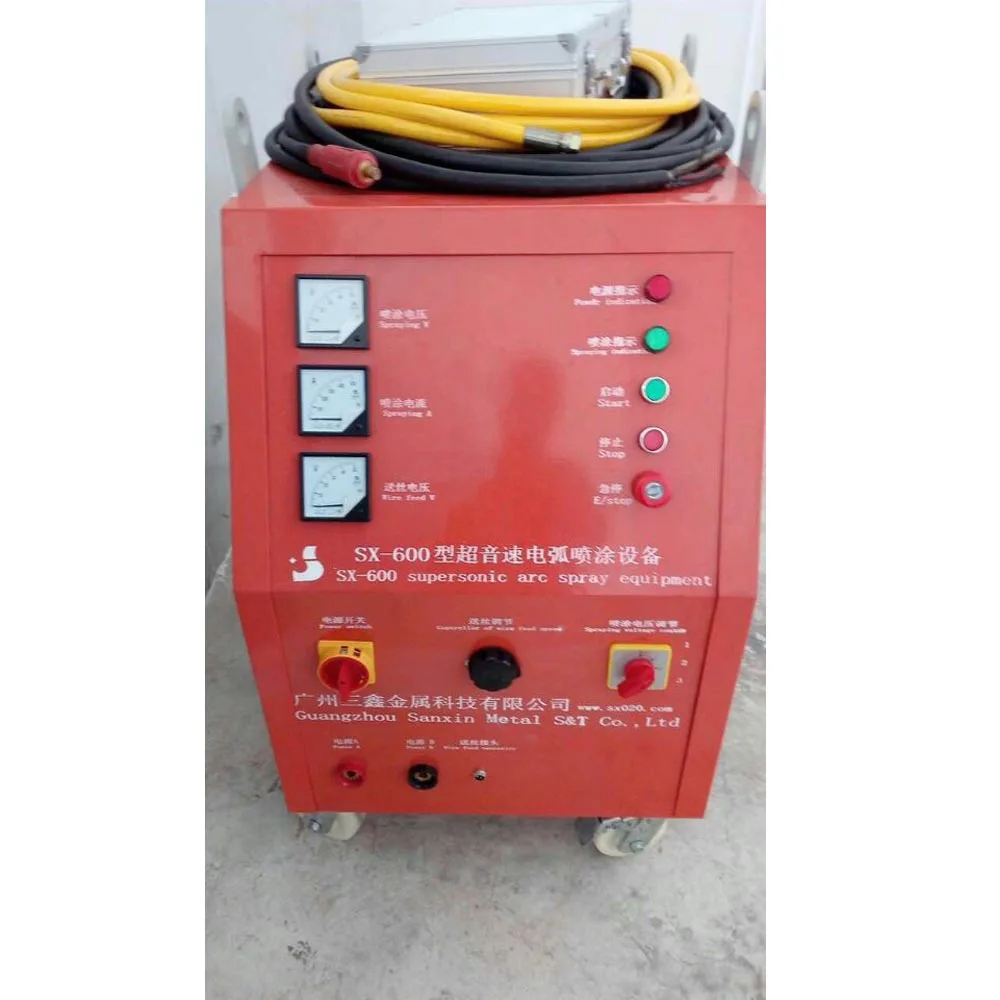

High velocity arc spray gun

Measurement: 460× 480× 670(mm)

The arc spray equipment integrates air control and electric control together to make the structure compact and operating simple. It's highly powerful and the current output distance can be above 100m. The DC voltage makes operation even safer and stabler.

The high velocity arc spray gun is a high effeciency and low power-consuming product, it integrates air control and electric control together so that the operating is more convenient and you can do aerial work in a long distance. The velocity of micro paticles can reach above 420m/s. The axial direction air speed can reach 600m/s. The deposition rate of coating is above 75%.

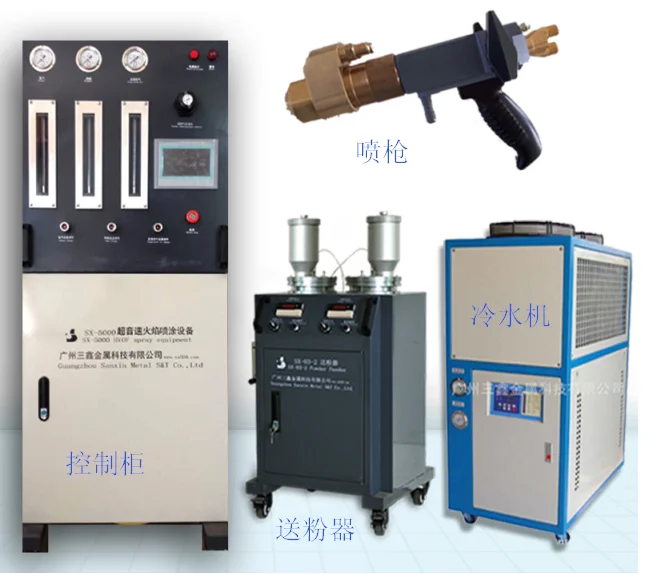

HVOF spray gun for part of metal powder spray





HVOF powder coating gun with manual and machine fixed way of operation. Coating  gases: oxygen and propane (C₃H₈). Weight: 2kg. velocity of spray particles: ≥450m/s. It can work a long time stably.



Parameters of powder spray gun









Number	Item	Parameter
1	Flame temperature	2700ºC
2	Spray particles velocity	500~600m/s
3	cooling	Water cooling
4	Cooling water-flow	9.5L/min
5	Coating porosity	<1%
6	Coating strength	>70MPa
7	Powder measurement	5-120μm
8	Fuel gas(C3H8)pressure and flow	0.65MPa 88L/min
9	Oxygen pressure and flow	11MPa  305L/min
10	Air pressure and flow	0.75MPa  440L/min
11	Nitrogen pressure and flow	1.2MPa 18 L/min
12	Hydrogen pressure	0.35MPa
13	Spray gun outside measurement	420×230×50
14	Spray gun weight	2.8Kg







Plasma spray gun for ceramic powder coating



Plasma spray gun Supply imitative METCO 9MB spray gun, main working gas is argon or nitrogen, assistant gas is hydrogen.



Working electric current: 100-800A.



Working voltage:



Ar+H2: 50-75V, N2+H2: 50-80V



1. Imitative 9MB machine-made gun



2. Imitative 9MB manual-made gun



3. Large-inner-hole spray gun



It can spray all kind of metal powder, such as ceramic, alloy powder.



Supply spray gun accessories: GH,G,GP,GE type spray mouth, powder feeding and cooling air jetting-shelf, water cooled cable, electrode tip, insulator, obturating ring, special purpose tools.

Also we can supply customer imitative F4 spray gun (machine-made or manual-made) and accessories such as water cooled cable, spray mouth, electrode tip, powder feeding shelf, powder feeding mouth, obturating ring and special purpose tools.
