Features and Benefits

• 3.5-inch TFT display,2 independent output channels
• 32 kinds of built-in pre-stored waveforms
• Minimum stable output waveform: 1mV(50Ω)
• Multiple modulation functions: FM, FSK, ASK, PSK
• Frequency sweep, amplitude sweep and burst functions
• Over voltage, over current, output short-circuit and reverse voltage protections
• Optional parts: RS232 interface, frequency counter, power amplifier

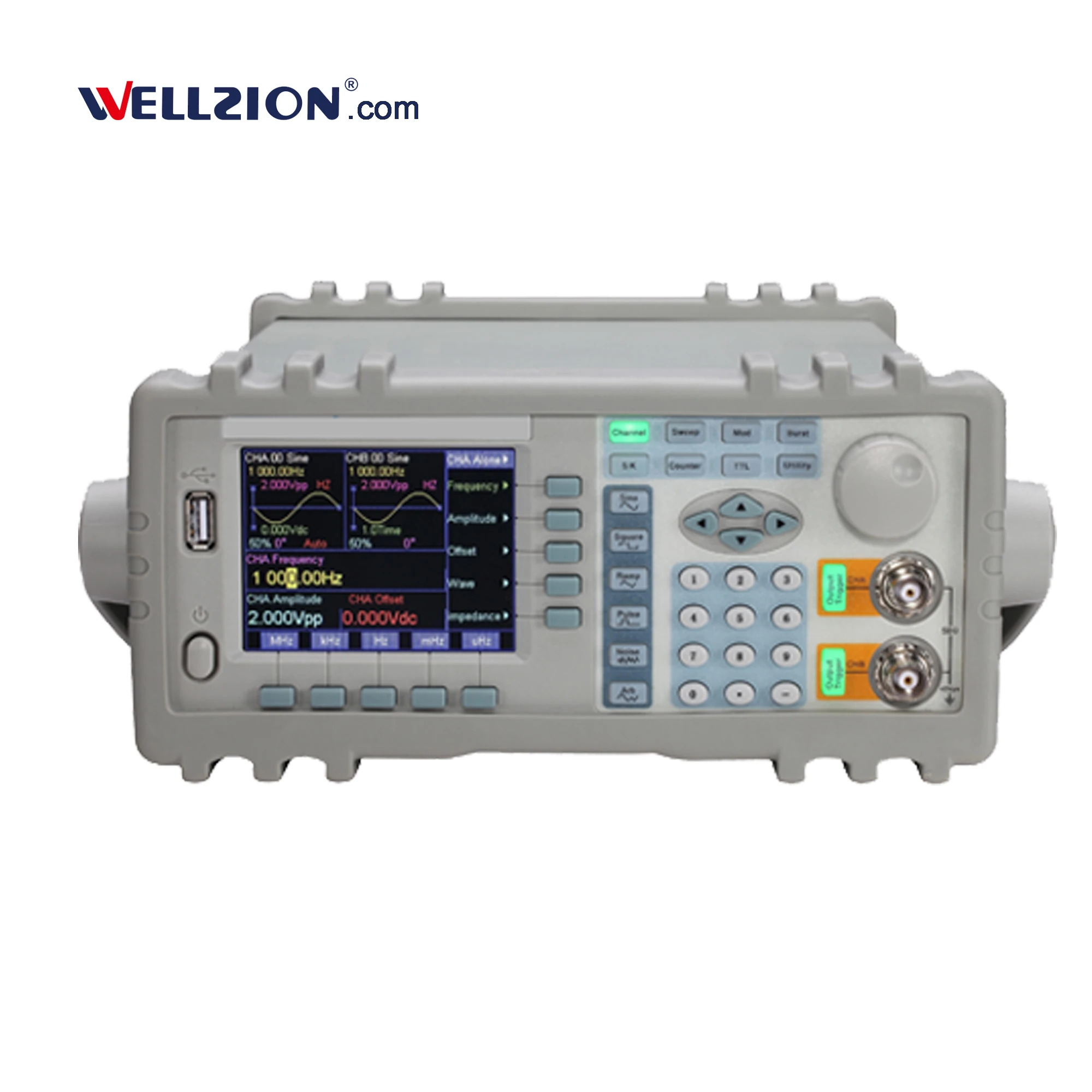

 MFG3005CH,5MHz Low Frequency Function Generator

Specifications



Output Characteristics of Channel A
Waveform Characteristics	Waveform Type		32 waveforms including: Sine, Square, Triangle, Ramp, Pulse etc.
	Wave Length		1024 points
	Waveform Amplitude Resolution		8bits
	Sample Rate		100MSa/s
	Sinusoidal Harmonic Rejection		≥ 40dBc (<1MHz),
			≥35dBc (1MHz~20MHz)
	Sine Wave Total Distortion		≤1% (20Hz~200kHz)
	Pulse Wave and Square Wave	rise or fall time	≤35ns
		overshoot	≤10%
	Square Wave Duty Cycle		1%~99%
Frequency Characteristics	Frequency Range	Sine	40mHz~5MHz
		Other waveforms	40mHz~1MHz
	Frequency resolution		40mHz
	Frequency Accuracy		±(5x10-5+ 40mHz)
	Frequency Stability		±5x10-6/ 3 hours
Amplitude Characteristics	Amplitude Range		2mVpp~20Vpp (high impedance)
	Resolution		20mVpp (amplitude>2V),
			2mVpp (amplitude < 2V)
	Amplitude Accuracy		±(1%+2 mVrms) (high impedance, RMS, frequency 1 kHz)
	Amplitude Stability		±0.5%/ 3 hours
	Amplitude Flatness		±5% (frequency<10MHz),
			±10% (frequency >10MHz)
	Output Impedance		50Ω
DC Offset Characteristics	Offset range		±10V (high impedance, attenuation 0dB)
	Resolution		20mVdc
	Offset accuracy		±(1%+20mVdc)
Sweep Characteristics	Sweep Range		Free to set the start and stop points
	Sweep Step		≥ any value of the resolution
	Sweep Rate		10ms~60 s/step
	Sweep Mode		Up, Down, Up-Down
	Manual Sweep		step/time
Modulation Characteristics	Carrier signal		channel A signal
	Modulation Signal		internal signal of channel B or external signal
	FM Deviation		0%~20%
Shift Keying Characteristics	FSK		free to set carrier frequency and hop frequency
	ASK		free to set carrier amplitude and hop amplitude
	PSK		hop phase 0~360°, max.resolution 1°
	Alternative rate		10ms~60s
Burst Characteristics	Carrier signal		channel A signal
	Trigger signal		TTL_A signal
	Burst count		1~65000 cycles
	Burst mode		Internal TTL, External, Single
Output Characteristics of Channel B
Waveform Characteristics	Wave Type		32 kinds of waveforms, like sine, square, triangle, sawtooth, ladder etc.
	Wave Length		1024 points
	Waveform Amplitude Resolution		8 bits
	Sample Rate		12.5MSa/s
	Square duty cycle		1%~99%
Frequency Characteristics	Frequency Range	Sine	10mHz~1MHz
		other waveforms	10mHz ~ 100kHz
	Resolution		10 mHz
	Frequency Accuracy		±(1x10-5 +10 mHz)
Amplitude Characteristics	Amplitude range		50mVpp~20Vpp (high impedance)
	Resolution		20mVpp
	Output impedance		50Ω
Burst Characteristics	Carrier single		channel B signal
	Trigger signal		TTL_B signal
	Burst count		1~65000 cycles
	Burst Mode		Internal TTL, External, Single
TTL Output Characteristics
Waveform Characteristics			square wave, rise or fall time ≤20ns
Frequency Features			40mHz~1MHz
Amplitude Characteristics			TTL, CMOS compatible, low level <0.3V, high level >4V
Common Characteristics
Dimension and Weight	Chassis Dimensions		415mmx295mmx195mm
	Weight		3.5 kg
