Конструкция кабельного лотка-кабельный

Vichnet China is located in the port city Ningbo. Vichnet wire mesh cable trays are exported to more than 100 countries. Vichnet is a leading manufacturer of wire mesh cable trays in China.

Our company have ISO9001:2008 and GMC. Wire mesh cable trays have UL, CUL, CE certificates and passed Rohs, loading capacity, welding strength etc. tests.

Material:

Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L

Surface Finish:

Electro zinc plated wire mesh cable trays  – for indoor use to BS EN 12329-2000, 12microns thick.

Powder coated wire mesh cable trays  - for indoor use to JG/T3045-1998, between 60 and 100 microns thick

Hot Dipped Galvanized wire mesh cable trays  – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing wire mesh cable trays  – for stainless steel use

Dimensions: (Available for customized)

Wire mesh cable trays dimensions are all internal size.

Wire mesh cable trays are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.

Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...

Widths: 50~1000mm.

Length: Maxiun 3000mm

Wire Diameter:  3.5~ 6.0mm

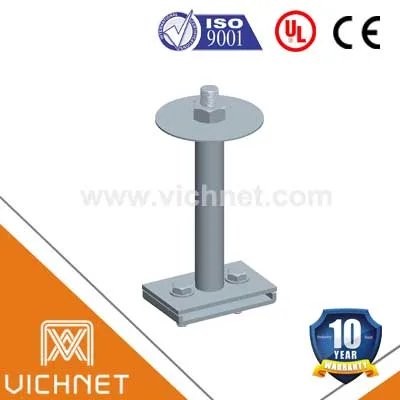

Description:

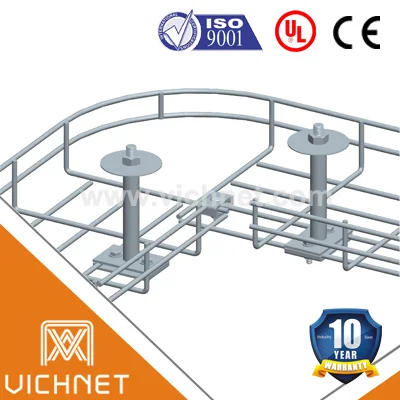

Apply to: Support trays on wall

Fit for: Diameter of wire from 3.50mm to 6.0mm,Width from 100mm to 900mm

Include: Unit x1(bolt and nut optional )

Feature: For all size of trays
