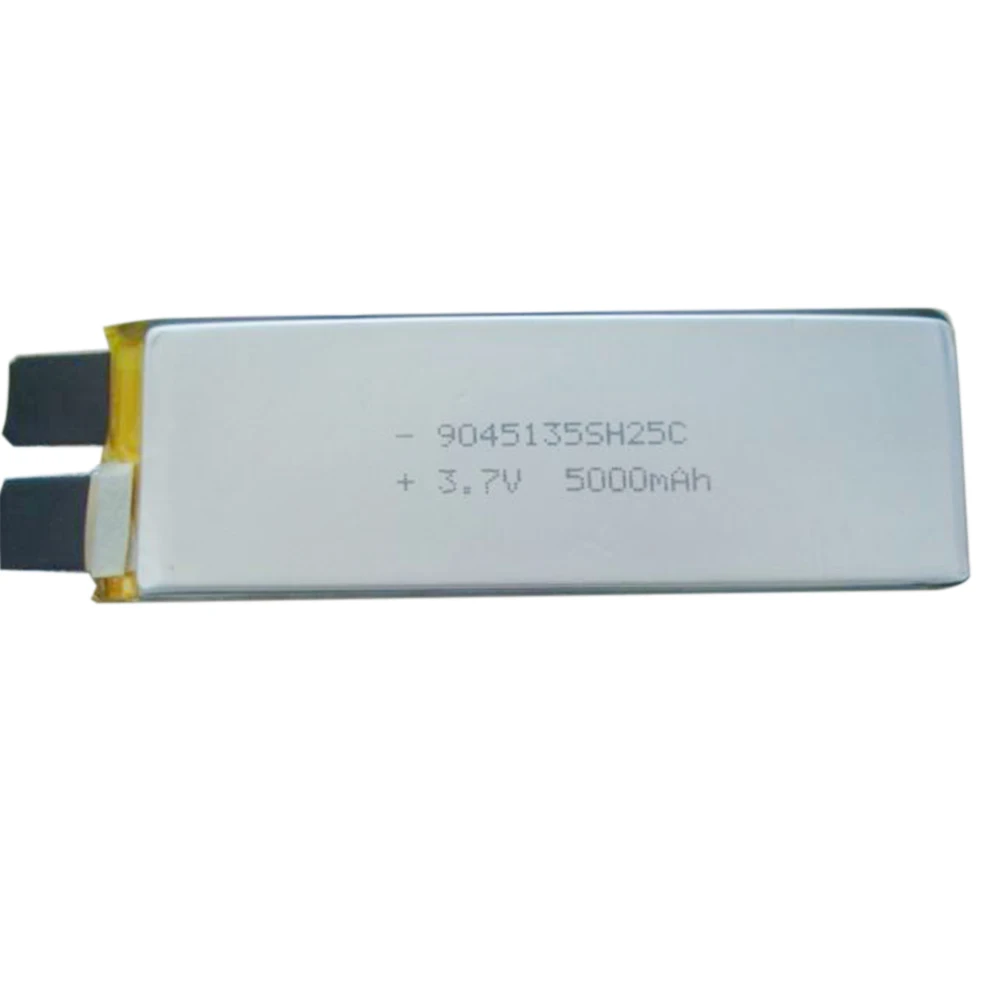

li-po RC high discharge 25C 3.7V 5000mAh GEB9045135  UAV quadcopter battery Cell



Description



No.	Item	Characteristics	Remarks
1	Nominal Capacity	Minimum: 5000mAh Typical: 5050mAh	Fully charged @1C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C.
2	Nominal Voltage	3.7V
3	Charging Cut-off Voltage	4.20V
4	Discharge Cut-off Voltage	2.75V
5	Max. Charging Current	5000mAh(1C)
6	Max. Discharging Current	125A(25C)
7	Operating Temperature	Charge     0~45℃ Discharge –20~60℃
8	Storage Temperature	-20~45℃ for 1Month -20~35℃ for 6Months
9	Impedance	3mΩ	Maximum value
10	Weight	85 g	Approximate value



























We have polymer LiFePO4 high-rate 25C, 30C cells, capacity from 650mAh to 20Ah, most reliable safety and longest cycle life lithium battery.

We also produce many high rate models of Li-polymer battery cells, such as 3C, 5C, 10C, 15C, 20C, 25C, 30C, 35C, 40C, 50C, capacity from 40mAh to 6000mAh. We can make different battery packs with 7.4V, 11.1V, 14.8V, 18.5V, 22.2V, etc. For RC applications and other products.





Lipo battery Key Features:
1. High energy density and extremely light
2. Up To 170Wh/Kg gravimetric & 370Wh/l volumetric energy density are available.
3. High design capability & size flexibility.
4. Long cycle life.
5. Over 500 charge/discharge under nominal operations.
6. For maximum discharge performance in high-rate discharge,   discharge temperature range 20~30 is recommended.
7. Excellent high discharge rate
8. Continuous discharge rate up to 5C-15C, burst discharge rate up to 15-20C
9. Extra-low internal impedance.
10. Superior leakage resistance and extremely safe.





Major Applications:
1. Air Soft Gun, Paintball Gun
2. RC Models, RC Airplane ,RC Car, RC Helicopter ,RC Hobby
3. Indoor Helis, Indoor UFP
4. Robot, Toys
5. Micro Slow Flyers, Park Flyers
6.3D airplanes Aerobatics
7. Wireless communication system
8. Electric Tools
9. Hospital instrument
10. UPS aero model
11. Military use











Tips:



We can customize the battery as per your request. So if you can’t find the battery you need, please feel free to inform me your requirements, we will offer you the highest quality products and best service.
