Product Description

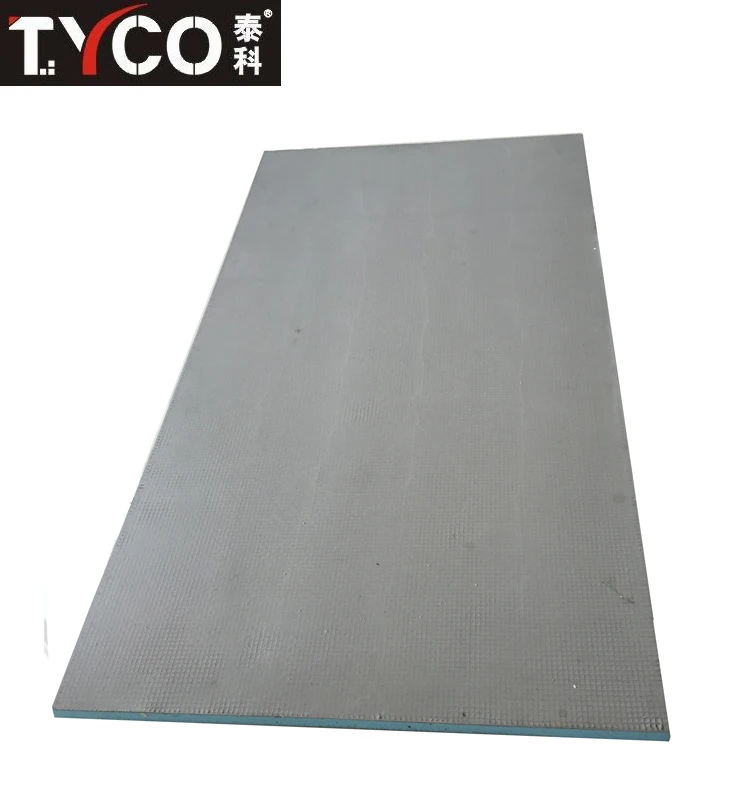

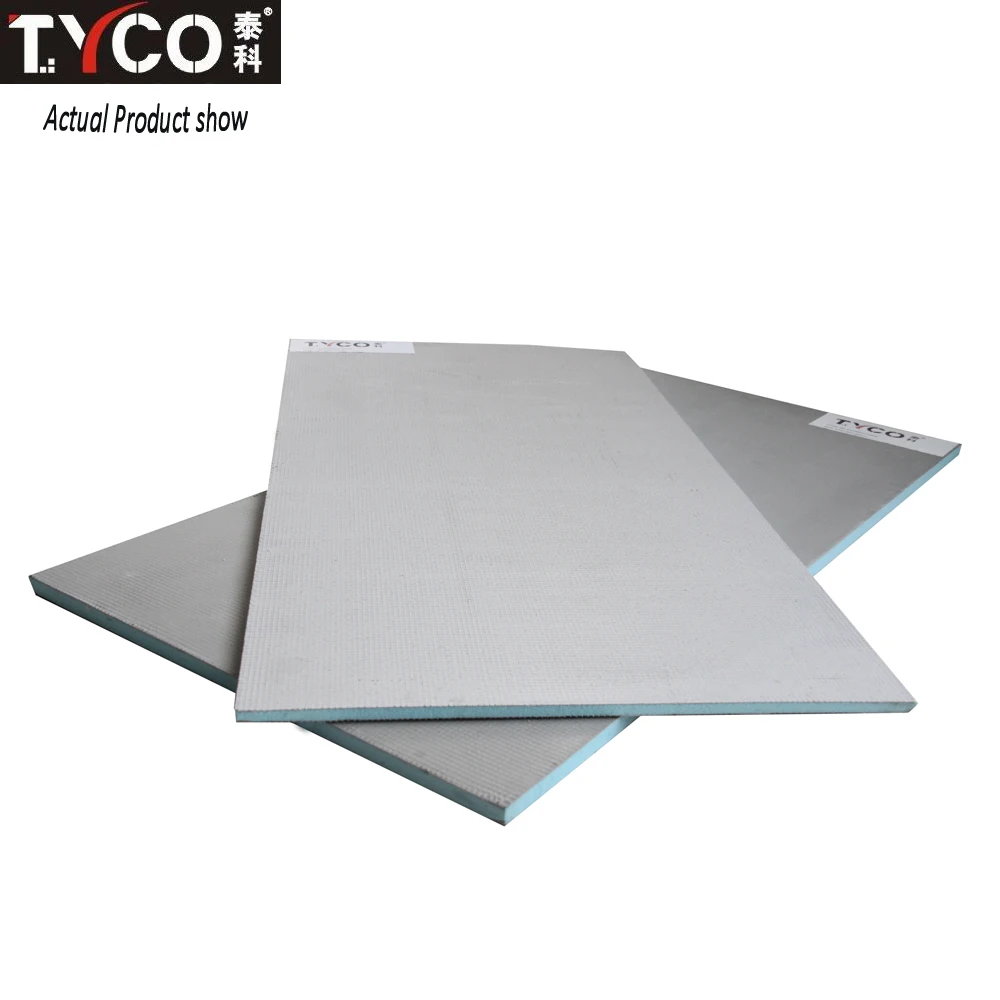

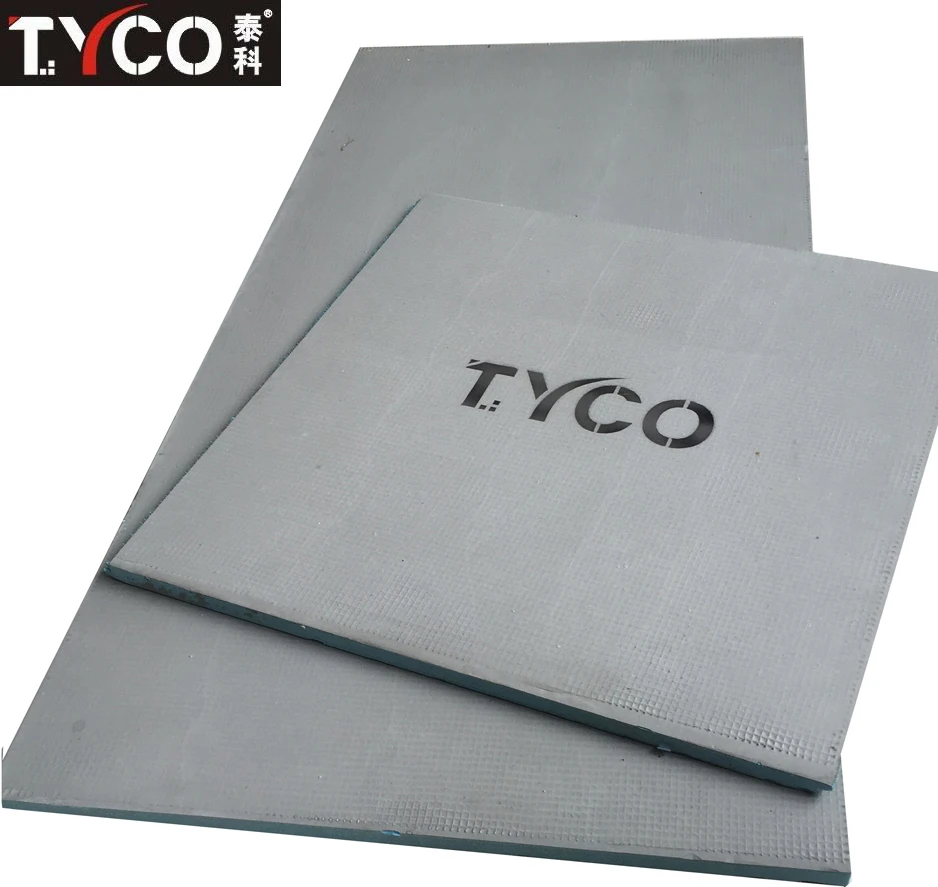

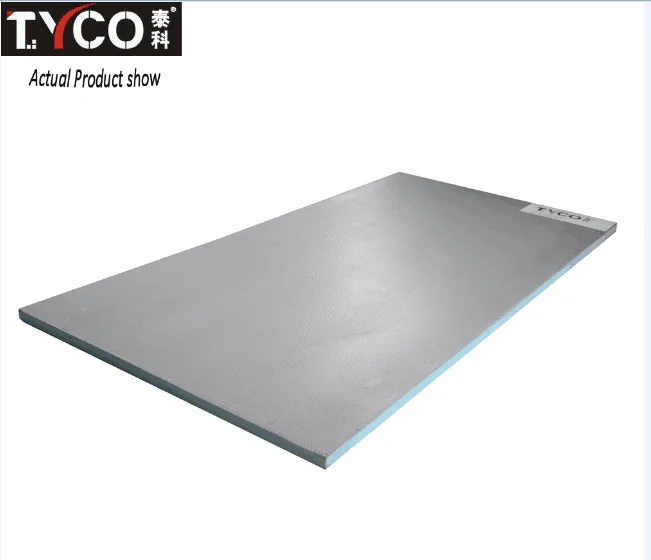

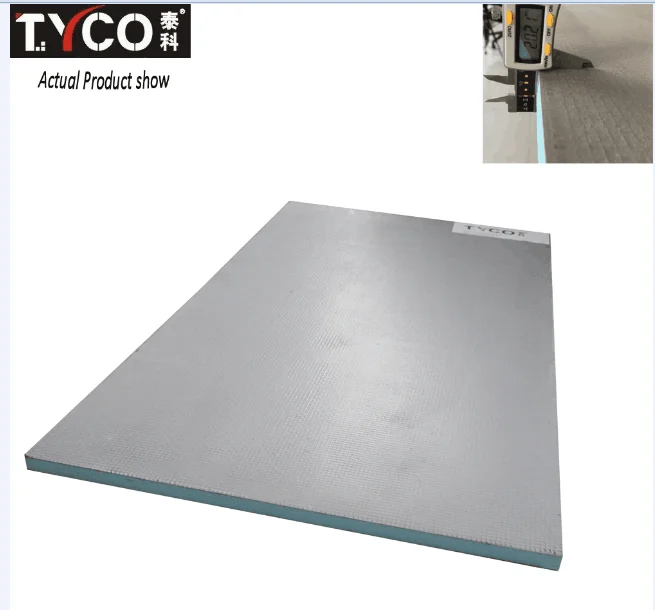

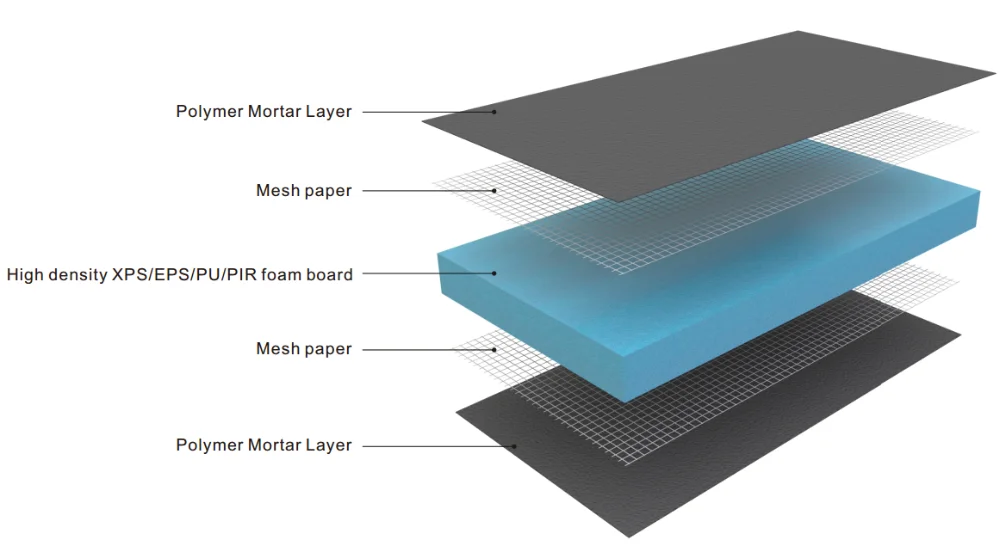

CE approved Hardibacker board is water resistant insulated tile backer board made of extruded polystyrene, faced on both sides with a fiberglass mesh embedded into a thin cement polymer mortar.

They are widely used in the under floor heating system as a structural tile backer boards. Hardibacker board also can be used in the floor, wall and ceiling by acting as a very efficient moisture and thermal barrier.



Characteristics:

• Waterproof and dimensionally stable
• Low weight, one board(1200*600*10mm) is around 1.8KG
• Easy to cut(by knife or Saw)
• Excellent for wet rooms
• Excellent sound insulation(12mm board, 20 db)
• Environment friendly(free of CFC and HCFC)
• Easy to be tiled



Color and Surface:







Available Sizes:

Thickness	Width	Length
4mm	600mm	1200/1250mm
6mm
8mm
10mm	600mm	2440/2500/2600mm
12mm
20mm	600/1200mm
30mm
40mm
50mm
60mm
70mm
80mm

Other sizes could be produced accordingly



Technical Data:

		XPS
Density of core board	Kg/m3	38
Thermal conductivity, 90 days, 10°C	W/mK	0.03~0.036
Compressive strength at 10% deflection or yield, (vertical)	kPa	≥250
Tensile strength	kPa	≥250
Water absorption	Vol-%	<=1.00%
Capillarity	nil	nil
Coefficient of linear thermal expansion	mm/mK	0.07
Temperature limits	°C	-50°C, +75°C





Production line:



Packing and loading:





Application:



                                  Hardibacker board in wet room





                               Application in floor heating system





Installation of Hardibacker board :





For more installation details, please visit TYCO’s website.





Accessories:





Factory and Warehouse:





TYCO in Exhibition



Certificates:
