Трехшарошечные сверла oill TCI 8 дюймов 1/2 дюйма в наличии для

Трехшарошечные сверла oill TCI 8 дюймов 1/2 дюйма в наличии для

Категория: >>>
Поставщик: Hejian,Deris,Petroleum,Drilling,Equipment,Co.,Ltd.

Цена:900,00 $ - 948,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	1071.76 $*	1125.20 $*
Aug-19-2025	1062.67 $*	1115.84 $*
Jul-19-2025	891.36 $*	936.21 $*
Jun-19-2025	1044.27 $*	1096.69 $*
May-19-2025	909.96 $*	954.65 $*
Apr-19-2025	1026.45 $*	1077.17 $*
Mar-19-2025	1017.62 $*	1068.75 $*
Feb-19-2025	1008.95 $*	1058.39 $*
Jan-19-2025	999.79 $*	1049.33 $*

Характеристики

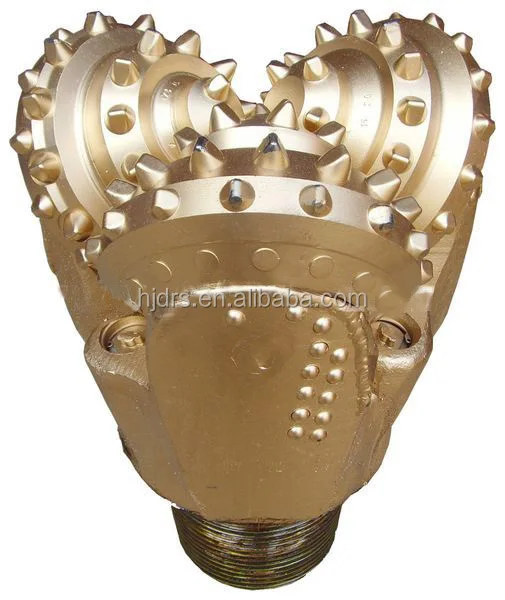

8 1 /2 " oill rotary TCI drilling bits in stock for water well drilling

Product Description

What Is Tricone Drill Bit?

Tricone Drill Bit is an ideal solution from soft to hard rock formations, it is connected with the drill stem and rotates along with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air. Tricone bits come in several different varieties, and can deal with a wide range of different rock formations. It is important to know the type of formation you are drilling in when selecting a drill bit.The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.

Drill bit parameters		application
Tri-cone bits type	8 1/2"	Soft to medium formations with low compressive strength, such as medium soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasiver interded, etc.
IADC	537
WOB(KN/mm)	0.45-1.05
RPM(r/min)	110-40	Note: the maximum value of WOB and RPM in this table can not be adopted at the same time.
API Pin Connection	4 1/2" Reg pin

tricone-bit

Advantage of our products:

1)Fast drilling rate

2)Strong cutting structure durability

3)be used for water well, oil field, underground, construction, geothermal, directional boring

4)Be used to drill low compressive strength,soft formation

5)various of model and dimension avaliable

6)rubber seal or metal seal

7)high quality and competitive price

8)including drill rods,drill collar,rerun steel tooth bits, ,used drill bits stock,used mud pumps,etc

Quality Control

In manufacturing, each process goes through an extensive and painstaking testing , quality control is a process that ensures customers receive products free from defects and meet their needs.
1, Raw material selection:To make a good drill bit, it is necessary to select the best material and gate keeping the quality of the material. We purchase the high-quality steel and strictly control the material composition and size, it main includes the detection of the shape, diameter, reamed diameter, length composition, and flaw of the raw material, Tungsten Carbide and Grease are also the best raw materials on the market.Besides, we marked every different piece of materials before transferred to the warehouse.
2, In strict accordance with the ISO9001 international standards for production.
Carefully control every step of the production, complete each of the production process, the production process is including blanking, forging, rough turning, heat treatment,fine turning, quenching, assembling, welding,
painting, then storage. Each working process was full inspected, after the qualification, then move to next working process, which to ensure the 100% qualified rate.
3, Sampling observation, numbered, packing and arrange the shipment.

1.Pre-sale service:

Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .

1.Select equipment model.
2.Design and manufacture products according to client's special requirement ;
3.Train technical personnel for clients .
2.Services during the sale:

1.Pre-check and accept products ahead of delivery .
2. Help clients to draft solving plans .
3.After-sale services: Provide considerate services to minimize clients' worries.
3.Complete After-sales service,
1.professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service. We are factory direct sales, large inventory, fast delivery, high quality.

relatde products

We mainly provide Tricone Bits(Rock Drilling Bits), DTH Bits and PDC Bits for mining rock drill , water well drilling and oil welldrilling.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
1). Tricone Bits:
a). Type: Tungsten Carbide Insert (TCI)
b). Formation Application: Soft to Hard Formation
c). Size Available: 3''~26''
d). Popular IADC Code: IADC545,645,725,735,745,825,835
2). DTH Bits:
a). Type: Tungsten Carbide Insert (TCI)
b). Formation Application: Soft to Hard Formation
c). Size Available: 2.8''~26''
d). Popular IADC Code: IADC117/137, 217/237, 317/337, 417/437, 517/537, 617/637
3). PDC Bits:
a). Type: Matrix Body and Steel Body
b). Formation Application: Soft to Hard Formation
c). Size Available: 3 1/2''~26''
d). Popular IADC Code: 121/122/123, 221/223/224, 323/324/332/333/334/343,
423/424/432/433/443

Working principle

1) Revolution of drill bit The revolution speed of the drill bit is the rotation speed of the turntable or the
down hole power drilling tool. When the drill bit revolves, the cone also rotates around the axis of the drill bit. The linear speed of each row of teeth on the cone rotating around the axis of the drill bit is different, and the linear speed of the outer row of teeth is the largest.

2) Rotation of the drill bit When the drill bit rotates, the counterclockwise rotation of the cone
around the axis of the tooth palm is called auto rotation. The rotation speed of the cone is determined by the revolution speed of the drill bit, and is related to the effect of the teeth on the bottom of the well.
3) Longitudinal vibration (axial vibration) impact crushing of the drill bit The change of the position of the wheel center makes the drill bit reciprocate up and down along the axial direction, which is the longitudinal vibration of the drill bit, which is related to the drill bit structure parameters such as tooth height and tooth spacing and lithology. Soft strata have small amplitudes, while hard strata have large amplitudes. The vibration frequency is proportional to the number of teeth and the speed of the cone.
4) Sliding shear breaking action of drill bit Crushing different types of rock requires different slippage of the drill bit, which is determined by the structural parameters of the drill bit. In soft formations, bit slippage is large, and in hard formations, it should be as small as possible or not slipped.

Packaging & Shipping

Deris special wooden case packaging, equipped with high-quality shackle device, convenient for the extraction and installation of the bit; The special suspension design can better guarantee the safety of PDC bit crown composite during transportation.

Package deris bit QQ20141011175533
