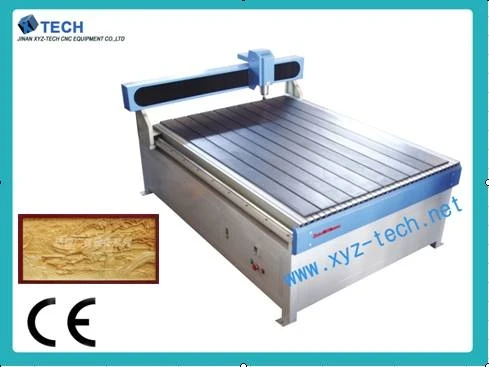

High quality stone cutting machine for marble and granite XJ1218



Parameters:

Description	Parameters
Model	XJ1218
X,Y,Z working area	1200*1800*80mm
X,Y structure	Rack and pinion transmission
Z structure	Imported ball screw
Spindle power	1.5/2.2kw constant power water-cooling spindle
Spindle rotating speed	0-24000rpm/min
Max. Running speed	25mm/min
Max. engraving speed	10mm/min
Processing precision	0.05mm
Reposition precision	0.02mm
Motor	Stepper
Work voltage	AC380V/50Hz
Command language	G code
Software running environment	Windows98/2000/XP
Operating system	DSP control system
Software	Ucancam / Type3 / Artcam
Weight	460kg
Packing size	1900*2040*1500mm



Technical Features:

1.The machine in iron-cast frame, strong and never out of shape.

2.High power water-cooled brushless motor make it more forceful in cutting capability and wear well

3.High compatibility,applicable for CNC software: type3,Artcam, Castmate, Pore, Wentai, varibleCAD/CAM etc.

4.High speed drive, stepper motor could help enhance work efficiency.



Guarantee&Aftersales service:

guarantee for one year

24 hour technical support by email or calling

user friendly English manual and Video CD for machine using and maintaining





For more informations, please contact us directly !
