Product Description

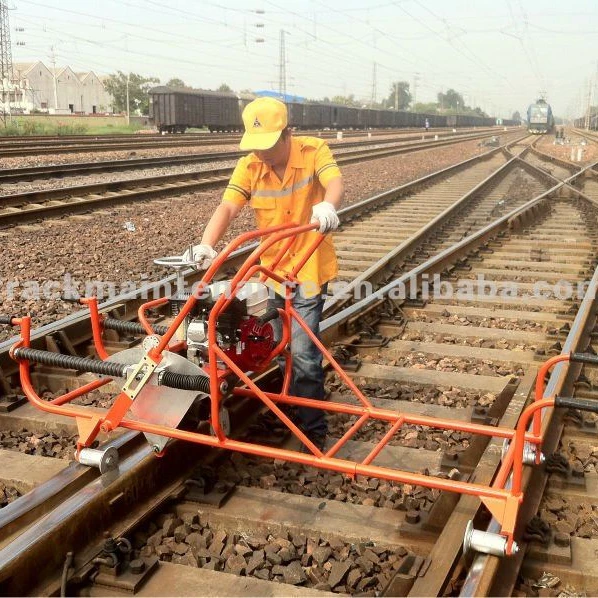

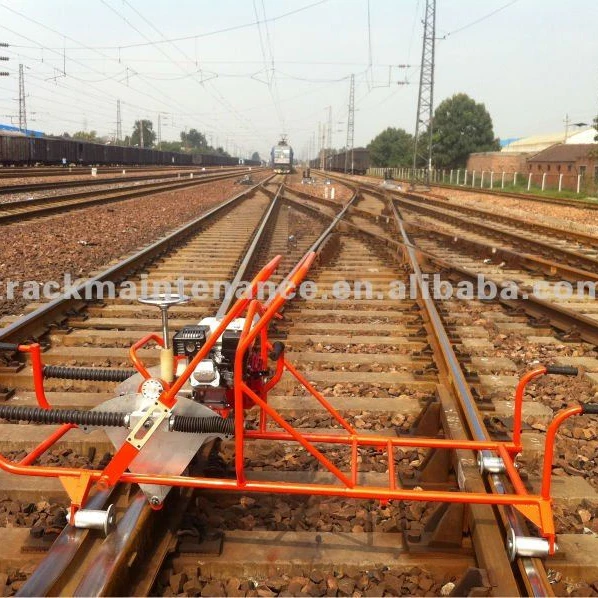

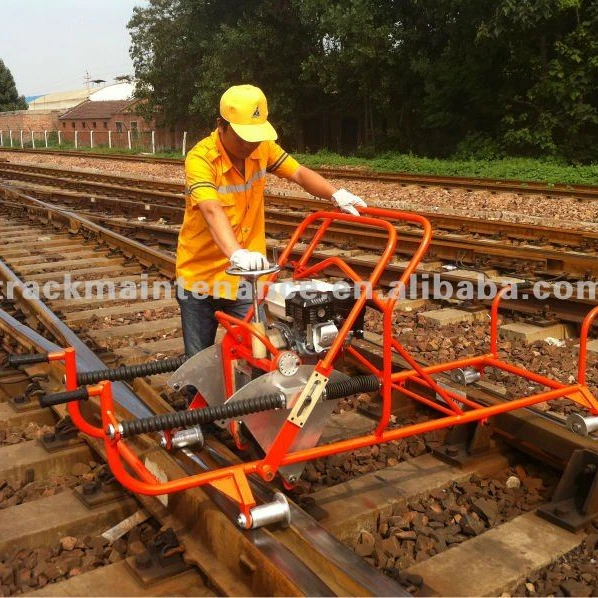

 NCM-4.8 Internal Combustion Turnout Rail Grinding Machine


Application:




It is mainly used to polish the defects of the rail ends and the overlap on the bifurcation point of the rail, also can be used to grind the flash burrs of the rail edge.


Feature:
1.Grinding device can be adjust freely in five directions, the directions are: moving along with the X axis, Y axis, Z axis and turning around with Y axis and Z axis.
2.The telescopic brackets device can be adapted to different gauge of operation.H56dad384c62a4454a8593fa87b4584dcq.jpg
3.The walking rollers are made of insulation materials. Ensure that the equipment body is insulation from the track.
4.The feed rates of grinding wheel can be adjusted accurately, which is convenient for operation.









product paramenters


Main technical parameter:




1. Engine type: GX200   Engine power:4.8kw /3800 rpm.
2.The matching grinding wheel’s overall dimension(external diameter×bore diameter×thickness):φ260×φ120×25(mm).
3.Output shaft speed:3500 rpm.
4.overall dimension(long×wind×high):2250×780×850(mm).
5.Machine weight:100 kg.


 NCM-4.8 Internal-Combustion Turnout Rail Grinding Machine (7)NCM-4.8 Internal-Combustion Turnout Rail Grinding Machine (1)NCM-4.8 Internal-Combustion Turnout Rail Grinding Machine (2)paste-pic-dp_uuid_vzfe4



Company Information


                Our Company Informationpaste-pic-dp_uuid_av1bc_07_08





FAQ





Q: What is the payment terms?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the jaw crusher?
A: Most model are in stock, can delivery within 10 days.
Q: How long will the shipment takes? (roughly)
Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
