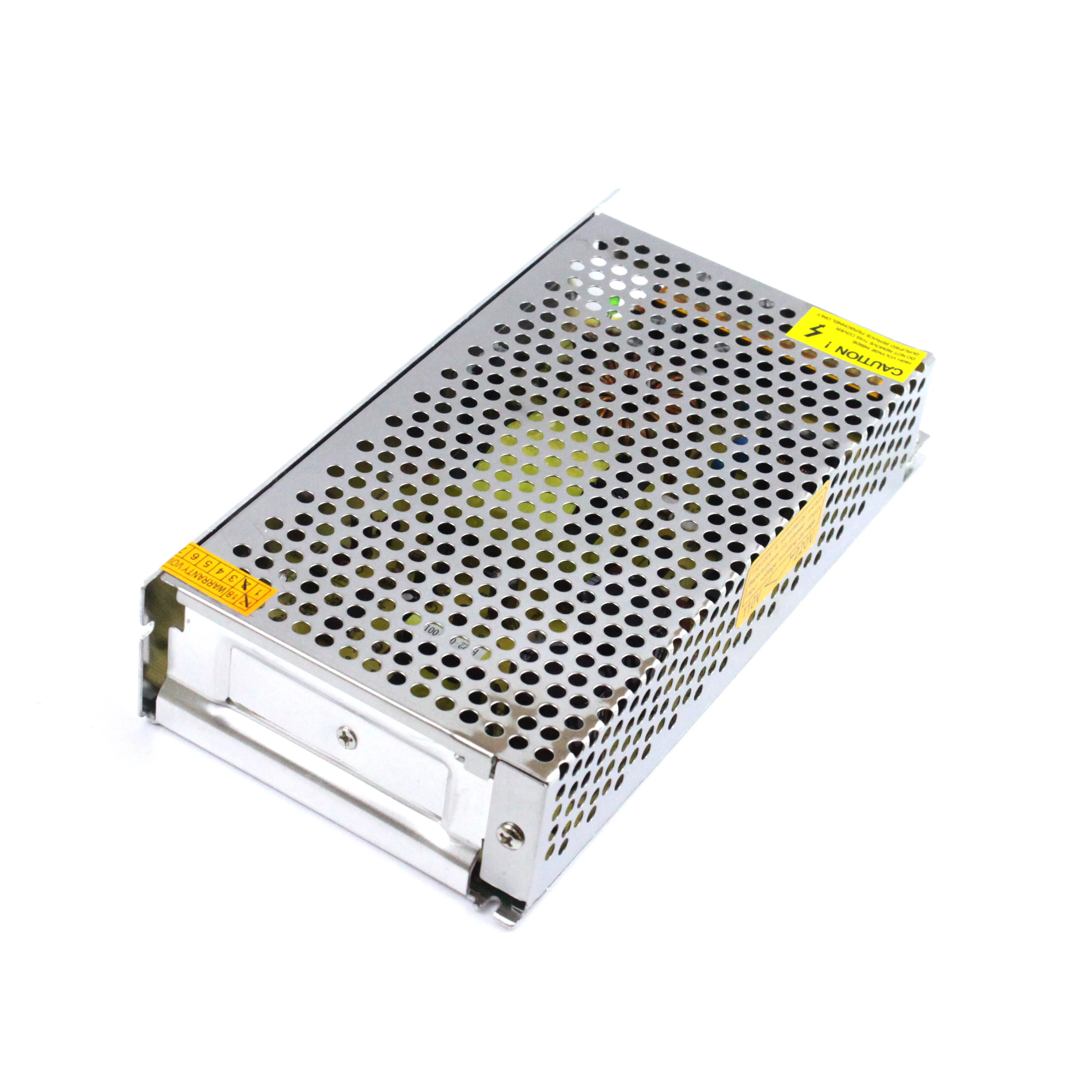

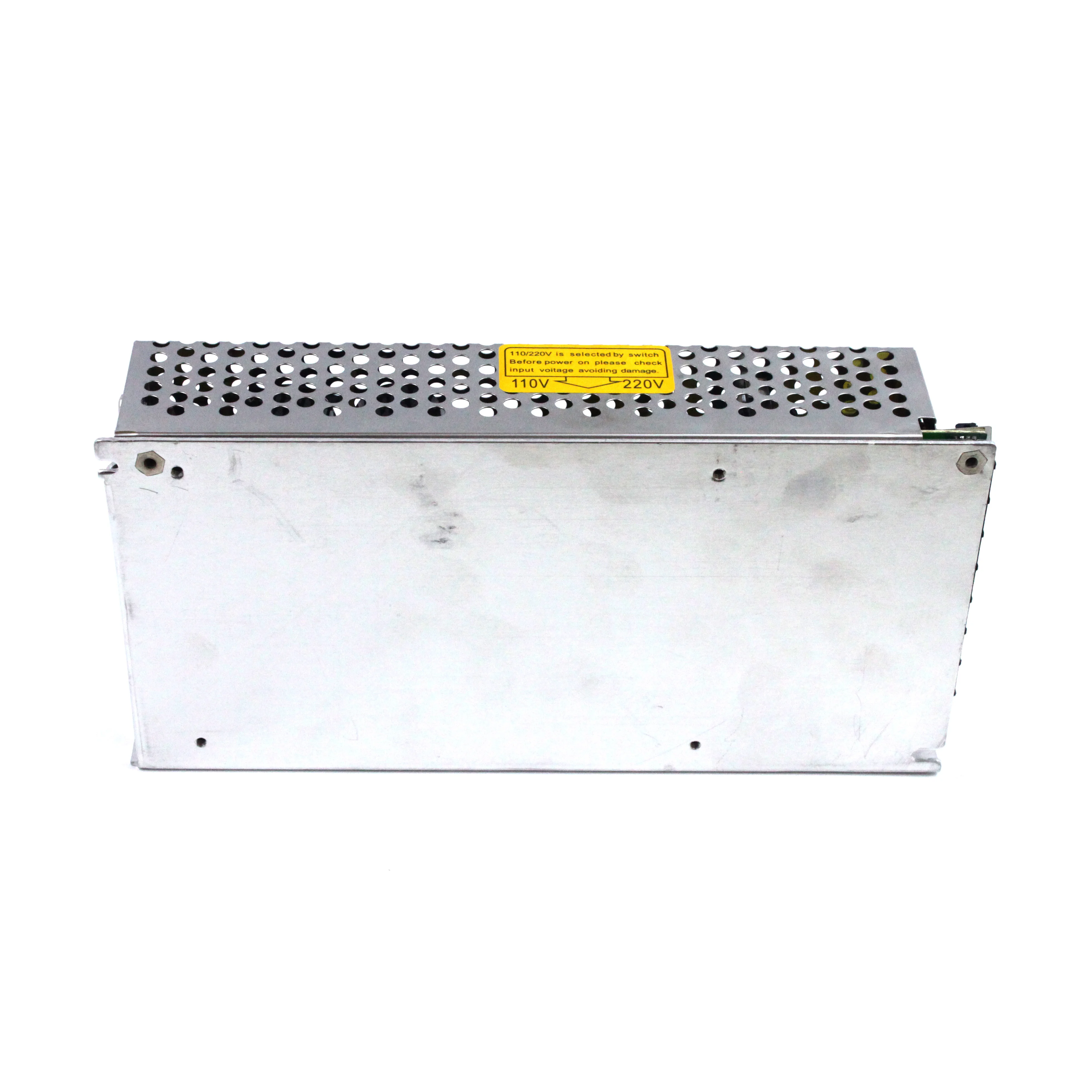

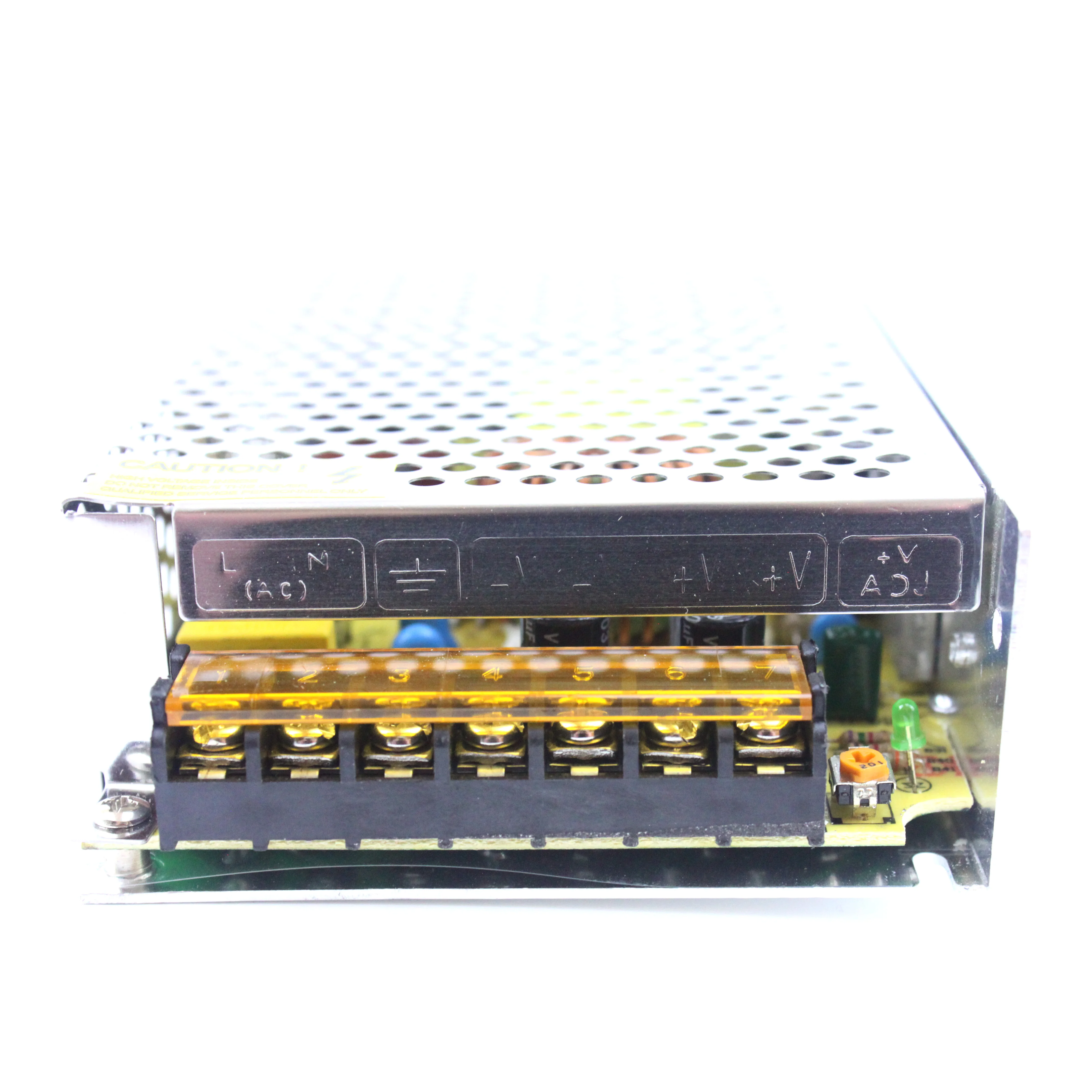

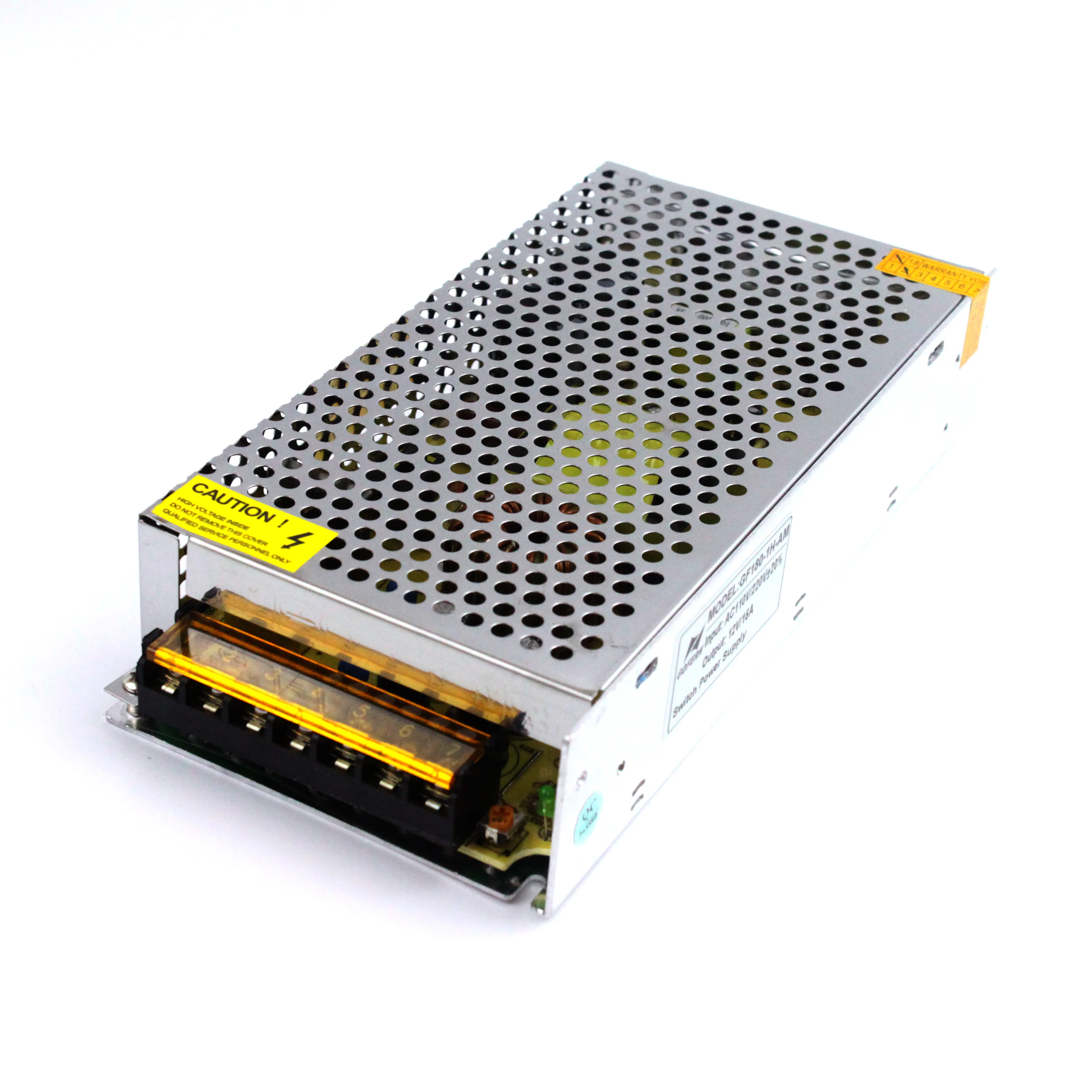

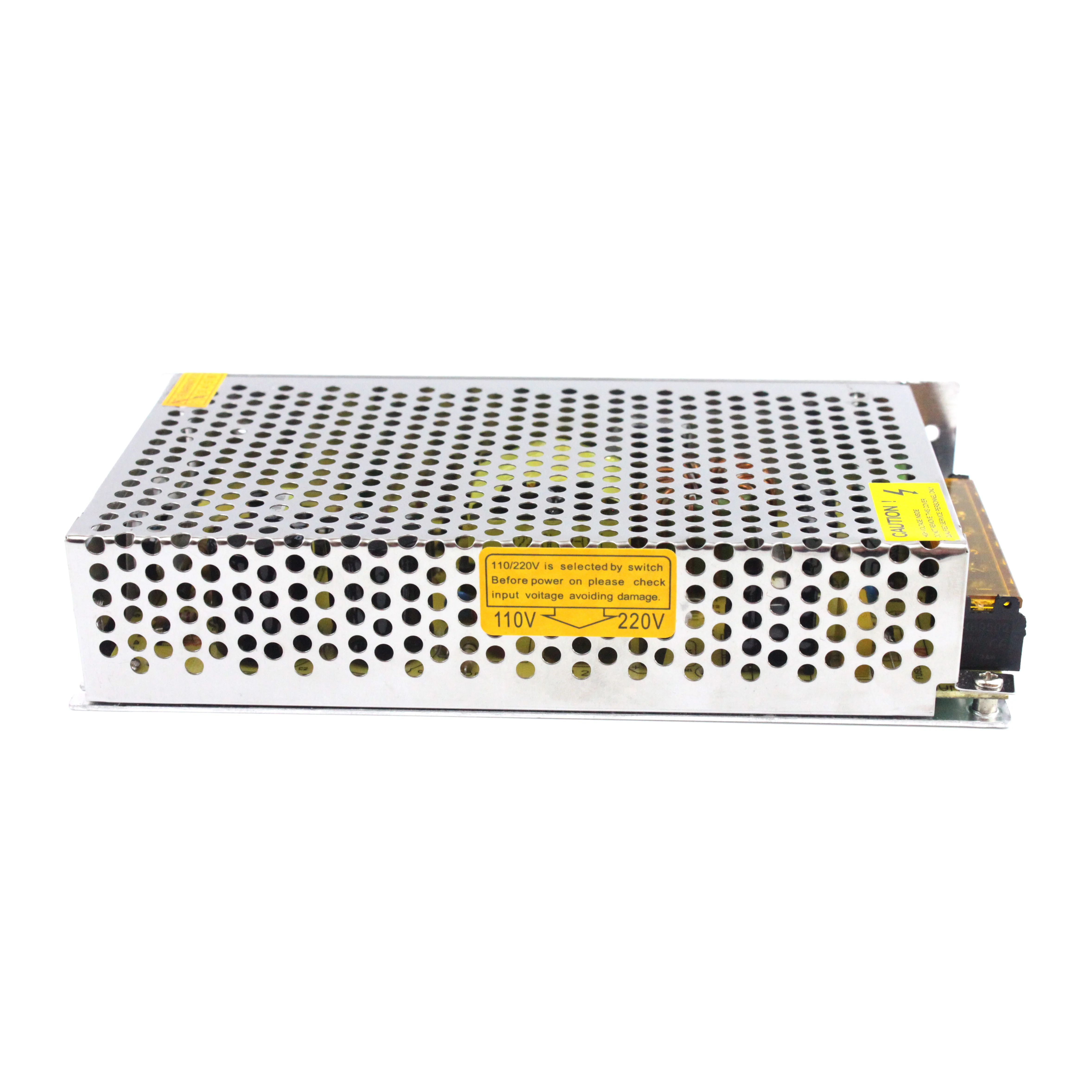

150W 36V 4A switching power supply AC DC transformer LED driver

MODEL		GF150-1L-DM
OUTPUT	DC VOLTAGE	36V
	OUTPUT POWER	150W
	CURRENT RANGE	0-4A
	RIPPLE & NOISE(max.)	120mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	86 ~ 264VAC
	AC CURRENT(Typ.)	3A/ 115VAC    1A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC   30A/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the  automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-10°C ~ +45°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20°C ~ +85°C 10~95% RH
	TEMP. COEFFICIENT	±0.05%/°C
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	SAFTY STANDARDS	CE EN60950-1 Approved
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	EMI CONDUCTION	Compliance to EN55022
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN55024
OTHERS	DIMENSION	L198*W98*H42MM
	WEIGHT	0.545Kg,30PCS/Carton
	SHELL MATERIAL	Chassis:1.5mm thickness aluminium;Cover:0.7mm thickness iron (silver plating)



MOQ-

No limited



Many power models-

5 Watts - 1800 Watts



Many voltage output-

5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).



New Design-

We have professional engineer to make new design as your speical requirment.



Good quality-

We have the best professional and experienced engineer and the strict QC system.



Fast delivery-

The delivery time is 1-25 days which depend on quantity and details items.



Payment term-

T/T, L/C, Paypal, Western Union, Money Gram.



Solutions-

With more than 10 years experience,we can provide professional design solution for power supply according your requirement.



Cooperation-

You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
