Вертикальный винт для машины литья под давлением. Hitian держатель MA2700F MA3000F MA3800F MA4500F/980 производитель
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Zhoushan,OSD,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.72 $* | 0.22 $* |
| Aug-20-2025 | 0.92 $* | 0.8 $* |
| Jul-20-2025 | 0.88 $* | 0.12 $* |
| Jun-20-2025 | 0.79 $* | 0.41 $* |
| May-20-2025 | 0.74 $* | 0.80 $* |
| Apr-20-2025 | 0.13 $* | 0.22 $* |
| Mar-20-2025 | 0.85 $* | 0.23 $* |
| Feb-20-2025 | 0.89 $* | 0.15 $* |
| Jan-20-2025 | 0.82 $* | 0.19 $* |
Характеристики
Company Profile
Hello friends~
We manufacture and offer the best quality of screws and barrels for Injection Molding machines.
We provide professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
Our bimetallic screws and barrels could let you use more time for processing.
We can offer with these models and others models, please just contact with us for confirming the details :)
We manufacture and offer the best quality of screws and barrels for Injection Molding machines.
We provide professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
Our bimetallic screws and barrels could let you use more time for processing.
We can offer with these models and others models, please just contact with us for confirming the details :)
Contact us
Company name | ZHOUSHAN OSD MACHINERY CO.,LTD. |
Address | No.22 Xingong road, Ligang, Dinghai, Zhoushan, Zhejiang, China |
Email, skype | sales3@oushengda.com |
Telephone number / Fax number | +86-0580-8053003 / +86-0580-8052186 |
Whatsapp | +86-19822807019 |
Wechat | osdscrews |
Sales manager | Ms Jessie Chan |
Website | www.oushengda.com |
Products Description

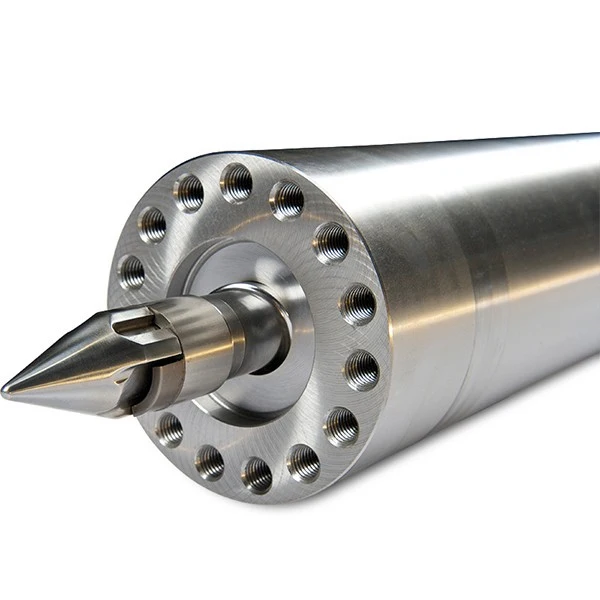

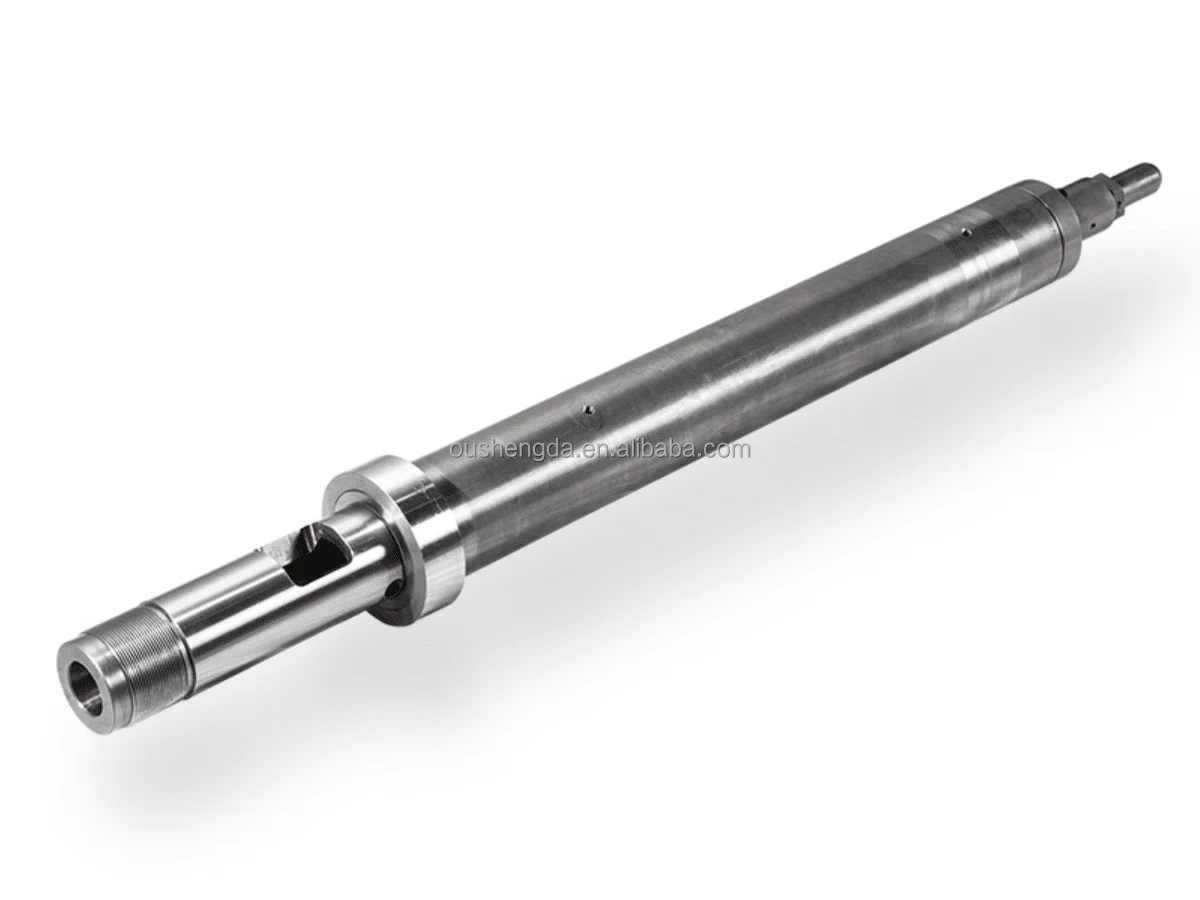

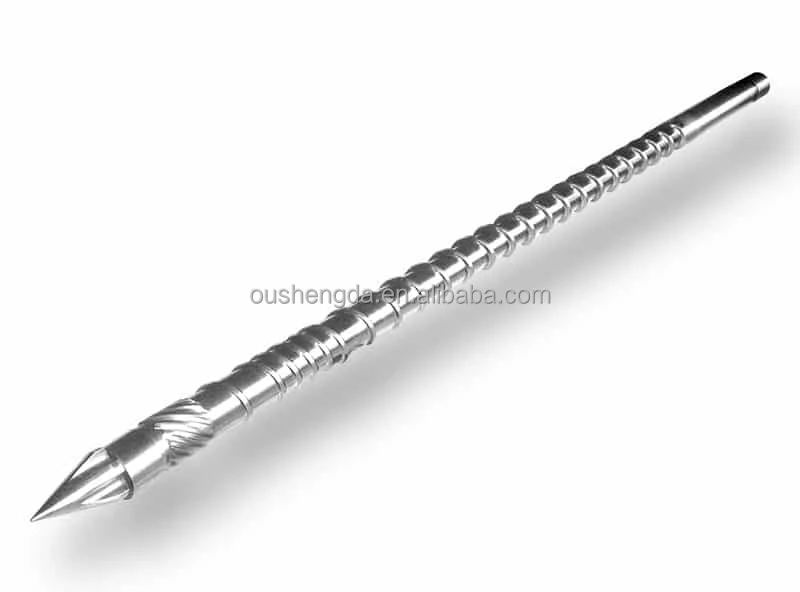

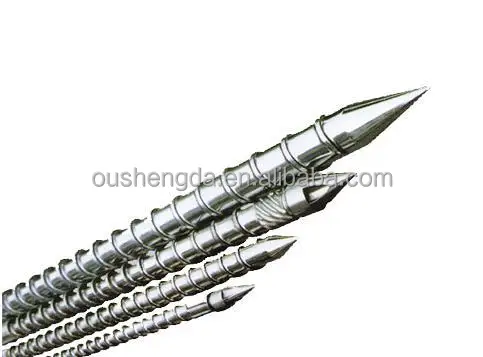

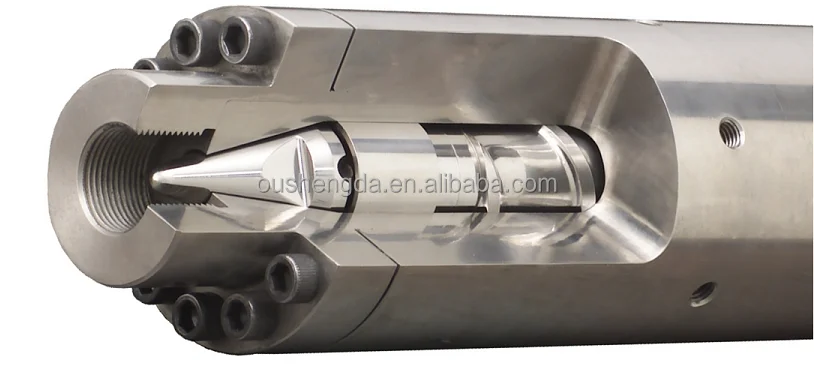

Screws and Barrels for Injection Molding Machines.
Application
Injection Molding Machines
basins
PVC fittings
trays
Chairs
PP fittings
Manufacturing Technique
Technological Process:
Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining→Finished Product→Detecting→Nitriding/Alloy Processed →Finish Machining
Our Techincal advantages
1. Our newest design with lots of experience.
2. Advanced Nitriding Technology
3. Anti-corrosion and Wear-resisting Duplex Metal Spraying Technoloy
4. We uses special alloy powders being sprayed and welded on the screw's ridge,and uses different alloy and welding methods for the screw of different functions.
5. Fast and on time delivery.
3. Anti-corrosion and Wear-resisting Duplex Metal Spraying Technoloy
4. We uses special alloy powders being sprayed and welded on the screw's ridge,and uses different alloy and welding methods for the screw of different functions.
5. Fast and on time delivery.
Technical specifications: | ||
Material | 38CrMoAlA, SA 645, 42CrMo, SKD11, SKD61, GH113, etc. | |
Heat treatment | Nitriding + Hardening & Tempering | |
Hard Chrome Plating | ≥950HV | |
Nitriding hardness | HV900~1050 | |
Nitriding thickness | 0.5~0.8mm | |
Bimetallic hardness | HRC58-65 | |
Bimetallic thickness | 1.0-3.0mm | |
Surface roughness | Ra0.4 | |
Liner straightness | 0.015mm | |
FAQ
What information should be provided when inquiry price of screw and barrel?
1. Injection machine model
2. Screw diameter
3. Type A, B or C
2. Screw diameter
3. Type A, B or C
Packaging：
Wrap the screw barrel with film
Put into the wooden cases
Print with our company Logo
Exhibition
Chinaplas 2021 in Shenzhen
Chinaplas 2019 in Guangzhou
K-show 2019 in Germany
Past show in 2012
Past show
Past show in Turkey
Certifications
Our certifications
Looking forward to work with your esteemed company :)
