Below are only several model sizes we have for the Gold Washing Trommel. There are still many other model sizes available. Our engineer will configure the right model size for you according to your required capacity and ore information.



Model	Drum Size  (mm)	Screen  size  (mm)	Rotation  speed  (r/min)	Feeding  size  (mm)	circulating  water (t/h)	Water  consumption (M3/h)	Angle of  inclination (°)	Capacity  (T/h)	Power  (Kw)	Weight  (T)
RXT1030	Φ1000×3000	≤20	27.9	≤80	20-30	1	≤10	40	15	3.8
RXT1136	Φ1100×3600	≤25	27.6	≤80	32-50	1.2	≤10	65	15	4.6
RXT1230	Φ1200×3000	≤25	27.6	≤100	35-60	1.3	≤10	70	22	4.7
RXT1430	Φ1400×3000	≤25	27.6	≤100	40-70	1.5	≤10	80	22	4.9
RXT1545	Φ1500×4500	≤25	21	≤160	60-110	1.7	≤10	120	30	6.9
RXT1860	Φ1800×6000	≤25	21-23	≤210	80-130	1.8	≤10	150	37	8.5
RXT2265	Φ2200×6500	≤50	19	≤230	90-150	1.8	≤10	180	37	15.9

 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

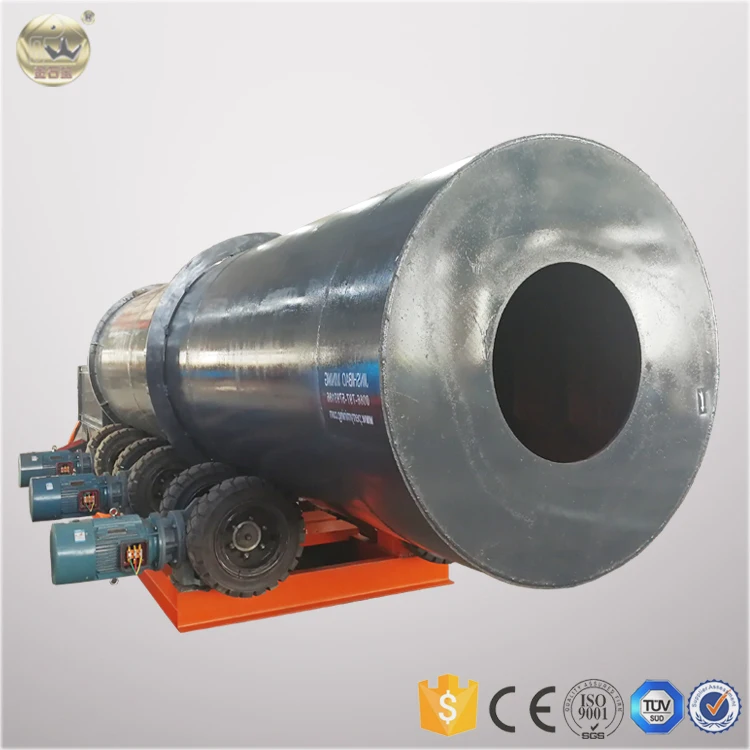

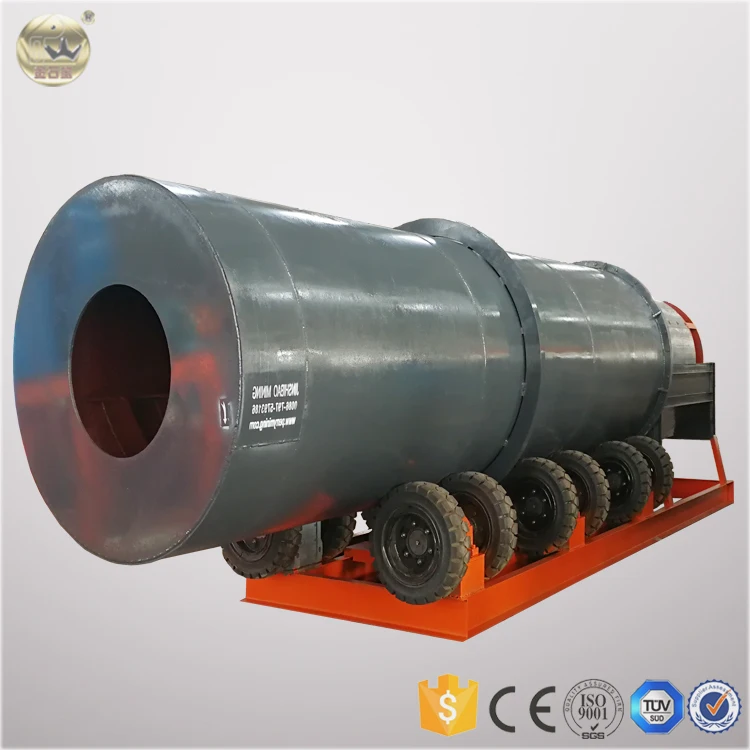

1. The following picture shows us the tyre drive and the inner scrubbing drum of the trommel scrubber.

     Tyre drive: The larger models are suggested to use the tyre drive for more stable performance and longer using life. Totally 12 tyres and 3 motor engines ensure the machine to work in a very good condition. (The smaller models are usually equipped with gear drive for higher Cost-Effective.)

     Scrubbing drum: The washing scrapers are welded inner the scrubbing drum wall. It's able to high effectively break the clay lumps and wash the clays off the ore sands or stones. With the help of pressure water from the central water sprays, the clay ores can be very efficiently washed.





 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

2. Below picture shows the different sieve types for the screening drum. Usually there are 3 types: the woven sieve, the punched-hole sieve, and the PU sieve. Our engineer will configure the most suitable one for you as per the required sieve opening size as well as the ore condition. It could be also defined as per your requirements.



 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

3. Our Gold Washing Trommel is carefully manufactured by our workers. Please rest assured about the quality of it.



Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

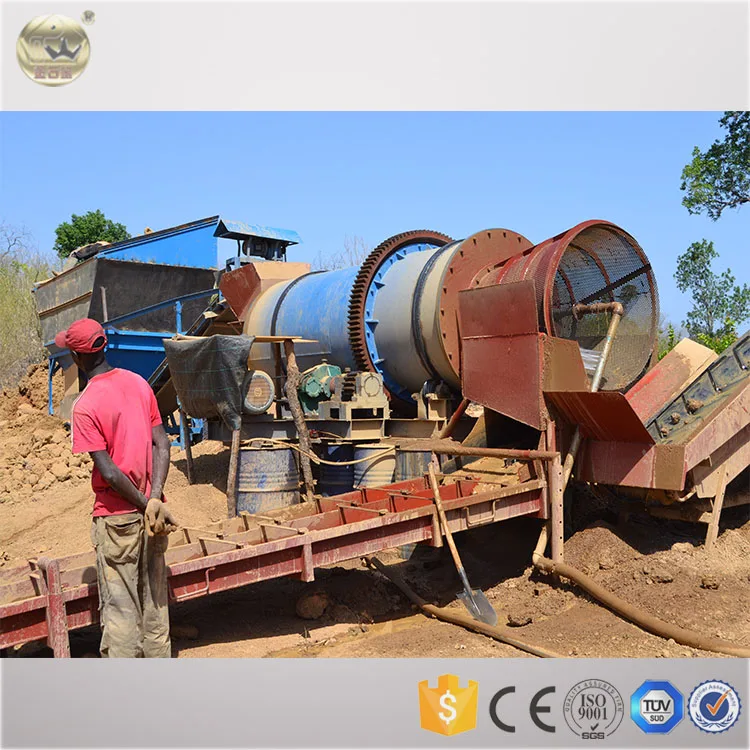

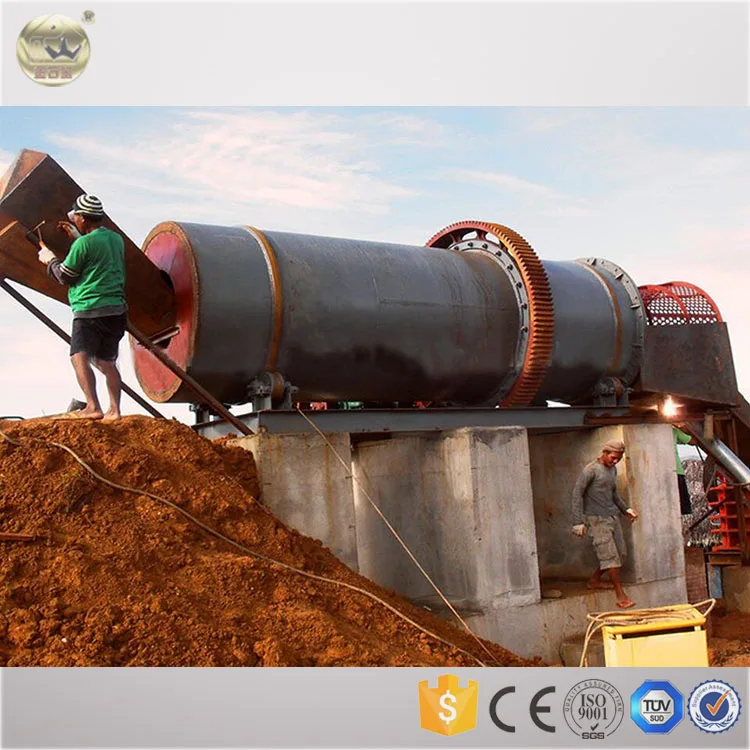

4. Our trommel scrubber are well working on different customers' working sites.



The following plant is one of our Senegal customer's alluvial gold plant. The trommel scrubber is used in the first step so as to wash the raw ore and remove the barren rocks. His general flowsheet is as:



Hopper --- Trommel scrubber --- Gold concentrator --- Gold sluice box --- Shaking table



Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel



As the dimension of the Gold Washing Trommel are always quite large, it is not suitable for shipping in bulk. As a result, it is usually loaded in container for shipping.



Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

Jiangxi Jinshibao Mining Machinery Manufacturing Co, Ltd was founded in 2001. It is mainly engaged in:



1. Mining machinery manufacturing

2. Experimental analysis on sample ore

3. Flow chart designing

4. Installation and debugging

5. Technical support services



Its main products contain shaking table, ore washing machine, centrifugal concentrator, spiral chute, crusher, ball mill, vibrating screen, classifier, flotation machine, Jigger and so on.







 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel



Q1. Are you a manufacturer or trading company?



A: We are a real manufacturer of mining equipments. Welcome to visit us at any time!



Q2. Where is your factory located? How can I visit there?



A: Our factory is located in Shicheng County, Jiangxi Province, China.

    You could fly to Ganzhou airport from Guangzhou airport or other airport of China. We will pick you up at Ganzhou airport.



Q3. Why choose you and buy from you?



A: 1. High quality and most competitive price

        ----We are a real factory who could provide the factory price to you.

        ----The factory has have more than 20 years' production experiences.

        ----In addition, we are famous for our shaking table. And the city we located in was the home of shaking table in China.

2. Fast delivery-----Goods be sent out within 7 to 30 days based on order quantity.

3. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business.
