Мультимодем 16 Sim Gsm с поддержкой IMEI Change USSD AT Command SMS-модем Массовая смс машина GSM
- Категория: Wireless & RF Modules >>>
- Поставщик: Skyline,(Shenzhen),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 179.58 $* | 188.59 $* |
| Aug-18-2025 | 177.9 $* | 186.40 $* |
| Jul-18-2025 | 149.97 $* | 156.82 $* |
| Jun-18-2025 | 174.65 $* | 183.40 $* |
| May-18-2025 | 152.95 $* | 160.92 $* |
| Apr-18-2025 | 171.22 $* | 180.14 $* |
| Mar-18-2025 | 170.81 $* | 179.41 $* |
| Feb-18-2025 | 168.78 $* | 176.5 $* |
| Jan-18-2025 | 167.70 $* | 175.83 $* |
Характеристики
Product Description
SK SMS MODEM is a multi-functional and high performance product, which supports bulk sms/mms, make voice call(AT command) etc.;Mainly used for Commercial promotion SMS,Notification SMS,Verification code / verification SMS,Advertising SMS,Customer service SMS.customers can develop SMS server easily.
It is widely used in mobile marketing, verify code, bulk SMS and corporate SMS.
2G SMS MODEM 16 ports built-in 16 wireless modules can be inserted 16 sim cards, can use 16 cards to send text messages, send speed as 16 times as a single channel modem. It uses the development of QUECTEL module, 220V power supply, can be a long time stability, generous luxury housing.
It is widely used in mobile marketing, verify code, bulk SMS and corporate SMS.
2G SMS MODEM 16 ports built-in 16 wireless modules can be inserted 16 sim cards, can use 16 cards to send text messages, send speed as 16 times as a single channel modem. It uses the development of QUECTEL module, 220V power supply, can be a long time stability, generous luxury housing.
Send & Receive SMS IMEI Change AT Command Send USSD | |
EC25-AUX： LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM:B2/B3/B5/B8 | |
EC25-AFX: LTE FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 | |
EC25-EUX: LTE FDD:B1/B3/B7/B8/B20/B28A LTE TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 | |
2G Frequency | 850/900/1800/1900MHZ |
Optinal Module | 2G: M26/M35 3G: UG96, UC20 4G: EC25-AUX/EUX/AFX |
Optional Ports | 8, 16, 32,64 Ports |
SMS | Support Text and PDU mode |
Power consumption | Voltage : 3.6V Class4(2W@850/900MHz) Class1(1W@1800/1900MHz) |
Input | 110~240AC/50~60HZ |
Interface | USB 2.0 & USB 3.0 |
Protocol | TCP/UDP/PPP/MMS/HTTP/HTTPS/SMTP/ SMTPS/FTP/NTP/NITZ/PING/SSL |
Compaitible System | windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX. |
Applications
● Large shopping malls, supermarkets
● Professional market, large wholesalers
● Large hotels, large-scale entertainment
● Large agencies
● Transport, logistics industry
● Large enterprises, and institutions
● Large hospitals, large bookstore
● Newspaper, television and radio stations
● Oil Company ( other chain business model)
● Government agencies or large township
● Receive Code SMS
● Professional market, large wholesalers
● Large hotels, large-scale entertainment
● Large agencies
● Transport, logistics industry
● Large enterprises, and institutions
● Large hospitals, large bookstore
● Newspaper, television and radio stations
● Oil Company ( other chain business model)
● Government agencies or large township
● Receive Code SMS
Key Feature
●16 channels work at the same time
●Insert 16 simcards (big or small)
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●USB interface
●Optional data function
●Send and receive English SMS/MMS in bulk
●Insert 16 simcards (big or small)
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●USB interface
●Optional data function
●Send and receive English SMS/MMS in bulk
Hardware Feature
●Meet the ETSI GSM 2 + standards
●5 -24 VDC power supply (which be directly connected to the nickel- metal
●Hydride or lithium batteries)
●Operating Temperature: -20°C- +55°C
●Storage temperature: -25°C- +70°C
●Size: Standard 1U chassis
●5 -24 VDC power supply (which be directly connected to the nickel- metal
●Hydride or lithium batteries)
●Operating Temperature: -20°C- +55°C
●Storage temperature: -25°C- +70°C
●Size: Standard 1U chassis
How to use
1. Change IMEI
●open Putty
●click " Serial"
● Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cgsn"//check IMEI
●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
●put in "at+cgsn"//check new IMEI
●click " Serial"
● Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cgsn"//check IMEI
●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
●put in "at+cgsn"//check new IMEI
2. Call
●open Putty
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "ate1"
●put in "atd number;"
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "ate1"
●put in "atd number;"
for example:
atd 0976006161;
●put in"ATH" hung off call
atd 0976006161;
●put in"ATH" hung off call
3. Send USSD
●open Putty
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cusd=1,"USSD command""
for example:
at+cusd=1,"*097#"
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cusd=1,"USSD command""
for example:
at+cusd=1,"*097#"
4. Put in PIN/PUK code
●open Putty
●click "Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●PUT in"at+cpin?" //check PIN status
If display "ready"=> it is ok, don’t need put in PIN code
If display "SIM PIN" =>need put in PIN code
PUT IN "at+cpin=PIN code",
for example:
at+cpin=1234
If display "SIM PUK" =>need put in PUK code
PUT IN "at+cpin=" PUK code","NEW PIN code" " ,
for example:
at+cpin=”12345678”,”1234”
●click "Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●PUT in"at+cpin?" //check PIN status
If display "ready"=> it is ok, don’t need put in PIN code
If display "SIM PIN" =>need put in PIN code
PUT IN "at+cpin=PIN code",
for example:
at+cpin=1234
If display "SIM PUK" =>need put in PUK code
PUT IN "at+cpin=" PUK code","NEW PIN code" " ,
for example:
at+cpin=”12345678”,”1234”

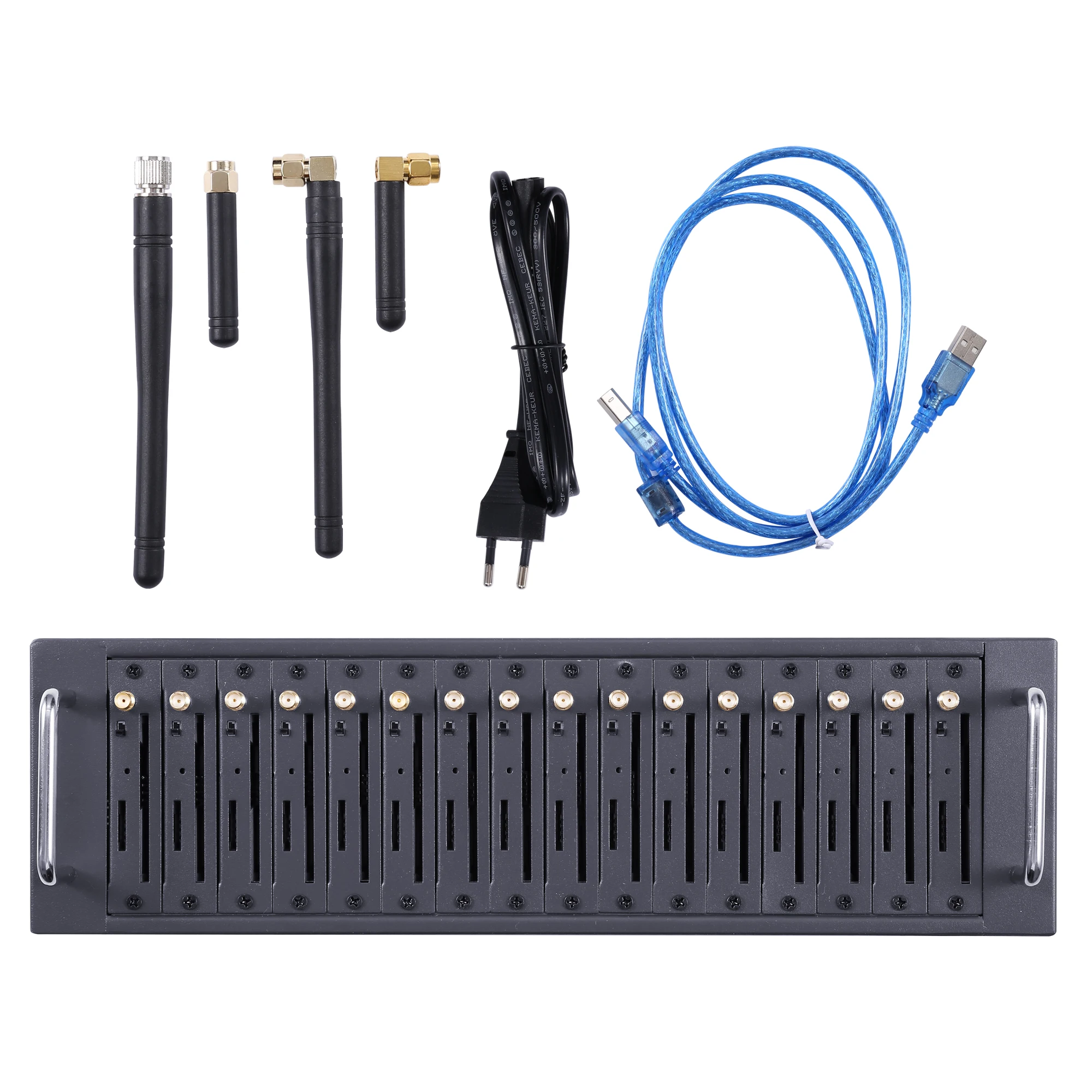

Packing & Delivery
FAQ
Q1. How to use it?
1)Install driver and software SMSCaster in computer
1)Install driver and software SMSCaster in computer
2)Connect modem and computer by USB
3)Insert sims and antennas in Modem
4)Manage sms modem through software in computer
3)Insert sims and antennas in Modem
4)Manage sms modem through software in computer
bulk sm
Q2. What are the additional expense for the whole system operation except the modem?
Network, Sims, Computer
Network, Sims, Computer
bulk sms
Q3. Any relative products?
2G sms modem M26 module 1/8/16/32/64 ports
3G sms modem UG module(cant change imei) and UC20E/A module 8/16/32/64 ports
4G sms modem EC25-A/E/AU/EC/V/EG91 module 8/16/32/64 ports
2G sms modem M26 module 1/8/16/32/64 ports
3G sms modem UG module(cant change imei) and UC20E/A module 8/16/32/64 ports
4G sms modem EC25-A/E/AU/EC/V/EG91 module 8/16/32/64 ports
Q4. How to get support from our company?
Contact me via skype or whatsapp to arrange technician for support.
Skype: williamskyline2
WhatsApp: +8613698469033
Contact me via skype or whatsapp to arrange technician for support.
Skype: williamskyline2
WhatsApp: +8613698469033
