Высокоскоростной шариковый подшипник с глубоким желобом 6902 ZZ 2RS 6900 серии 15*28*7

Описание и отзывы

Трекер стоимости

Характеристики

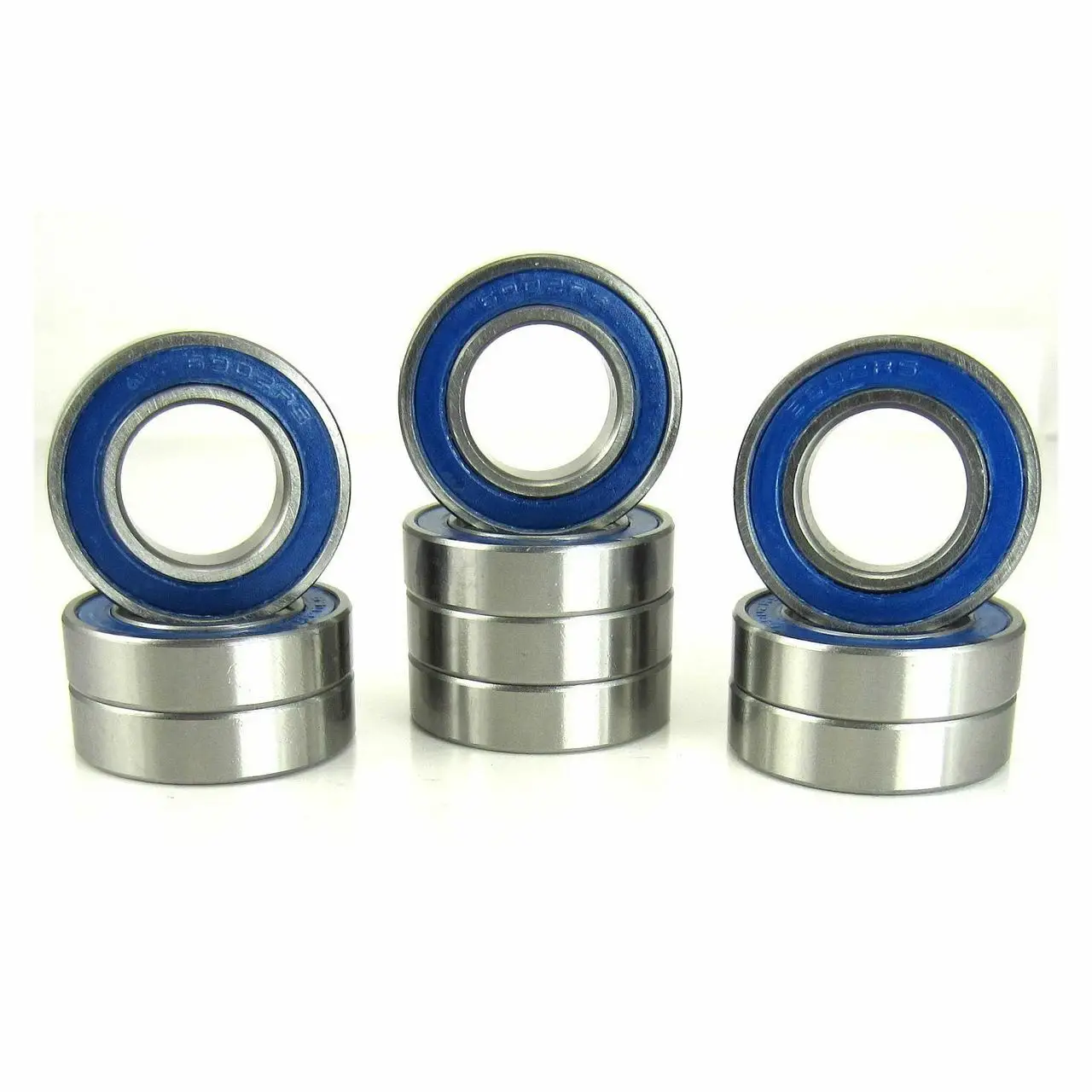

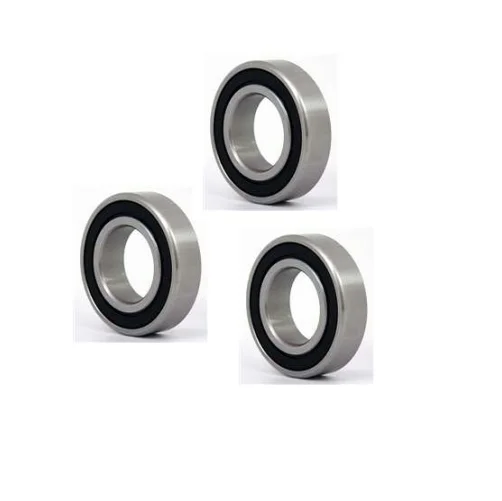

High Speed Deep Groove Ball Bearing 6902 ZZ 6902 2RS 6900 series Bearing 15*28*7mm

Measure:

• METRIC: 15mm (Inner) x 28mm (Outer) x 7mm (Width)



FreeRun is a specialized manufacturer and factory of Deep Groove Ball Bearing in China.  We can produce deep groove ball bearings according to your requirements. More types of ball bearings, deep groove ball bearings wanted, please contact us right now!

Deep Groove Ball Bearing Description:

Deep groove ball bearing is the most commonly used rolling bearing.Its structure is simple, it consists of inner and outer rings with deep symmetrical ball race, separator and complement of balls, and it can be easy to operate.It is mainly used for standing the radial load. But when the radial play is increasing, it has the performance of angular contact bearing assembly. In that case, it may simultaneously stand the radial loads and the axial loads.In some cases, which are not suitable to using spherical roller thrust bearing and the rotational speed is rather high. It can also be used to stand purely axial loads.Compared with other kind of bearings with the same size, this kind of bearing enjoys smaller coefficient of friction and higher limits speed. But they cannot bear impact. Therefore, it is not suitable to bear heavy load.

After installing the deep groove ball bearing in the axis, within the scope of radial play, we can limit the axial position of the axis and the outer cover. Thus it can be used in both directions as axis-position.Moreover, this kind of bearings also has some aligning ability. Being inclined 2’~10’ comparing with outer cover, it can also operate normally. But, it has certain influence to the bearing life.
