1000 Вт 1kw Fm передатчик + yx-dv2 антенна кабель комплект с цифровым Rds кодировщик Радио система данных кодер
- Категория: Оборудование для радио и ТВ >>>
- Поставщик: Anshan,Yuexing,Technology,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.20 $* | 0.24 $* |
| Aug-19-2025 | 0.27 $* | 0.73 $* |
| Jul-19-2025 | 0.11 $* | 0.3 $* |
| Jun-19-2025 | 0.18 $* | 0.51 $* |
| May-19-2025 | 0.68 $* | 0.26 $* |
| Apr-19-2025 | 0.42 $* | 0.90 $* |
| Mar-19-2025 | 0.54 $* | 0.66 $* |
| Feb-19-2025 | 0.68 $* | 0.46 $* |
| Jan-19-2025 | 0.37 $* | 0.97 $* |
Характеристики

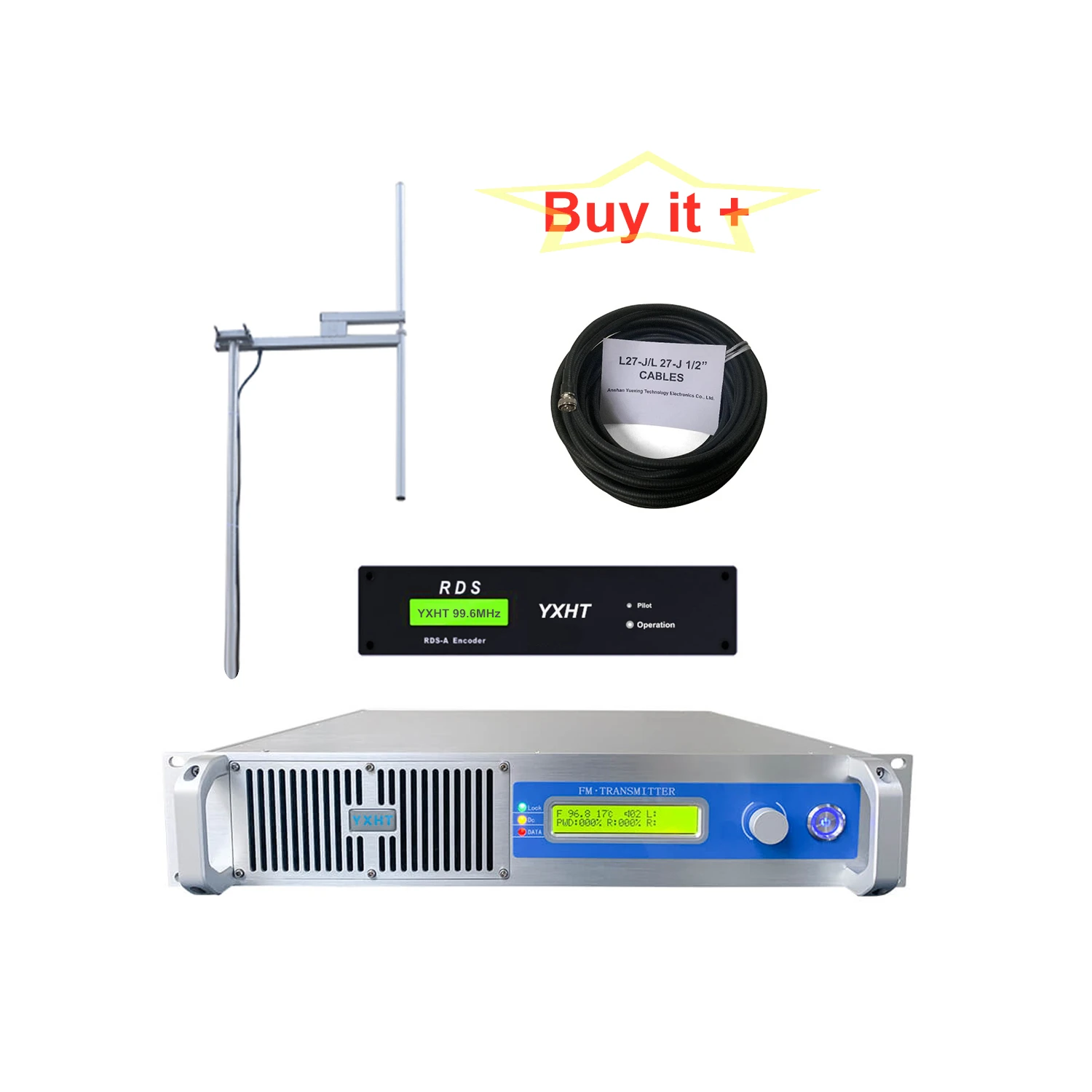

1KW FM Transmitter + 1-Bay Antenna + 30 Meters Cables with Connectors + RDS
1KW FM Broadcast Transmitter
Details Images
The DSP(Digital Sound Processing) technology makes the YXHT- 1000W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions. As quality assurance, YXHT Provides 6 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
Warranty：The warranty of all transmitters in our factory is 6 years.
Product Description
1KW FM Broadcast Transmitter
· The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
· High performance and very good reliability has been proved by the large usage of YXHT-1000C transmitters.Also it is low cost and small size.
· High performance and very good reliability has been proved by the large usage of YXHT-1000C transmitters.Also it is low cost and small size.
Features:
· Hearing similar to CD
· All-digital technologies DSP+DDS
· Built-in audio signal limiter

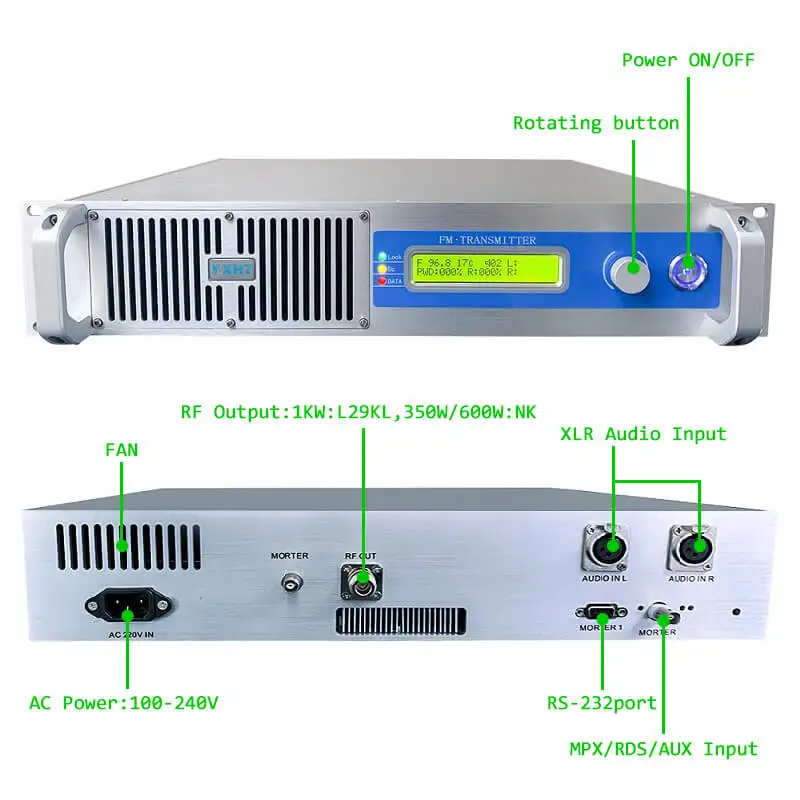

· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
· All-digital technologies DSP+DDS
· Built-in audio signal limiter
· Analog and Digital (AES/EBU) audio signal input directly.
· AGC circuit can keep the Output Power stability.
· Big LCD display all the parameters in real time.
· Communication Interface by RS232 for remote
· Five kinds of protections for the security
· Compact structure
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
1. Frequency Range: | 87.0MHz~108 MHz |
2. Frequency Setting step: | 10KHz |
3. Carrier Frequency precision: | ±200Hz |
4. Residual Wave Radiation: | ≥65dBc |
5. Audio Input Impedance: | 600Ω,Balance |
6. Separation: | 60dB Pilot Signal Modulation:8%~10% |
7. Audio Input Level: | ±10dBm,step 0.01dB |
8. S/N: | ≥75dB(30H~15kHz,100%) |
9. Audio Harmonic Distortion: | <0.05% |
10. Audio response: | ±0.05dB(30Hz~15KHz) |
11. Output Load Impedance: | 50Ω |
12. Output Power: | 1000W |
13. Pre-emphasis: | 0μS,50μS,75μS |
14. Deviation: | ±75kHz |
15. Pilot Frequency: | 19 kHz±1Hz |
16. Sub-carrier Suppression: | ≥65dB |
17.RF Output Connector: | 7/16'(female)or7/8'Flange |
18.Size: | 460mm*480mm*88mm |
19.Weight: | 16KG |
20.Pilot Signal Modulation: | 8%~10% |
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM When the fan stops running, the alarm message will be displayed on the screen.
4) ADJUSTABLE POWER OUTPUT The RF out of this 1kw FM transmitter is continuously adjustable from 0-1000 watt at the stepping of 0.1watt, which means you can tune it to 1w, 1.1w, 1.2w...50w...100w...500w...1000w, with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs
RDS-A Encoder
