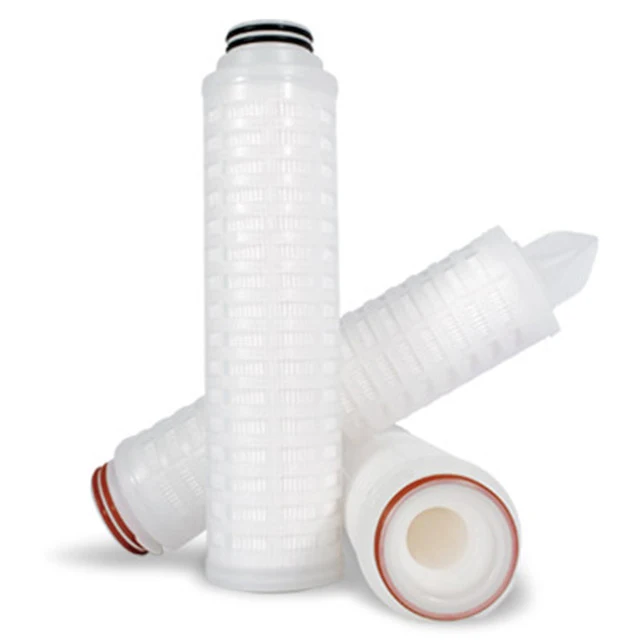

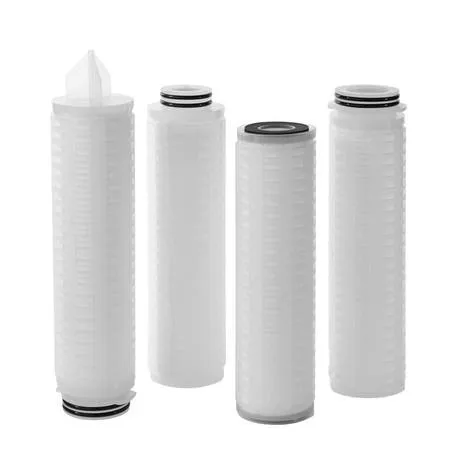

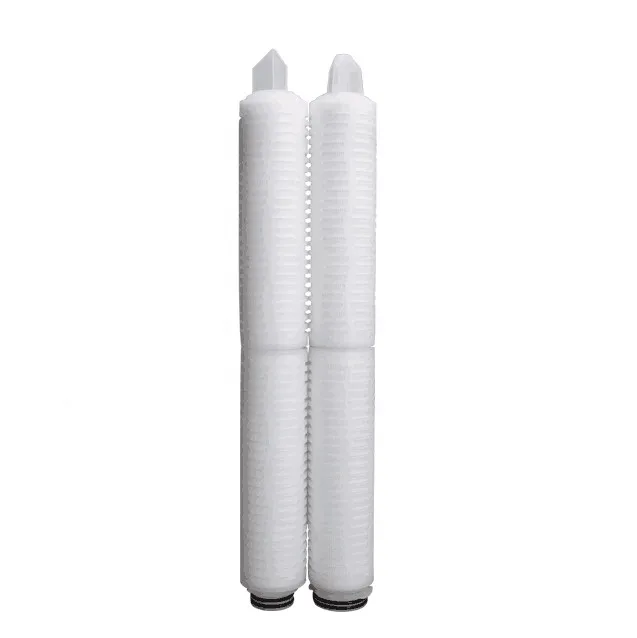

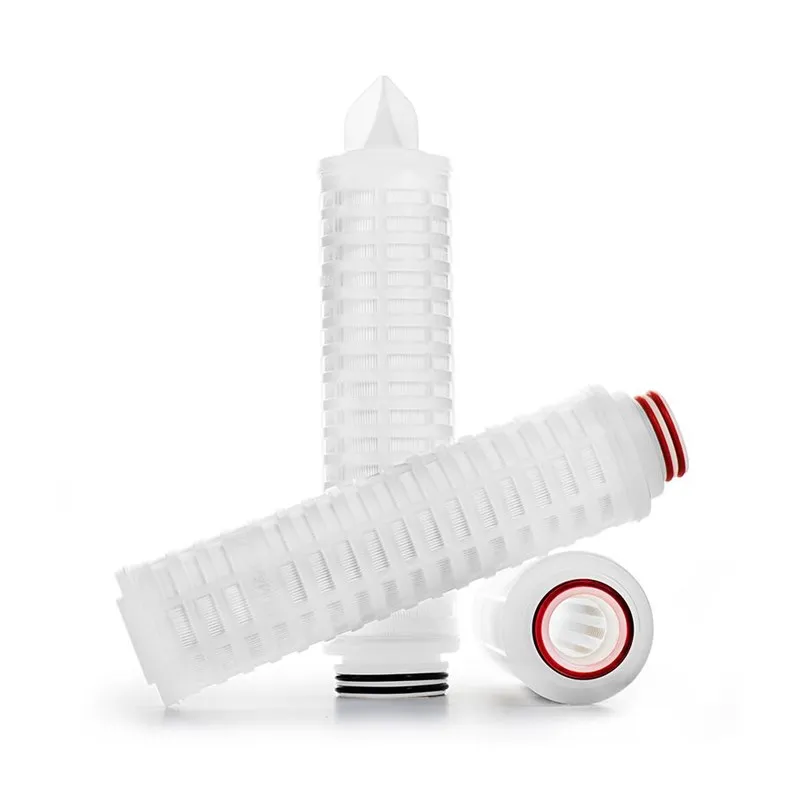

Materials Of Construction | Filter Media: | Multi Layers Polypropylene Membrane | ||||
Support Layers: | Polypropylene | |||||
Micron Rating: | 0.1, 0.20, 0.30, 0.45, 1.0, 3.0, 5.0, 10, 20, 50, 100 um | |||||
Inner Core: | Polypropylene | |||||
Outer Cage, End caps: | Polypropylene | |||||
Seal Method: | Thermal Bonded, No Adhesives | |||||
O-rings/gaskets: | Silicone, Nitrile, EPDM, Viton, , etc | |||||
Cartridge Dimensions | Outer Diameter | 69mm(2.75'') | ||||
Inner Diameter | 33mm(1.30'') | |||||

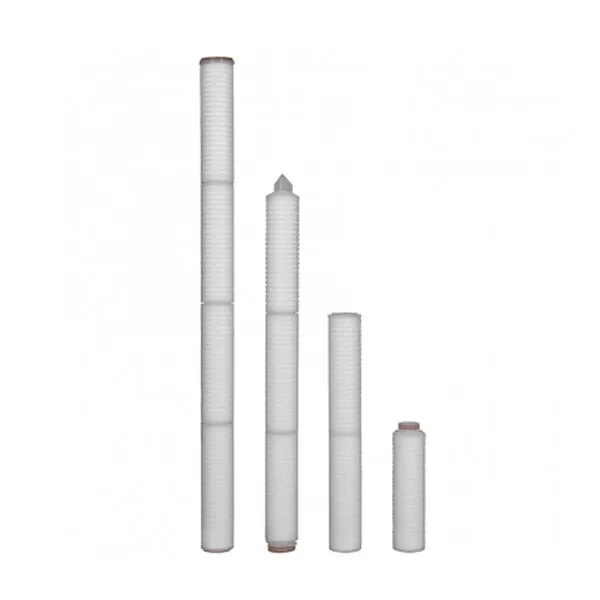

Length(based on DOE end caps) | 5", 10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm | |||||
Filtration Area(m2) | 0.65 m2 per 10'' | |||||
Operating conditions | Normal Operating Temperature: | Up to 60℃ (140℉) | ||||
Max.Operating Temperature: | 85℃ (185℉) at P≤1.0 bar (14.5psi) | |||||
Max. Differential Pressure | ||||||
Normal Flow Direction: | 5.5 bar (60.9 psi) at 25℃ (77℉) | |||||
Reverse Flow Direction: | 2.1 bar (30.5 psi) at 25℃ (77℉). | |||||
PH Value compatibility: | 2-13 | |||||
Sterilization: | Not Recommended | |||||
Typical water flow rate @ 25 ℃ (10") | ![]() | |||||
Cartridge Safety | Endotoxin: | <0.25 EU/ml | ||||
Extractables: | 0.03g / 10" |
