Характеристики



Product Description

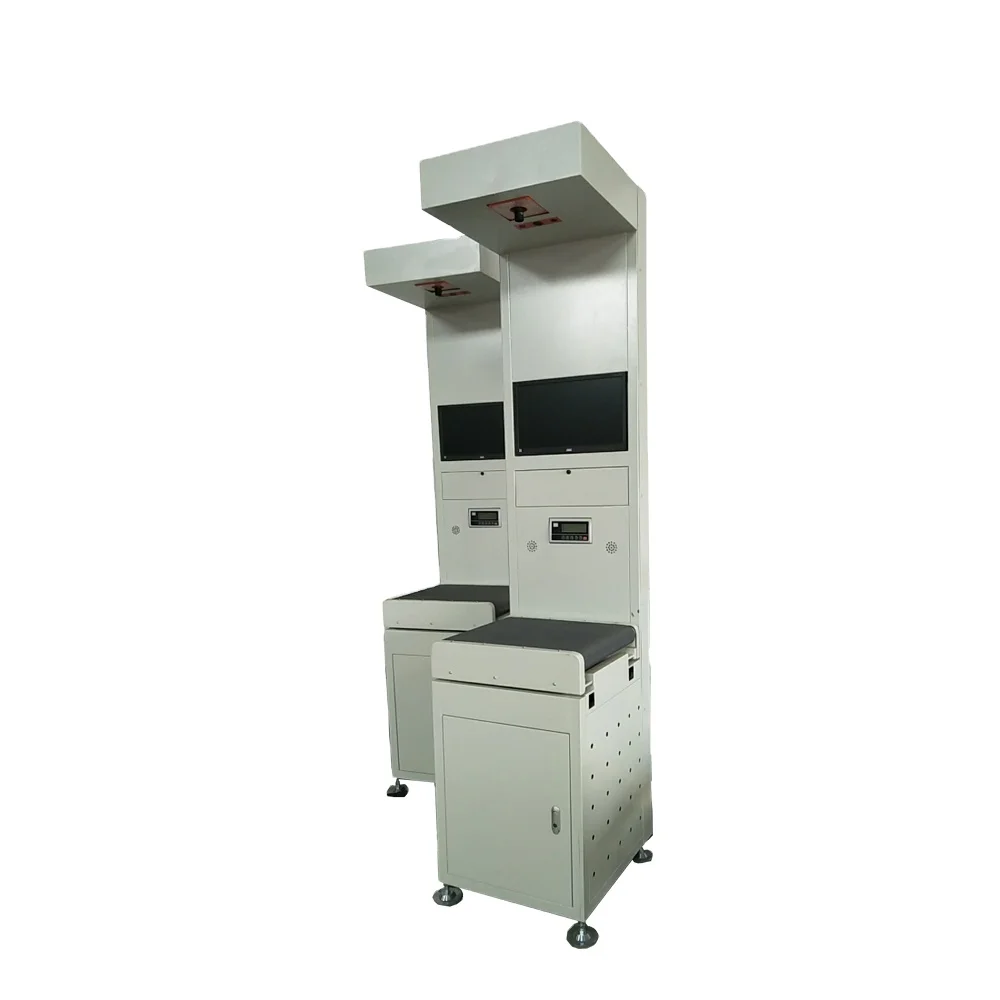

The small parcel barcode scanning weighing scale is an economic choice for small-middle scaled developing courier express companies and e-commerce distribution centers.

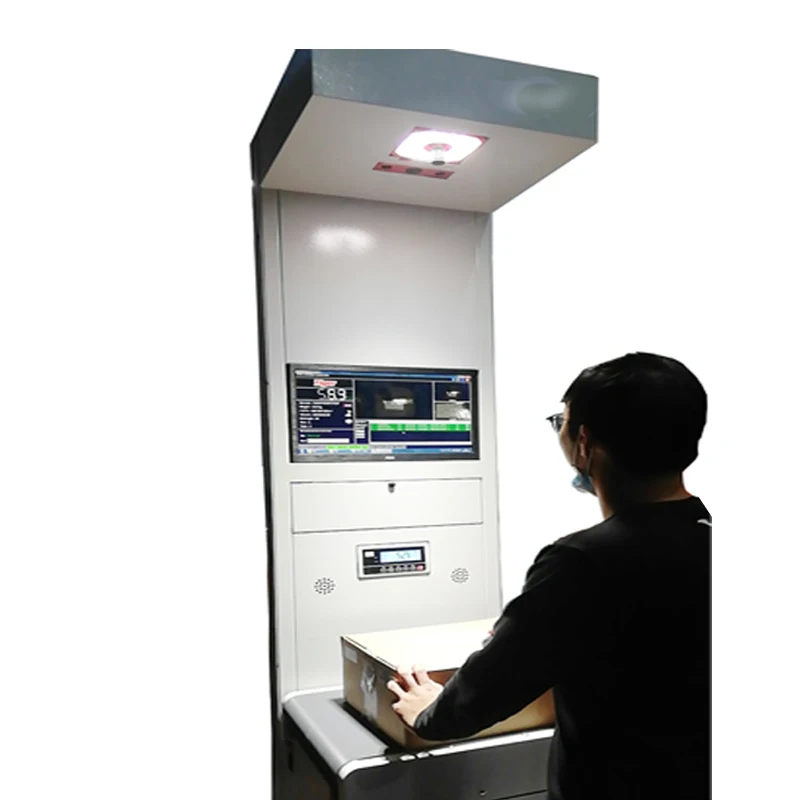

When the parcels or packages are put on the surface of the weighing scale, the system automatically reads the barcode information and records weight, (and dimension measuring can be added if necessary) and captures photos of the barcodes.

The collected barcodes and weight data and photos can be stored in local disk and downloaded as a picture or excel file, and connected to the users’ management system at real-time.

After barcode and weight collected, the parcels or packages are sorted into two directions automatically, left or right.

This visual scanner and weighing system is effective in price. It largely reduces the labor costs and typo-error disputes in recording the barcode and weight information. Warehousing becomes much faster and easier for courier companies and e-commerce companies.



Main Features:

  • 1) Specially designed for small packages barcode reading and weighing

  • 2) Packages photo taken. Support local images storage and uploading to user's system

  • 3) Barcodes & weights real-time uploaded to WMS/ERP system

  • 4) Scanning rate is 99.99%, efficiency is up to 1800 parcels/hour
Specially handling the small sized packages (ideally within L450*W450*H450mm).
Bigger sizes are also okay. Special requirements please consult with relative engineers.









Product Paramenters


Description
Specification

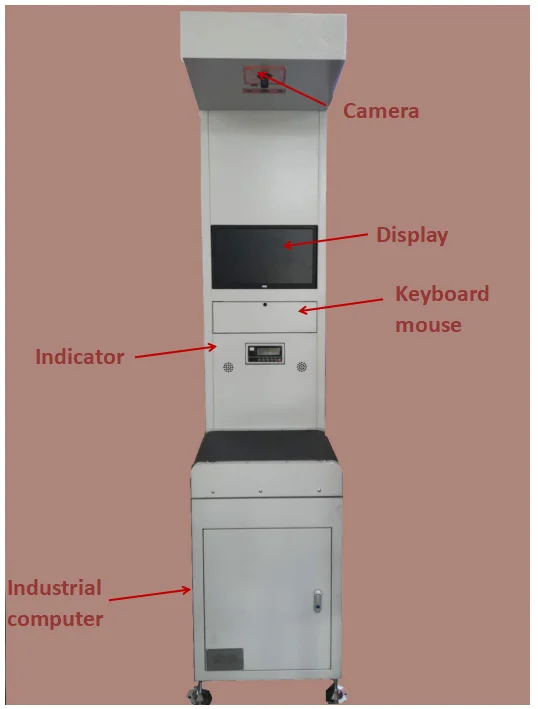

Industrial computer
model IPC, I3
Display
19.5 inches

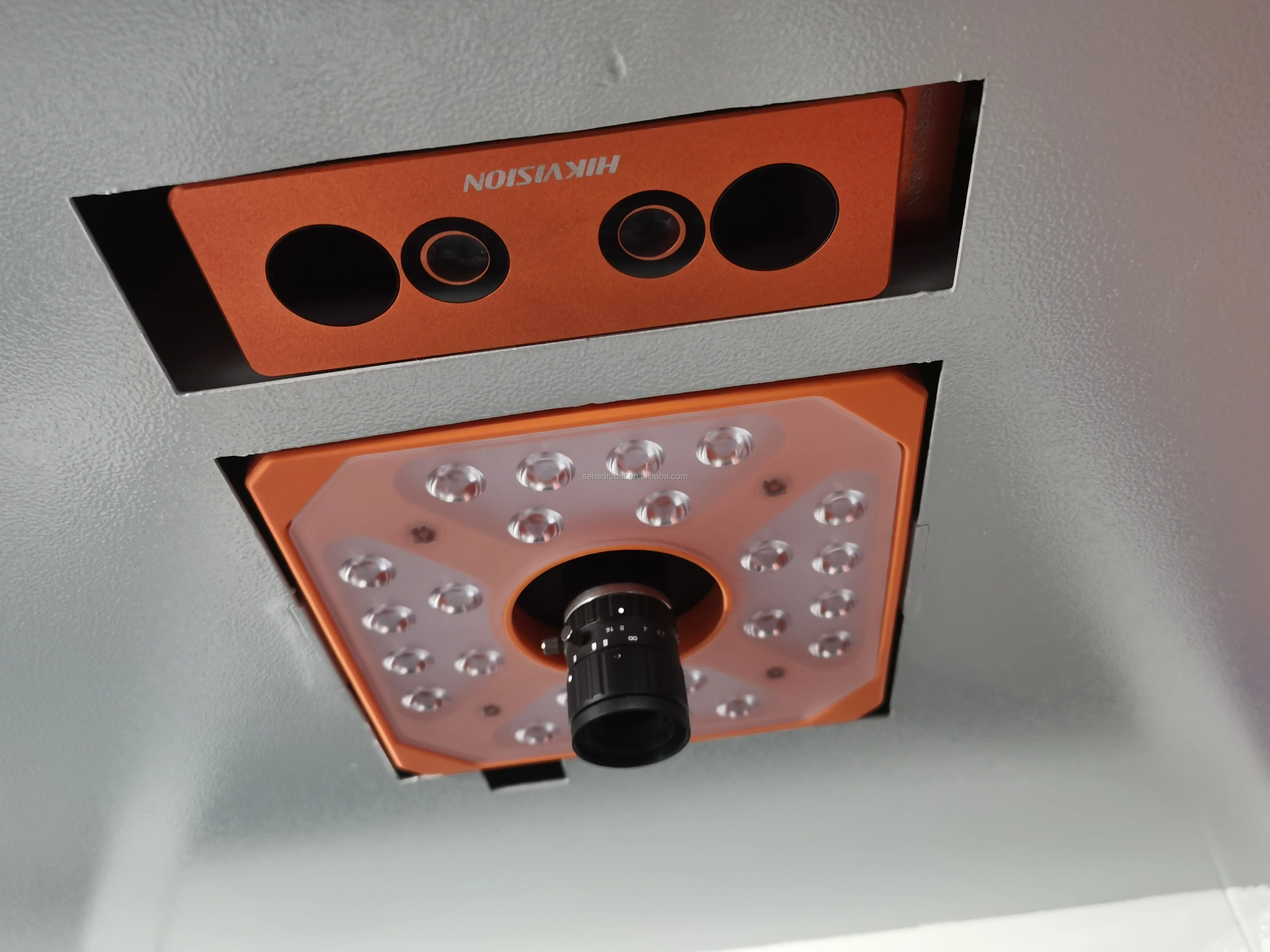

Camera
Barcode reading
Dedicated light source
Light supplimentary

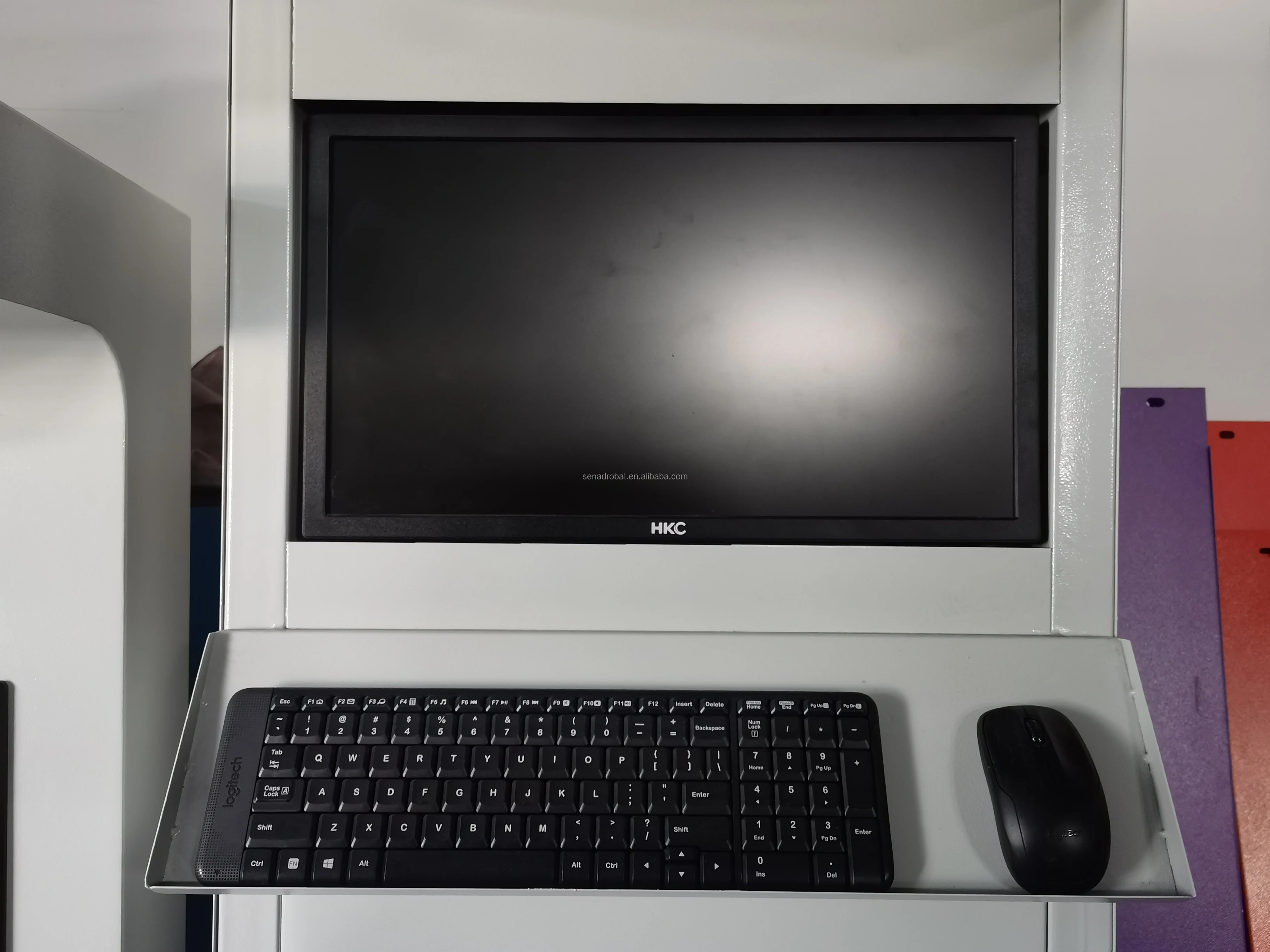

Keyboard mouse
Wireless mouse & keyboard set
Lens
12mm

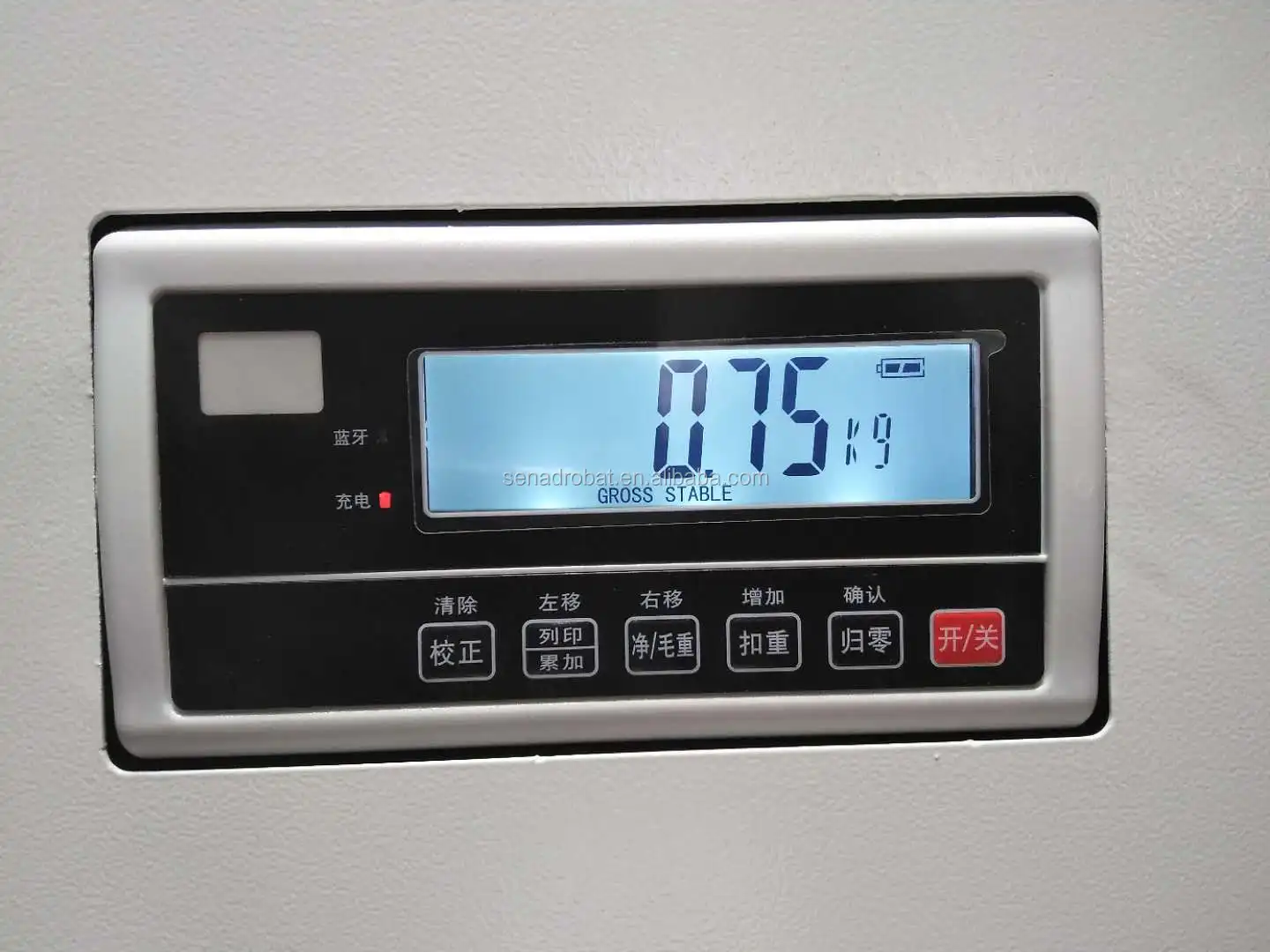

Electronic scale
TCS-100kg
Overall size
L650*W510*H2450mm
Main functions
Barcode reading, packages weighing, packages photoing, packages sorting into two directions, Data uploading to WMS/ERP system


Weighing accuracy
±10g
Weighing range
0.03-30kg
Effectiveness
1500~2000 pieces
Reader recognition rate
No pollution, Damage, Fine folds, and Defects, the recognition rate is 99.99% (above 10mil barcode)
Software interface
http, TCP, rs485
Application Software
SENAD DWS System
Weighing mode
Static weighing
power supply
220V(customized)
Remote diagnosis
yes
Packages photos
yes


Application




Company Profile


Senad Robat Shanghai Co., Ltd. is a high-tech company specialized in manufacturing automatic warehouse Dimensioning Weighing Scanning machines and sorting lines.

There are both standard equipments and customizable ones available.

Our machines are to reads the barcode of the packages, weight and cubic dimensions and sorts the packages to several destionations. During scanning, the barcode side package photo was taken. Both the logistics information and photos can be stored in local disk and uploaded to the docked users' management system.

Automatically collecting the DWS information and automatically storing and uploading the data, allows a very high efficiency improvement in warehousing system and reduces much labor costs.

Our goal is a win-win situation. Our mission is to bring our partners easier work and higher efficiency.We will constantly contributing in providing professional consultant and services to our partners.











Customer Photos


     customer industries:
1. Courier express

2. E-commerce

3. Cosmetics

4. Others,medical & groceries,etc.


Recommend Products


high precision high quality volume measurement dimensioning weighing scanning dws machine for parcel express
network e-commerce parcel weighing scanning and sorting machine with 4 four direction
Economic barcode scanning and weighing machine with Belt conveyor




Why Choose Us


◆ High-tech manufacturer with research and design capacity
◆ Concentrated on DWS equipments and sorting warehousing system overall solution
◆ Related sofeware and system are with patents
◆ Stable and mature suppling system
◆ Young active sales and engineers for instant services
◆ Upgrading on mechanism according to ergonomics and easy maintenance


FAQ


Q: Are you trading company or manufacturer? Can we visit you?
A: We are factory.We warmly welcome you to visit us.

Q: How long is your delivery time?
A: Generally standard type within 15days, customizable machines within 35 days.

Q: Do you provide samples ? is it free or extra ?
A: No

Q: Is there stock for this standard machine?
A: Yes, we have stocked steel materials and could ship within 7 days.

Q: Our max size is exceeding the ideal max size. Is there suitable machines recommended?
A: Yes, this type is designed specially to handle small sized parckages. If the sizes are bigger, this machine could be adjusted to fit your needs, and there are other standard machines for bigger packages.

Q: Can we add dimension measuring and would it be difficult?
A: Yes, it is easily for us add dimensioning functions on this machine.

Q: Can you offer overseas technical support?
A: Yes. We can send engineers for overseas services

Q: What is your terms of payment?
A: Payment by L/C, T/T, alibaba onetouch
