Портативный Электрический промышленный Солнечный безрезервуарный термостат 220 в 1200 Вт 2 кВт 3 4 5 водонагреватели запасные
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Vinson,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.0 $* | 0.65 $* |
| Aug-15-2025 | 0.9 $* | 0.58 $* |
| Jul-15-2025 | 0.43 $* | 0.80 $* |
| Jun-15-2025 | 0.52 $* | 0.63 $* |
| May-15-2025 | 0.32 $* | 0.88 $* |
| Apr-15-2025 | 0.28 $* | 0.41 $* |
| Mar-15-2025 | 0.78 $* | 0.82 $* |
| Feb-15-2025 | 0.1 $* | 0.11 $* |
| Jan-15-2025 | 0.39 $* | 0.16 $* |
Характеристики
Product Description
220V 1200W 2kw 3kw 4kw 5kw portable electric industrial solar tankless thermostat water tube heaters spare parts
The electric heating tube is a metal tube, along the tube in the center of the central axis of the spiral electric heating alloy wire (nickel chromium, iron chromium alloy) filled with the gap with a good insulation thermal conductivity of magnesia sand, Or ceramic seal. Electric heating tube is a special electrical components into electrical energy, because of its cheap, easy to use, easy installation, no pollution, is widely used in a variety of heating occasions, stainless steel heating tube life is very long, generally designed to use Life of more than 10,000 hours.
Main Features
Electric heater tubular heating element with thermostat | ||
Body Material | T2 Copper;SUS304;SUS316L;SUS310S,and so on. | |
Pipe Size | 8mm | |
Watt & Voltage | Customized | |
Overall Dimensions | OEM, customized in drawing or samples | |
Electrical Performance | AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA | |
Surface Treatment | Natural color bright, polish | |
Flange material | The weight of 1 1/4" copper flange is about 110g,1 1/4"SS flange.No serious leakage solder inside of flange | |
Paraller error of ends face and terminal | 0.5mm | |
Product Categories
Product details

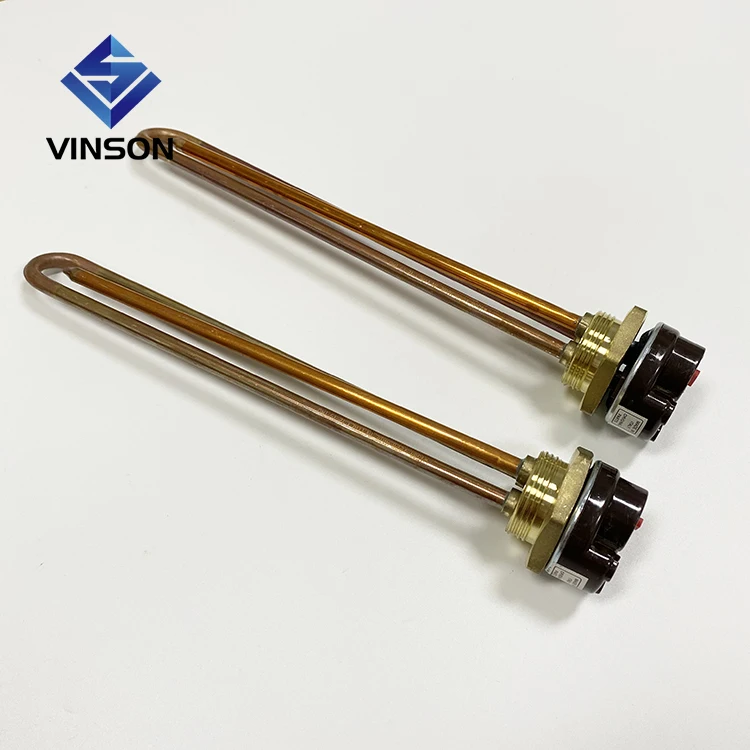

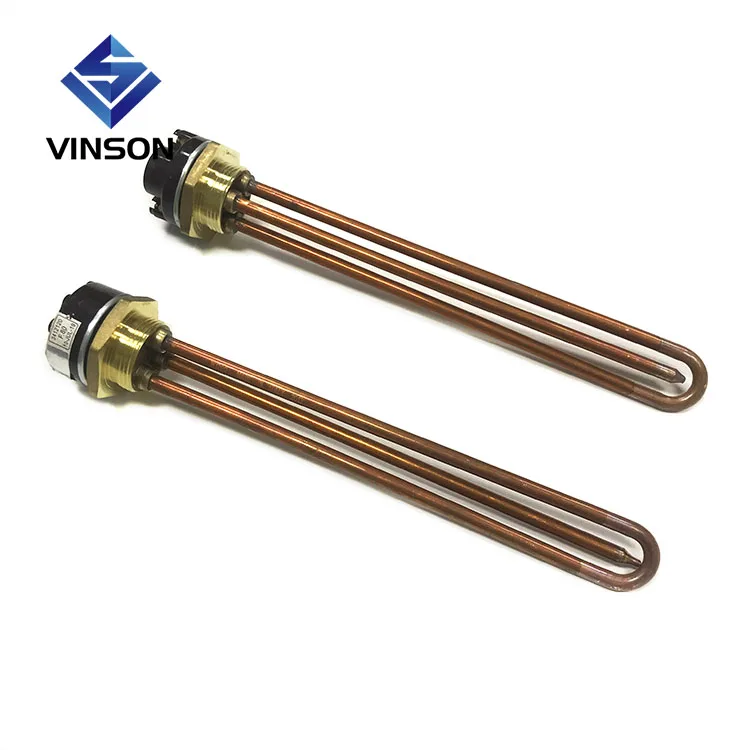

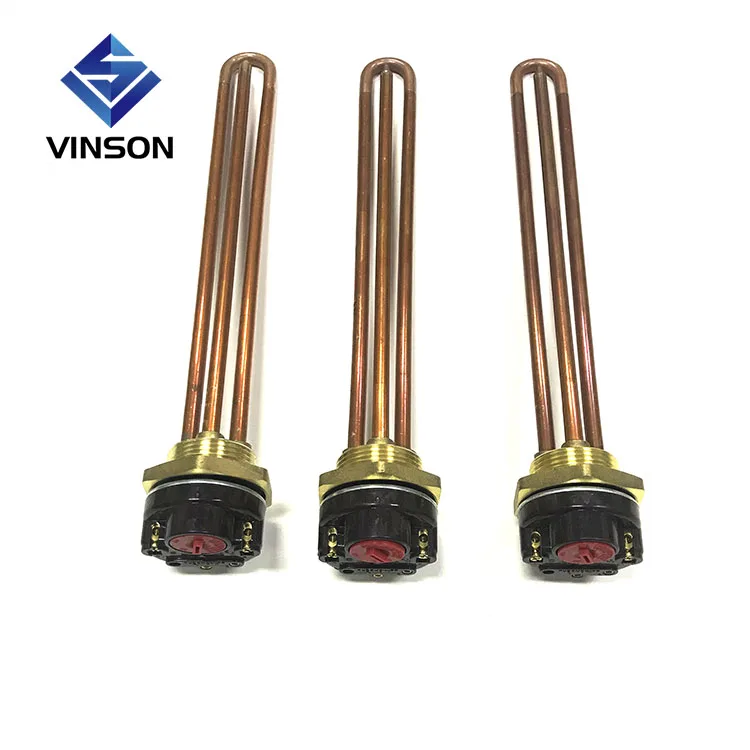

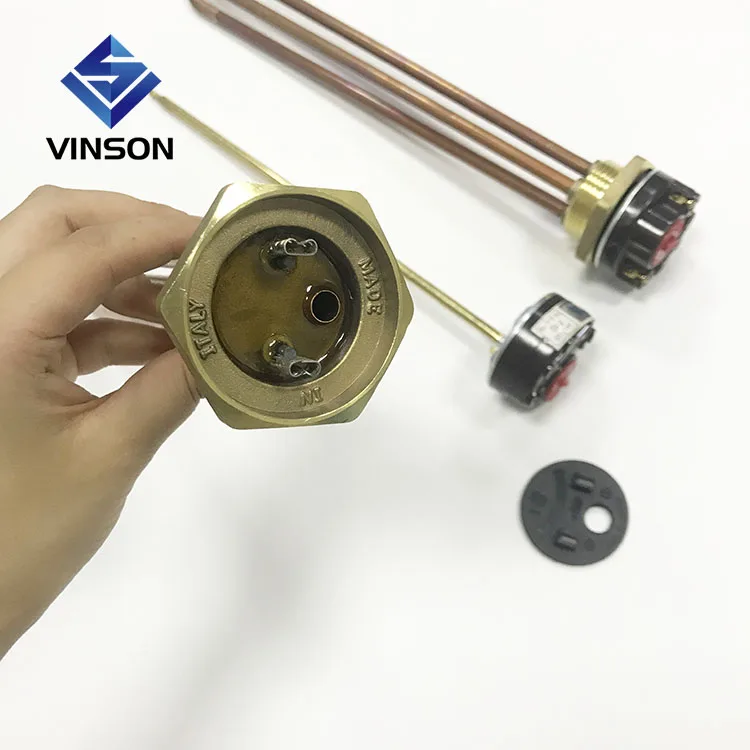

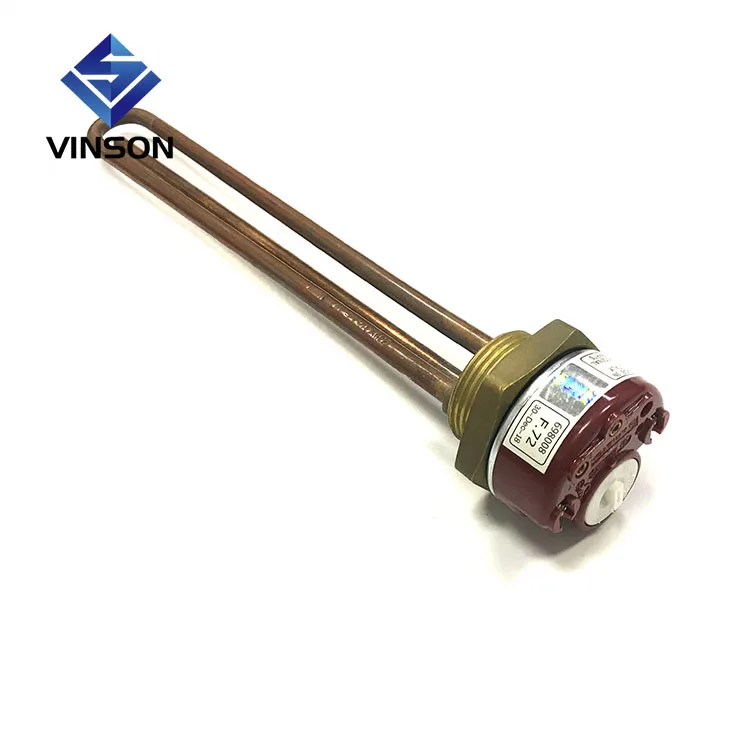

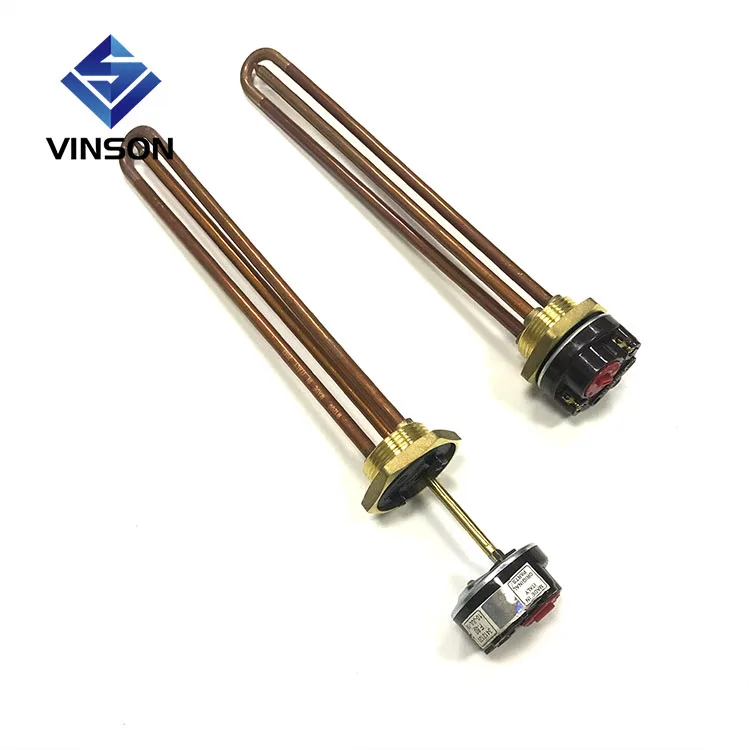

Electric heater tubular heating element with thermostat
- 2KW & 3KW or above available
-220V to 240V 50HZ
- Thermostat temperature 0 to 80 oC
- Liftetime 6000hours and more
-220V to 240V 50HZ
- Thermostat temperature 0 to 80 oC
- Liftetime 6000hours and more
Electric heater tubular heating element with thermostat
This list includes: 1 pcs of Electrical immersion element
Connection size:
1.25" (BSP, DN32)
Power: 1500W
With thermostat: you can fix the temperature at: 30,40, 55,70,85 cel.degree.
Voltage: 220V
Connection size:
1.25" (BSP, DN32)
Power: 1500W
With thermostat: you can fix the temperature at: 30,40, 55,70,85 cel.degree.
Voltage: 220V
Material: copper
Typical Application of Electric heater tubular heating element with thermostat
1. Caustic Cyanide used in gold processing
2.Hot water storag
3.Asphalt Wax
4.Caustic solutions Detergent
5.Sterilizing equipment
6.Heating oils
7.Plastic processing&packaging machinery
Related Products
Tubular heater
Finner Heater
Cartridge heater
Certifications
Packing & Delivery
Packaging | ||
Size | 40(L) * 28 (W) * 28 (D) | |
Weight | 20KG of 220V 1200W 2kw 3kw 4kw 5kw portable electric industrial solar tankless thermostat water tube heaters spare parts | |
Packaging Details | The normal package is Carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
\t\t\t\t\t\t\t\t\tOur Factory \t\t\t\t\t\t\t
Yancheng Vinson Technology Co., Ltd was established in 2001 and has about 20 years' production history. We have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development.
"Quality is in my hand, Customer is in my heart" Quality is our culture, Our products have been exported to Europe, America, Asia, Mid East etc more than 200 countries. We are extensively used in electric heating and other industries. We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
