Стальная режущая ленточная пила


Поделиться:


Цена:5 800,00 $ - 6 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 6902.77 $* 7247.5 $*
Aug-19-2025 6844.75 $* 7186.44 $*
Jul-19-2025 5742.90 $* 6029.50 $*
Jun-19-2025 6728.22 $* 7064.98 $*
May-19-2025 5858.92 $* 6151.7 $*
Apr-19-2025 6612.65 $* 6943.88 $*
Mar-19-2025 6554.27 $* 6882.6 $*
Feb-19-2025 6496.13 $* 6821.51 $*
Jan-19-2025 6438.60 $* 6760.36 $*

Характеристики



Product Description


Steel Cutting Bandsaw Machine Metal Band saw blade

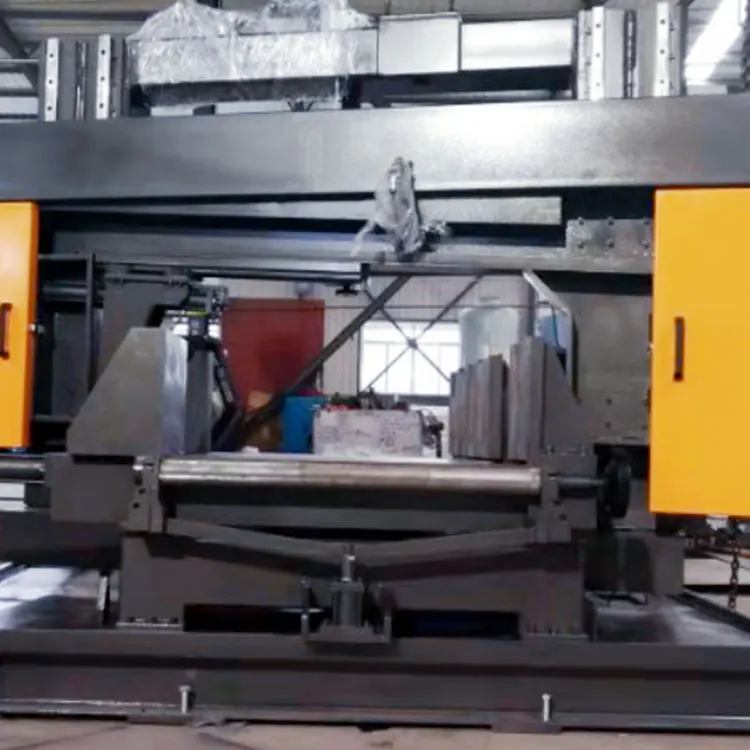

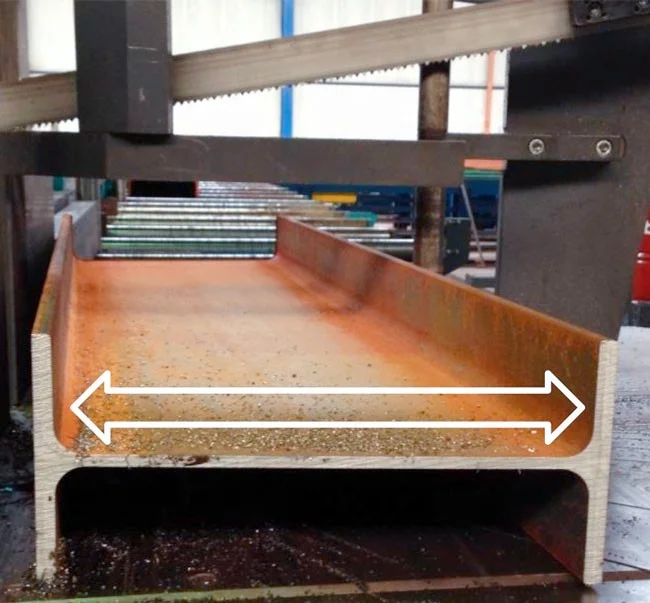

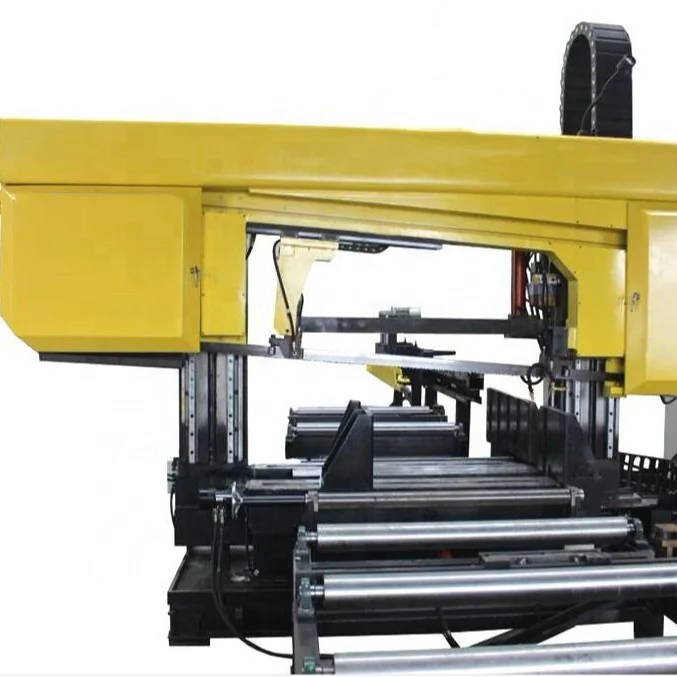

Band Sawing machine adopts a gantry structure, which has good rigidity and stability. The sawing section is flat. The No. 45 linear guide rail is used. The guide rail slider is roller type. The sawing feed is controlled by double cylinders. The hydraulic speed regulating valve is infinitely variable. When cutting H-shaped steel, the order in which the inclined saw blade contacts the workpiece is: single-sided wing plate → double-sided wing plate → web plate → double-sided wing plate → single-sided wing plate, which can be automatically lifted and re-saw. Through the rotary encoder Feedback.





Performance description
2. The band saw blade adopts hydraulic tensioning. The saw blade also maintains a good tension force during rapid movement, which prolongs the life of the saw blade. The user can adjust the pressure according to the size of the profile. There is also a detection device when the saw blade is broken. When the belt is broken, the machine tool automatically senses and stops.
3. The radium ray marking tool setting device realizes rapid workpiece positioning.



Performance description

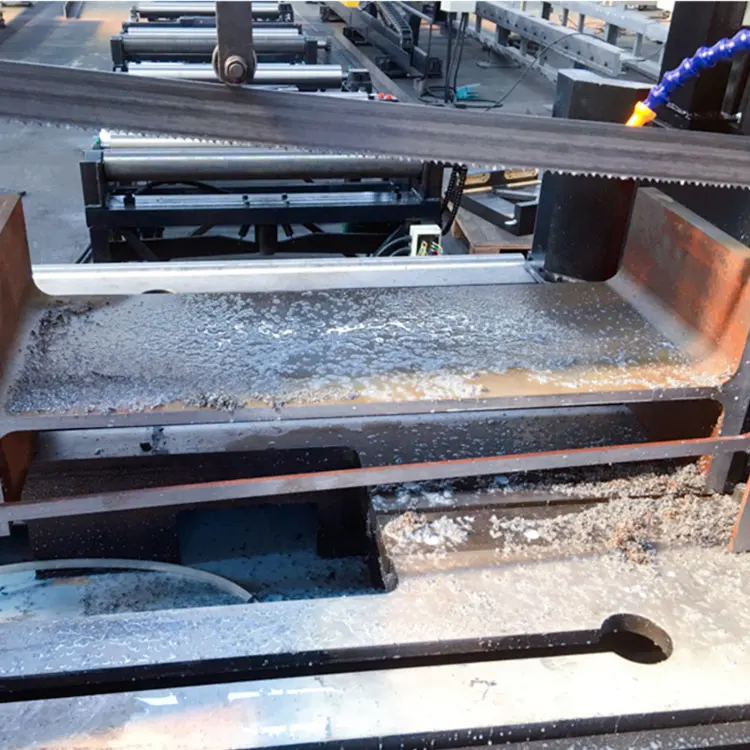

4, steel brush-type debris removal, while equipped with an electromagnetic automatic chip removal device to achieve automatic collection of sawdust.
5. The main drive uses a high-power gear reducer with strong power and reliable performance. After precise balance correction, it runs smoothly and reliably.

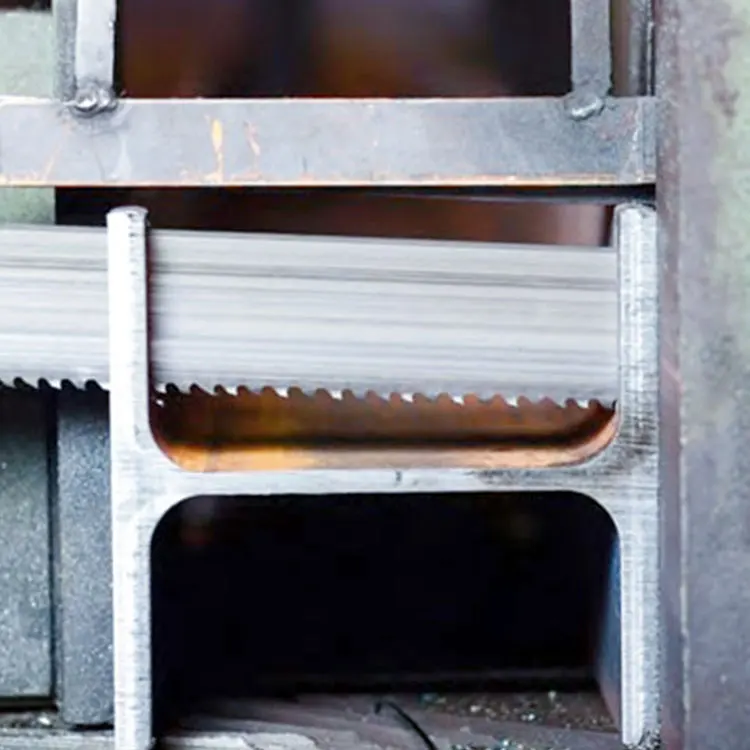

6. Narrow cutting edge, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.


Performance description
7. Reasonable saw band guiding device, effectively prolonging the life of the saw band. The movable saw blade guiding device and the side pressing device move together. The structure is stable and the movement is flexible. The transmission parts are precisely balanced and corrected to reduce vibration. The unique hydraulic system design has a stable descending speed. The saw belt will automatically lift a certain distance during the sawing process and then cut again. This precision system can prevent the saw blade from abnormal damage and achieve ideal sawing. effect.


Performance description
8. In order to avoid tilting of the workpiece when pressing the material, an upper pressure cylinder is arranged on the gantry of the main machine to ensure that the workpiece is compacted with the lower reference surface when the workpiece is compacted.
9, independent operation box, intelligent human-machine interface makes the machine operation extremely simple and efficient, machine messages and troubleshooting are automatically displayed.
10. High-grade water pipe + quick connector, cable connector also uses quick connector.


Performance description
11. Adopt high-efficiency and energy-saving PLC with simple design circuit to realize full automation of feeding, clamping and sawing. The excellent space of the electrical box not only ensures low failure rate of the machine, but also facilitates maintenance and saves time.
12. In order to maintain accuracy for a long time, the main welding parts such as saw frame, gantry, and base are all overheated and aged, and provide heat treatment ageing report.
The machine nameplate and warning signs are complete, but do not reflect the name of the manufacturer. The material is aluminum or stainless steel.


Performance description
13. The machine nameplate and warning signs are complete, but do not reflect the name of the manufacturer. The material is aluminum or stainless steel.
14. Provide mechanical, electrical, and hydraulic instructions for delivery, including mechanical consumables atlas, hydraulic schematic diagrams, electrical wiring diagrams, lubrication diagrams, and hoisting diagrams. Provide electrical program installation disk. When wiring, pay attention to the wiring number to check the wiring according to the wiring diagram and eliminate the fault.
15. The hydraulic components are from Taiwan Weisheng, and the electrical components are from well-known brands at home and abroad.


Details Imagines


Main technical parameters


Main transmission mode: Helical gear reducer
Worktable carrying capacity: 15t
Saw plane perpendicularity: 1200x600mm as an example, the saw plane perpendicularity is 0.2mm / 100mm, and the total length is not more than 0.6mm.




The max. processing range
90º                 1250mmX600mm
70º                 1100mmX600mm
60º                 1000mmX600mm
45º                 800mmX600mm
30º                 550mmX600mm


Range of activities
The min.processing range
50mmX30mm
360 ° free rotation
Saw blade size (mm)
10800×67×1.6mm
360 ° free rotation

Saw blade linear speed(m/min)
20-100m/minVariable frequency stepless speed regulation.

The maximum stroke 13000mm

Feeding speed
0-100mm/min Hydraulic stepless speed regulation.

The maximum stroke 12000 mm
Tensioning method
Hydraulic
±60°
Host motor power (kW)
15.0KW 380V 50HZ
±55°
Rotation angle
Parameterized control
Travel 320mm
Saw blade inclination
3-5 °
Move back and forth 300mm
Main transmission mode
Helical gear reducer

Saw plane perpendicularity
200x600mm as an example, the saw plane perpendicularity is 0.2mm / 100mm, and the total length is not more than 0.6mm.


Basic configuration :


NO.
Name
Specifications
Quantity(sets)
Note
1
Saw wheel motor reducer
GKF107 match 15.0KW(direct type)
1sets
GUOMAO
2
Linear guide
HG45 linear guide
4sets
HIWIN
3
Hydraulic solenoid valve
Taiwan WILSHEN
All
4
Saw blade
10800×67×1.6mm
1piece
German
5
Low-voltage electrical components
Delixi
1set
6
PLC
Taiwan FATEK
1set
7
Touch screen
10 Taiwan FATEK
1set
8
Inverter
Taiwan FATEK
1set
9
Hydraulic cylinder
China
10
Weldment
Kasry making
11
casting
Kasry making


Advantages
1. The sawing machine adopts a gantry structure, which has good rigidity and stability.
2. The band saw blade adopts hydraulic tensioning. The saw blade also maintains a good tension force during rapid movement, which prolongs the life of the saw blade.
3. The radium ray marking tool setting device realizes rapid workpiece positioning.
4, steel brush-type debris removal, while equipped with an electromagnetic automatic chip removal device to achieve automatic collection of sawdust.
5. The main drive uses a high-power gear reducer with strong power and reliable performance. After precise balance correction,
6. Narrow cutting edge, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
7. independent operation box, intelligent human-machine interface makes the machine operation extremely simple and efficient,machine messages and troubleshooting are automatically displayed.
8. Adopt high-efficiency and energy-saving PLC with simple design circuit to realize full automation of feeding, clamping and sawing.
