32A электромобили wallbox настенный тип 2/1 с
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Nanjing,Powercore,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 452.56 $* | 475.66 $* |
| Aug-19-2025 | 448.40 $* | 470.14 $* |
| Jul-19-2025 | 376.30 $* | 395.32 $* |
| Jun-19-2025 | 441.60 $* | 463.97 $* |
| May-19-2025 | 384.29 $* | 403.90 $* |
| Apr-19-2025 | 433.37 $* | 455.19 $* |
| Mar-19-2025 | 429.37 $* | 450.81 $* |
| Feb-19-2025 | 426.7 $* | 447.33 $* |
| Jan-19-2025 | 422.59 $* | 443.65 $* |
Характеристики
Product Description
Main Benifits
1. Easy installation-saves time
2. DIN rail components-easy to maintain and replace
3. High Quality-More reliability
4. DC leakage included-saves extra device
Main Advantage
1. OCPP 1.6
2. Load Balance available as option
3. Ethernet standard, wifi/4g available as option
4. MID meter available as option
3. Ethernet standard, wifi/4g available as option
4. MID meter available as option
Technical Parameters
Appearance | Model | NKR-AC003-WALL BOX |
Wall Box Dimension | W25*T11*H31cm | |
Cable length | 4meters | |
Box Material | Aluminum | |

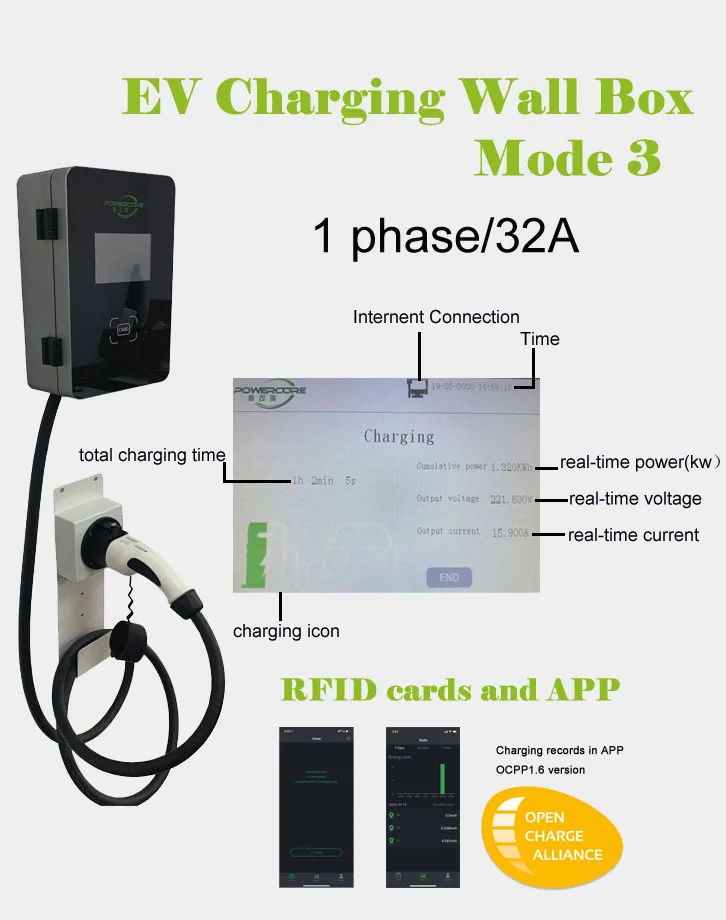

Screen | 5 inch LCD touch screen | |
Weight | 7kgs(include cable) | |
Electrical Features | Input/output Voltage | 100VAC-240VAC+/-10% |
Input frequency | 50Hz/60Hz | |
Max Output Current | 32A | |
Connector type | Type 1 or 2 | |
Functional Features | User Interface | Touch screen/RFID/APP/Emergency Stop/LED indicator |
Safety Features | Overvoltage/undervoltage protection, overload protection, leakage protection, Ground protection | |
Communication Interface | OCPP1.6, Ethernet (wifi, 4g as options) | |
Working environment | Working latitude | <2000m |
Working temperature | -30°-55° | |
Working humidity | 5 %~ 95% | |
Protection level | IP54 | |
Cooling | Natural cooling | |
MTBF | 100,000 Hours | |
Safety standards | IEC61851-1/2017 | |
Special protection | Anti-UV protection |
Warranty&Service
-One Year Wanrranty
We provide one year wanrranty for whole parts. A new-repleaced part will be sent if any quanlity problem happen.
-OEM/ODM
We have ability to OEM/ODM your Logo/Color/Language.
-One to One Technology Support
Will provide E-user Manual and we also provide one to one online technology support for your installation and operation.
We provide one year wanrranty for whole parts. A new-repleaced part will be sent if any quanlity problem happen.
-OEM/ODM
We have ability to OEM/ODM your Logo/Color/Language.
-One to One Technology Support
Will provide E-user Manual and we also provide one to one online technology support for your installation and operation.
About us
We PowerCore Tech CO.,Ltd is the a leading high-tech company for EVSE(elctrictric vehicle supply equipment) and dedicated to providing customers with stable and efficient DC and AC charging station. Until now we have had charging station apply to CCS&CHADEMO&AC charging stanrds with IP65 and PCR-OCPP cloud management platform.
Our goal is to provide the best EV charging solution with most competivie price for you!
Our goal is to provide the best EV charging solution with most competivie price for you!
