Однофазный 1 полюсный 6Amp
- Категория: Circuit Breakers >>>
- Поставщик: Yueqing,Fly,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.3 $* |
| Aug-16-2025 | 0.88 $* | 0.55 $* |
| Jul-16-2025 | 0.88 $* | 0.66 $* |
| Jun-16-2025 | 0.23 $* | 0.85 $* |
| May-16-2025 | 0.54 $* | 0.13 $* |
| Apr-16-2025 | 0.41 $* | 0.46 $* |
| Mar-16-2025 | 0.14 $* | 0.75 $* |
| Feb-16-2025 | 0.10 $* | 0.0 $* |
| Jan-16-2025 | 0.2 $* | 0.28 $* |
Характеристики
L7 Single phase 1 Pole 6Amp MCB
Product Description
- Provides protection against overload/short-circuit and function of isolation.
- High breaking current withstand capacity
- Applicable to terminal and pin/fork type busbar connection
- Equipped with finger protected connection terminals
- Fire resistant plastic parts endures abnormal heating and strong impact
- Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
- Independent of power supply and line voltage, and free from external interference, voltage fluctuation
Standard |
| IEC60898,EN898 |
Number of poles |
| 1P,2P,3P,4P |
Rated current(In) |
| 6,10,16,20,25,32,40,50,63 |
Rated voltage(Un) |
| AC230/400V |
Rated frequency |
| 50/60Hz |
Tripping curve |
| B,C,D |
Release action characteristics | Time delay | 1.13In>1h Non-trip |
1.45In<1h trip | ||
2.55In 1s~60S trip | ||
Instantaneous(Curve C) | 5In >0.1s Non-trip | |
10In<0.1s trip | ||
Magnetic releases operate |
| B curve:between 3 and 5In |
C curve :between 5 and 10In | ||
D curve: between 10 and 15In | ||
Ratedbreaking capacit(Lcn) |
| 3000A |
Endurance |
| >2500 |
Circumstance temperature |
| -5~+40 |
Electrical life |
| >6000times |
Mechanical life |
| 20000 times |
Tropical ration |
| Treatmen 2(RH95%,at 55°C) |
Protection degree |
| IP20 |

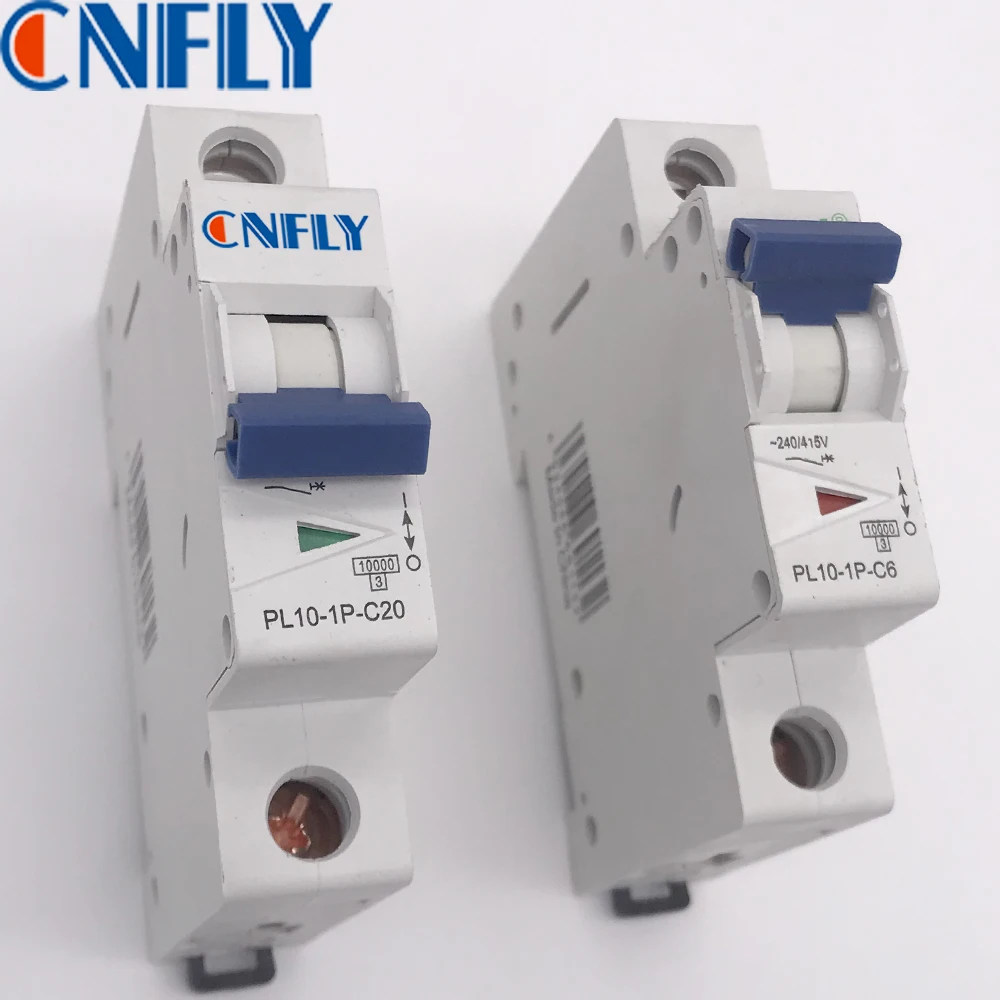

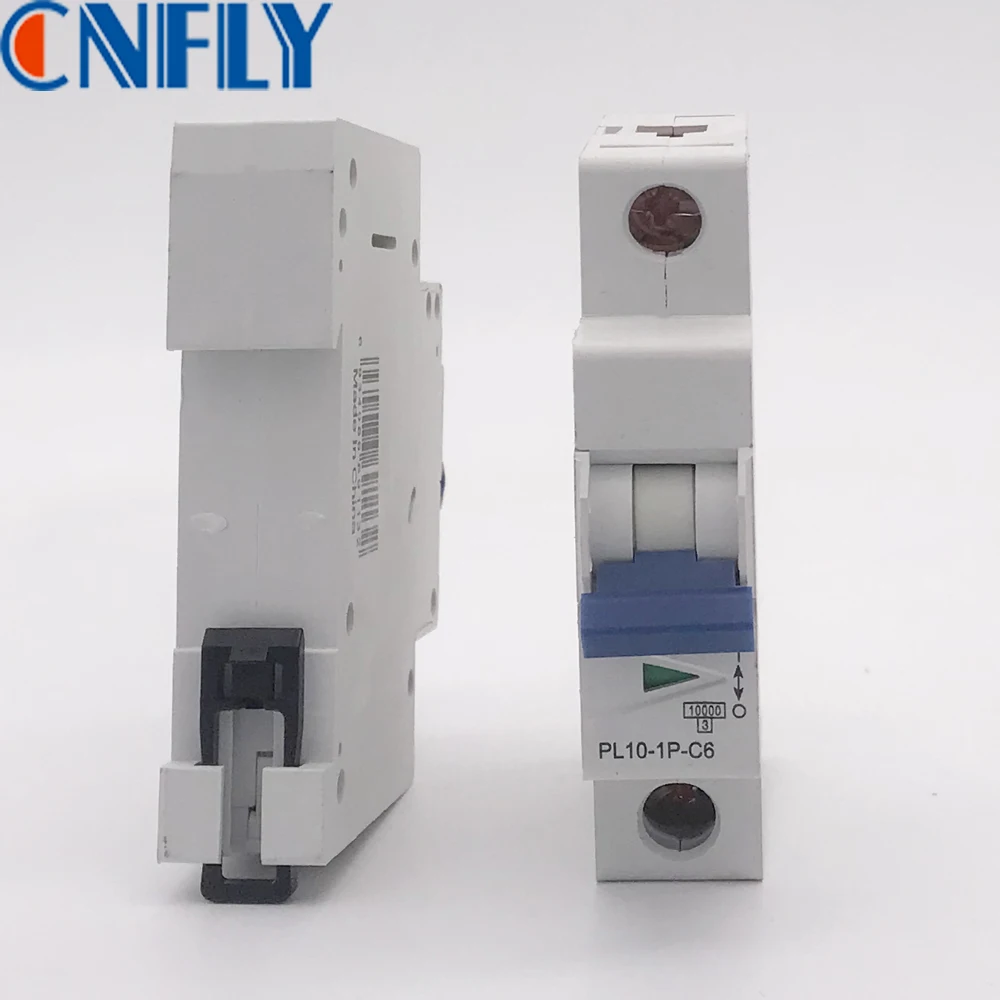

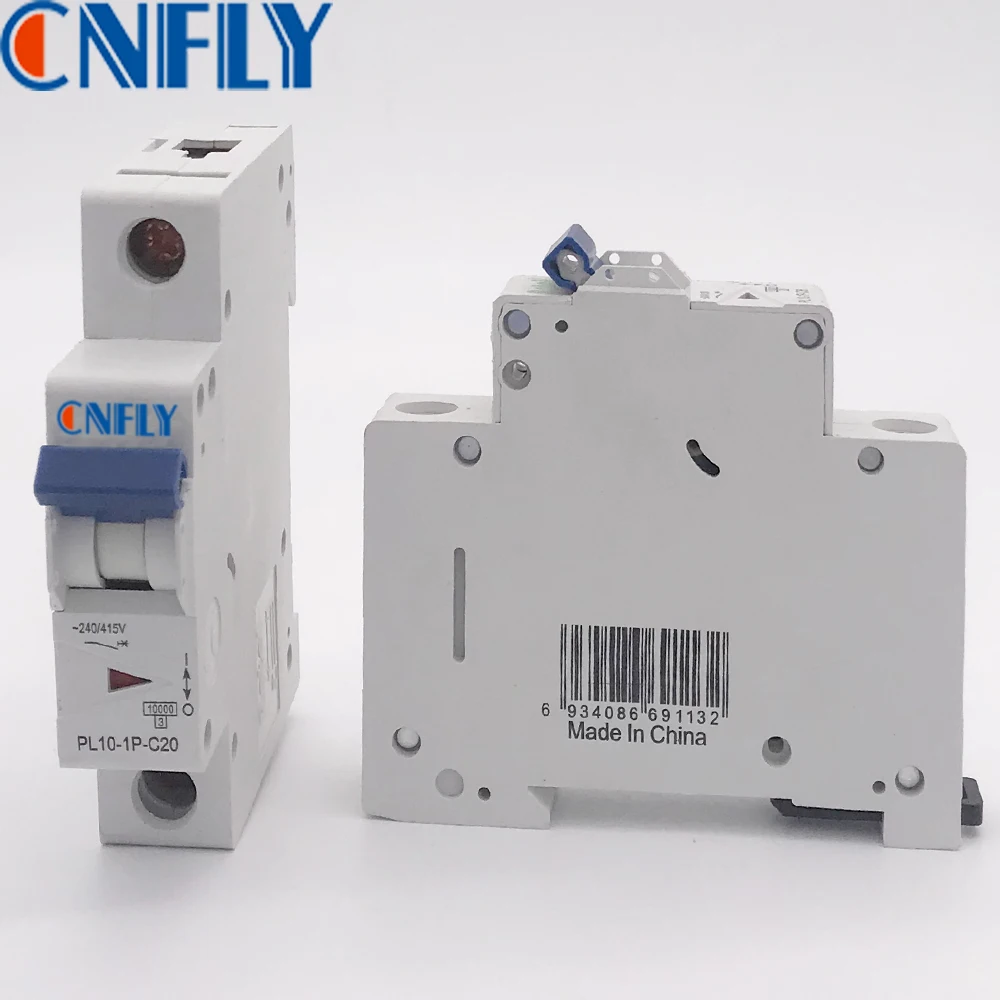

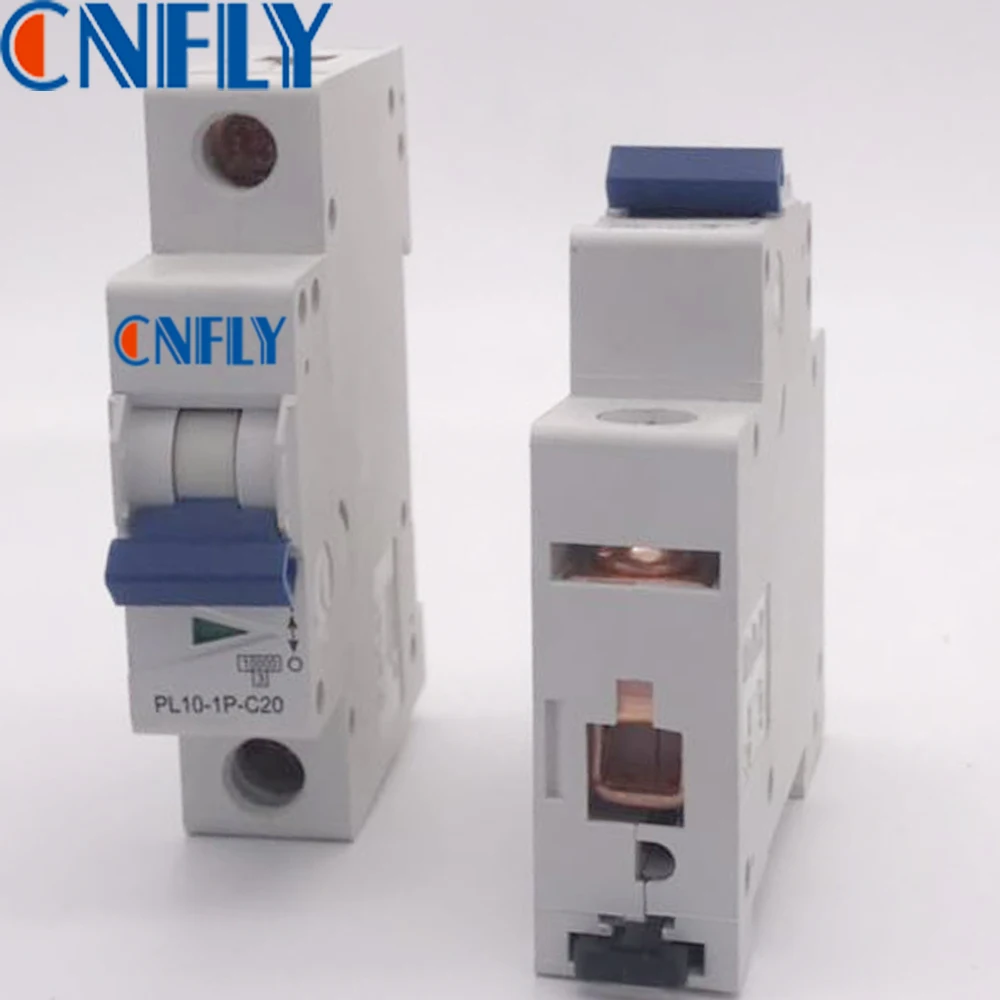

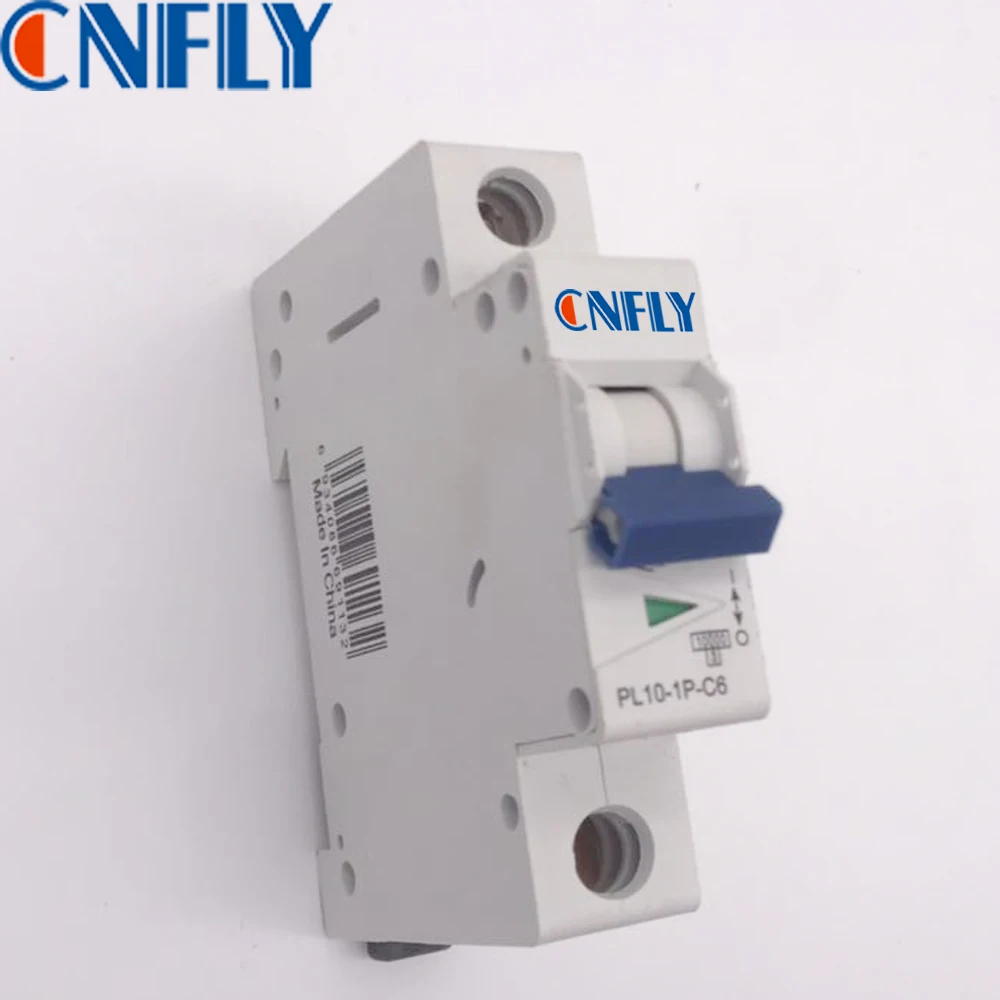

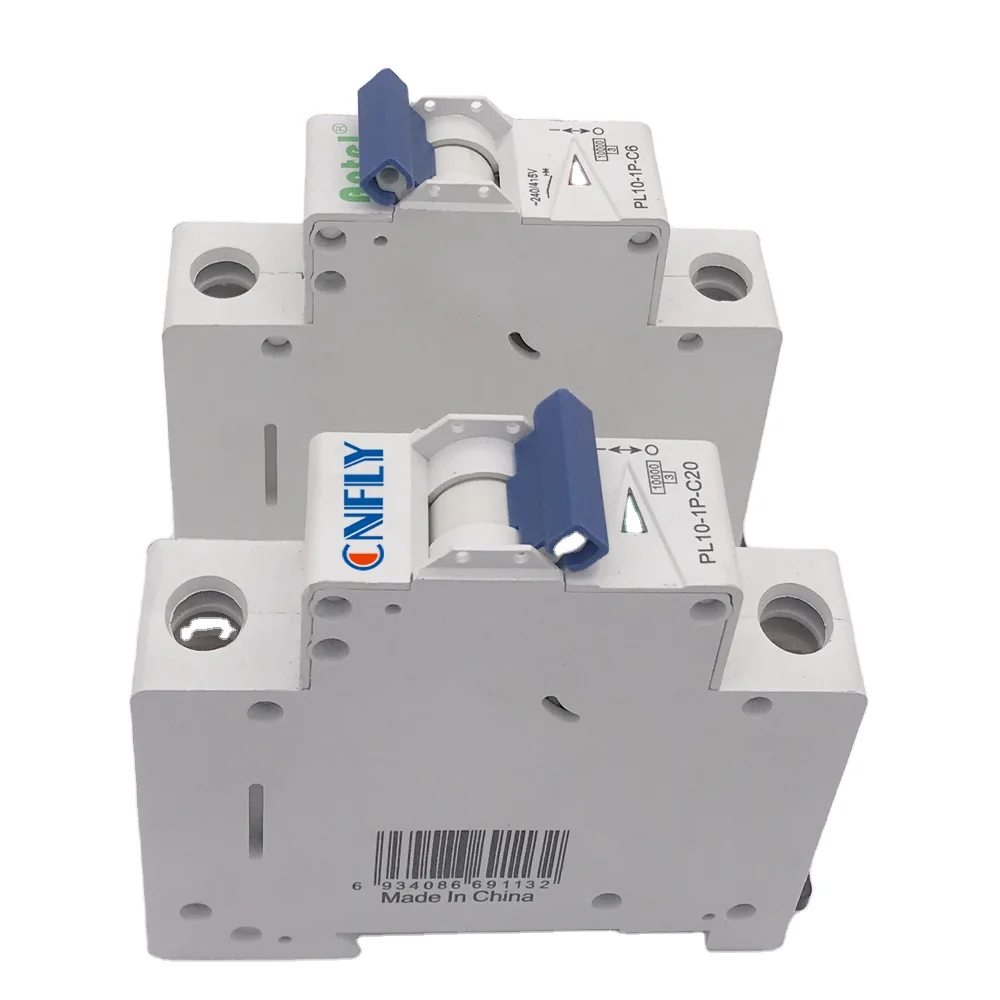

Product show
Packaging & Shipping
1. Product Net weight: 100g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .
3. N.W: 24KG/carton
4. G.W:25KG/carton
