Ультразвуковой парковочный датчик RS485 встроенный детектор и индикатор с подсветкой RGB LED RJ45
- Категория: Парковочное оборудование >>>
- Поставщик: Chengdu,Kehong,Lingtai,Automatic,Identification,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 17.37 $* | 18.33 $* |
| Aug-19-2025 | 17.81 $* | 18.7 $* |
| Jul-19-2025 | 14.27 $* | 15.85 $* |
| Jun-19-2025 | 16.0 $* | 17.28 $* |
| May-19-2025 | 14.99 $* | 15.29 $* |
| Apr-19-2025 | 16.39 $* | 17.59 $* |
| Mar-19-2025 | 16.8 $* | 17.28 $* |
| Feb-19-2025 | 16.61 $* | 17.24 $* |
| Jan-19-2025 | 16.86 $* | 17.14 $* |
Характеристики
Product Description

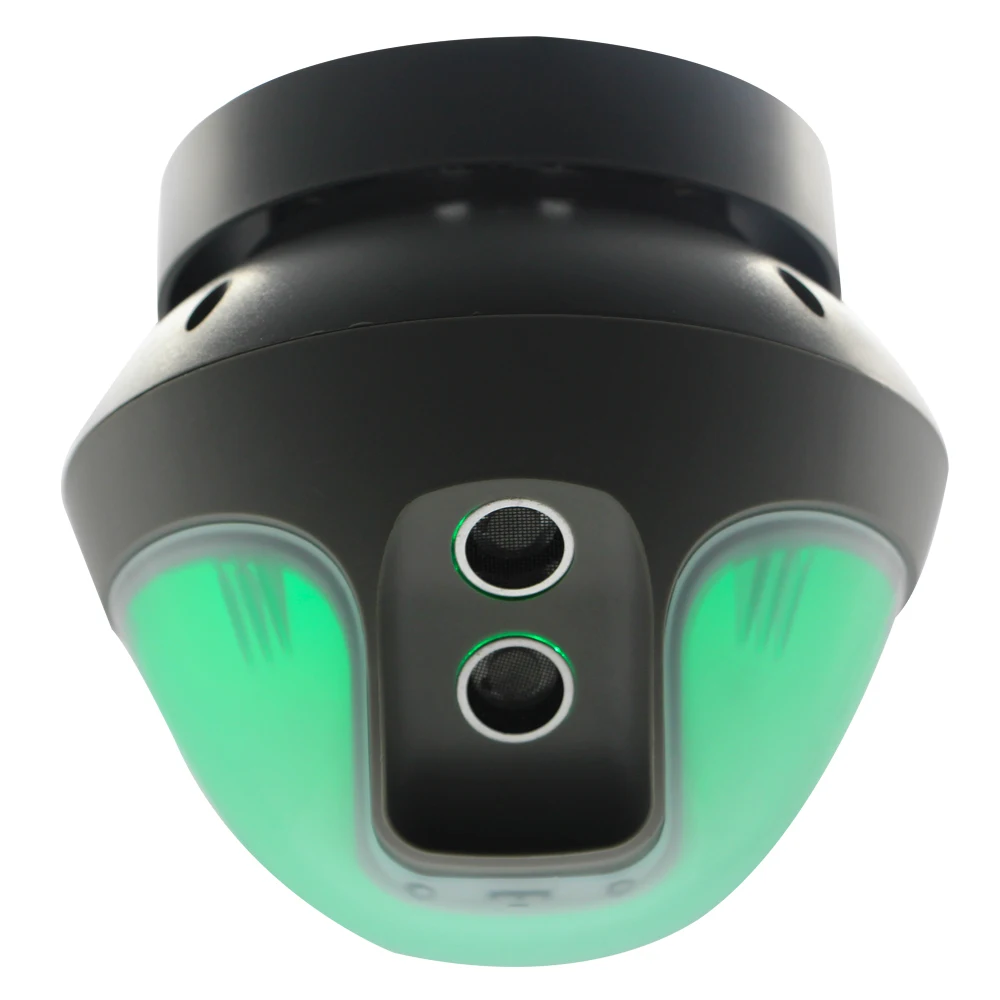

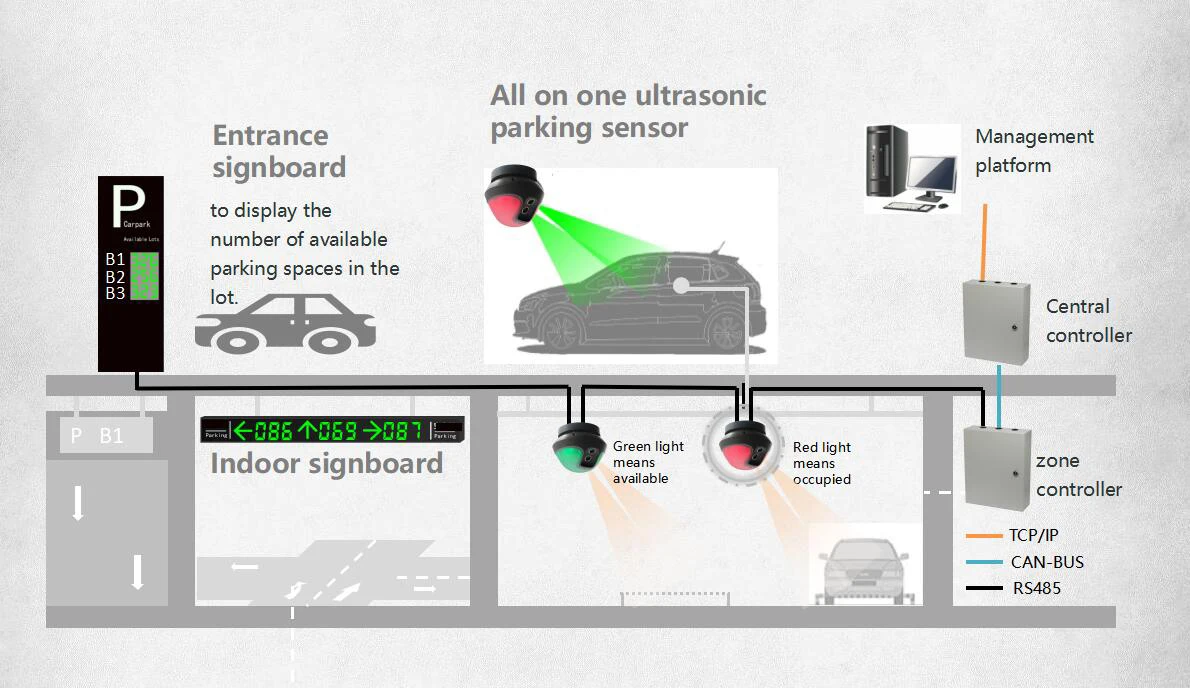

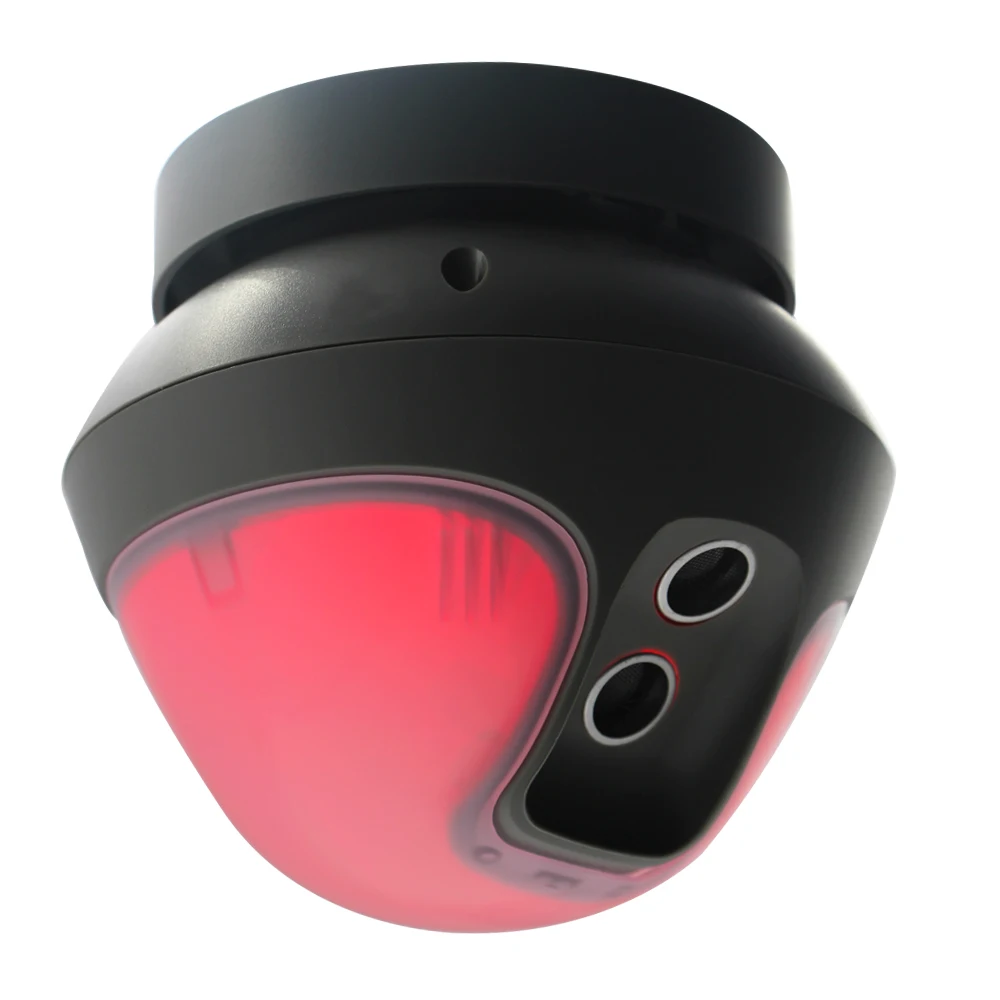

As an essential part of parking guidance system, Integrated Ultrasonic Parking Sensor is integrated ultrasonic probe and LED lamp in one body. It is installed up front of parking space, using ultrasonic technology to monitor parking space status real-timely. The color of LED lamp is changed according to parking space status. Red when occupied, green when available.
Comparison
Our Advantages
With Integrated ultrasonic parking sensor which integrated detectors and LED lamp in one body. The unique design allow parking sensor be installed on the top front of parking space with one cable trunk/cable traying. Compared with the traditional split ultrasonic parking guidance system, the installation is more simple, cost-effective, and time-saving, such as a KBG tube or a bridge, a single pass, a twisted, greatly reducing the cost of materials and labor for each parking space costs, saving more than USD20 per parking space.
The parking sensor is mounted on the top front of parking space, to avoid blocking column. It looks neat and concise.
With advanced intelligent study-type anti-interference algorithm, the problems of ultrasonic about adjacent-channel crosstalk and non-interference of the neighboring car during detection are effectively solved. Thus, the stability and reliability of parking state detection is guaranteed.
Various combined judgment modes are used for the receiving circuit to enhance the anti-interference and detection stability of the equipment.
The system uses industrial design, rigorous static electricity, lightning and surge, pulse and other test groups, effectively ensuring fluorescent environment in the parking lot, large mechanical and electrical equipment, lightning and surge and other harsh environmental factors used reliably under.
All devices have protection designed to prevent electrical damage caused by short circuit, reverse polarity, wrong connection etc. in installation and wiring
LED lamp bead design is used for displaying state, featuring long service life and far visual range.
Parameters
Model Number | WBP-T02F | Operating Voltage | DC 10～28V(Rate 24V) |
Mounting location | Horizontal distance to car stopper: 3.9~4.2m | LED lamp | Highlight RGB LED |
Height: 2~ 3m Recommended2.5-2.8m | Housing material | ABS plastic | |
Response time | 2-8s | Accuracy | 99.9% |
Working temperature | -20～＋65℃ | Communication | RS485 |
Power supply distance | <150m(CAT-5) | Communication distance | <300m(CAT-5) |
Interface | RJ45 | Net weight | 180g |
Power consumption | 1W | Dimensions | φ126*125mm |
Certifications
Packing & Delivery
Company Profie
Shenzhen WanBo Technology Co., Ltd.
——A Subsidiary Company of Chengdu Kehong Lingtai Automatic Identification Technology Co., Ltd.——
Our company mainly provides intelligent parking guidance and reverse vehicle tracking systems, including ultrasonic parking guidance system and related devices, video parking guidance system, related devices, geomagnetic parking detector and wireless networking data transmission terminal.
We establishes R&D center in Chengdu. It has 30 hardware and software R&D staffs. With core R&D capabilities of related technologies such as embedded system, industrial control, automatic identification, software development, it can provide systematic and comprehensive product solution and technical service for customers. In the emerging intelligent parking industry, it has accumulated implementation experience in many independent products and systems. Meanwhile, it enjoys the trust of all users by virtue of its advanced technologies, superior services and quality.
The company has always provided superior, perfect and professional one-stop services for customers. By being rooted in outstanding technical strength, the company has always sought after innovative development of the industry and gradually invested more in scientific and technological development to lead all users in developing new intelligent parking era of IoT.
FAQ
1. Are you a manufacturer?
Yes, we are manufacturers. We have been in IOT for 14 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order samples. All the contents in a CD ROM with samples together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products. As for the mass order, we will provide certain proportion spare parts or RMA machines for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirms the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept PayPal. Besides, we accept T/T, L/C Secure payment (Escrow Service from Alibaba), and so on.
7. What's the delivery time?
Generally, the sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depending on the exact quantity.
8. Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
Yes, we are manufacturers. We have been in IOT for 14 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order samples. All the contents in a CD ROM with samples together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products. As for the mass order, we will provide certain proportion spare parts or RMA machines for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirms the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept PayPal. Besides, we accept T/T, L/C Secure payment (Escrow Service from Alibaba), and so on.
7. What's the delivery time?
Generally, the sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depending on the exact quantity.
8. Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after-sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c.Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
