Деревообрабатывающий фрезерный станок с чпу 1300*2500 мм

Деревообрабатывающий фрезерный станок с чпу 1300*2500 мм

Категория: Лазерное оборудование для промышленности >>>
Поставщик: Qingdao,Zhongding,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.57 $*	0.61 $*
Aug-19-2025	0.31 $*	0.98 $*
Jul-19-2025	0.29 $*	0.14 $*
Jun-19-2025	0.45 $*	0.3 $*
May-19-2025	0.44 $*	0.66 $*
Apr-19-2025	0.30 $*	0.42 $*
Mar-19-2025	0.29 $*	0.42 $*
Feb-19-2025	0.46 $*	0.69 $*
Jan-19-2025	0.59 $*	0.0 $*

Характеристики

Company Profile

PRODUCT OVERVIEW

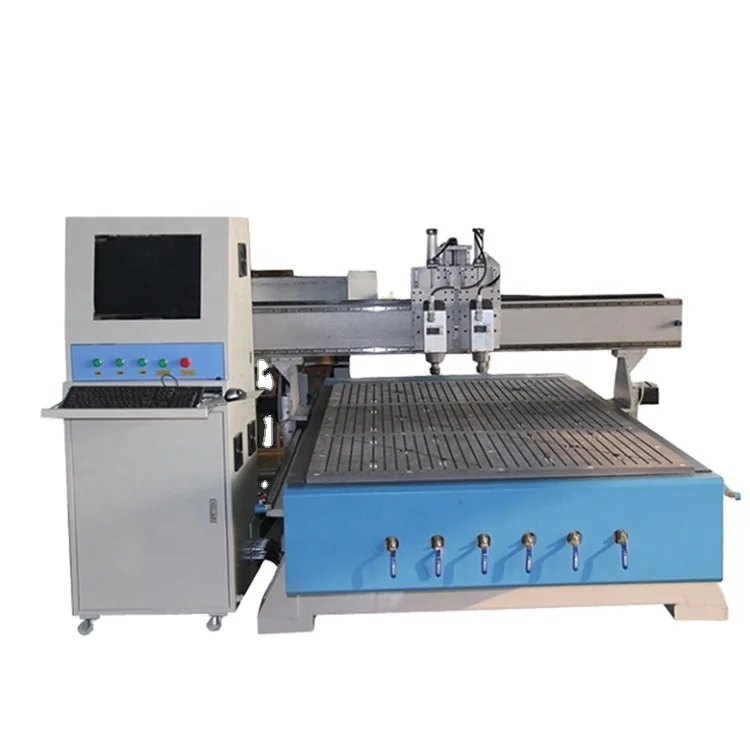

ZD1325 CNC ROUTER

Features:
◆ Engraving, drilling, cutting, leading edge, milling and so on, 12 tools, the tool change process is uninterrupted and automated.
◆ Taiwan Baoyuan intelligent control system, the control interface design is humanized, fool-like operation, the operator can be
employed through simple training.
No skilled workers are needed. The machine moves quickly and quickly, helping you achieve a leap in productivity.
◆ This machine adopts HQD 9KW power air-cooled spindle, full servo drive system, original electrical components and other
components, and the performance is stable.
◆ The table top is a vacuum adsorption table, which can strongly adsorb materials of different areas. The small plates are
processed without displacement, the processing surface is smooth, and the plate size is accurate.

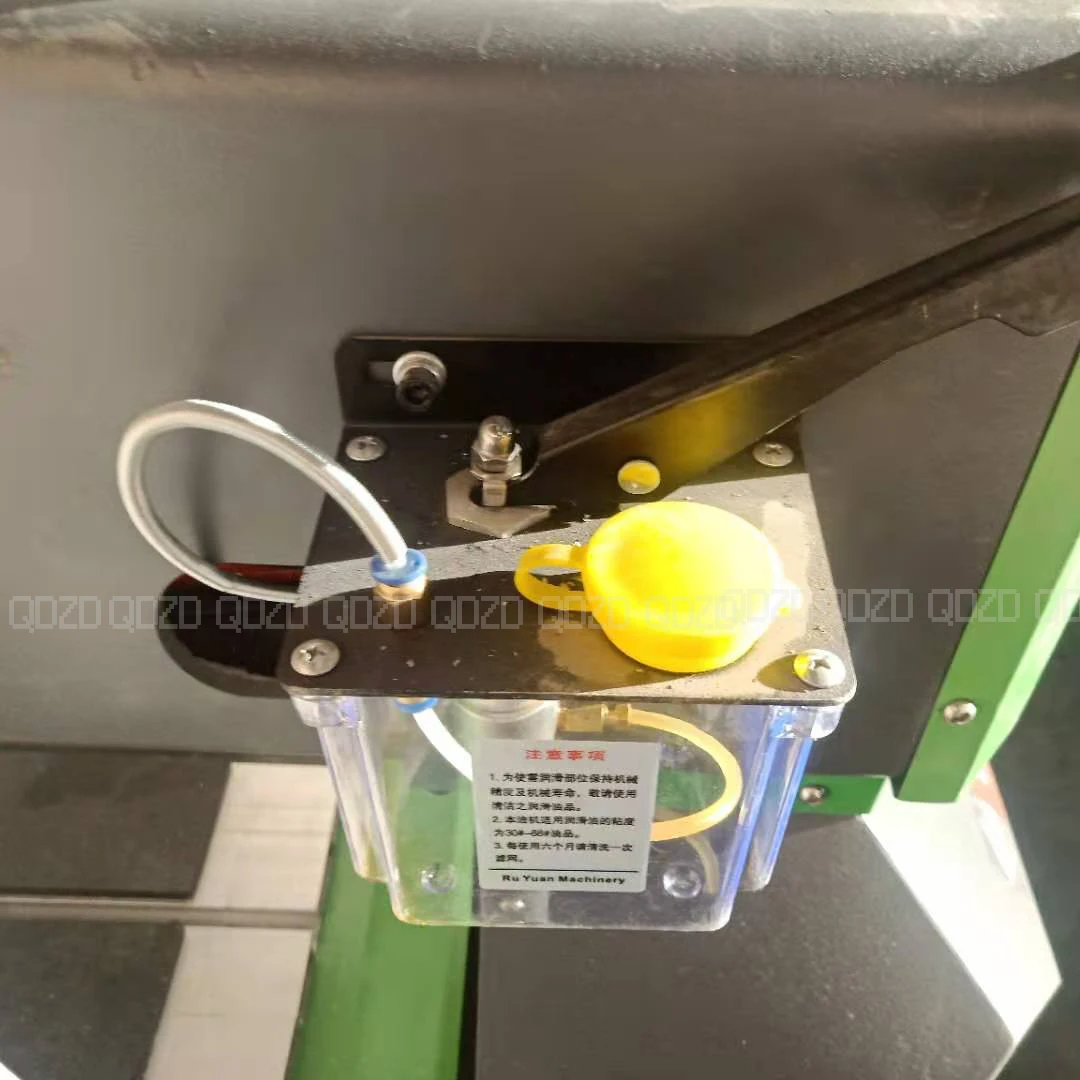

◆ Electric oil filling, automatic oiling according to time setting, ensuring lubrication of the slider screw guide rail and
prolonging service life.

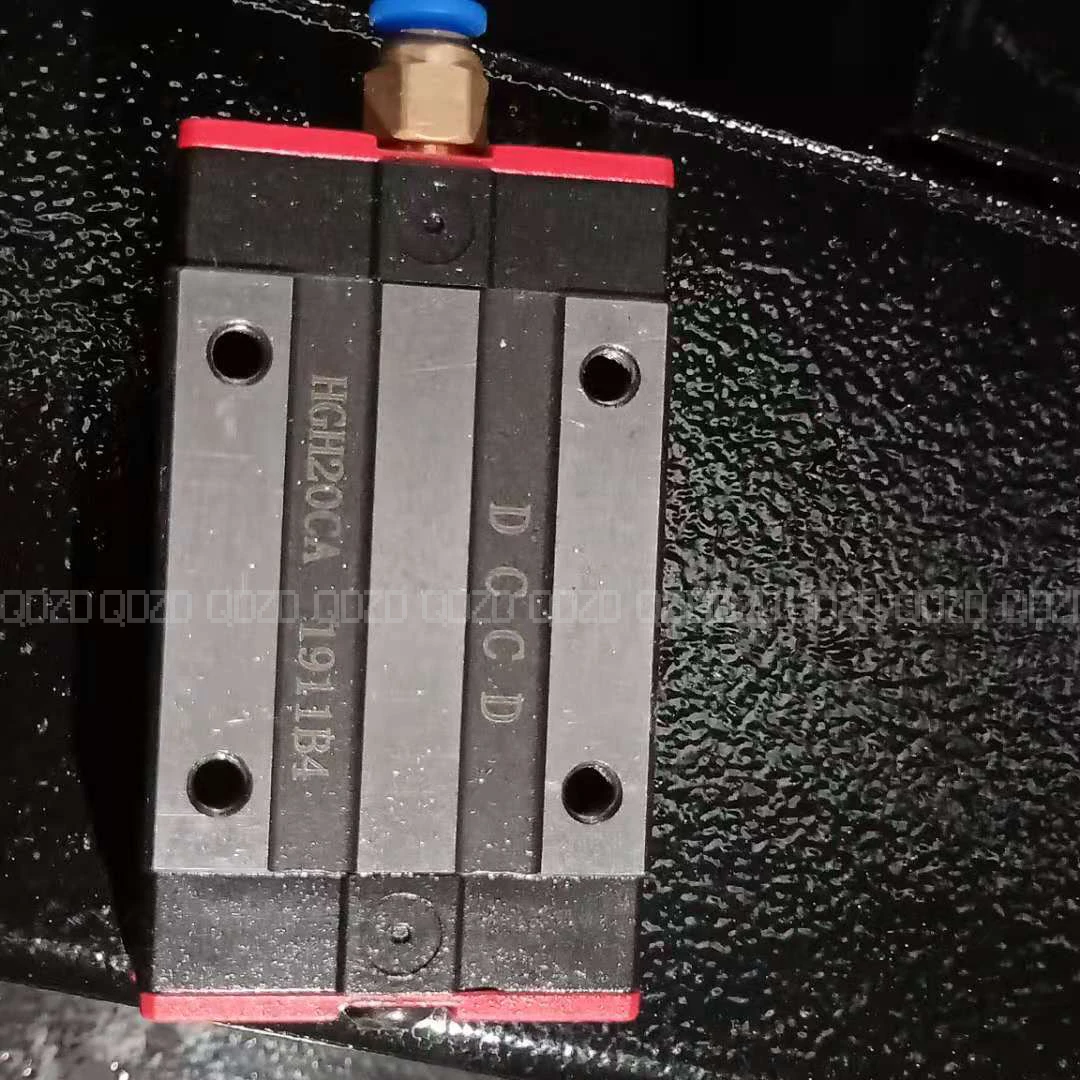

◆ Taiwan high-precision square linear guide, high precision, long service life, large contact surface, strong load carrying
capacity, and the use of vertical rail technology can better ensure the stability of operation.
◆ Reinforced thickened heavy gantry, steel plate processed by precision cutting and planer, plus welding, equivalent to secondary
tempering treatment, ensuring long-lasting gantry and no deformation.
◆ The whole cast iron side plate is treated with high temperature tempering to prevent the side plate deformation from affecting
the Y axis travel accuracy.

TECHNICAL PARAMETERS

Model	ZD1325 - Atc cnc router with disc round tool magazine
Stroke	13002500280
Platform size	1380x2750mm
X, Y, Z structure	Z screw, X, Y rack
Empty line speed	80000mm/min（80 m）
Speed of work	25000mm/min（25 m）
Precision	≤0.05mm
Repeat positioning accuracy	≤0.02mm
Guide	Taiwan TBI25 square track
Spindle	HQD9KW air-cooled tool change spindle
Operating mode	Kane 1500 watt high power pure servo absolute drive motor
Operating Voltage	AC380V/50Hz
Tool	12 tools
Operating system	Beijing Kai Endi Processing Center dedicated control system
Net weight	3000kg
Pushing system	Automatic processing after processing
Tool setting system	High precision automatic tool setting instrument
