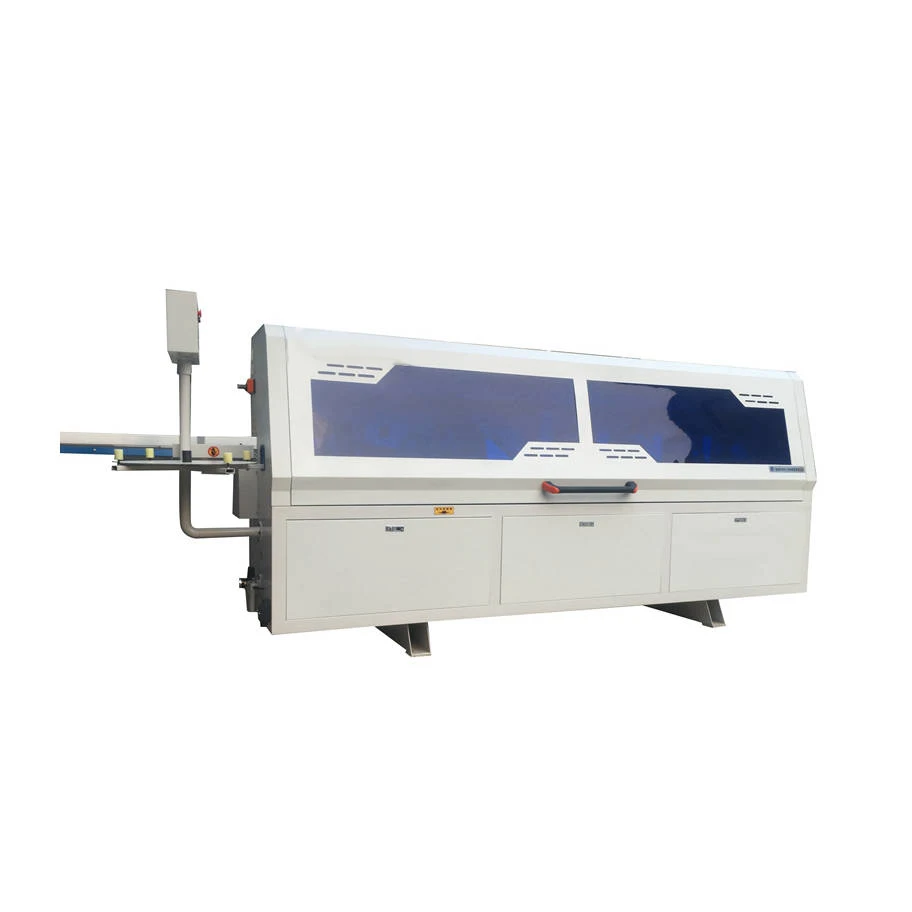

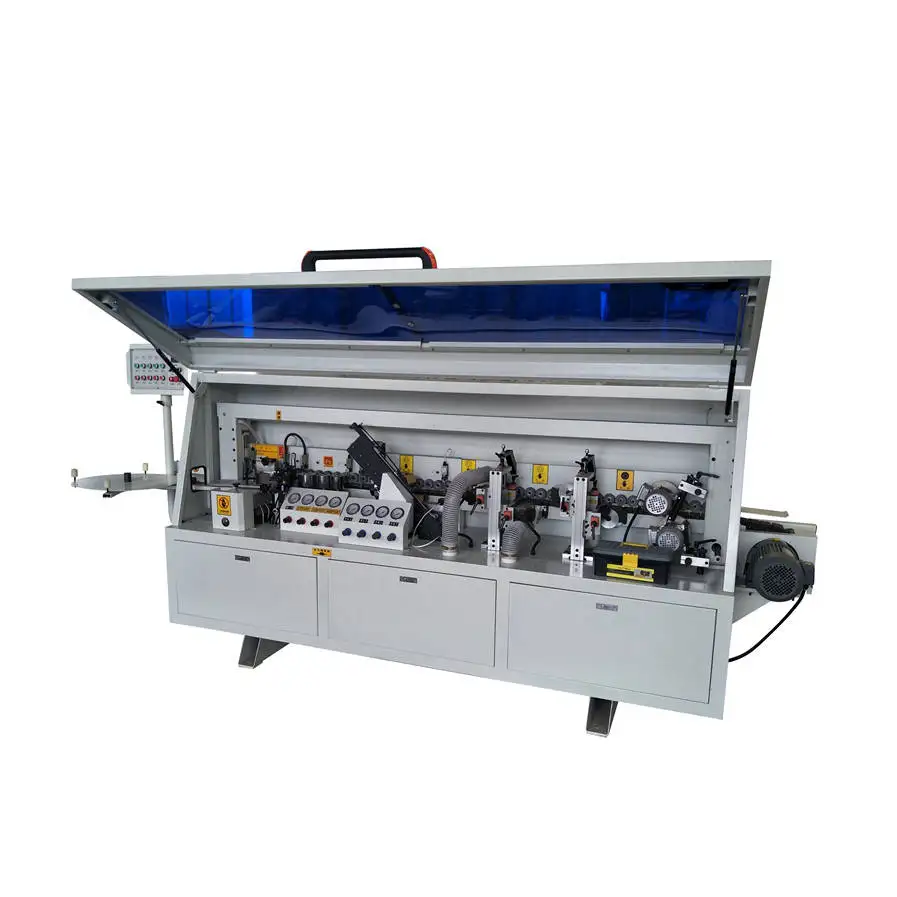

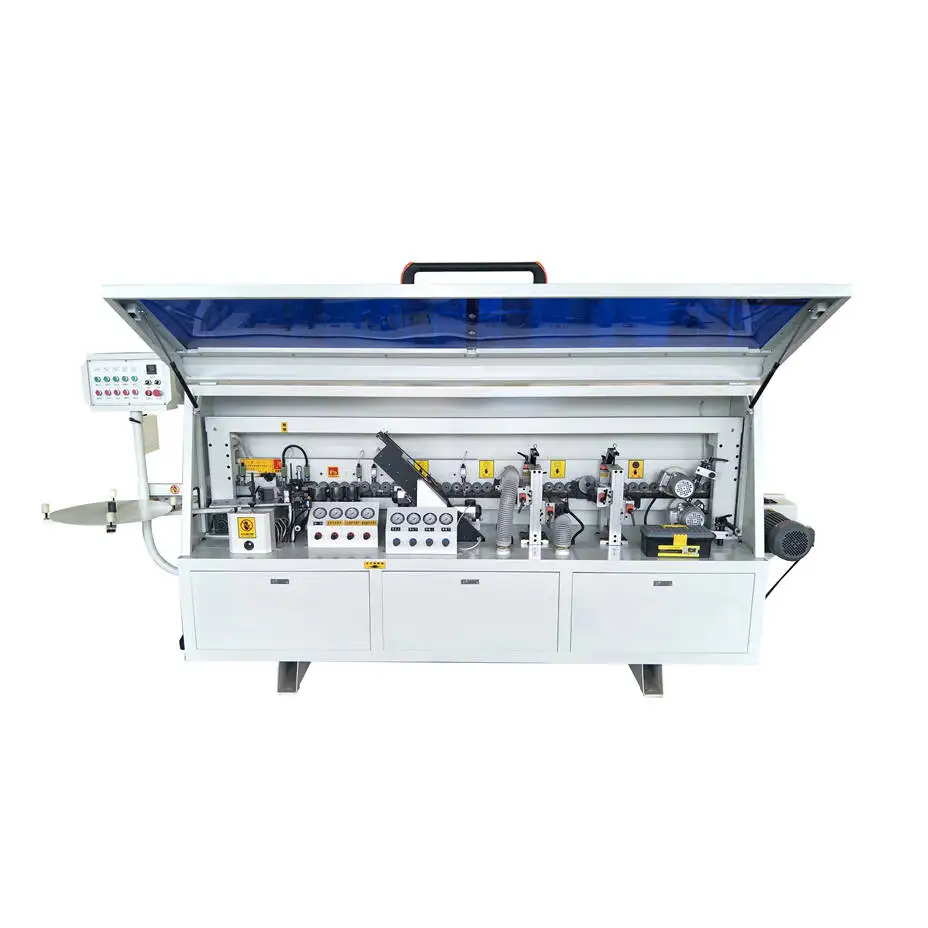

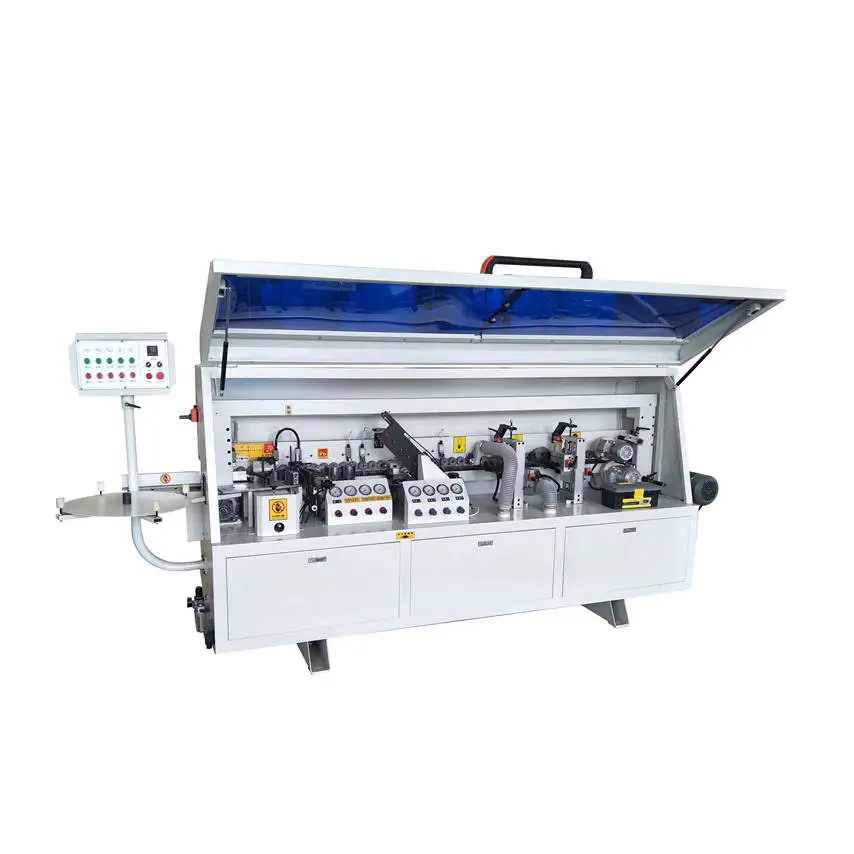

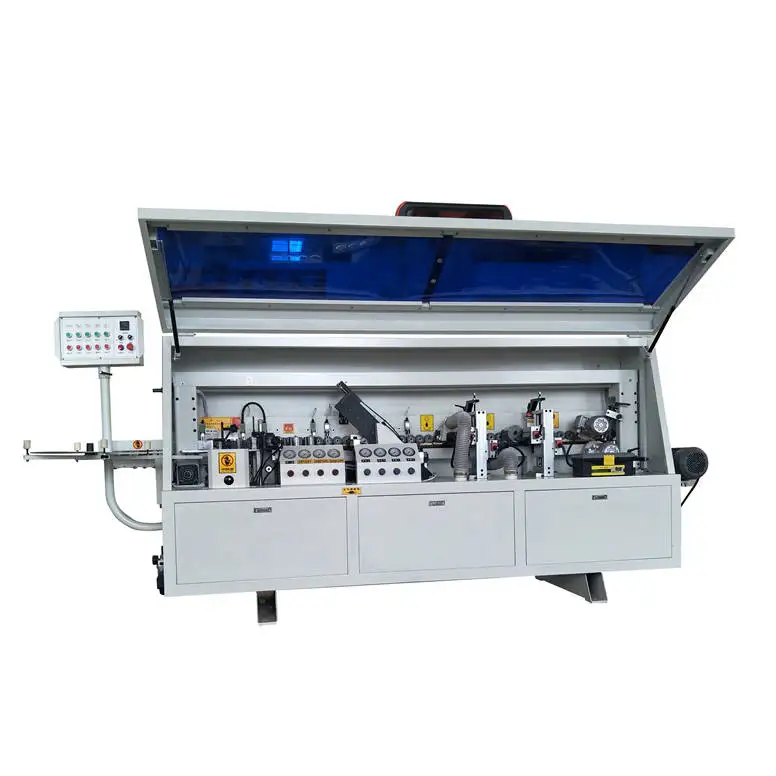

Автоматический станок для облицовывания кромок HLJ-B62 Кромкооблицовочный деревообрабатывающего
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Qingdao,Hailiju,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.85 $* | 0.48 $* |
| Aug-16-2025 | 0.25 $* | 0.16 $* |
| Jul-16-2025 | 0.0 $* | 0.80 $* |
| Jun-16-2025 | 0.95 $* | 0.47 $* |
| May-16-2025 | 0.17 $* | 0.87 $* |
| Apr-16-2025 | 0.19 $* | 0.57 $* |
| Mar-16-2025 | 0.2 $* | 0.16 $* |
| Feb-16-2025 | 0.48 $* | 0.14 $* |
| Jan-16-2025 | 0.14 $* | 0.25 $* |
Характеристики
Products Description
Product Paramenters
Model | 3S | 4S | 4A | 5A |
Panel thickness | 8-60MM | 8-60MM | 8-60MM | 8-60MM |
Min working width | ≥45mm | ≥45mm | ≥45mm | ≥45mm |
Min working length | ≥70mm | ≥70mm | ≥70mm | ≥70mm |
Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Edge bander thickness | 0.3-3mm | 0.3-3mm | 0.3-3mm | 0.3-3mm |
Voltage | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz |
Feeder speed | 8-15m | 8-15m | 8-15m | 8-15m |
Total power | 6kw | 7kw | 8.5kw | 10kw |
Weight | 500 | 600 | 600 | 700 |
Machine size | 1800*800*1350 | 2250*800*1350 | 2250*800*1350 | 2500*800*1350 |
How many sets ship in 40 HG | 36 | 32 | 32 | 26 |
gluing | yes | yes | yes | yes |
automatic edge cutting | - | - | yes | yes |
fine trimming | yes | yes | yes | yes |
scarping | - | - | - | yes |
buffing | yes | yes | yes | yes |
manual motor edge cutting | - | yes | - | - |
Details Images
Panel control
Adopt switch button, make it use easily, hard, simple processing, easy to understand.
per heating with button
per heating with button will be easy to operate, can different work with panel.
Edge gluing device
The preheating and gluing device of the electrical system makes the gluing of the edge plate and the edge material uniform through
a special mechanism, so as to ensure the firmer adhesion.
Edge pressing device
The screw structure of the worktable is used for glue feeding, and the edge sealing strip and the plate are pressed and adhered
firmly by the pressing wheel.
Rough trimming device
Rough trimming is 15 ° In order to accurately reserve 40-50 micro margin, the flat cutter adopts automatic tracking and
high-frequency high-speed motor to realize rapid cutting.
Buffing device
The high-grade cotton polishing wheel is used to polish and polish the plate after trimming, to remove the redundant glue stains
and burrs, so that the edge sealing effect of the plate is more natural, and the edge sealing strip and the plate are integrated.
Motor manual edge cutting
This kind of machine have a motor edge cutting it with a inverter control for that, other company not have inverter. Inverter
insurance this machine long life and use convenient.Product packaging
