Product Description
This item is suitable many kinds of intersection,four way,three way and two way.
The system including master controller and slave controller,worked by wireless medium.
It supports remote control and management of traffic signal over various of communication network.
The max channel is 64 channel driving control( 48 channel for vehicle lights, 16 channel for pedestrian lights )
The system including master controller and slave controller,worked by wireless medium.
It supports remote control and management of traffic signal over various of communication network.
The max channel is 64 channel driving control( 48 channel for vehicle lights, 16 channel for pedestrian lights )

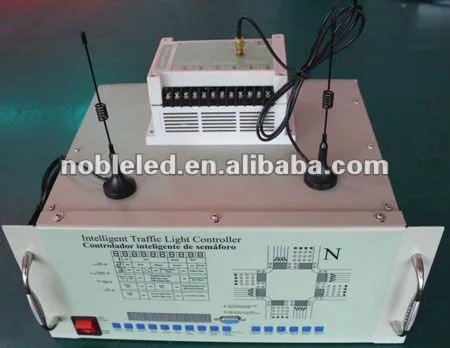

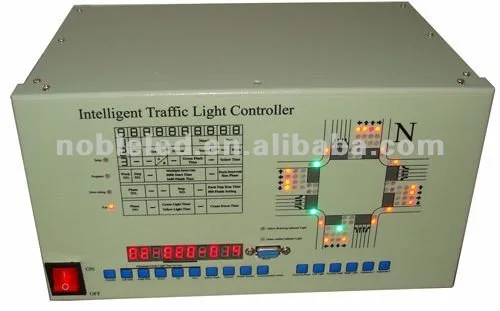

There are 3 physical pictures (1 front +1 side +1 back) of 2nd Intelligent traffic light controller
Detailed Images
Product detail drawing

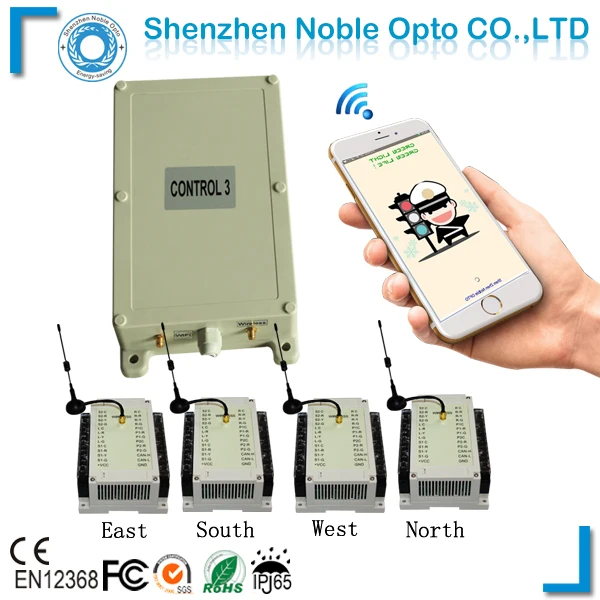

This is a detailed diagram of the auxiliary machine of the wireless controller (the control system in the northwest direction)
Features
Understand the characteristics of a good control machine for better use
1.Mobile phone APP to remote control the controller by wifi.
2.LAN,WLAN on TCP/IP.
3.Lamp faliure detect function, can detect the lamp short circiut, open circuit, output short/open circuit.
4.GPS Real-time clock for wireless sync available
5.Vehicle loop detect function
6.Wireless pedestrian push button
7.32 digits ARM CPU.

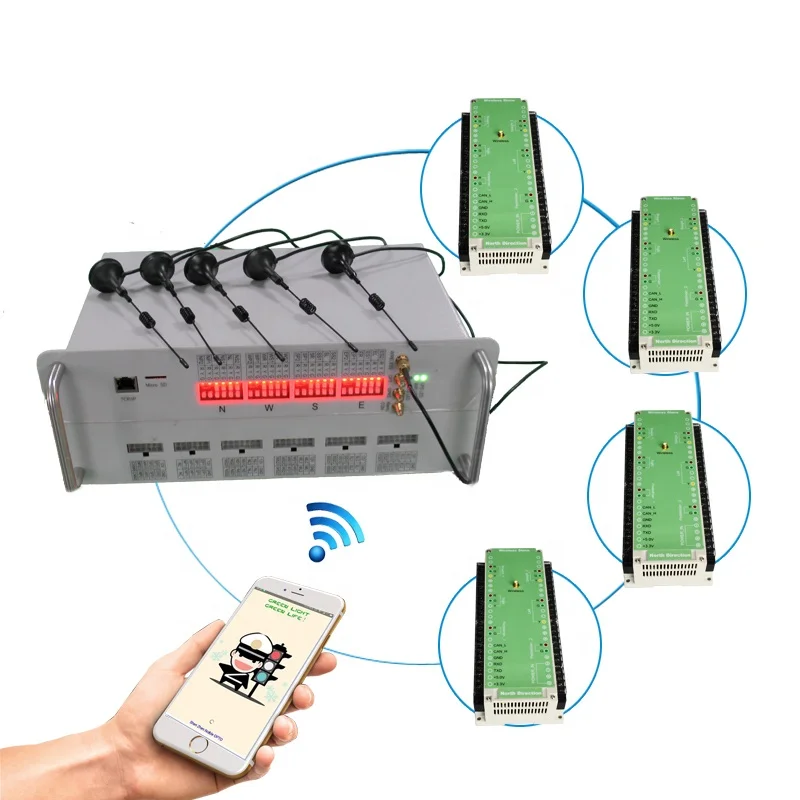

8. 1 master and 4 slave controller work together by wireless.
9.Fuse protected driver output PSU with LED indicators
10.Traffic Manual(force flashing mode) can work for you.
11. 1%-100% energy saving adjustment, automatic brightness control(time, voltage)
12. Technique of PWM to control the brightness of the light
13.Green conflict setting and detection function
14. Fault diagnose function for open or close.

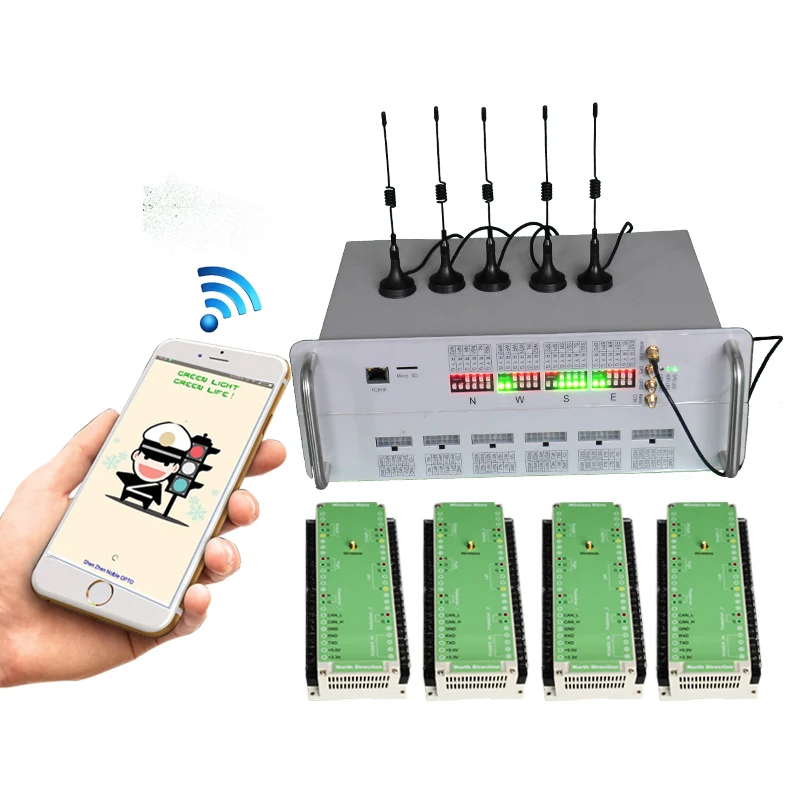

Product Presentation
Product introduction: application, function, style, etc
The following configuration is a product diagram + table with the specific parameters of the configuration product
wireless Intelligent Traffic Light Controller | |
Power supply | AC:85~265V; DC:VDC:12~24 |
Green Flash Frequency (Hz) | 0.5 |
Yellow Flash Frequency (Hz) | 0.5 |
Nominal Output Current Per Line | 5A |
Clock Precision | 0.1S |
With PFC+PWM | >0.8 |
Power Consumption | 3W |
Loaded Power | ≤1,100V/output |
Ambient RH | 40%~95% |
Product Size (mm) | 310x210x170 |
Size introduction and size picture
Packed in carton
About Solar traffic system
This is our testing equipment
Our company's products are tested with professional equipment to ensure the quality of any product before export
Packing&Shipping
Certificate
SHENZHEN NOBLE OPTO CO.,LTD has been and will always be striving to improve its production quality standards as well as making production operations more efficient and environmentally friendly.
There are certificates of conformity showing we comply with relevant international quality standards such as
EN12368,FCC,RoHS,CE,ISO9001,Software copyright and pateent foor utility models utility model patent.
There are certificates of conformity showing we comply with relevant international quality standards such as
EN12368,FCC,RoHS,CE,ISO9001,Software copyright and pateent foor utility models utility model patent.
Related Products
Company Introduction
SHWNZHEN NOBLE OPTO CO.,LTD is a high-tech private enterprise,Professional in researching,developing,and manufacturing high flux traffic signal light,solar power traffic signal.Since(2008)the establishment of the company,we recognize the importance of providing good quality products and best pre-to after-sale,and we are always trying our best offer to improve our design and production capacity.Moreover,we have the led traffic lights EN12368,ITE,CE IS9001 certification.Our products are exported to oversea markets around European countries and Middle Eastern area,such as
Sweden,England,Italy,Poland,Romania,Serbia,Turkey,Lsrael,Spain,USA,Russia Ross,Singapore etc.
Sweden,England,Italy,Poland,Romania,Serbia,Turkey,Lsrael,Spain,USA,Russia Ross,Singapore etc.
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique ect..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestian touch button,
blind clock, etc.
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique ect..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestian touch button,
blind clock, etc.
