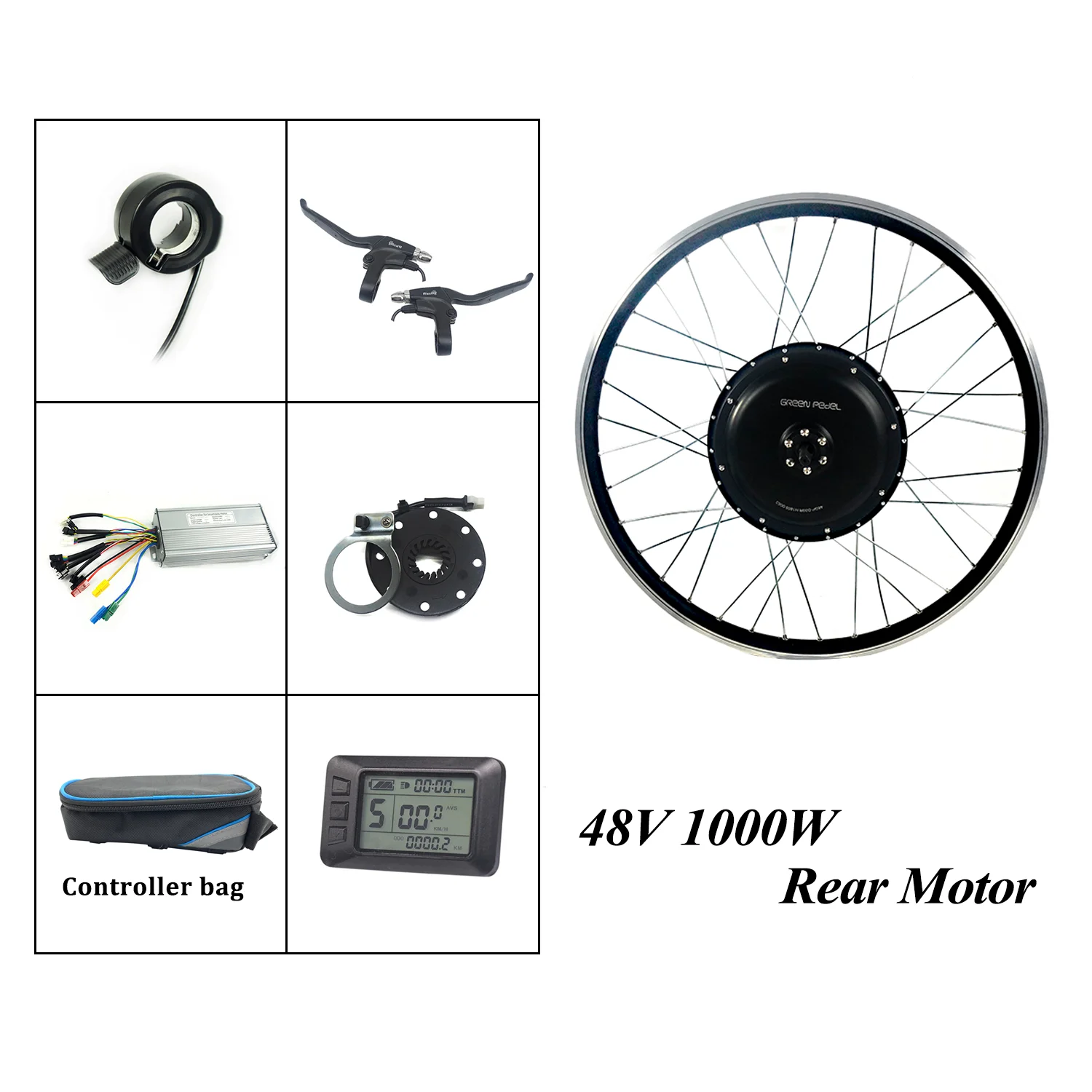

Заднее колесо для электровелосипеда Greenpedel 48 В 1000 Вт 26 дюймов комплект прямого переоборудования

Заднее колесо для электровелосипеда Greenpedel 48 В 1000 Вт 26 дюймов комплект прямого переоборудования

Категория: Другие детали для электрического велосипеда >>>
Поставщик: Changzhou,Green,Pedel,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.32 $*	0.5 $*
Aug-16-2025	0.93 $*	0.45 $*
Jul-16-2025	0.69 $*	0.12 $*
Jun-16-2025	0.25 $*	0.67 $*
May-16-2025	0.21 $*	0.84 $*
Apr-16-2025	0.41 $*	0.77 $*
Mar-16-2025	0.21 $*	0.94 $*
Feb-16-2025	0.33 $*	0.66 $*
Jan-16-2025	0.92 $*	0.82 $*

Характеристики

Related Production

Our electric bike kit does not include battery, if you need, you can purchase them at the link below. Of course, you can also contact us directly, we will provide you with the best match according to your needs.

Down tube DP-5C battery

Down tube DP-6C battery

Rear rack battery

Product Paramenters

Motor	48v 1000w direct hub motor
Rim	Aluminium double wall rim 1.5-1.95
Spokes	12G/13G
controller	48V 30A controller
PAS	BZ(4) 1:1 8 magnets PAS
throttle	130X thumb throttle
Brake	Ebrake(hydraulic brake)
Hall sensor	Yes
Brake type	V brake or Disc brake
Integrated Speed Sensor	Yes

Product Description

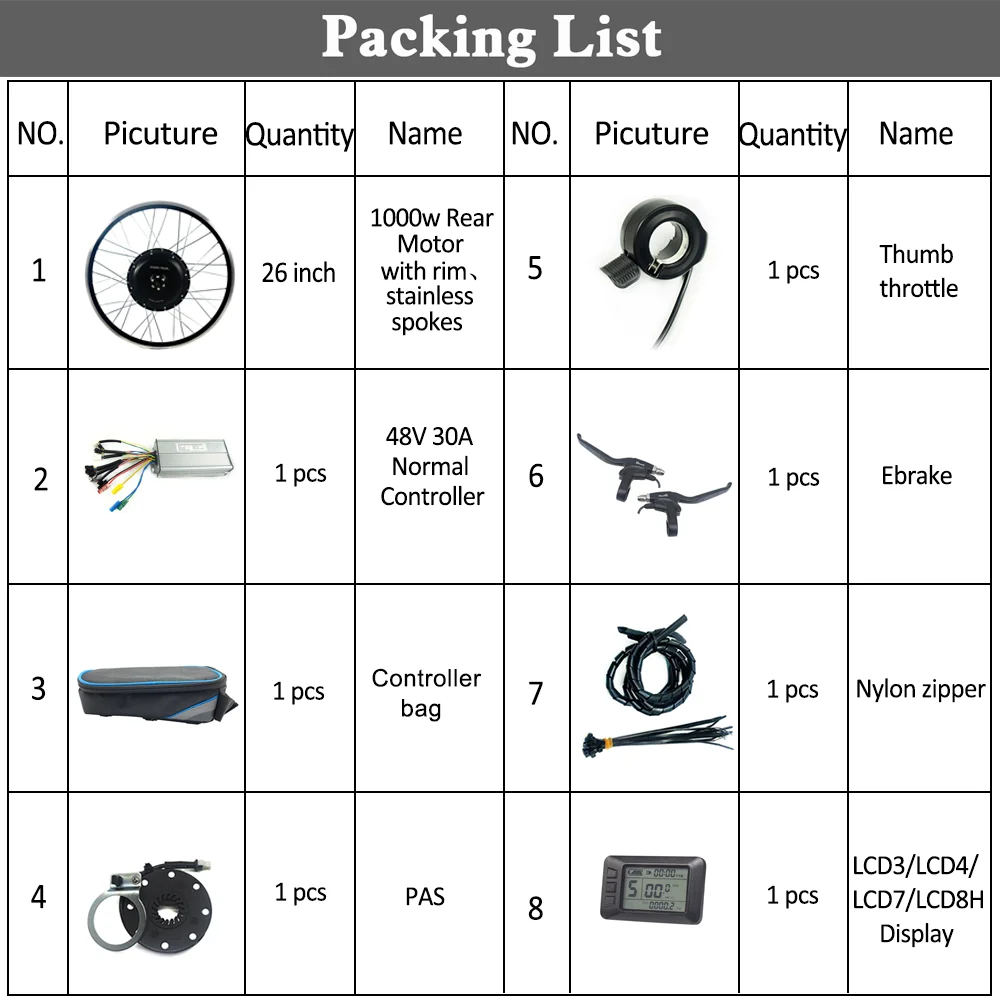

Packing List :

1 SET * 48V 1000W rear direct hub motor wheel with rim and stainless spoke（Motor with Disc brake/V brake adaptor)
1 PCS * nylon zipper
1 PCS * KT 48V 30A Controller

1 PCS * Wuxing 130X Thumb Throttle（Both right and left hands can be used）
1 Pair * Wuxing 115PDD Ebrake（You can ask for a brake sensor instead .Please leave a message when you order.）
1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Bag

1 PCS * LCD display (LCD3/LCD4/LCD7/LCD8H)

26 inch

28 inch(27.5" 29")

This product provide 26 inch motor kit , if you need another , please click on the picture above or you can contact us directly.

250W ebike kit

350W ebike kit

500W ebike kit

750W ebike kit

1000W ebike kit

Fat tire ebike kit

Details Images

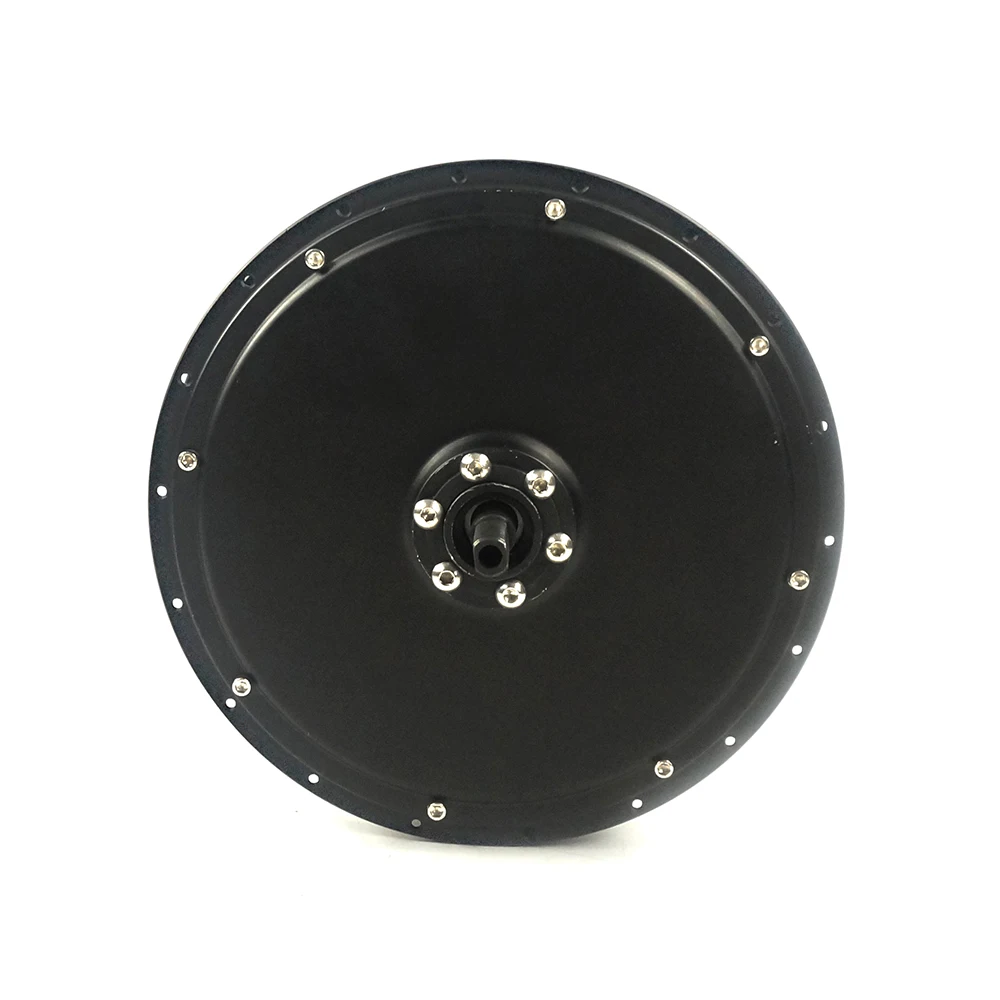

Motor :

Type : 48V 1000W rear hub motor
Rated Efficiency : ≥ 80%
Open Size : Rear Wheel 135 mm
Color : Black
Noise : ＜55db
Waterproof Grade : IP54
Connector : Phase option+Hall sensor

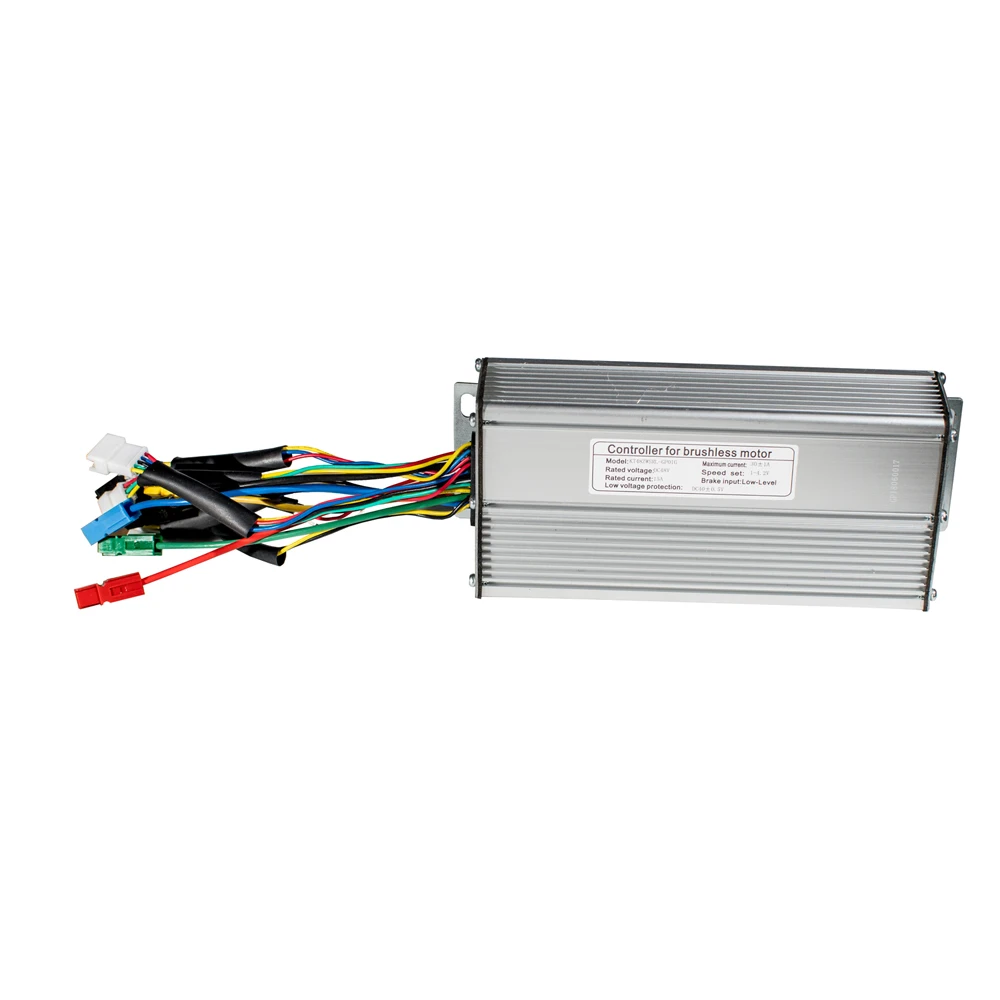

Controller :

Type : KT 48V 30A Controller
Color : Silver
Dimension : 144*66*38.5mm
Mosfet : 12 Mosfets
Maximum current : 30±1A
Rated current : 15A
Rated voltage : DC48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC40±0.5V
Cable length : all about 10-13cm

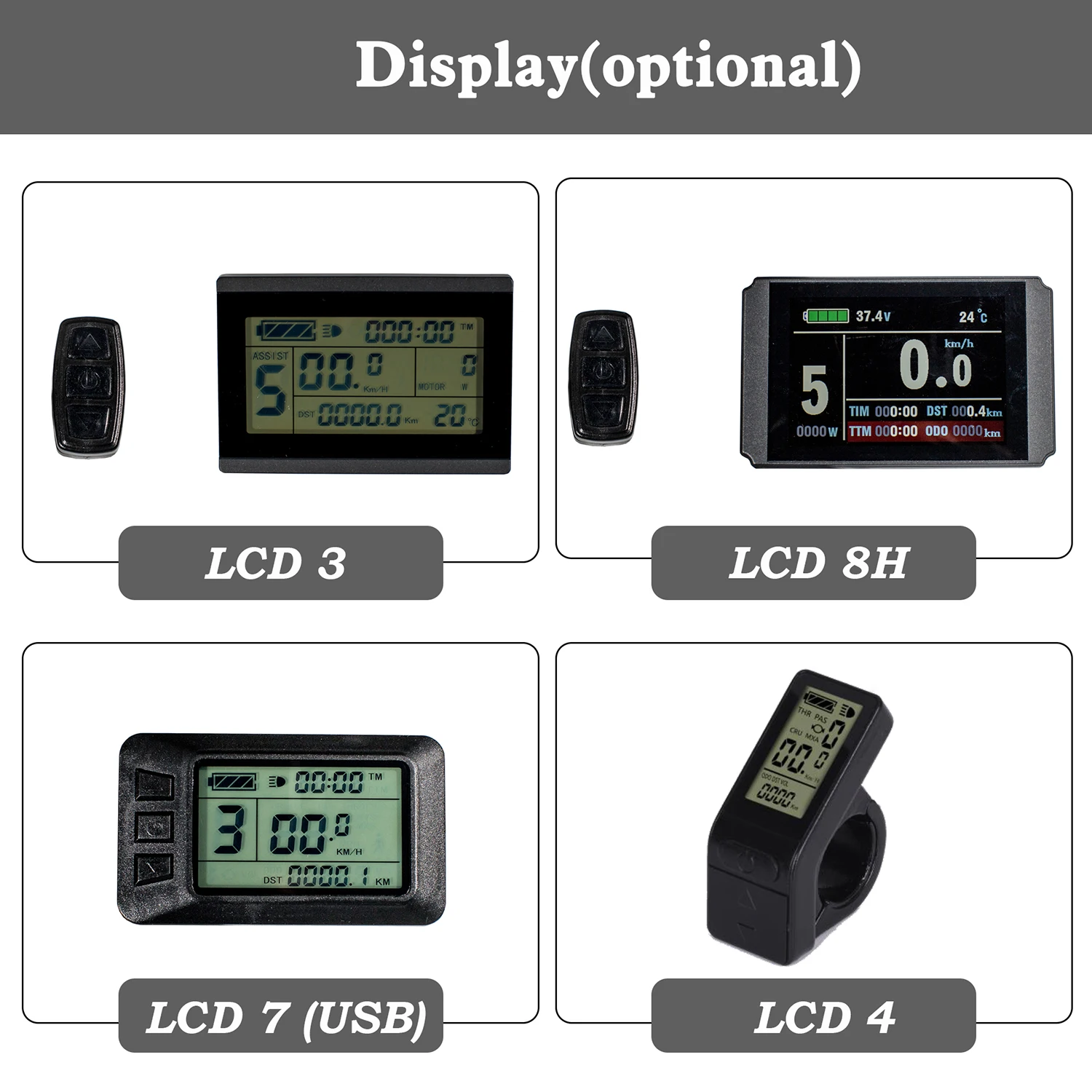

Display

We have LCD3 、 LCD8H 、 LCD7 、 LCD4 for option

Brake :

Type : Wuxing 115PDD Ebrake-Cut Off Power
Material : Aluminum Alloy
Installation : Left/Right
Size : L 156mm W 105mm H 34mm
Color : Black
Cable Length : 180cm including the connector

You can freely ask for a brake sensor instead if you need.

Throttle :

Type:130X Thumb Throttle
Wire length:180cm
Plug:3 Pin Connector
Installation:Left/Right

PAS :

Type : KT-8 PAS Senser
Installation : Left
Color : Black
Magnet : 8 Magnets
Cable Length : 80cm including the connector
Plug : 3 Pin Connector

Factory&Packing

Certifications

If you have any question,please feel free to contact us. We will reply you within 12 hours.
