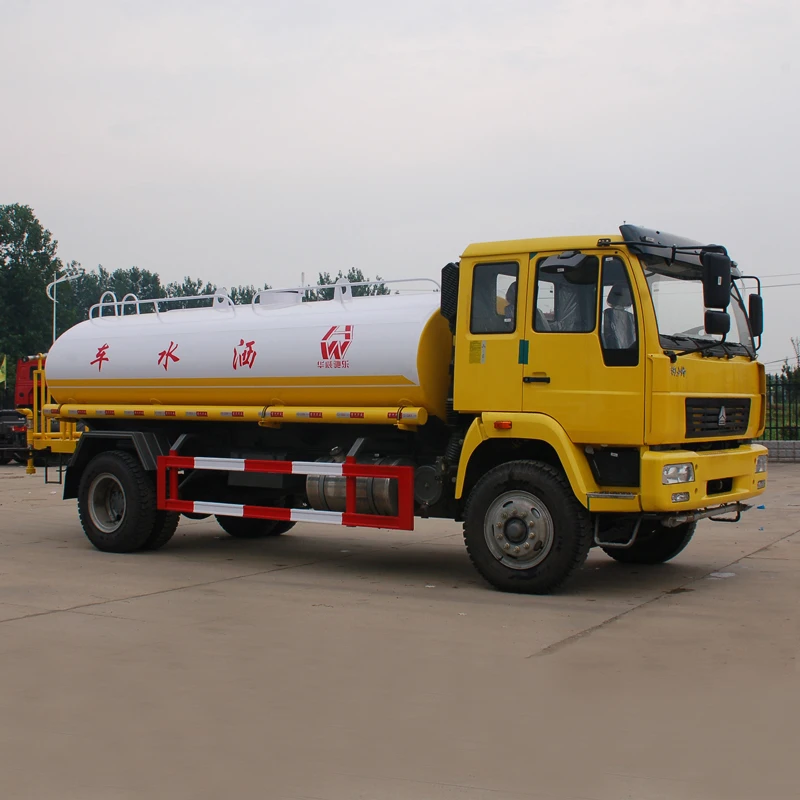

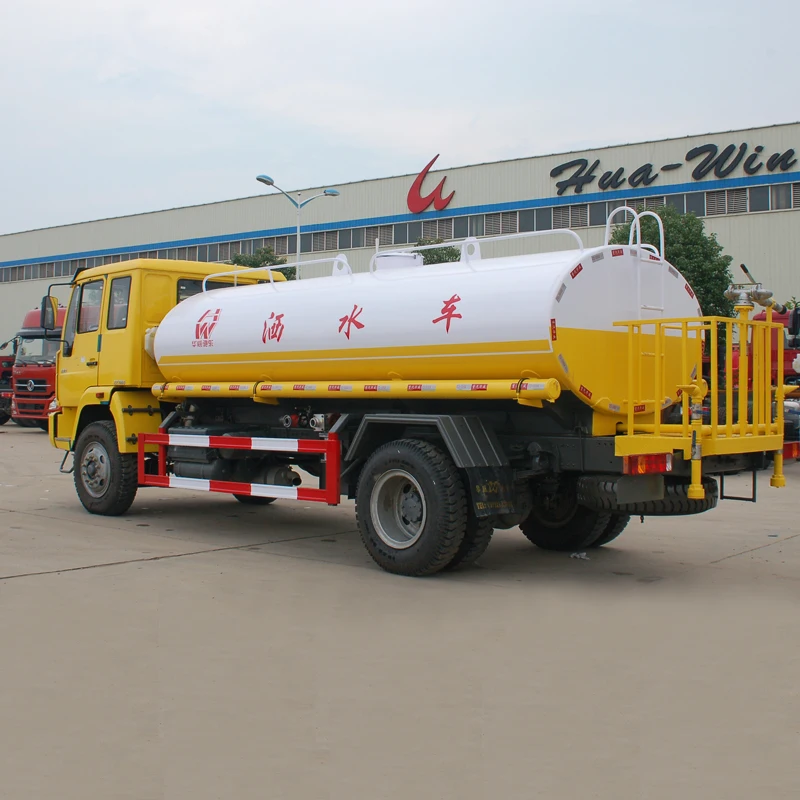

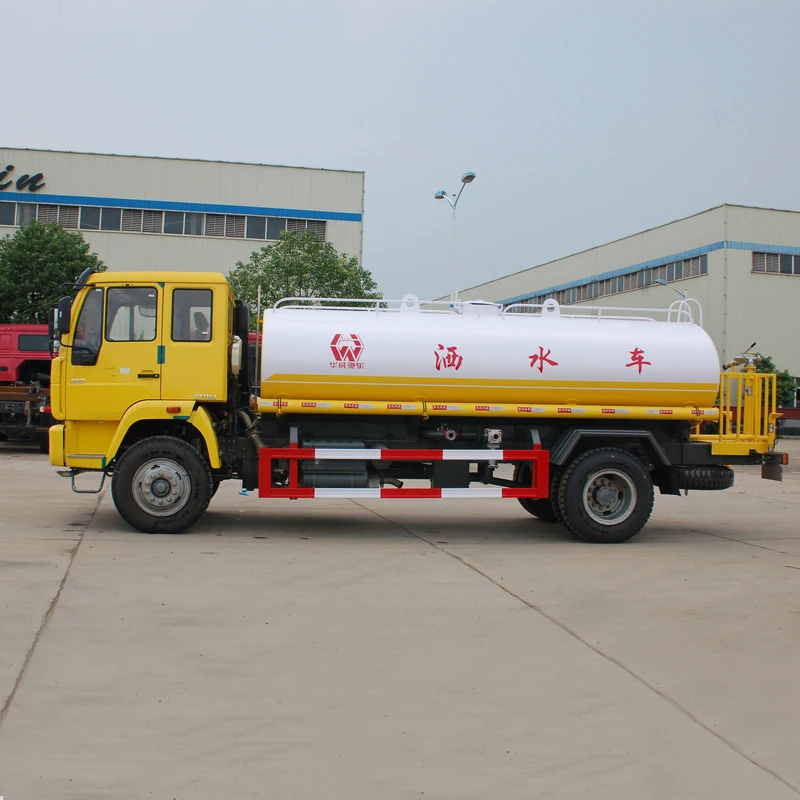

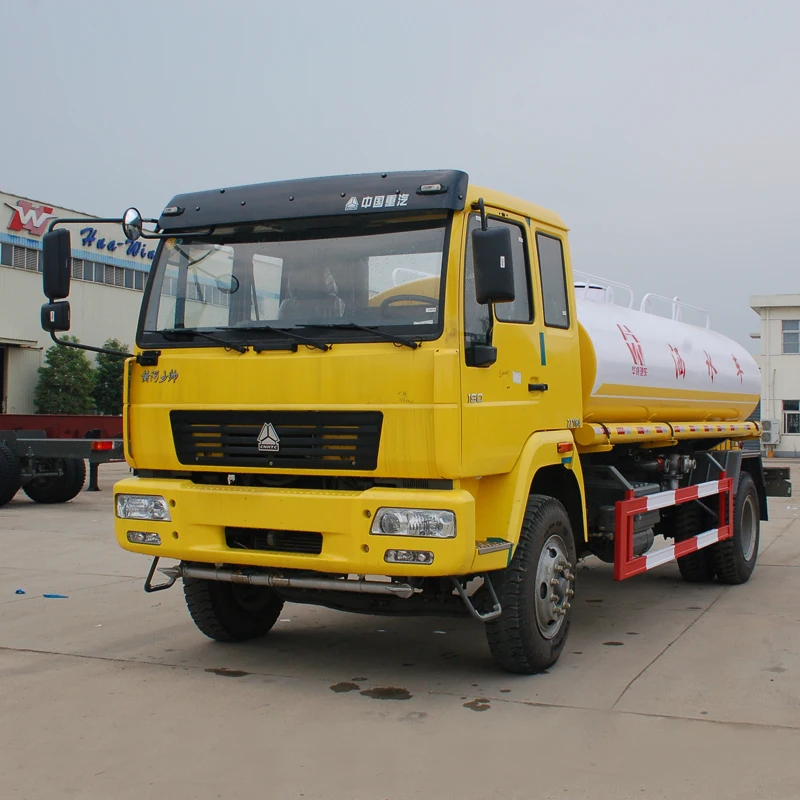

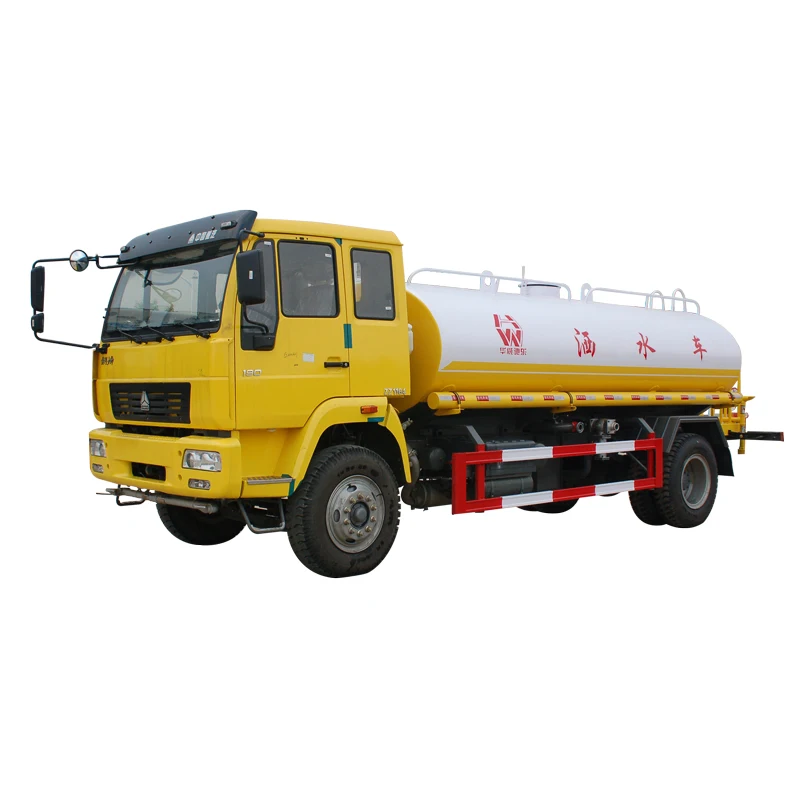

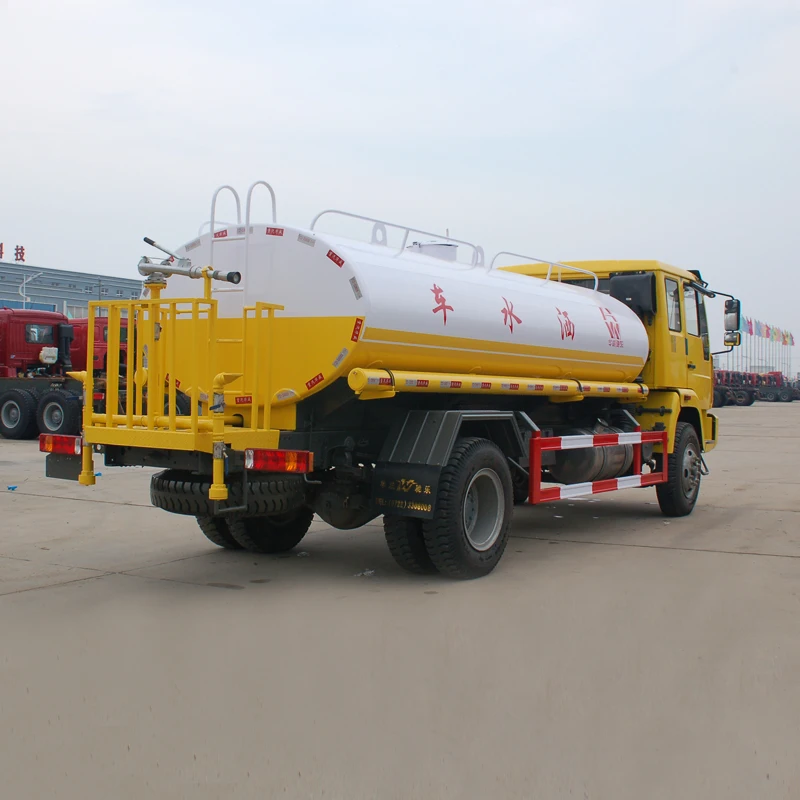

Main technical parameters of Yellow River Shaoshuai sprinkler

Product Name:

Yellow River Shaoshuai sprinkler

External dimension:

8480X2480X2940(mm)

Chassis model:

ZZ1164G4715C1

Cargo box size:

XX (mm)

Total mass:

16000(Kg)

Approach / departure angle:

24/21(°)

Rated mass:

8800(Kg)

Front suspension and rear suspension:

1250/2530(mm)

Curb weight:

7070(Kg)

Maximum speed:

99(km/h)

Emission standard:

Euro three

Vehicle description:

The effective volume of the tank is 9.24 cubic meters, and the overall dimension of the tank is (mm): length × long axis × short axis 5000 × 2120 × 1300. Protective material: Q235A, connection method: side protection and vehicle girder are welded and bolted, rear protection and frame are welded and connected, rear protection section size (mm): 50 × 100, rear protection height from the ground (mm): 500.
