Заводская цена зарядное устройство для литий-полимерных батарей lifepo4 12 в вольт 24
- Категория: Automotive Parts & Accessories >>>
- Поставщик: Shenzhen,Shi,Yingyuan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.2 $* | 0.73 $* |
| Aug-18-2025 | 0.83 $* | 0.76 $* |
| Jul-18-2025 | 0.81 $* | 0.45 $* |
| Jun-18-2025 | 0.75 $* | 0.20 $* |
| May-18-2025 | 0.92 $* | 0.90 $* |
| Apr-18-2025 | 0.82 $* | 0.72 $* |
| Mar-18-2025 | 0.25 $* | 0.55 $* |
| Feb-18-2025 | 0.53 $* | 0.26 $* |
| Jan-18-2025 | 0.55 $* | 0.31 $* |
Характеристики
Product Description

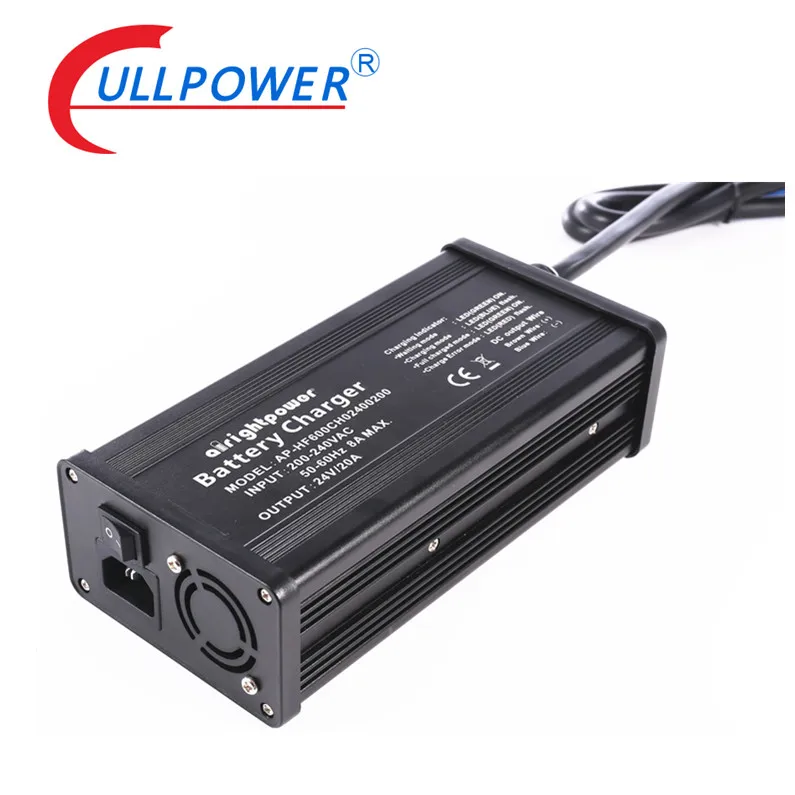

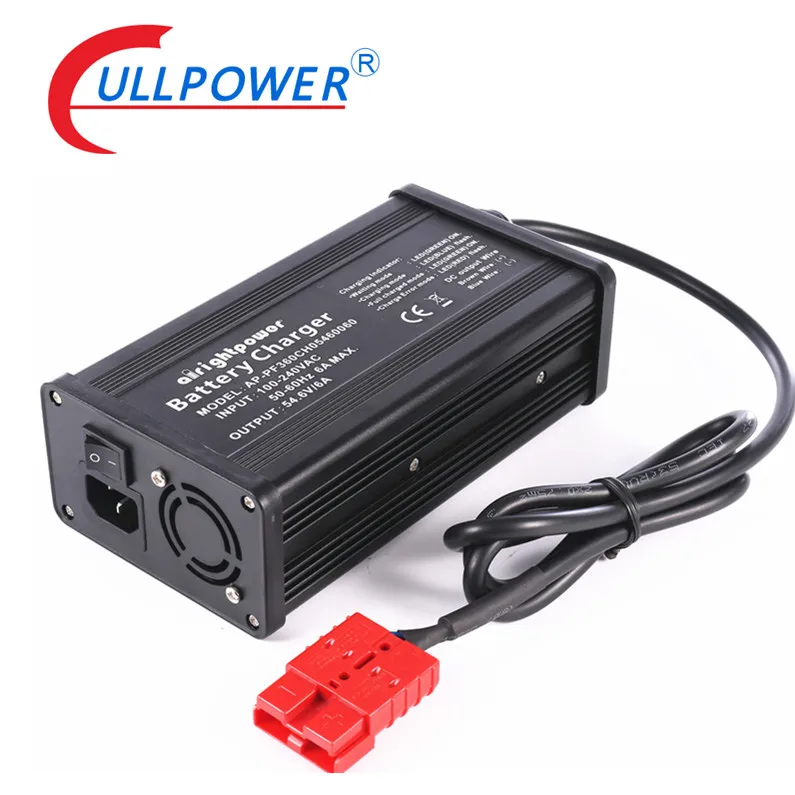

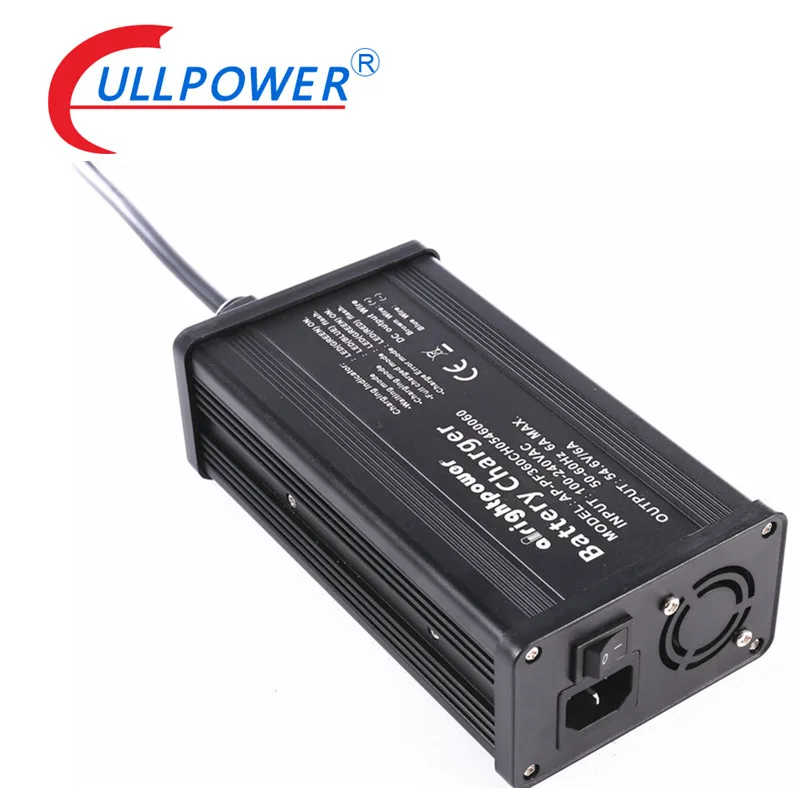

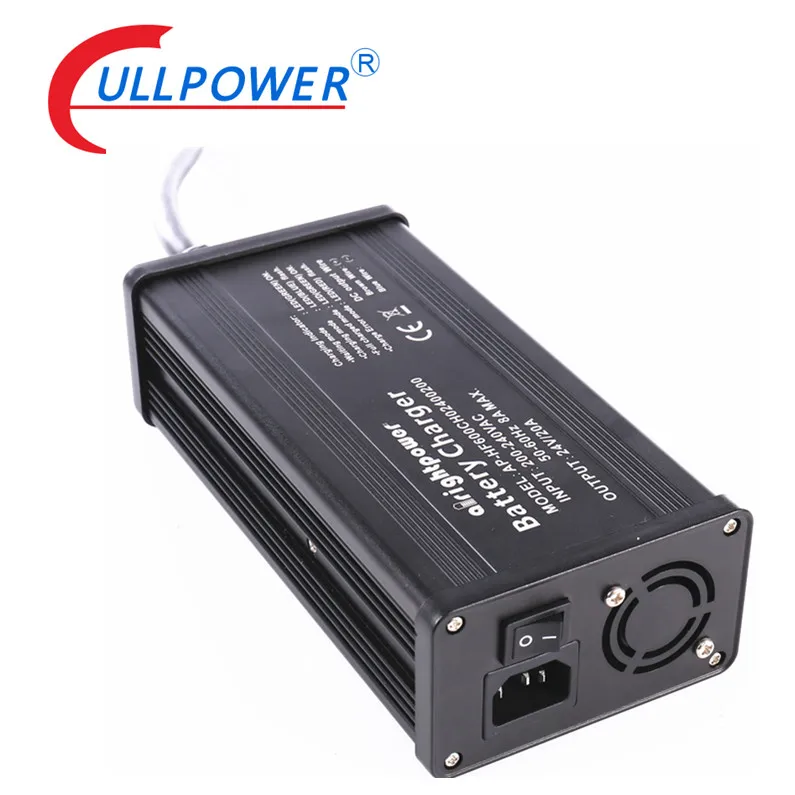

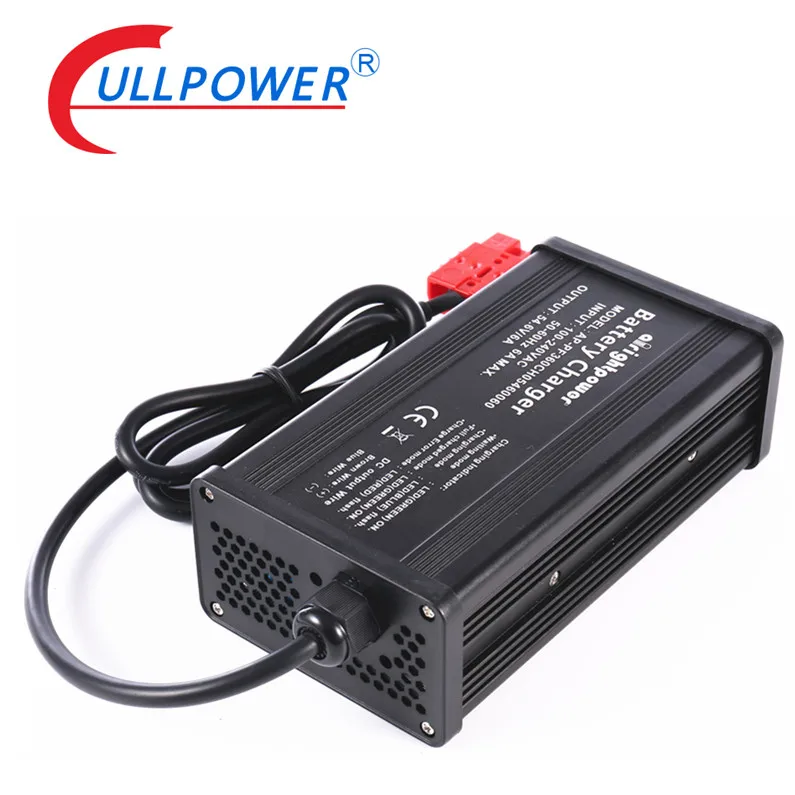

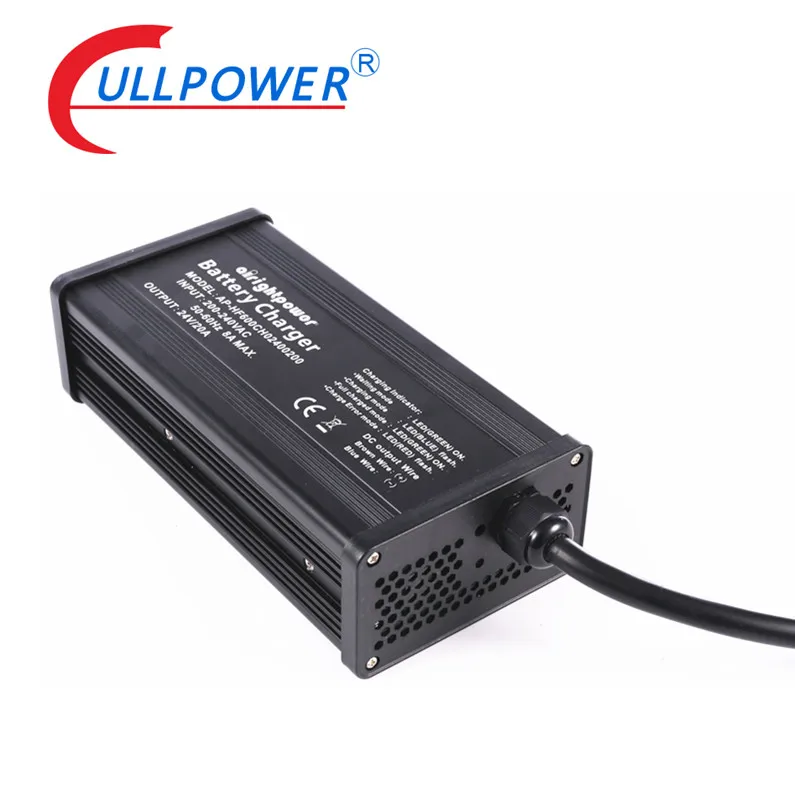

Automatic 12V 20A 24v 15A 36v 10A 48v 8A lithium Battery Charger
AC Input Voltage Range :AC100V-AC240V
AC Input Frequency: 45～65HZ
AC Power Factor Correction: ≥0.98
Output Voltage:12V～90V
Output Current:20A(Max)
Full Load Efficiency: ≥90%
Shock & Vibration: 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes
Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF)
Storage Temperature: -40ºC～+85ºC（-40ºF～+185ºF）
Dimensions (mm):(L)204х(W)100х(H)55
Net Weight: 1.5kg
TYPICAL MODEL LIST
Charger Model | Rated Input Voltage | Battery Standard Voltage | Maximum charging voltage | Maximum charging Current |
AP-PF450CH01460200 | 100-240 | 12 | 14.6 | 20 |
AP-PF450CH02920150 | 100-240 | 24 | 29.2 | 15 |
AP-PF450CH04200100 | 100-240 | 36 | 42 | 10 |
AP-PF450CH05460080 | 100-240 | 48 | 54.6 | 8 |
AP-PF450CH07140060 | 100-240 | 60 | 71.4 | 6 |
AP-PF450CH08400050 | 100-240 | 72 | 84 | 5 |
AP-PF450CH01200200 | 100-240 | 12 | 14.7 | 20 |
AP-PF450CH02400150 | 100-240 | 24 | 29.4 | 15 |
AP-PF450CH03600100 | 100-240 | 36 | 44.1 | 10 |
AP-PF450CH04800080 | 100-240 | 48 | 58.8 | 8 |
AP-PF450CH06000060 | 100-240 | 60 | 73.5 | 6 |
AP-PF450CH07200050 | 100-240 | 72 | 88.2 | 5 |
SPECIFICATIONS
AC Input Voltage Range： | AC100V-AC240V | Shock & Vibration： | 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes |
AC Input Frequency： | 45～65HZ | Operating Temperature： | -20ºC～45ºC（-20ºF～+113ºF） |
AC Power Factor Correction： | ≥0.98 | Storage Temperature： | -40ºC～+85ºC（-40ºF～185ºF） |
Output Voltage： | 12V～90V | Dimensions (mm)： | (L)203х(W)100х(H)55 |
Output Current： | 20A（Max） | Net Weight： | 1.5kg |
Full Load Efficiency： | ≥90% | certifications | UL CE FCC RoHs |
PROTECTIONS
1) Thermal Self-Protection
Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it
2) Short- circuit Protection
When Short Circuit happened ,charger will turn off
3) Reverse Connection Protection
When the battery is polarity reversed ,the charger will cut off the connection between the circuit and the battery
4) Open-circuit protection
When some open-circuit, can not reach 100% full-charged ,charger will be shut down automatically
APPLICATIONS
Electric Forklift/Electric Car/Electric/Motorcycle/Electric Ground Washer Car/Electric Boat/Electric Sightseeing touring car/Electric Patrol Car/Electric Golf Cart/Electric Tractor/Electric Scooter/Electric Lifting Platform/Electric Medical Equipment/Electric Porter/ Unmanned Aircraft and so on
Recommend Products
Our Company
Shenzhen yingyuan Electronics Co., Ltd was established in 1998 ,s a professional power adapter manufactory. We have been devoted to the production of UL FCC CE RCM PSE KCC power adapter ,power supply ,swithcing power adapter and USB charger wall charger for several years, and accumulated rich experience in designing and production.
We have about 12,000 square meter dust-free production area, with 800 employees including 120 high experienced management team and 50 R&D engineers. Our monthly output of power adapters reaches 1,500,000pcs.
Our main products include AC/DC Wall and adapters,desktop adapters , travel chargers.Each unit will be made full testing before shipment ,and promise the default rate is less than 0.3%.Factory photos
12,000 square dust free factory, 80 square HK fair exhibitiion booth every year!
Exhibition
.
Our factory attend HK Exhibition, CES , IFA Exhibitiion every year !
Packing & Delivery
Packing way :colorful box ,PE bag , white box and so on .
1.Normally it is with plastic bags only if you don't have a special request.
2. We can offer it with retail packing box.
3. We accept custom design retail packing box, customer need to provide file in AI format.
4. All outer cartons we use a standard exporting high quality carton
Delivery
1. For samples & small quality usually we use traceable international Express service, like DHL, UPS, FEDEX, EMS, TNT, etc. You can receive it within 3-5 days or 5-7 days after we deliver the goods, different country the transport time is different.
2. Shipping by Air or by Sea also is acceptable for us.
3. It is available to deliver the goods to your forwarder warehouse in China
OEM international EU UK US AU plug 9v 12v 13v 0.5a ac dc power adapter
FAQ
Q: How about your warranty?
A : Warranty is 3 years . All of our company products are under 6 strict quality test before shipping out . Quality is very important for both of us .
Q: What is the payment methord ?
A: 1.Small quantity: 100% advanced when we confirm the order.
2. Large quantity: Client need to pay deposit when the order is confirmed, and the balance should be paid before delivery.
3. We accept T/T, Paypal, and Western Union and so on .
Q:How to choose suitable power adapter ?
1) Please kindly confirmed that all the products are with with related certificaton
2) If your product is belong to AV products ,the quality standard should be IEC60065 ,if your product is belong to IT device ,the quality should be IEC 60950.
Send your Inquiry Details in the below for sample, Click "Send" Now!
Please contact : 86 15013734108 Janie
