Теплопередающий принтер Shanghai Demac T50/53 мм печатающая головка умная кодирующая
- Категория: Кодирующие машины >>>
- Поставщик: Shanghai,Demac,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2951.48 $* | 3099.7 $* |
| Aug-20-2025 | 2926.43 $* | 3072.96 $* |
| Jul-20-2025 | 2455.50 $* | 2578.61 $* |
| Jun-20-2025 | 2877.99 $* | 3021.39 $* |
| May-20-2025 | 2505.1 $* | 2630.56 $* |
| Apr-20-2025 | 2827.65 $* | 2968.46 $* |
| Mar-20-2025 | 2802.43 $* | 2942.68 $* |
| Feb-20-2025 | 2778.24 $* | 2917.73 $* |
| Jan-20-2025 | 2753.58 $* | 2891.40 $* |
Характеристики
Products Description

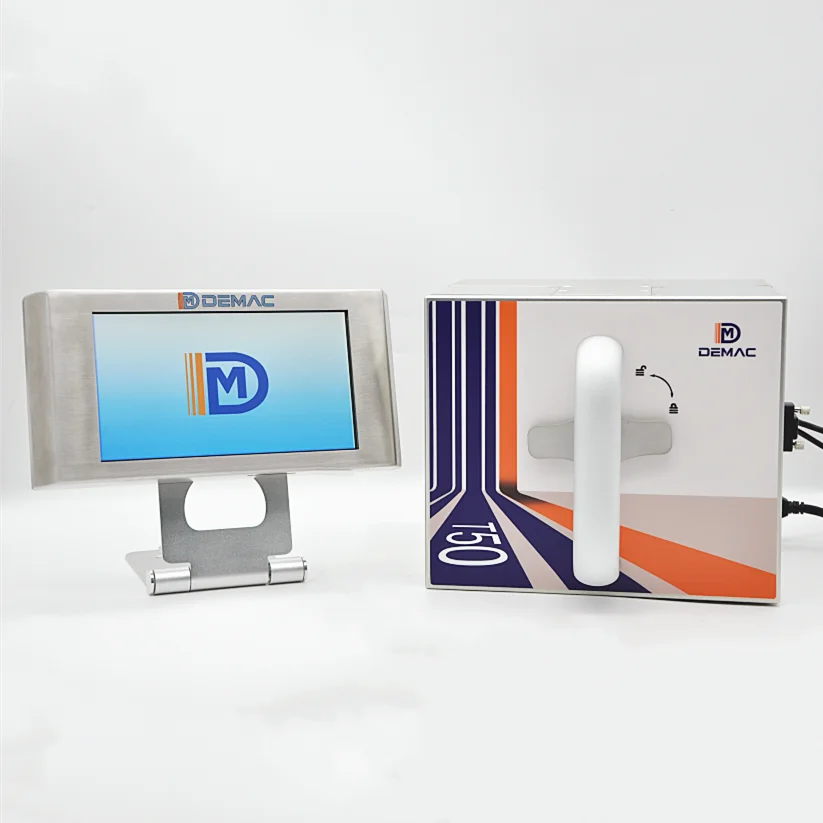

DEMAC Thermal Transfer Overprinter T30 & T50
--T30/T50 Thermal printer represents an advanced coding machine that can meet personalized and diversified demands from customers.It's the most efficient solution for various soft package printing.
--T30/T50 Can print real-time date (hours/minutes), and user can edit alphanumeric date, automatic shift code, serial number, logos, barcodes, QR codes, nutrition tables, etc.
T30 （32mm Printhead）
T50（53mm Printhead）
Details Images
Specification
T30 | T50 | ||||||
Intermittent | Continuous | Intermittent | Continuous | ||||
Print Head | 32mm, 300DPI | 53mm, 300DPI | |||||
Print Area | 32mm*60mm | 32mm*150mm | 53mm*90mm | 53mm*150mm | |||
Print Speed | ≤ 30 m/min | ≤ 40 m/min | ≤ 30 m/min | ≤ 40 m/min | |||
Print Frequency | ≤ 200 times/min | ≤ 350 times/min | ≤ 200 times/min | ≤ 350 times/min | |||
Bar code | Code128(Support GS1 Mode), EANX, Code11, QR code(Support GS1 Mode), C25matrix, C25inter, C25iata, Upca, Upce, EAN128, PDF417, DataMatrix(Support GS1 Mode), etc. | ||||||
PC Based Interface | Include all features of the Touch Pad interface, support promotional codes, unique random codes, manage max. 6 printer units meantime, provide communications protocols. | ||||||
More features | Ribbon saving modes; automatic repeat prints; position-compensation prints (can have multiple choices) | ||||||
Menu languages | Simplified Chinese, English, traditional Chinese, Spanish, Portuguese, French, Arabic, German, Russian, etc. | ||||||
Touch Pad | Support Hot-plugging | ||||||
Max Ribbon Len | 500mm | 600mm | |||||
Ribbon Width | 22mm~33mm | 35mm~55mm | |||||
Dimension(L*W*H) | 190mm*180mm*170mm | 210mm*180mm*170mm | |||||
Handheld Touch Pad: 220mm*120mm*30mm | |||||||
Weight | Print Unit: 7.5kg, Touch Pad: 0.75kg | Print Unit: 8.0kg, Touch Pad: 0.75kg | |||||
Air Supply | 0.35~0.6Mpa, Dry, Clean | ||||||
Our Advantages
Why to choose T30/T50:
◆ Intermittent/Continuous Combined – more flexible to meet customers’ requirements.
◆ Excellent printing performance – improve your company brand image and quality.
◆ Wide Printing Area – maximum 70mm (intermittent) and 150mm (continuous) length
◆ High Printing Speed – The speed can be set from 33mm to 666mm per second allowing 350 printed packs per min at 300dpi.
◆ Various printing content– It can print real time, variable data, bar codes, QR codes, logo, pictures, dates,nutrition tables, etc, achieve the product traceability.
◆ Excellent printing performance – improve your company brand image and quality.
◆ Wide Printing Area – maximum 70mm (intermittent) and 150mm (continuous) length
◆ High Printing Speed – The speed can be set from 33mm to 666mm per second allowing 350 printed packs per min at 300dpi.
◆ Various printing content– It can print real time, variable data, bar codes, QR codes, logo, pictures, dates,nutrition tables, etc, achieve the product traceability.
Continuous mode & Intermittent mode:
Left-hand machine & Right-hand machine:
One touch pad control multiple machine:
Cost reduction

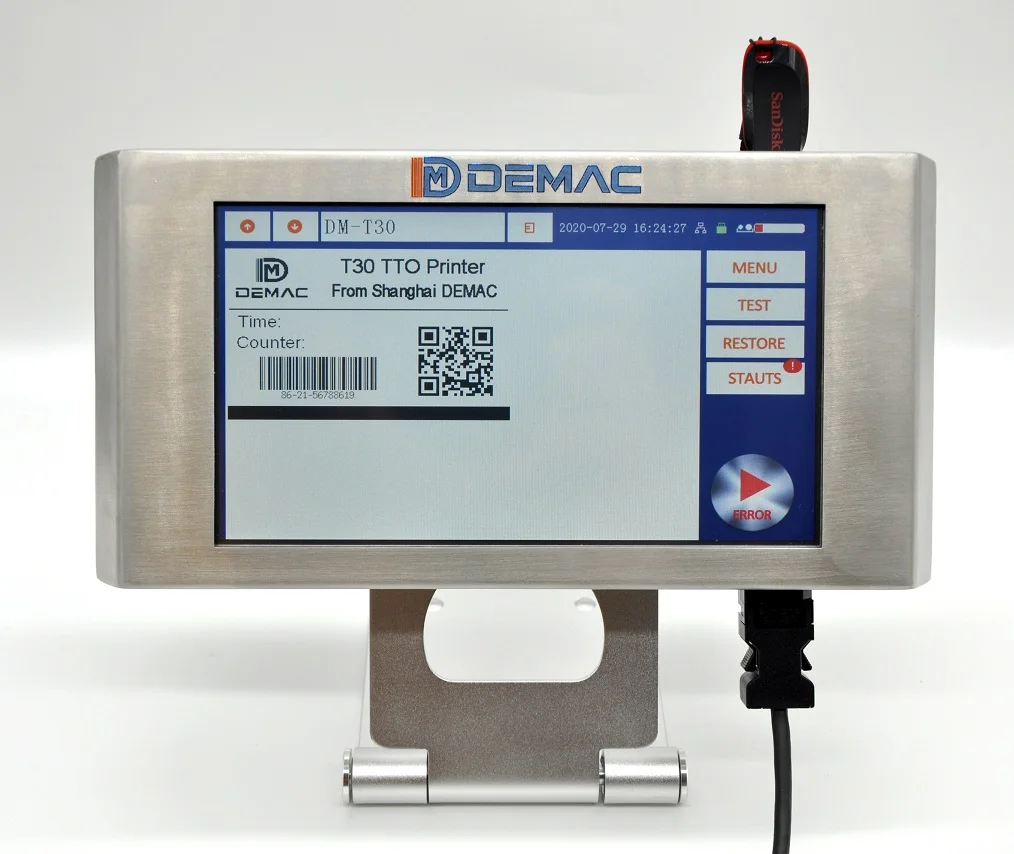

◆ Dockable 7-inch LCD handheld Touch Pad, can be removed during the printer running, to control different printer units, largely reducing the purchase cost.
◆ Optimized ribbon usage, 0.1mm gap between print head and the package.
◆ Ribbon saving features help to minimize reduce ribbon consumption and waste.
◆ Optimized ribbon usage, 0.1mm gap between print head and the package.
◆ Ribbon saving features help to minimize reduce ribbon consumption and waste.

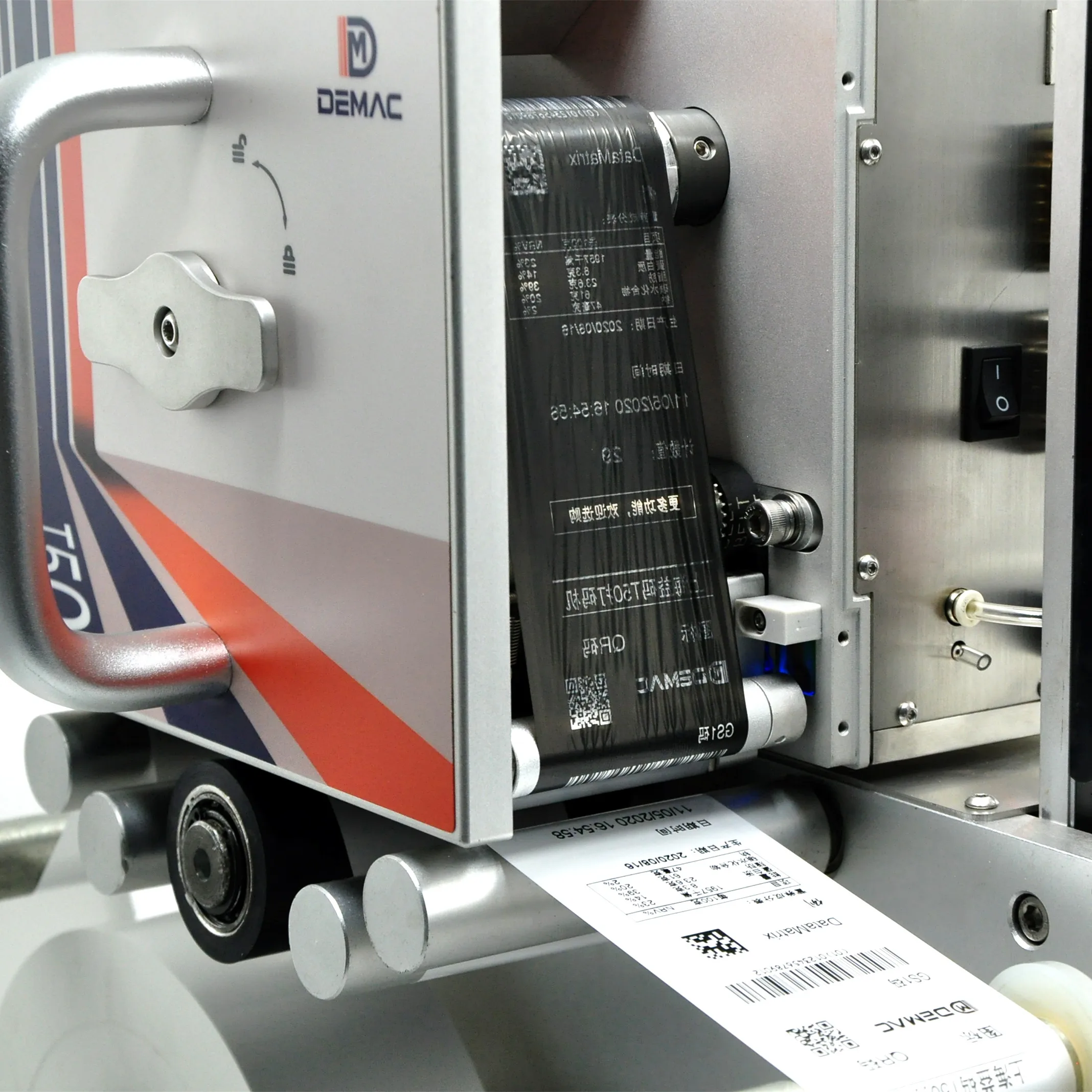

Printing samples
* Real time clock (hours/minutes)
* Dates
* User entered alphanumeric date
* Utomatic shift code
* Automatic serial number
* Logos
* Barcodes
* QR codes
* Nutrition tables
* Nutrition tables

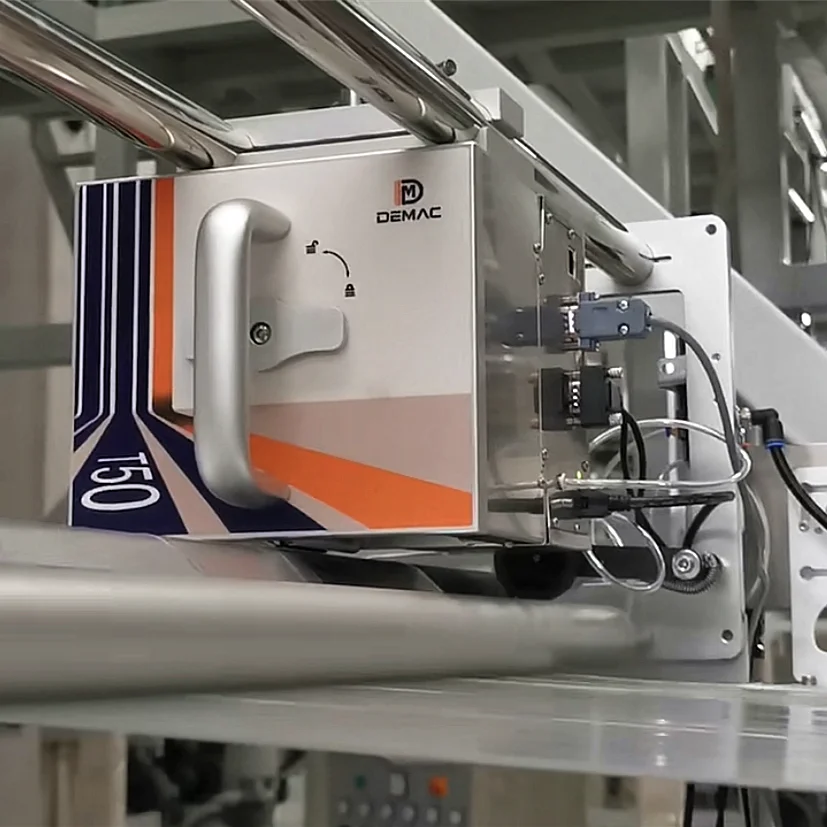

Practical Application:
Simple Operation

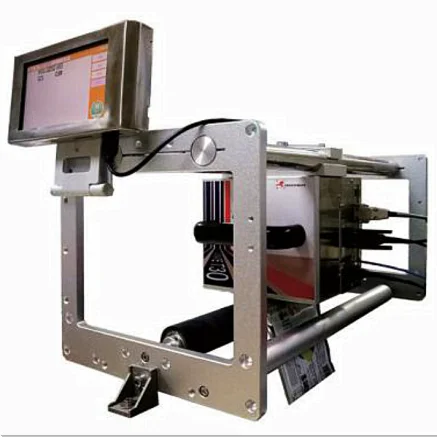

◆ Standard optional mounting bracket helps installation become easier.
◆ Simple interface makes the menu and parameters setting more convenient.

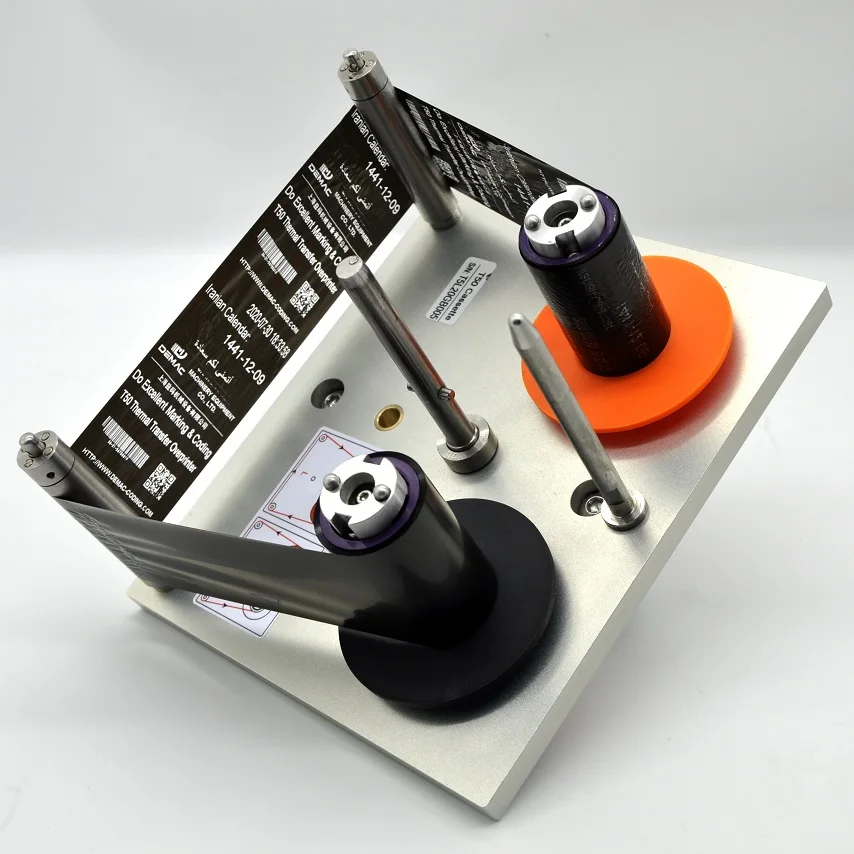

◆ Improved cassette helps the ribbon replacement simple.
◆ Designer program is included in packages, using a USB memory stick for image downloading.
◆ Standard optional mounting bracket helps installation become easier.
◆ Simple interface makes the menu and parameters setting more convenient.
◆ Improved cassette helps the ribbon replacement simple.
◆ Designer program is included in packages, using a USB memory stick for image downloading.
Packing & Delivery
Delivery:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to customers all over the world, and can arrange shipment to destination port ,even to the door for customer.
We also accept forwarder agent of customer.
Company Profile
Shanghai Demac coding technology Co.,Ltd. is a technology-oriented manufacturer integrating independent research and development, production, sales, service and other businesses. It is committed to providing industrial code marking technology, inspection technology, system solutions of traceable products, and production and sales services for related equipment products.
With more than 15 years of experience, the company has provided the best product identification solutions for customers in more than 70 countries around the world.
Our company has dozens of dealers and partners in the world, and provides perfect and careful after-sales service and technical
support for customers from local and surrounding markets.
