Супер сильный стержневой магнит Неодимовый магнитный стержень
US $0.027-$0.99
Надежный подъемник Jinniu подъемный Магнитный экскаватор мостовой кран Электромагнитный Подъемный магнитный прибор для пластин и
- Категория: Magnetic Materials >>>
- Поставщик: Xinxiang,Jinniu,Lifting,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1880.52 $* | 1974.49 $* |
| Aug-19-2025 | 1864.39 $* | 1957.79 $* |
| Jul-19-2025 | 1564.67 $* | 1642.47 $* |
| Jun-19-2025 | 1833.45 $* | 1925.38 $* |
| May-19-2025 | 1596.56 $* | 1676.89 $* |
| Apr-19-2025 | 1801.9 $* | 1891.73 $* |
| Mar-19-2025 | 1785.89 $* | 1874.9 $* |
| Feb-19-2025 | 1770.25 $* | 1859.62 $* |
| Jan-19-2025 | 1754.10 $* | 1842.55 $* |
Характеристики
Products Description

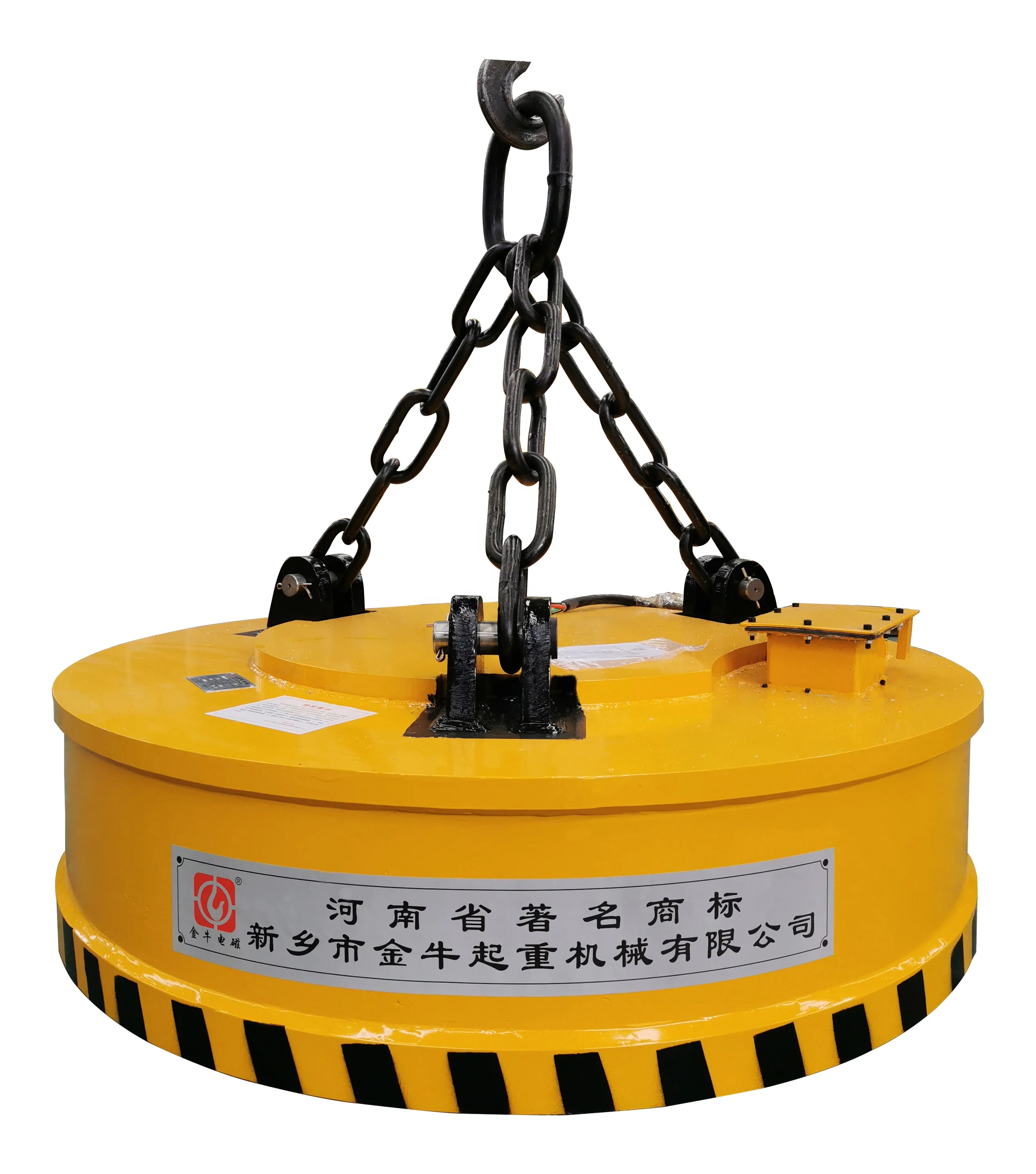

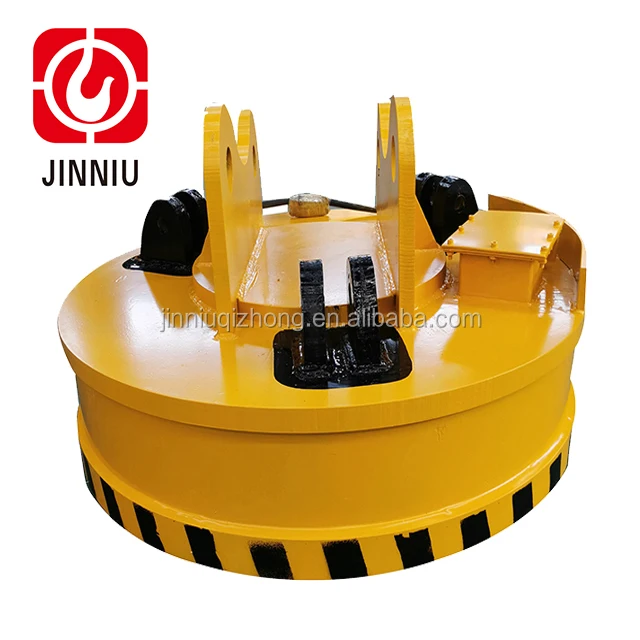

Lifting magnet excavator overhead crane electromagnetic lifting magnets device for plate metal is a kind of special electromagnet which uses the sucked object as the armature. It is an equipment that uses the physical quantities of electricity and magnetism to absorb ferromagnetic materials. It is an indispensable lifting tool for lifting magnetic materials such as iron and steel in metallurgy, mining, machinery, shipbuilding, transportation and other industries. In some fields, it is also used as electromagnetic manipulator, magnetic centering, bar sizing and many other aspects.
Technicai parameter
For normal temperature type and high frequency type electromagnets, strong excitation mode (DC-290v during lifting and DC-200v during operation) can be used to further improve the lifting capacity. For large electromagnets, over excitation mode (DC-350v / DC-290v / DC-200v) can also be used for high frequency type electromagnets to speed up the current rise and play a stronger lifting capacity.
Normal temperature type(rated voltage DC-220V,power on duration TD-75%) main technical parameter | ||||||||||||||||||
Modle | Current | Cold power(KW) | Lifting capacity (kg)(cold/hot) | weight (kg) | Overall dimension(mm) | |||||||||||||
steel ball | steel ingot | cutting | A | B | C | |||||||||||||
MW5-110L/1-75 | 26.7 | 6.1 | 6500 | 105/800 | 450/400 | 1500 | 1100 | 1270 | 220 | |||||||||
MW5-120L/1-75 | 3.6 | 7.4 | 7500 | 1300/100 | 600/500 | 1850 | 1200 | 1220 | 220 | |||||||||
MW5-130L/1-75 | 40.7 | 9 | 8500 | 1450/1100 | 700/600 | 2280 | 1300 | 1290 | 220 | |||||||||
MW5-150L/1-75 | 51.4 | 11.3 | 11000 | 1980/1500 | 1100/900 | 3180 | 1500 | 1360 | 350 | |||||||||
MW5-165L/1-75 | 55.6 | 12.2 | 12500 | 2300/1800 | 1300/1100 | 3840 | 1650 | 1670 | 370 | |||||||||
MW5-180L/1-75 | 73.9 | 16.3 | 14500 | 2850/2200 | 1650/1400 | 4690 | 1800 | 1600 | 370 | |||||||||
MW5-210L/1-75 | 98.5 | 21.7 | 21000 | 2300/1900 | 2300/1900 | 6000 | 2100 | 1900 | 400 | |||||||||
Product category

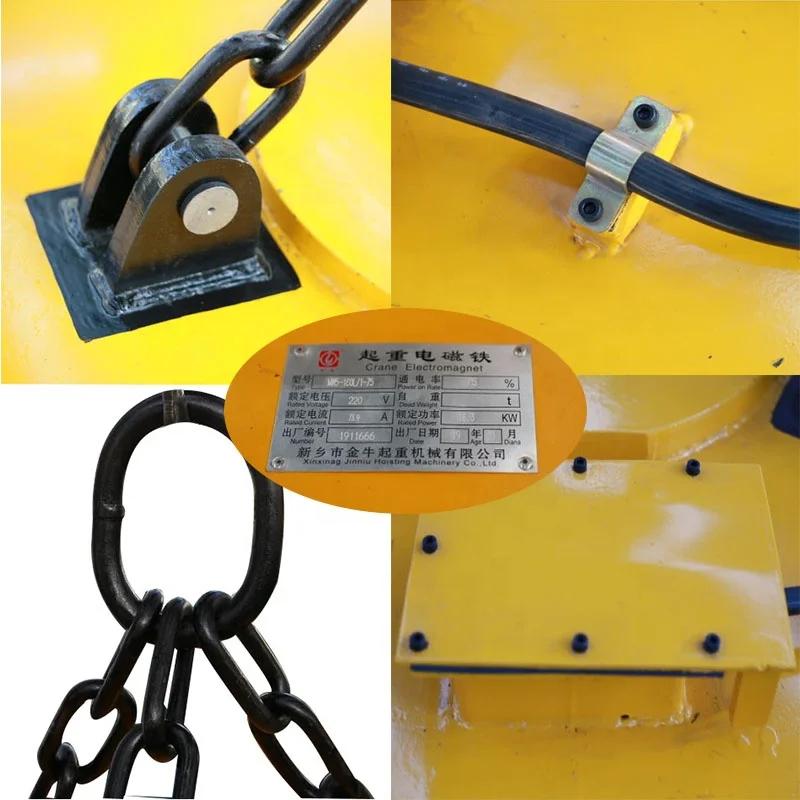

Details display

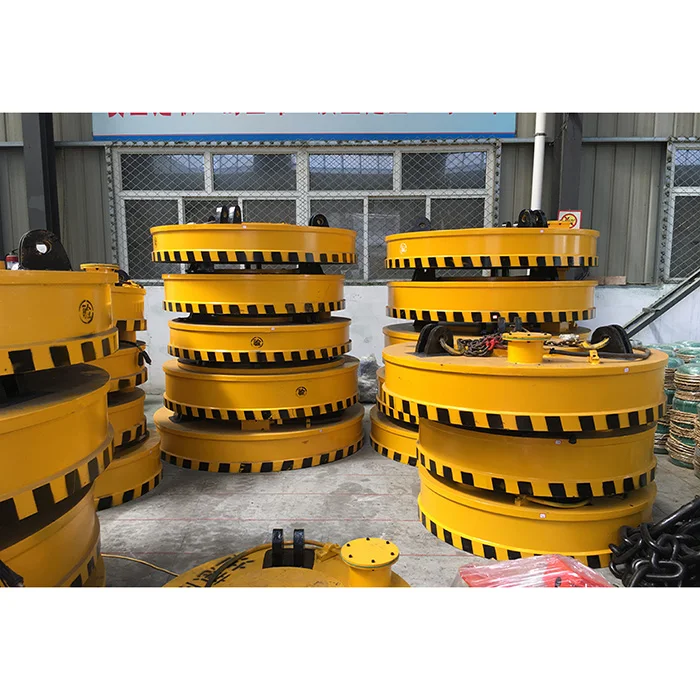

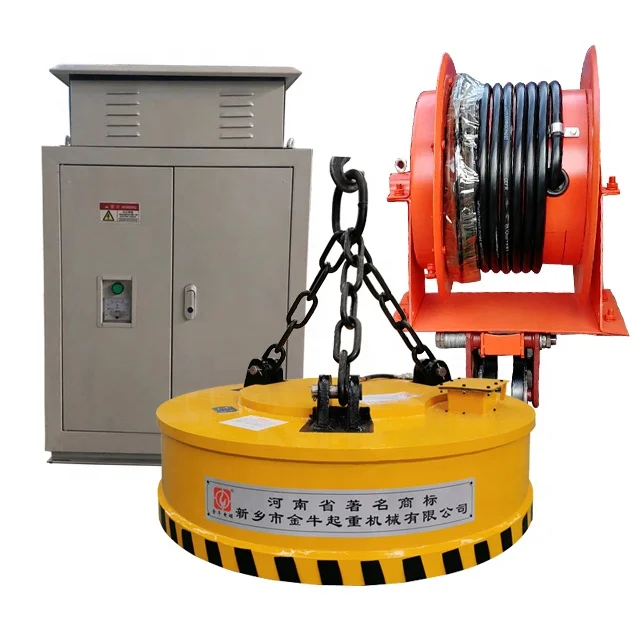

Product Display
Product application

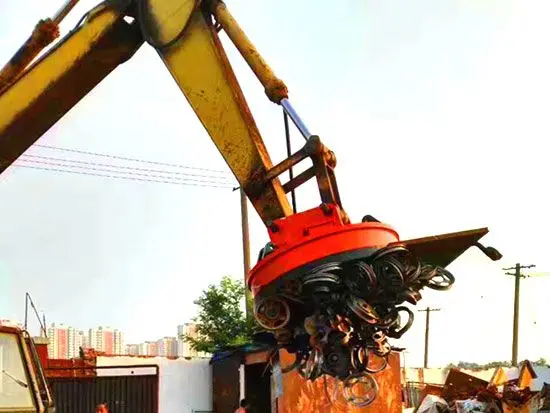

1. It is used to lift and transport steel and other magnetic materials in metallurgy, mining, machinery, transportation and other industries.
2. It is used for electromagnetic manipulator, holding steel and other magnetic materials.
2. It is used for electromagnetic manipulator, holding steel and other magnetic materials.
Packing & Payment & Delivery
>> Packaging Details:
Plywood Case(Composite Material Box)
>> Delivery Time:
5-7 Days after receipt of the deposit
>> Payment Terms:
30%(T/T) as deposit, the Rest 70%(T/T) Before Shipm
Plywood Case(Composite Material Box)
>> Delivery Time:
5-7 Days after receipt of the deposit
>> Payment Terms:
30%(T/T) as deposit, the Rest 70%(T/T) Before Shipm
WHY CHOOSE US ?
