Характеристики
Product Description
TEM 620XH Rebar Scanner
TEM-620 series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the
diameter of cover in concrete structure such as walls,columns, beam-slabs etc. It can also detect the location of pipelines and
metal embedded parts. The multiple coil structure design make it more accurate&responsive and higher resolution.
diameter of cover in concrete structure such as walls,columns, beam-slabs etc. It can also detect the location of pipelines and
metal embedded parts. The multiple coil structure design make it more accurate&responsive and higher resolution.
Application Range
(1). Testing the location, distribution, direction, and diameter of the rebar and the thickness of cover in concrete structure projects.
(2). Inspecting and accepting concrete structural construction quality.
(3). Evaluating the quality of construction.
(4). Establishing the location of rebar for drilling, cutting and coring operations.
(5). Testing the distribution and direction of electric cables, pipelines and metalwork inside walls and floors.
(6). Testing the quantity of rebar when evaluating and developing the old structure, such as installation of furniture and air-condition.
(2). Inspecting and accepting concrete structural construction quality.
(3). Evaluating the quality of construction.
(4). Establishing the location of rebar for drilling, cutting and coring operations.
(5). Testing the distribution and direction of electric cables, pipelines and metalwork inside walls and floors.
(6). Testing the quantity of rebar when evaluating and developing the old structure, such as installation of furniture and air-condition.

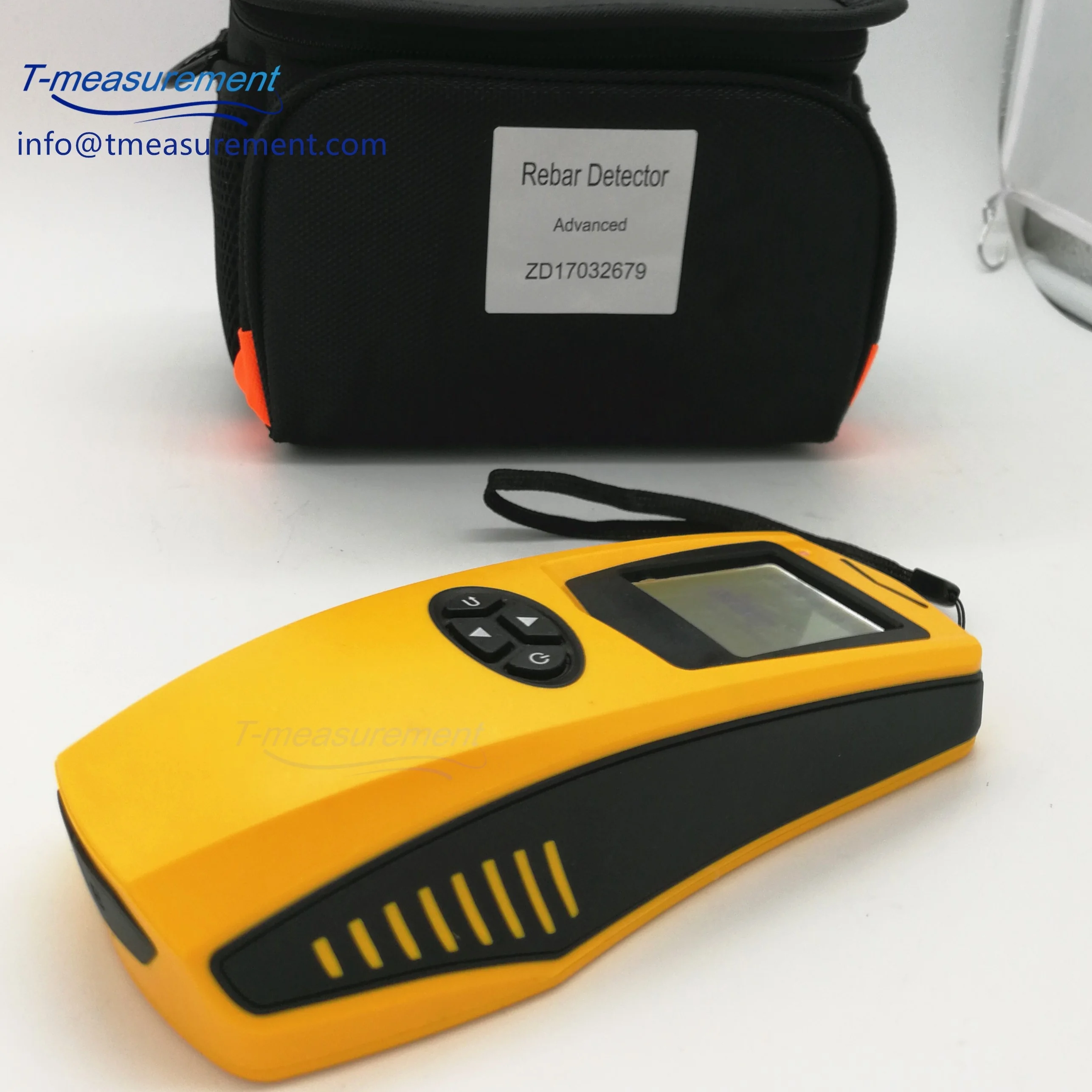

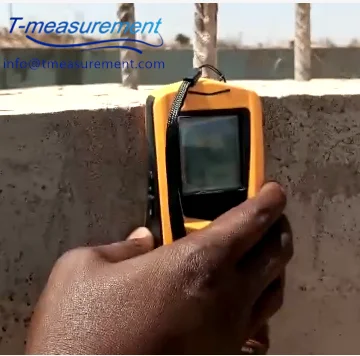

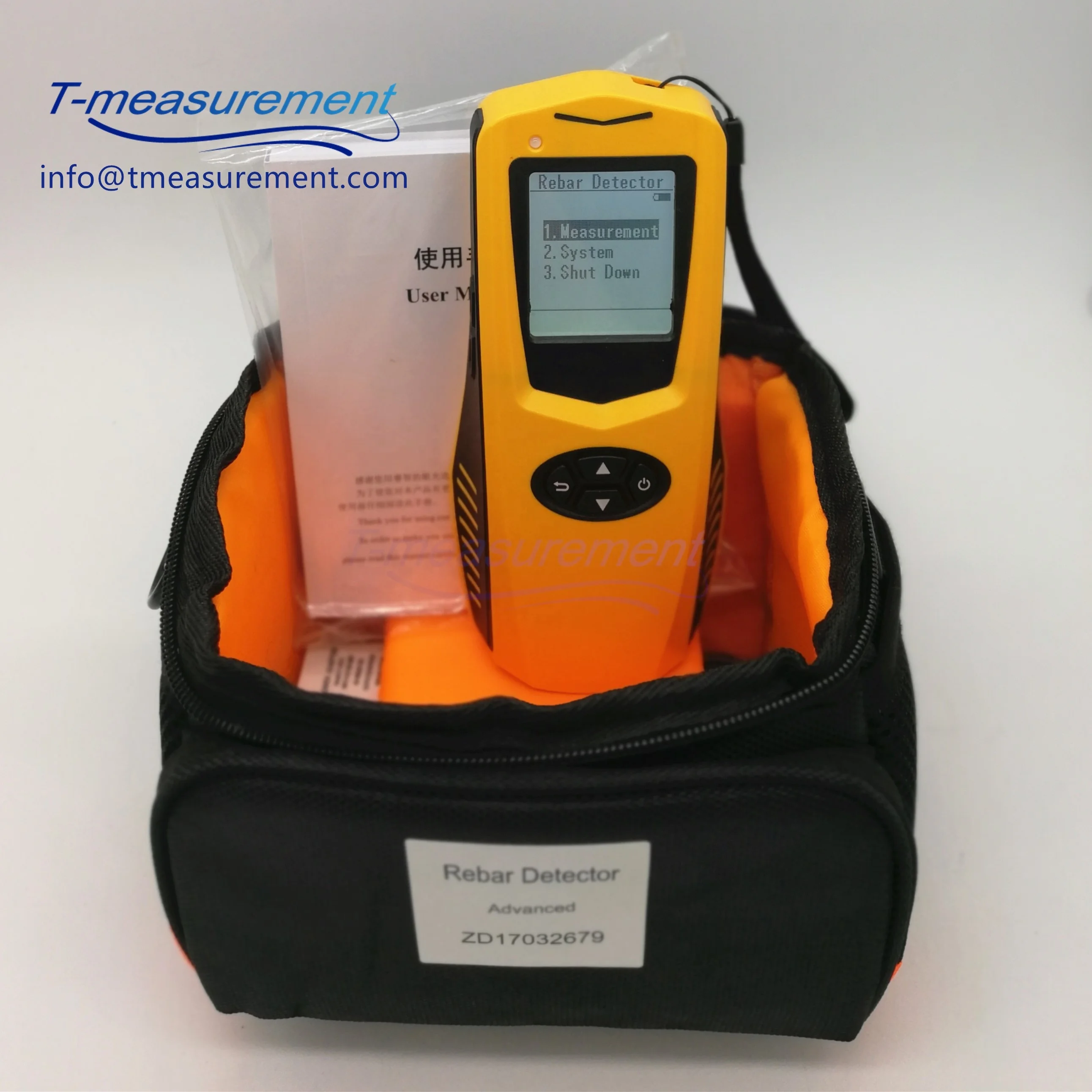

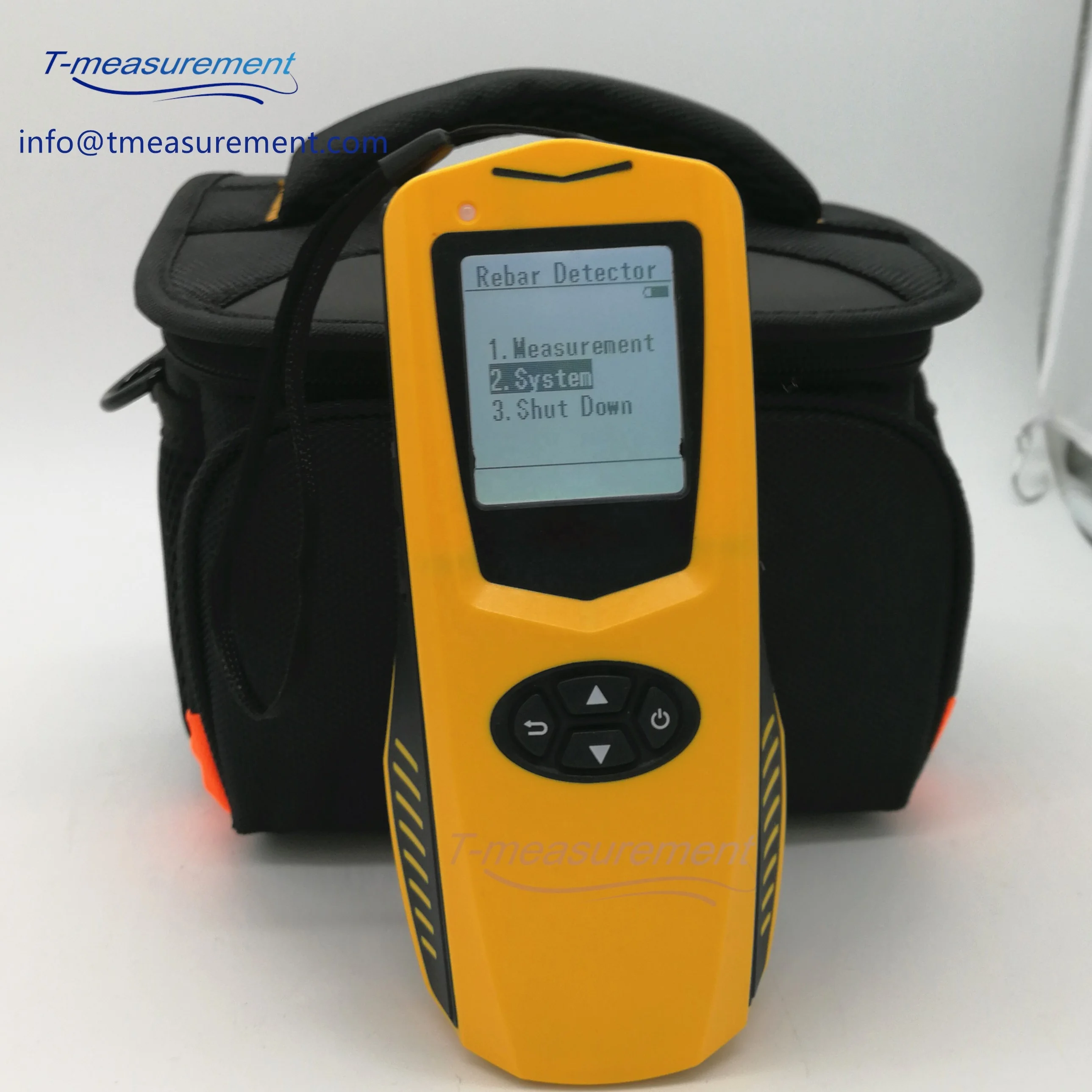

Detailed Images
Parameter data
Items | Technical Spec | ||
Diameter Measuring Range（mm） | Ф6～Ф50 | ||
Measuring Range（mm） | Location Range: 1～120 First Range: 1～60 Second Range: 30～120 | ||
Thickness Measuring Accuracy（mm） | 1～40 | ±1 | |
41～60 | ±2 | ||
61～80 | ±3 | ||
81～100 | ±5 | ||
101～120 | ±8 | ||
Rebar Location Accuracy | 1～60 | ±3 | |
61-120 | ±6 | ||
Diameter Measuring Modes | Optional | ||
JGJ Measurement | Optional | ||
Data Storage | Optional | ||
Off Time | Automatic | ||
Power Supply | Rechargeable Lithium Battery | ||
Working Temperature | -10℃～+42℃ | ||
Size（mm） | 170×78×38 | ||
Weight（kg） | 0.28 | ||

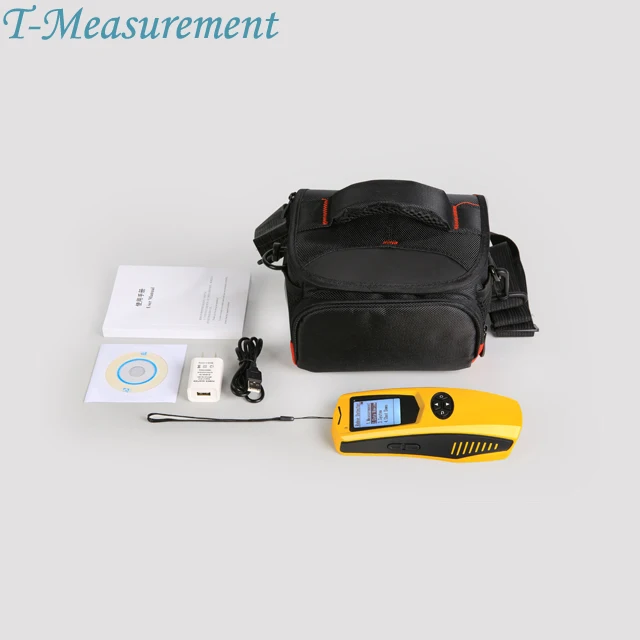

Packing & Delivery
Rebar scanner | ×1 Unit |
Charger | ×1 Unit |
USB cable | ×1 Unit |
User Manual | ×1 Unit |
Warranty Card | ×1 Unit |
Software CD | ×1 Unit |
Carrying Bag | ×1 Unit |
