Механический испаритель с роторным дестилятором на

Механический испаритель с роторным дестилятором на

Категория: Evaporator >>>
Поставщик: Henan,Lanphan,Industry,Co.,Ltd.

Цена:540,00 $ - 560,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	643.57 $*	675.49 $*
Aug-15-2025	637.25 $*	669.62 $*
Jul-15-2025	535.39 $*	562.30 $*
Jun-15-2025	626.3 $*	657.79 $*
May-15-2025	545.12 $*	572.54 $*
Apr-15-2025	616.48 $*	647.66 $*
Mar-15-2025	610.97 $*	641.4 $*
Feb-15-2025	605.13 $*	635.92 $*
Jan-15-2025	599.73 $*	629.50 $*

Характеристики

Related Products

RE-1050 50L R-1020 20L RE-1002 10L

Product Description

Basic Parameter	Type	RE-501
	Glass Material	GG-17
	Support Material	stainless steel
	Shell Material	Antisepsis Plastic Spraying 310320240mm
	Inner Container Material	stainless steel 280*170mm
	Baseboard Size	350*330mm
	Volume of Rotary Bottle	5L ¢50 flange aperture
	Volume of Recycling Bottle	3L 35# ground aperture
	Vacuum Degree	0.098Mpa
	Rotating Power	40W
	Rotating Speed	0-120rpm
	Heating Power	2KW
	Temperature Control Range of Bath Kettle	400°C
	Temperature Accuracy	±1°C
	Voltage/Frequency (V/Hz)	220V/50Hz
	Up and Down Distance	120mm
	Shape Size(mmmmmm)	7003351009mm
	Package Size(mmmmmm)	1040620410 0.26 m³
	Package Weight (KG)	38
Function Allocation	Speed Adjustment Mode	Electrodeless Speed Regulation
	Rotate Speed Display Mode	Digital Display
	Temperature Display Mode	Digital Display K Type Sensor
	Temperature Control Mode	Smart Temperature Control
	Sealing Mode	PTFE Sealing

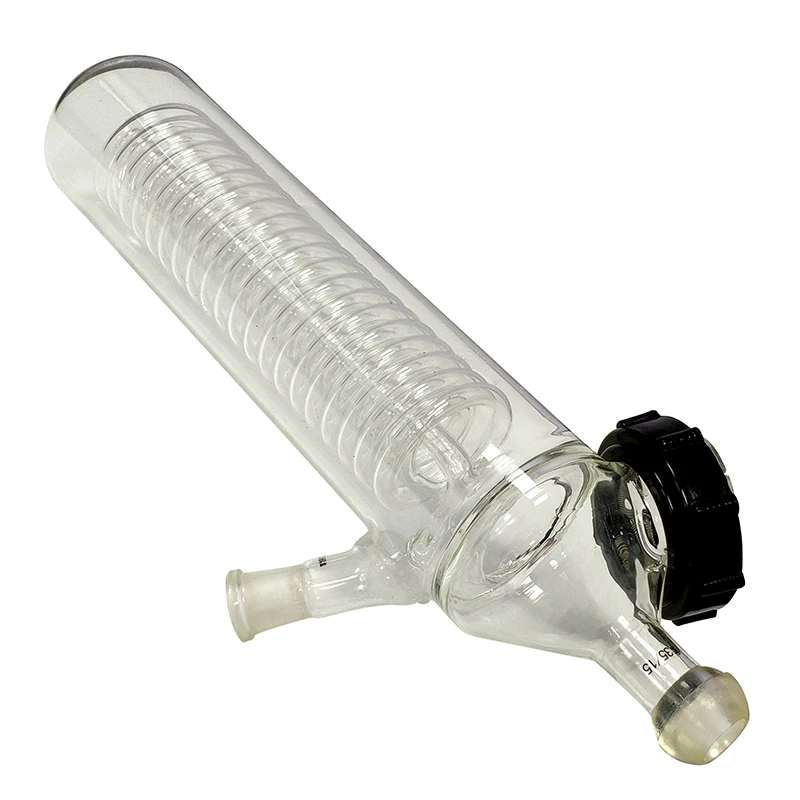

	Condenser	Vertical Condenser 100*510mm 29#Standard Aperture
	Up and Down Mode	Manual Up and Down of Bath Kettle
	Continuous Charging	Standard Aperture Feeding Valve
	Vacuum Display Mode	Vacuum Meter
Optional Equipping	Anti-splash Device	Equipping Transparent Cover of Bath Kettle
	Anti-explosion	Anti-explosion Frequency Changer, Anti-explosion Dynamo EX40We
	Frame Part	Plastic Spraying or PTFE Spraying
Our company's laboratory glass and laboratory instruments are independent research and development, available for custom-made according to client requirements.

Packing List of 5l rotary evaporator manual

Host	1	Rotary Bottle	1
Electric Cabinet	1	Recycling bottle	1
Aluminum Backing Ring of Special Sealing Ring	1	Condenser Pipe	1
Sealing Gasket	1	Suction Pipe	1
Protective Pipe 3A	1	Protective Pipe	1
Thermostat Water Bath Kettle	1	Special Components (additional Purchase)	1

Application Field

Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in medicine,
chemical and biochemical industries. Under the vacuum condition, the rotating flask is heated at a constant temperature, and can rotate at a constant speed. Then the material can form a large area of thin film in the inner wall of the flask, evaporating efficiently. The solvent steam can be cooled by efficient glass condenser and recycled in the receiving flask, greatly enhancing the evaporation efficiency.
