Характеристики

Machine features:

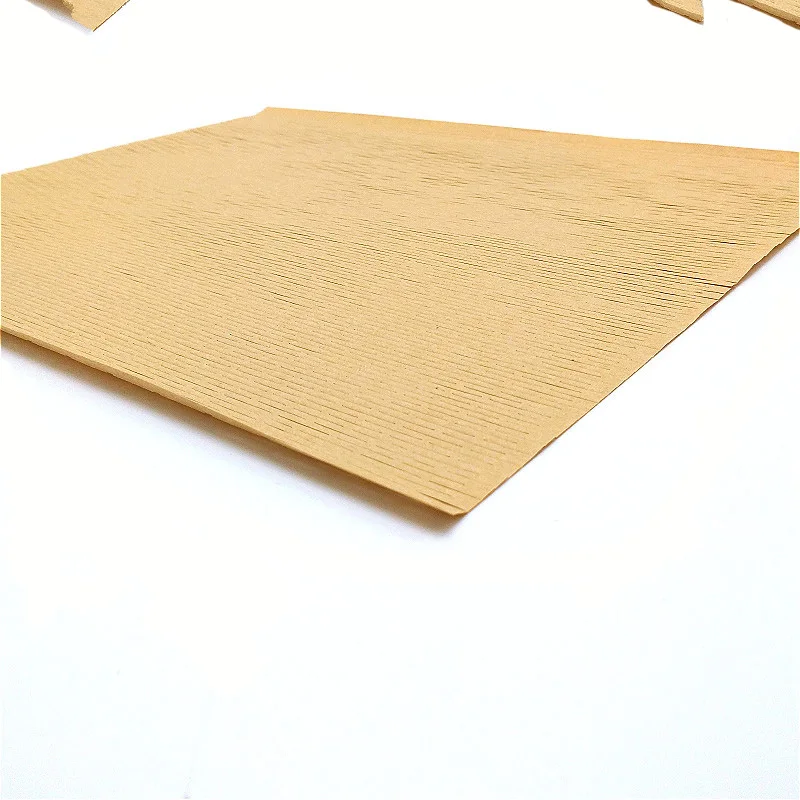

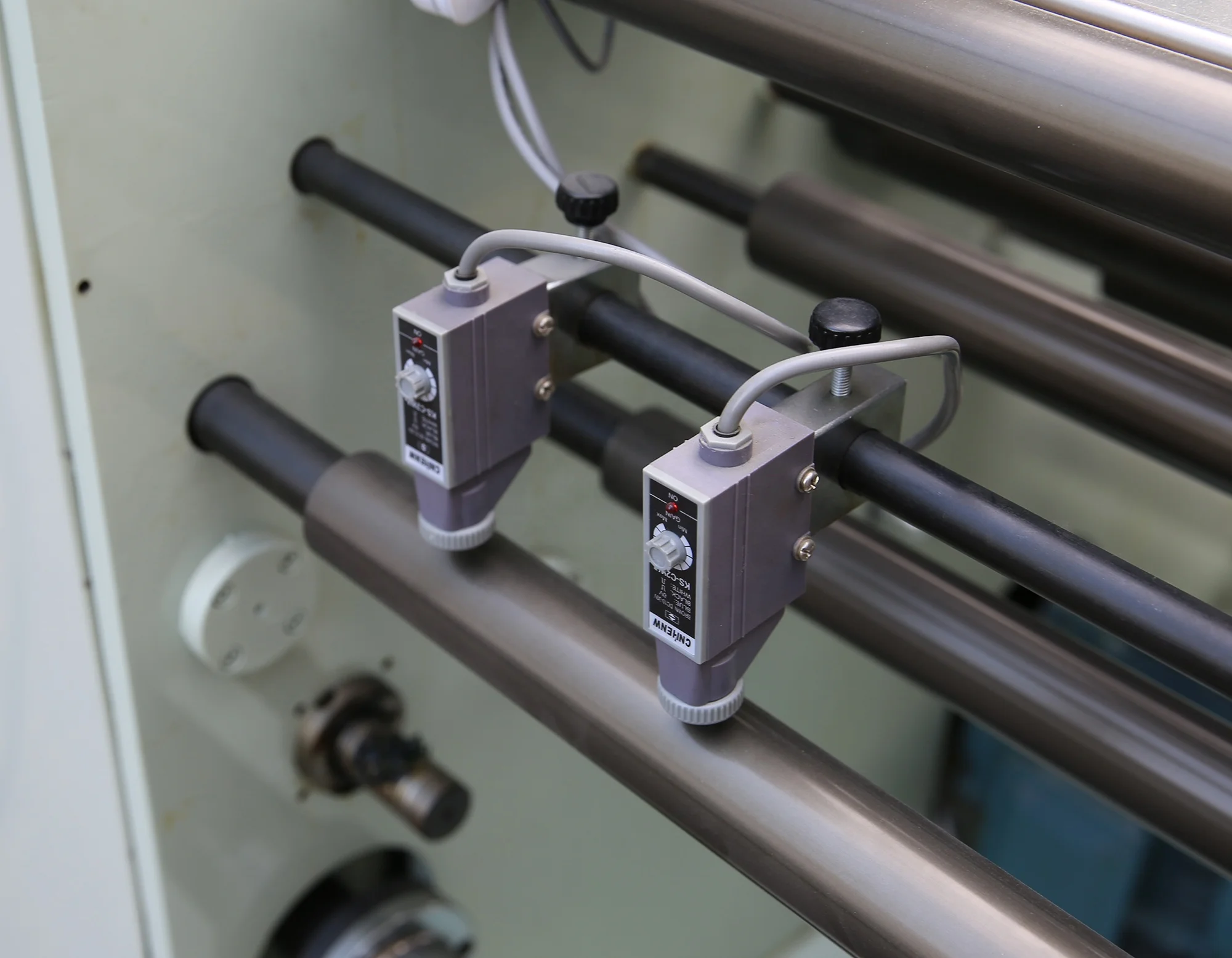

This product is suitable for making geami paper,honeycomb paper. Unwinding,Die cutting,rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily.



Technical parameters:

Item Number
YD-320Y
YD-420Y
Slitting Speed
80m/min
80m/min
Die cutting Speed
80m/min
80m/min
Max Web Width
Up to 320mm
Up to 420mm
Max Unwinding Diameter
500mm
500mm
Max Rewinding Diameter
480mm
480mm
Die cutting length
178-470mm(7" - 18,5")
178-470mm(7" - 18,5")
Overall Size
2100mmx1100mmx1500mm
2230mmx1320mmx1700mm
Machine Weight
1200kgs
1800kgs
Power Supply
380V 50HZ
380V 50HZ

*the voltage can customize according to your country standards.


Rotary die cutting station:

Die cutting length from 178-470mm(7" - 18,5").
Anvil cylinder.
Ability to cut from top or bottom.
Adjustable waste rewinder with magnetic powder clutch and 3 inch air shaft.


Options:

Die cutting mould (or magnetic cylinder+flexible die)
Winding shaft 1", 2" and 3''.and much more

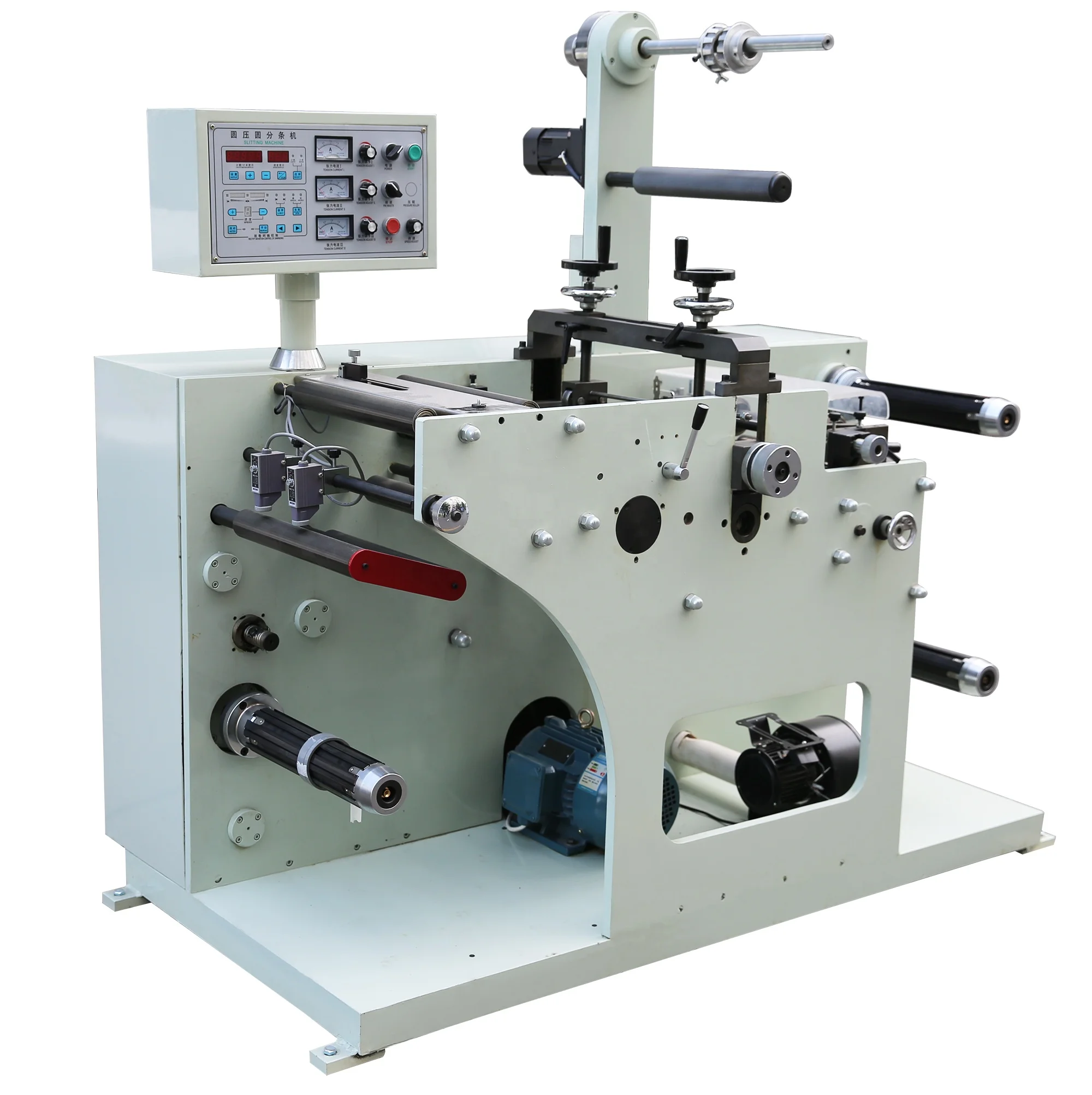

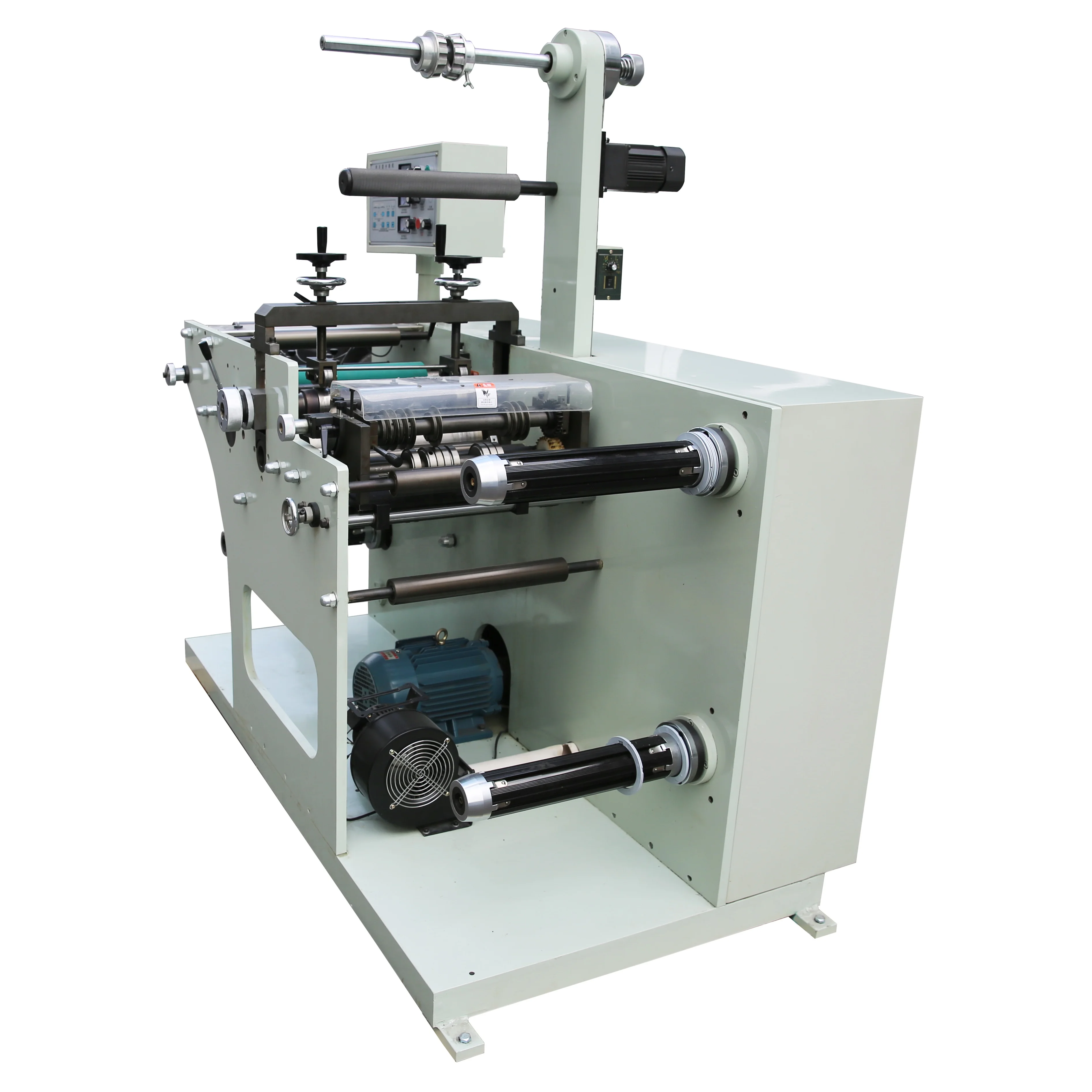

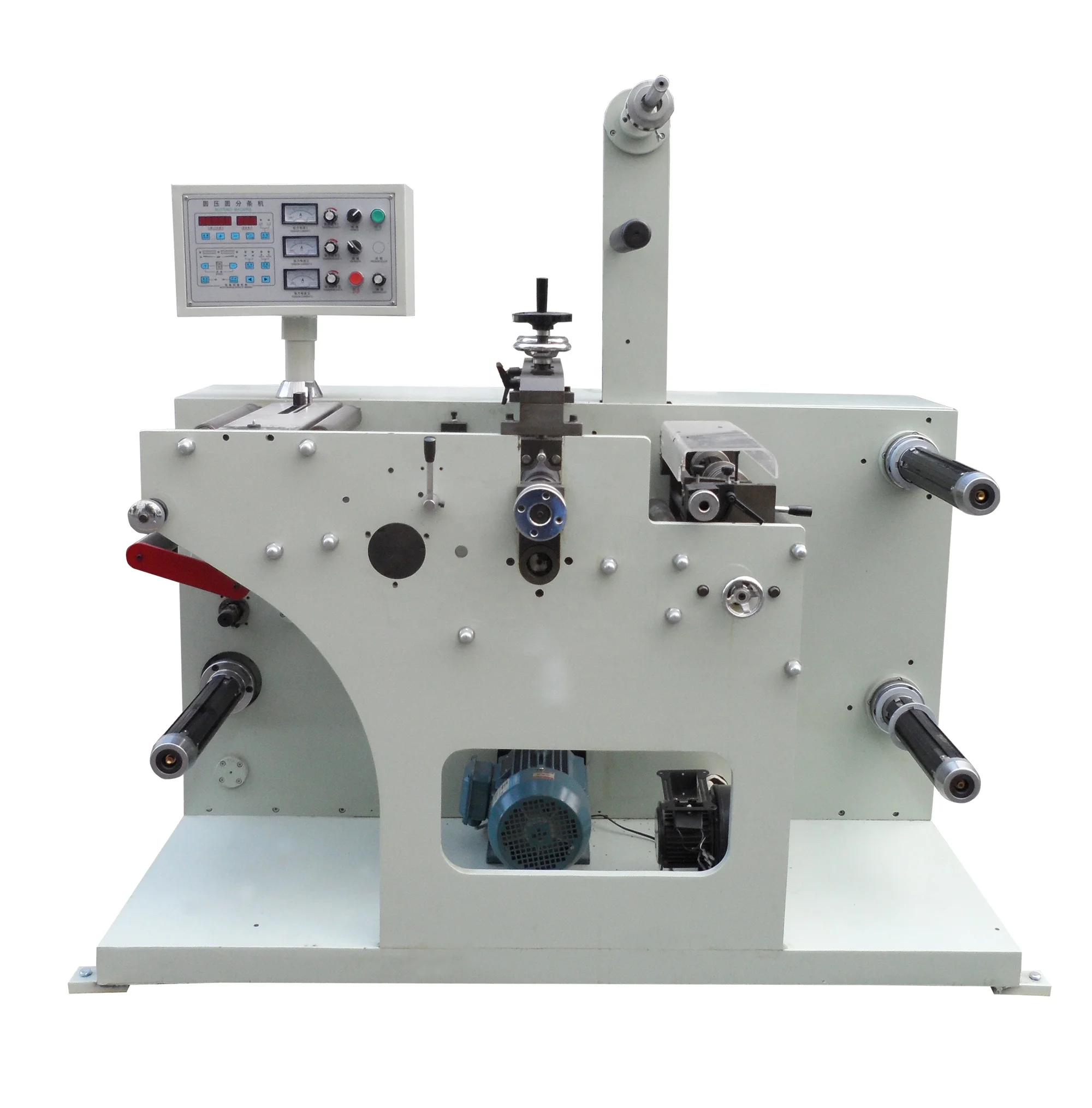

Machine Display
The mould is optional,the price is not including the cutting mould.

We have the model YD-500Y can make the honeycomb paper rolls,click below picture for more details and video:
After-service

1. Training Service
We can train your staffs how to run the machine efficiently and safely.
1.1 Free training in our factory available before delivering machines.
1.2 We also can arrange engineer to customer's plants for installation and training.

2. After Sales Service
We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

For all of our machines, we provide:
1. Operation Manual, Operation and repair Video.
2. 1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine.
3.24hours Email technical support, we will do our best to help the clients solve problems.
4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.

Packing & Delivery

PACKAGE: we use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard. It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing first before plywood case or pack it according to customers special .

SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first time .

Factory
