Тальковая мельница Раймонда
- Категория: Mine Mill >>>
- Поставщик: Shanghai,Clirik,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 26180.57 $* | 27489.62 $* |
| Aug-17-2025 | 25960.74 $* | 27258.61 $* |
| Jul-17-2025 | 21780.78 $* | 22869.30 $* |
| Jun-17-2025 | 25520.60 $* | 26796.57 $* |
| May-17-2025 | 22220.96 $* | 23331.71 $* |
| Apr-17-2025 | 25080.5 $* | 26334.68 $* |
| Mar-17-2025 | 24860.16 $* | 26103.42 $* |
| Feb-17-2025 | 24640.94 $* | 25872.54 $* |
| Jan-17-2025 | 24420.39 $* | 25641.60 $* |
Характеристики
Product Description
Talcum Raymond mill, mine Raymond mill
Clirik Raymond mill, mine grinding mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 mesh. Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Specification
Model | Feeding size(mm) | Finished size(mm) | Mill system power(kw) | Capacity(t/h) | Overall dimension(mm) |
YGM7815 | 15 | 0.613-0.033 | 35.7 | 1-3 | 4300*3500*5100 |
YGM9517 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
YGM1280 | 20 | 0.613-0.033 | 145.15 | 4.5-12 | 9300*5600*8200 |
YGM1300 | 20 | 0.613-0.033 | 202.15 | 6.5-16 | 9100*8200*8400 |
YGM1620 | 20 | 0.613-0.033 | 322.2 | 8-20 | 12500*5700*10500 |
YGM1720 | 35 | 0.613-0.033 | 450 | 10.5-28 | 11550*9500*10500 |
Model | Roller quantity(piece) | Roller diameter(mm) | Roller height(mm) | Ring inner diameter(mm) | Ring height(mm) |
YGM7815 | 3 | 260 | 150 | 780 | 150 |
YGM9517 | 4 | 310 | 170 | 950 | 170 |
YGM1280 | 3 | 370 | 240 | 1170 | 240 |
YGM1300 | 4 | 410 | 280 | 1270 | 280 |
YGM1620 | 4 | 450 | 300 | 1500 | 300 |
YGM1720 | 4 | 510 | 300 | 1720 | 300 |
Talcum Raymond mill, mine Raymond mill
【Feeding size】：≤25
【Discharging size】：0.074-0.4
【Application】：Grinding ball mill be suitable for grinding(wet or dry) all kinds of ores and other materials. Applied industries, building materials, chemical, electric power, coal, traffic, light industry, etc.
【Discharging size】：0.074-0.4
【Application】：Grinding ball mill be suitable for grinding(wet or dry) all kinds of ores and other materials. Applied industries, building materials, chemical, electric power, coal, traffic, light industry, etc.
Working principles and applications Of Talcum Raymond mill, mine Raymond mill:
The grinding ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the
grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Features of Talcum Raymond mill, mine Raymond mill
1.High pressure spring design.
2.Smoothly vibration reduce design
3.Convenient vane adjust design.
4.The machine has a strong material applicability , which suits for many kinds of material whose Moh’s hardness is less than 9.3.
5.Grinding device adopts superimposed multistage seal, sealed performance is good.
2.Smoothly vibration reduce design
3.Convenient vane adjust design.
4.The machine has a strong material applicability , which suits for many kinds of material whose Moh’s hardness is less than 9.3.
5.Grinding device adopts superimposed multistage seal, sealed performance is good.

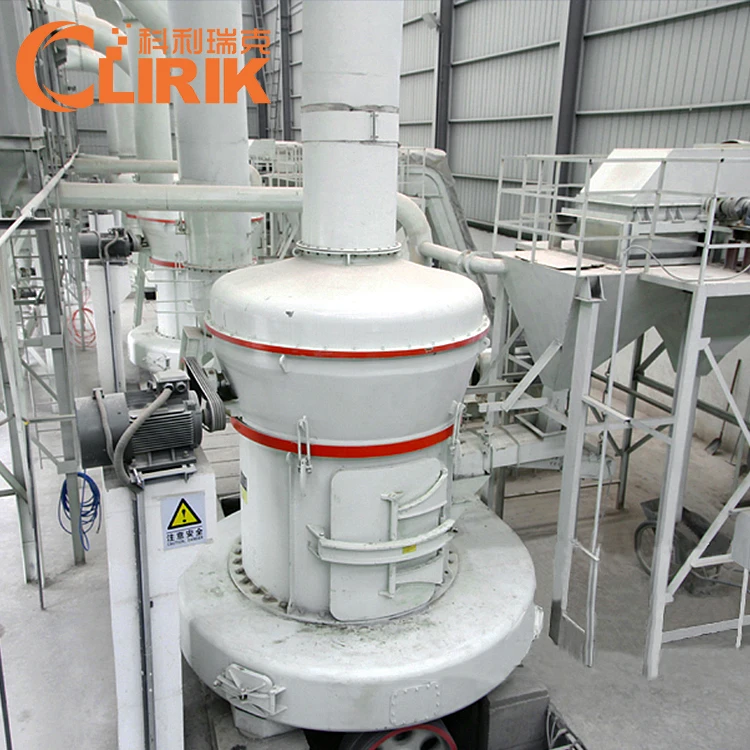

Our Workshop
The machine we show are all produced by ourselves.
Company Profie
Shanghai Clirik Machinery Co., Ltd. Is located in Pudong New District of Shanghai, China. As a pioneer enterprise, our company is specialized in research, manufacture and sales of all kinds of mining equipment.
We are the manufacturer of roller mill, stone crusher and etc. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, and owned a professional team, for R&D, production, sales and service.
So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, European coarse grinding mill, hammer crusher, jaw crusher and other mining equipment. These products are widely used in the industry of mining, construction, chemicals, metallurgy, transportation, hydraulic engineering and so on.
Our products are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, Southeast Asia, Oceania, and American,etc.
Our company has insisted on collaborating with prestigious scientific research institutions from both home and abroad, so as to make sure that our products are always in good quality.
We are the manufacturer of roller mill, stone crusher and etc. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, and owned a professional team, for R&D, production, sales and service.
So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, European coarse grinding mill, hammer crusher, jaw crusher and other mining equipment. These products are widely used in the industry of mining, construction, chemicals, metallurgy, transportation, hydraulic engineering and so on.
Our products are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, Southeast Asia, Oceania, and American,etc.
Our company has insisted on collaborating with prestigious scientific research institutions from both home and abroad, so as to make sure that our products are always in good quality.
Why Choose Us
Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
Other Products offered
FAQ
Q: Are you a middle man or manufacturer?
A: Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.
Q: How to get in touch with you?
A: You can leave your inquiry below this product, or you can call us 86-021-2023617.
Q: Where is your company?
A: We are in PuDong new area, HeQing twon, FuQing road, No. 19, Shanghai, China.
A: Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.
Q: How to get in touch with you?
A: You can leave your inquiry below this product, or you can call us 86-021-2023617.
Q: Where is your company?
A: We are in PuDong new area, HeQing twon, FuQing road, No. 19, Shanghai, China.
