Мини волоконно-оптический коробка передач для высокочастотной связи по проводам ЛЭП SC/оптический патч-корд разъем одиночный режим SM G657A124cores 1x16 1x24 1x32 Сплиттер Волоконно оптический
- Категория: Industrial Controls >>>
- Поставщик: Zhengzhou,Weunion,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.16 $* | 0.42 $* |
| Aug-17-2025 | 0.33 $* | 0.15 $* |
| Jul-17-2025 | 0.20 $* | 0.75 $* |
| Jun-17-2025 | 0.2 $* | 0.54 $* |
| May-17-2025 | 0.23 $* | 0.18 $* |
| Apr-17-2025 | 0.79 $* | 0.28 $* |
| Mar-17-2025 | 0.17 $* | 0.45 $* |
| Feb-17-2025 | 0.79 $* | 0.34 $* |
| Jan-17-2025 | 0.0 $* | 0.37 $* |
Характеристики
Product Description

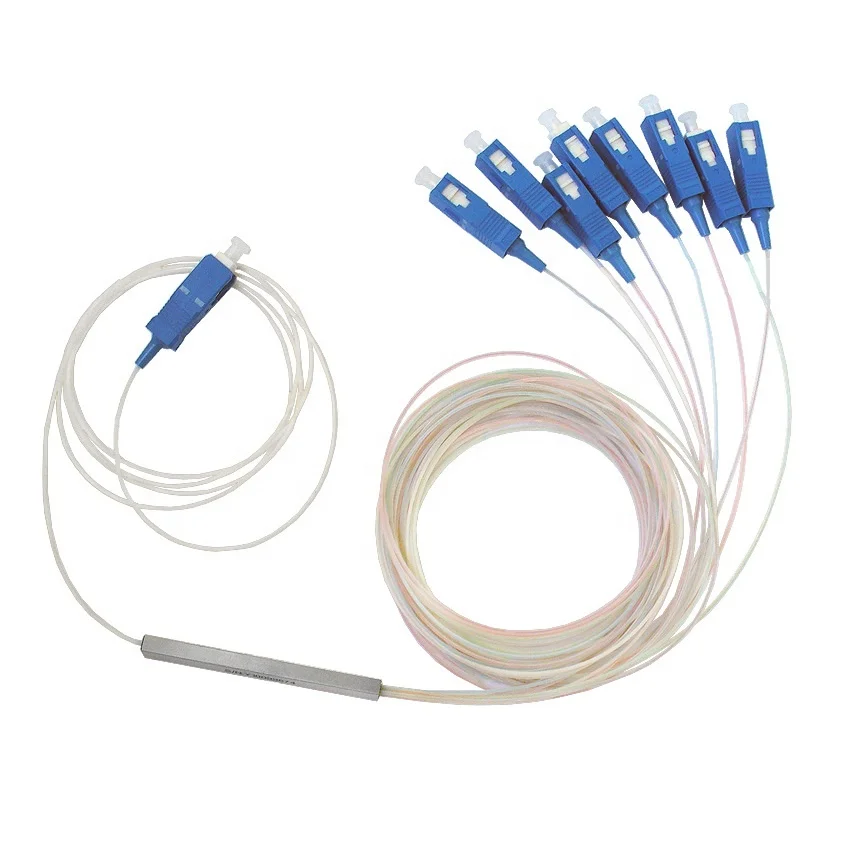

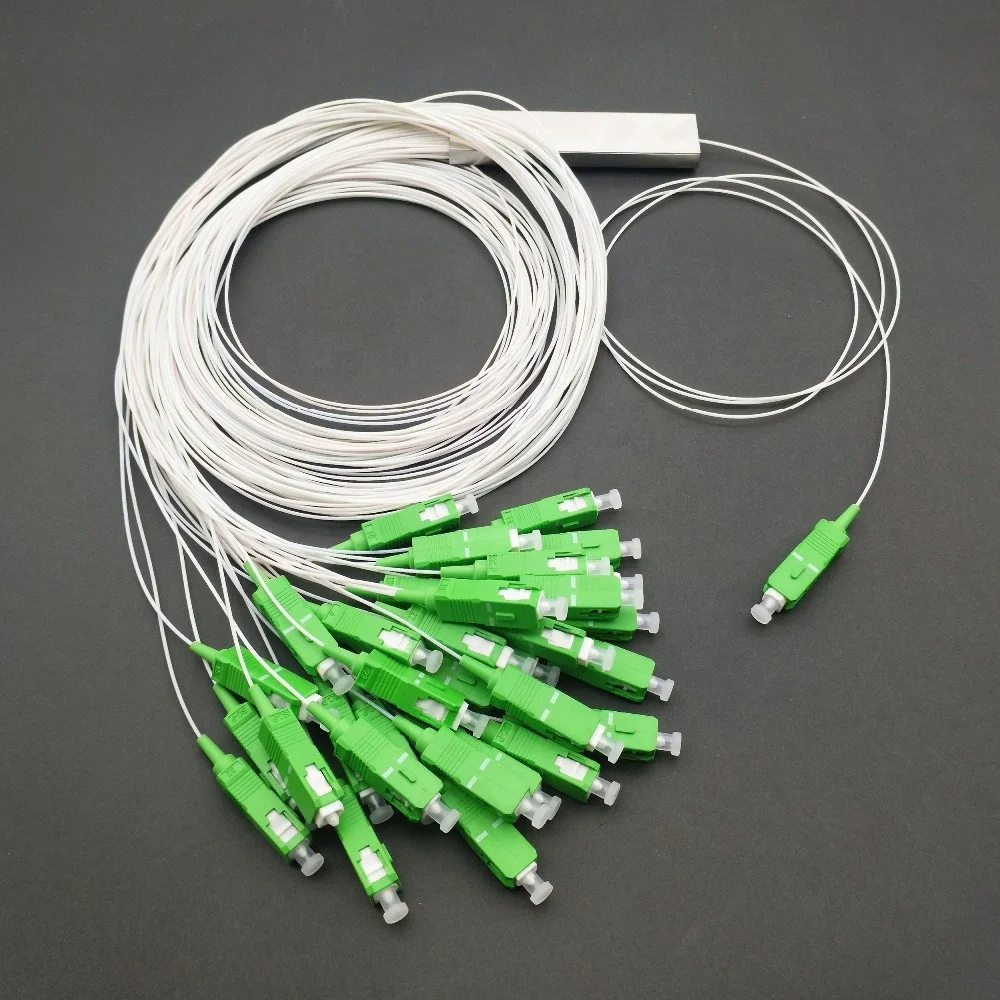

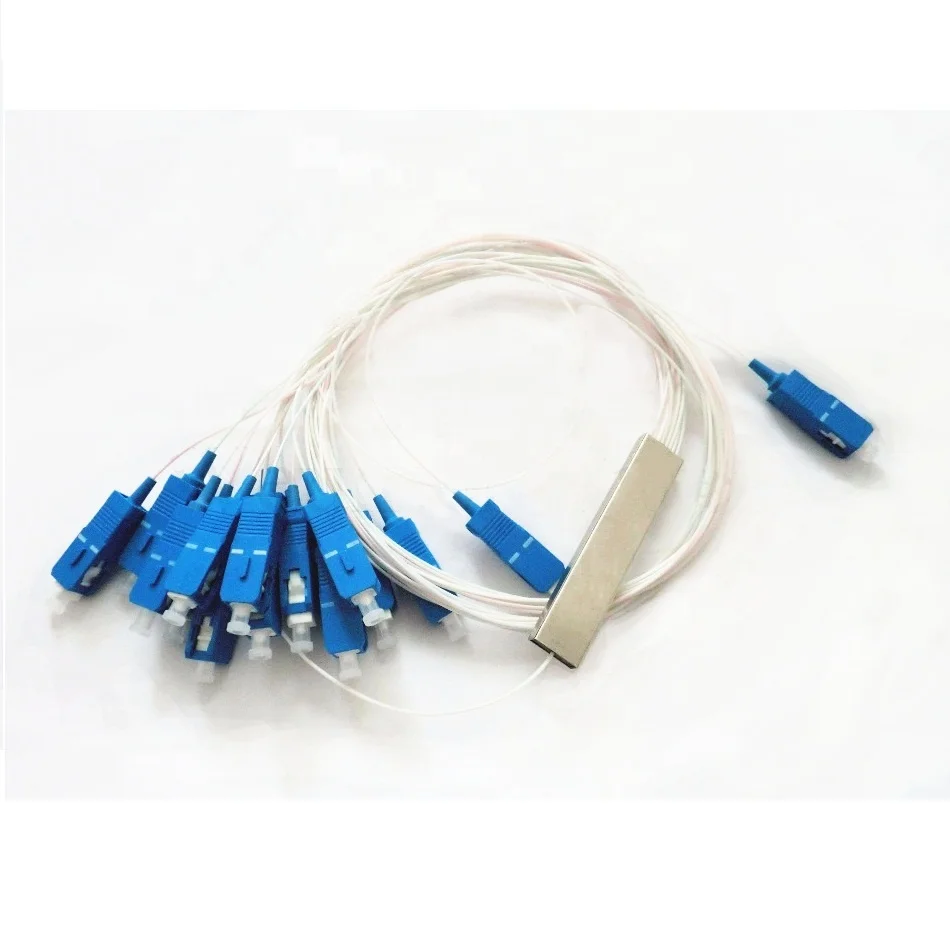

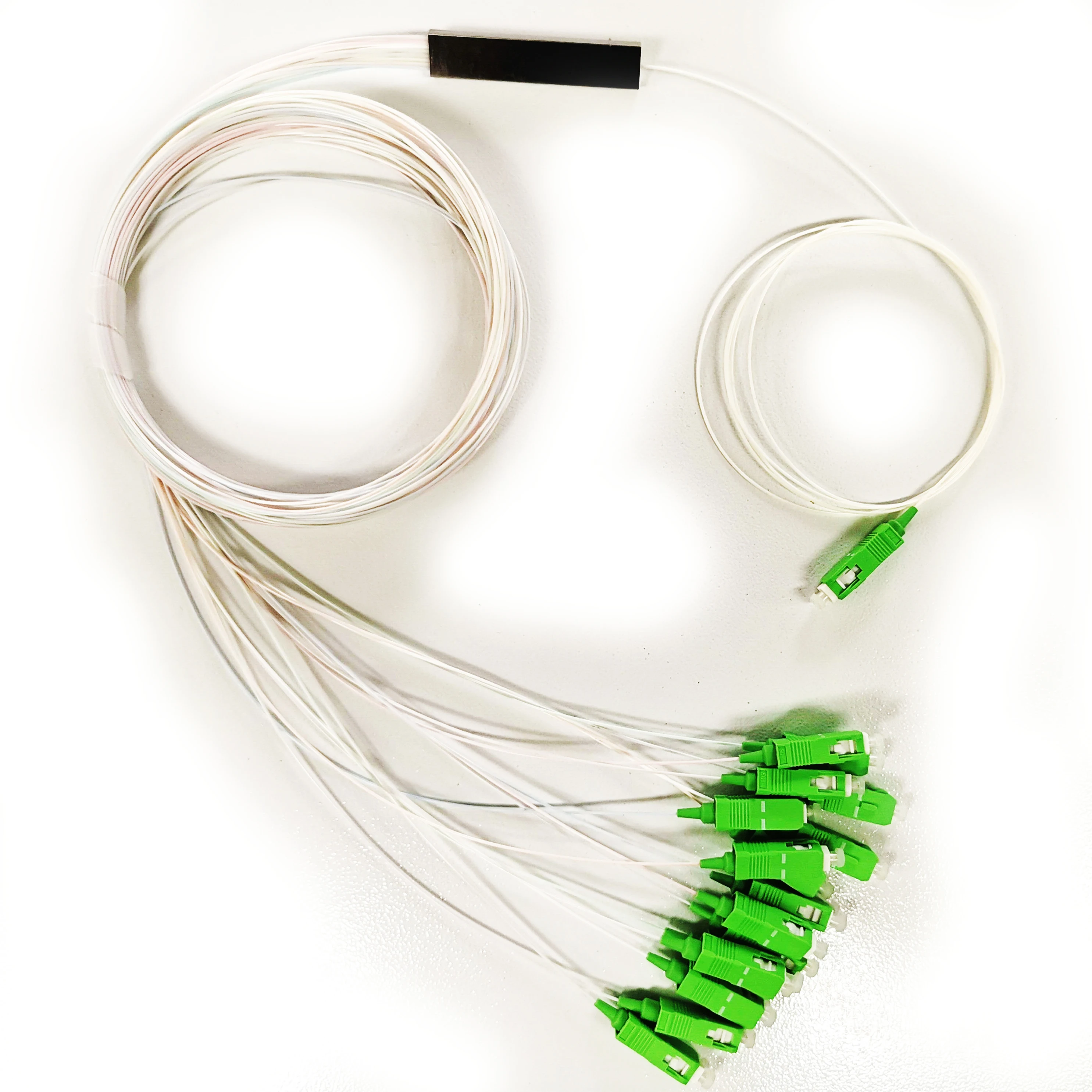

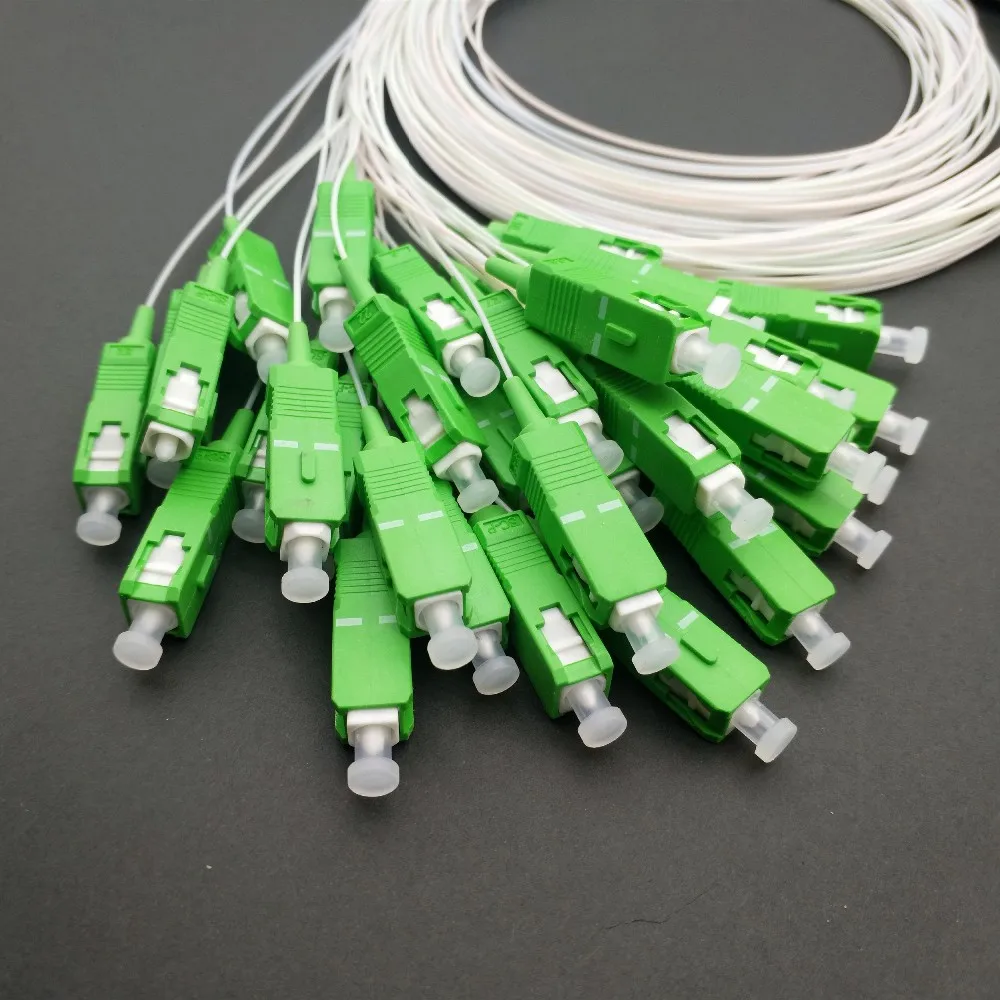

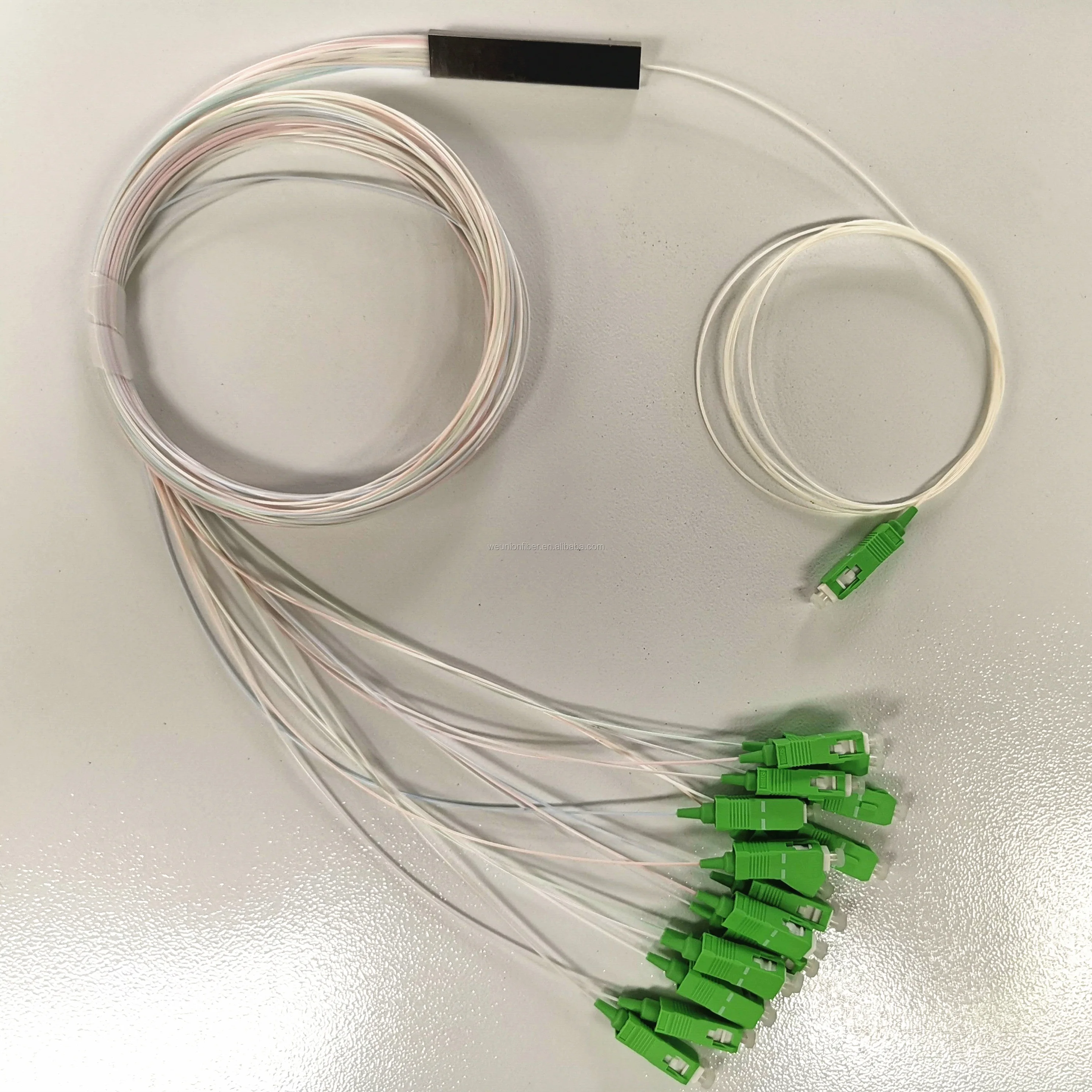

1x8 SC APC Mini PLC Optical Splitter Single Mode With SC Connector Mini-module PLC Splitter 1.5meters
Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
Fiber Type | / | G.657A, or customized | |||||||
Operating Wavelength | nm | 1260~1650 | |||||||
Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | |
PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | |
Return Loss | Min | dB | 55(P Grade)/50(S Grade) | ||||||
Directivity | Min | dB | 55 | ||||||
Operating Temperature | ℃ | -40 ~ +85 | |||||||
Storage Temperature | ℃ | -40 ~ +85 | |||||||
Dimension(L×W×H) | mm | 40×4×4 | 50×7×4 | 60×12×4 | |||||
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. | |||||||||
Our Services
1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions
7.Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
RELATED PRODUCTS
Company Information
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers’ varied requirements.Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, and Asia. Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTX solutions.
1x2
PACKAGING AND LOGIST
1.Advanced production and testing equipment.
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system.
4.Our company has experienced professional team.
5.Provide reliable solutions and satisfactory services.
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours.Advanced production and testing equipment.
SC APC Mini PLC Optical Splitter Single Mode With SC Conne
FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: How long is the guarantee of the product?
A: According to the type of product,We offer 1-3 years warranty to our formal products.
Q5: What about delivery time?
A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.
ct
Why choose us
or Mini-module PLC Splitter 1meter
