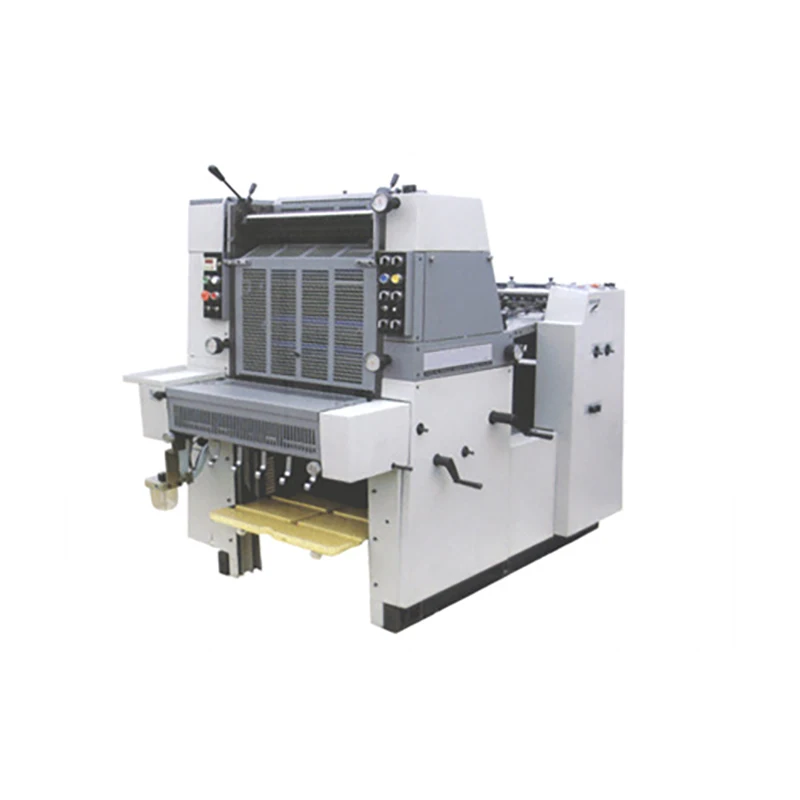

Сверхмощная одноцветная офсетная печатная

Категория: Офсетные принтеры >>>
Поставщик: McLantis,Technology,(Shanghai),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.4 $*	0.67 $*
Aug-20-2025	0.34 $*	0.16 $*
Jul-20-2025	0.90 $*	0.96 $*
Jun-20-2025	0.48 $*	0.87 $*
May-20-2025	0.33 $*	0.47 $*
Apr-20-2025	0.43 $*	0.77 $*
Mar-20-2025	0.97 $*	0.41 $*
Feb-20-2025	0.38 $*	0.10 $*
Jan-20-2025	0.63 $*	0.17 $*

Характеристики

Product Description

Product Paramenters

1. Easy operation: Water feeding ,ink feeding and impression are all operated by one switch dividedly. The impressing roller
on/off is controlled by electric eye accurately and reliably.

2. Precise location: Front guide, side-pulled-guide, feed-table tune-up, plate tune-up, ensure locating precision of paper sheets and perfect printing results.

3. Separating damping from inking: Damping system is separated from inking system. It can adjust damping and inking flexibly, which can content the request of different prints for water and ink.

4. Presetting counter: It adopts electromagnetic presetting counter. If the printing of presetting finish, the input stop
automatically.

5. Overlap detection: It can exclude the trouble such as overlap and non-stopped printing.

6. Circuit control: The whole machine is controlled by PLC computer, with the function of stopping printing automatically when paper blocked.

Model	OFFSETMAC
Model		MCOP152H	MCOP174H
Max. printing area	500 x 350mm	510× 730mm
Max. sheet	520 x 375mm	740 x 520
Min. sheet	148 x 105mm	273 x 370
Plate	510 x 400 x 0.15mm	625×755×0.3mm
Sheet thickness	0.03-0.45mm or 40 - 350gsm	0.04-0.45mm or 40 - 350gsm
Speed	11000rph/h	10000rph
Ink roller	19pcs (4 forme ink rollers)
Dampening roller	5pcs (2 forme rollers)
Blanket	518x490mm	680×755mm
Feeder table height	800mm	930mm
Delivery table height	360mm	420mm
Motor	3.2kw	6.79Kw
Power supply	380v/50hz
Dimension	1780x1250x1563mm	2350x2040x1715mm
Weight	1800kg	3800kg
