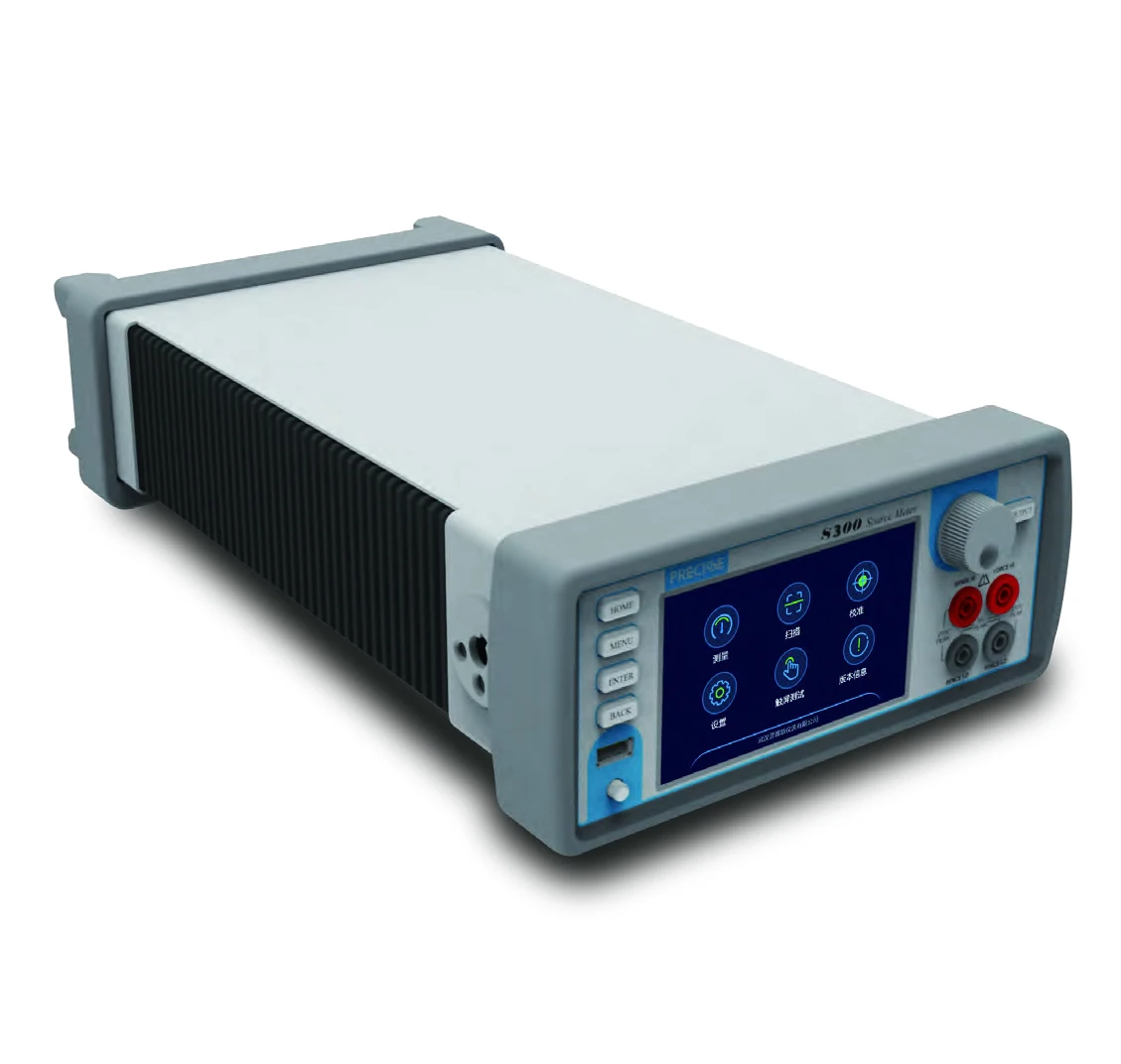

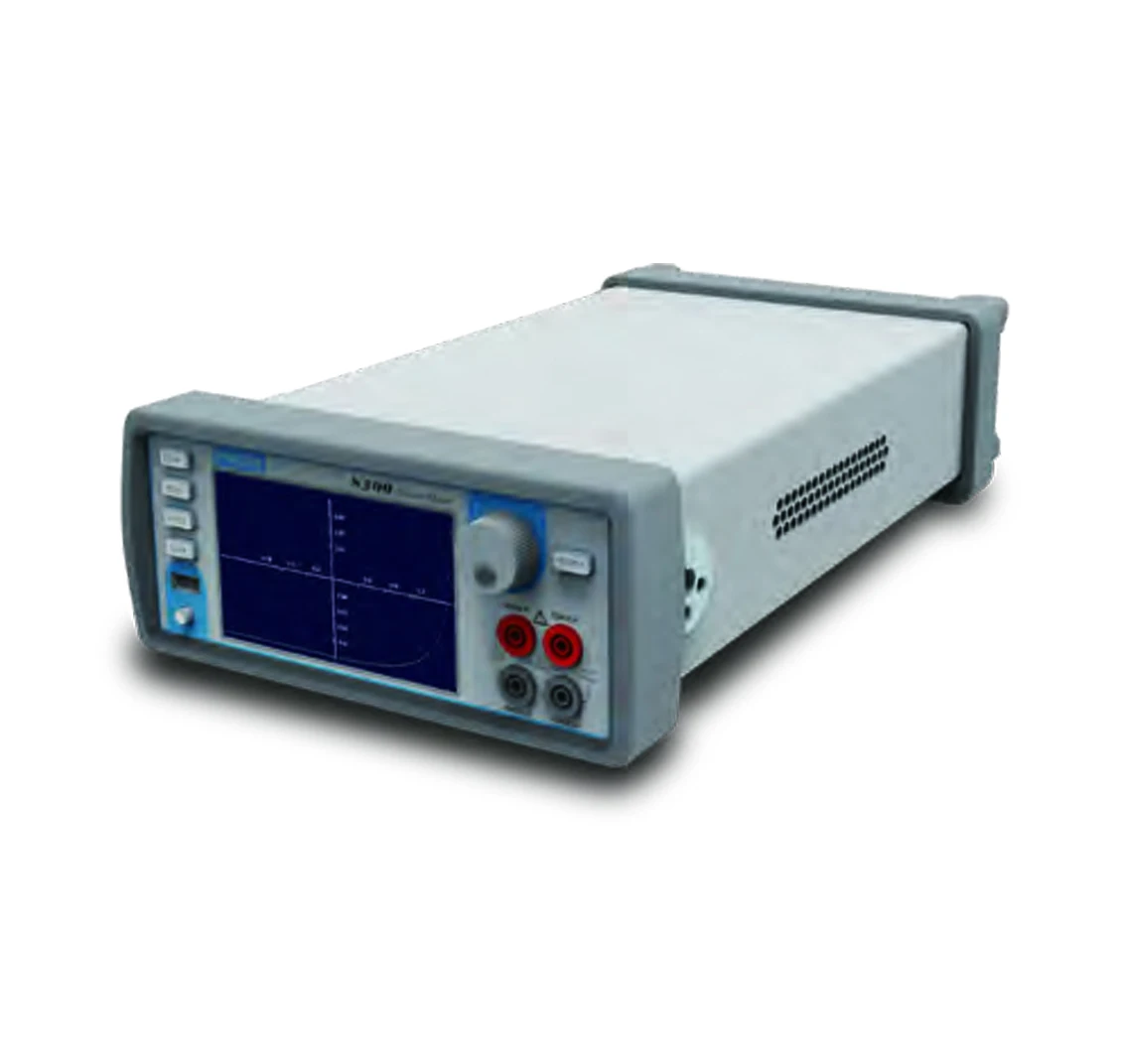

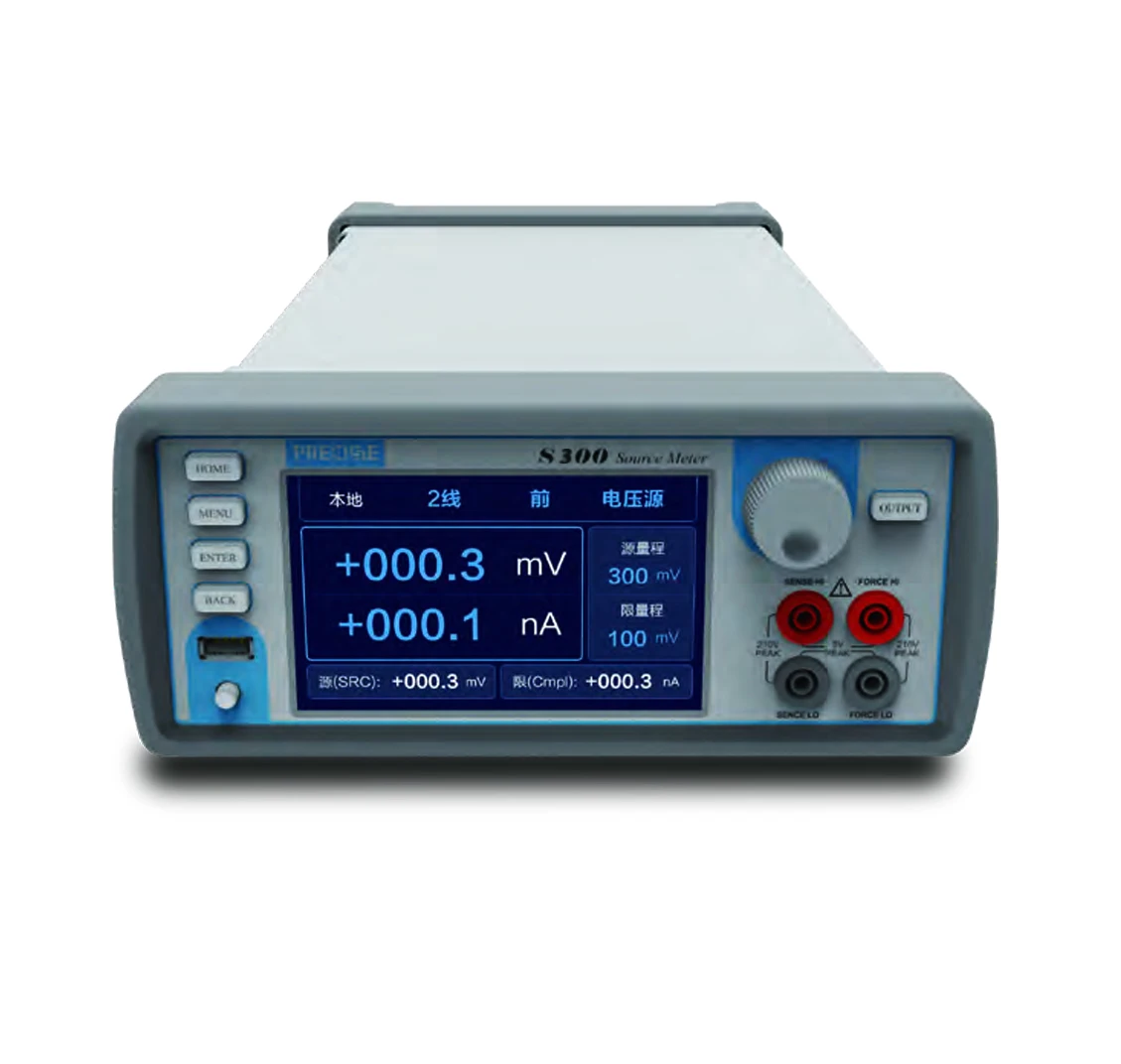

S300 Keithley 2400 2450 Keysight B 2901A SourceMeter SMU инструмент для тестирования/электрической
- Категория: Other Electronic Measuring Instruments >>>
- Поставщик: Hubei,Fangyuan,Environmental,Protection,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.4 $* | 0.90 $* |
| Aug-16-2025 | 0.38 $* | 0.81 $* |
| Jul-16-2025 | 0.51 $* | 0.89 $* |
| Jun-16-2025 | 0.6 $* | 0.36 $* |
| May-16-2025 | 0.67 $* | 0.43 $* |
| Apr-16-2025 | 0.36 $* | 0.25 $* |
| Mar-16-2025 | 0.37 $* | 0.44 $* |
| Feb-16-2025 | 0.55 $* | 0.61 $* |
| Jan-16-2025 | 0.21 $* | 0.53 $* |
Характеристики
Product Paramenters
Max output power | 30w, four quadrant source or sink operation |
Source/sink limits | ±30V (≤1A), ±300V (≤100mA), |
±1.05A (≤30V), ±105mA (≤300V) | |
Overrange | 105% of range, source and measure |
On-load capacitance | ＜22nF |
Noise (20MHz) | 2mV RMS, ＜20mV Vp-p |
Voltage guard | Output impedance 1 kΩ, Deflection-Voltage＜80mV |
Max sampling rate | 1000 sample/s |
Trigger | I/O |
Communication Interface | RS-232,GPIB |
Power supply | AC100V~240V 50/60Hz |
Temperature coefficient | 25±10 ℃ |
Length,Width and Height | 425mm L x 255mm W x 106mm H |
Weight | 5KG |
Warranty | 1 year. |
Product Description
INTRODUCTION
The source meter function has high-precision, large dynamic range, digital touch screen, four-quadrant operation, collect and test input & output voltage and current, meanwhile, the maximum output voltage reachs 300V, and the maximum output current reaches 1A. Therefore, it is widely used in electrical characteristics tests.
Company Profile
About Us
Hubei Fangyuan Environmental Protection Science & Technology CO.,LTD. is a national high-tech enterprise and software enterprise specialized in R & D ,production and sales of instruments and equipment. It has products more than 100 varieties in 5 categories includs radioactive testing instruments, indoor environmental testing instruments, food water quality testing instruments, ambient air quality monitoring instruments, fixed pollution source monitoring instruments .Many of the products have our own intellectual property rights, and at the same time, we also sell famous and excellent testing instruments and equipment at home and abroad.
Factory
Fangyuan has successively obtained more than 30 national invention patents, utility model patents and computer software copyright authorizations, and participated in drafting 6 national standards (regulations), 3 industry standards and several local verification regulations.
Exhibitions & Events
Fangyuan has a strong Develope Department and can develope many new instruments or technology, so we will hold 5~8 exhibitions in China or Foreign to show our results.
Certifications
Product packaging
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
FAQ
1.Are your company a trading one ro a factory?
Fctory + trading omapny,engaged in production and operation for more than 20 years.
2.What is your terms of payment?
Generally, for small order T/T 100% advanced, we also accept T/T 40% advanced, the balance paid by T/T when the machine is ready.
For big order, we can accept 100% irrevocable L/C at sight.
We accept TT,L/C, Paypal. You can choose the one which is the most convenient orcost effective for you.
3.How long is the warranty period?
The quality assurance of the instrument shall be one year from the date of signing by both parties after the instrument
acceptance, with lifelong maintenance and free software upgrade.
4.How long is the probable delivery date?
Normally, delivery within 30 days.
5.Can you offer the technical support, online or site training or other?
We have well-experienced engineers, who can help you better use our products.
Fctory + trading omapny,engaged in production and operation for more than 20 years.
2.What is your terms of payment?
Generally, for small order T/T 100% advanced, we also accept T/T 40% advanced, the balance paid by T/T when the machine is ready.
For big order, we can accept 100% irrevocable L/C at sight.
We accept TT,L/C, Paypal. You can choose the one which is the most convenient orcost effective for you.
3.How long is the warranty period?
The quality assurance of the instrument shall be one year from the date of signing by both parties after the instrument
acceptance, with lifelong maintenance and free software upgrade.
4.How long is the probable delivery date?
Normally, delivery within 30 days.
5.Can you offer the technical support, online or site training or other?
We have well-experienced engineers, who can help you better use our products.
