Высокомощный автоматический ультразвуковой источник питания 20 кГц с чистым
- Категория: Other Power Supplies >>>
- Поставщик: Zhejiang,Bangzhao,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.85 $* | 0.42 $* |
| Aug-18-2025 | 0.96 $* | 0.97 $* |
| Jul-18-2025 | 0.44 $* | 0.65 $* |
| Jun-18-2025 | 0.90 $* | 0.5 $* |
| May-18-2025 | 0.57 $* | 0.1 $* |
| Apr-18-2025 | 0.70 $* | 0.33 $* |
| Mar-18-2025 | 0.92 $* | 0.14 $* |
| Feb-18-2025 | 0.39 $* | 0.74 $* |
| Jan-18-2025 | 0.47 $* | 0.55 $* |
Характеристики
Product Description
Specification

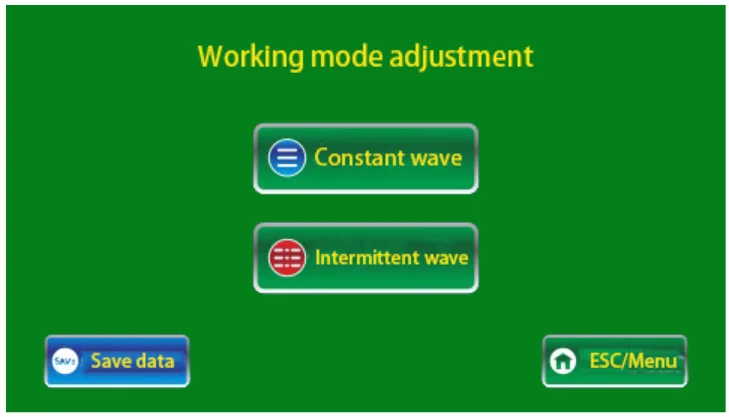

20K 3000W High power Automatic ultrasonic power supply with pure sine wave output Features: 1. Using 4.3-inch color LCD touch screen, friendly man-machine interface, easy to set up and save debugging time. 2.Adopt American DSP283 series intelligent chip control, find frequency and track frequency are fast, anti-interference is strong. 3. Two modes can be selected: constant wave and intermittent wave. 4. Infineon IGBT scheme design, high power, stable,reliable and long life. 5. One-click to find the screen is convenient and fast. 6. Multi-protocol can be choosed: RS485 or CAN, which can be compatible with fully automatic system. 7. Overvoltage and overcurrent protection 8. The cabinet is made of 1.5-thick cold-rolled plate spraying process, which is very durable. 9. The weight of radiator overall shape is about 2KG, good cooling performance. 10.Pure copper transformer, sufficient power and high efficiency * Low noise * Automatic frequency-tracking * Wide frequency tracking range * High frequency tracking accuracy * High instantaneous power output * Fast response, high control accuracy, and strong anti-interference ability * Compact structure, simple and elegant appearance, easy operation, flexible movement, and easy maintenance |
Company Profie
20K 3000W High power Automatic ultrasonic power supply with pure sine wave output

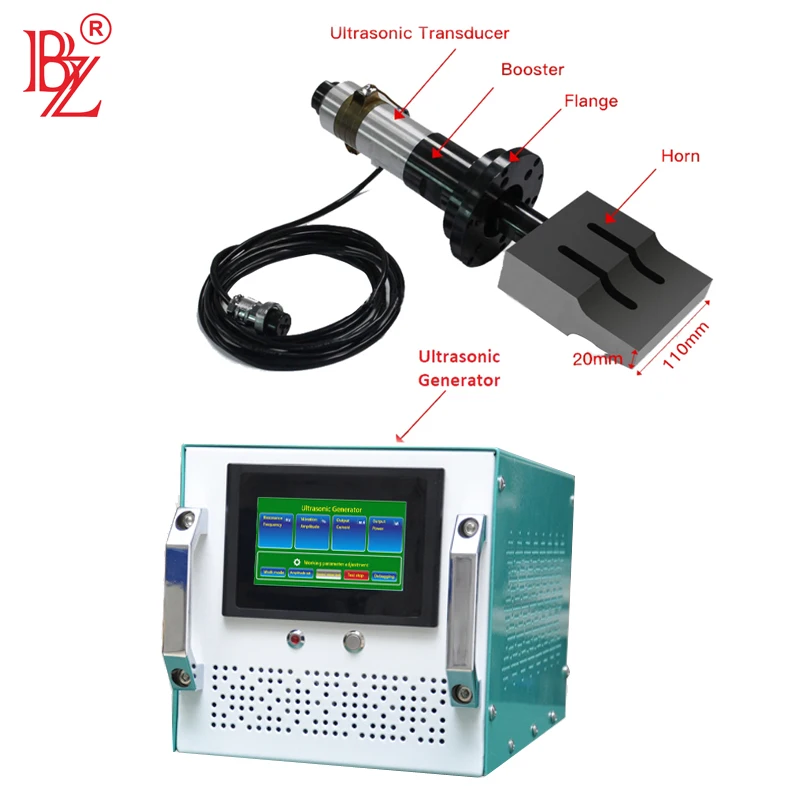

1) First, connect the output wire of transducer to the output wire of the generator, taking care not to connect the positive and negative poles in reverse. (The wire on the transducer communicates with the transducer cabinet is the negative pole, if you are not sure, you can use a multimeter to measure it)

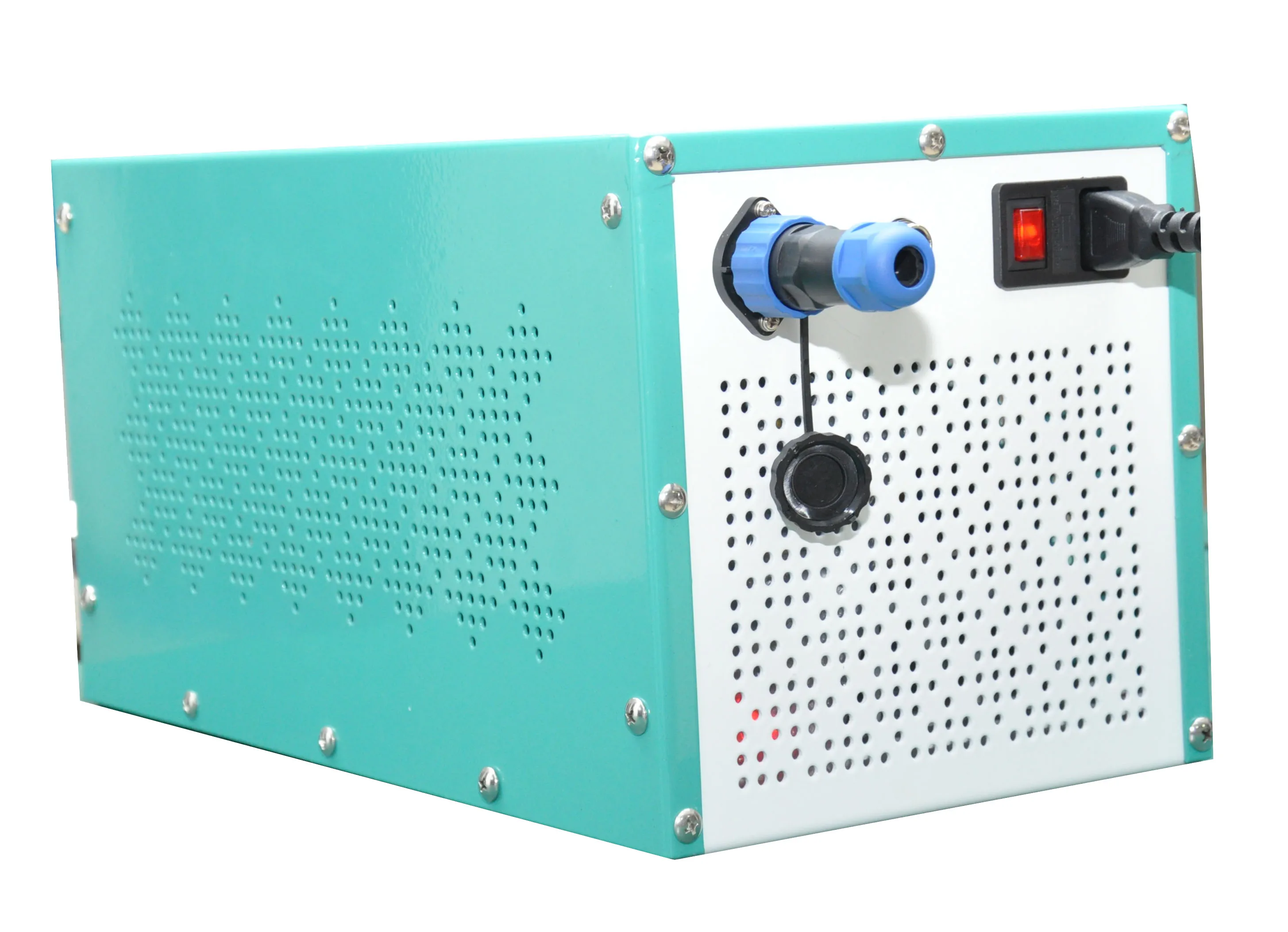

2) Turn on the power switch at the back and wait for 2 seconds for the machine to self-check. The generator displays the default frequency of 20000HZ. If the frequency has been found last time, use them directly to run the previous frequency. If it is the first time to use, it is necessary to scan the frequency. Note that when scanning, please select the intermittent wave mode for the working mode.
3) Steps of frequency scan: First press the reset / scan key for 2-3 seconds, see the display screen shows the maximum frequency set and wait for about 3 seconds. It will start to find the frequency at the lowest frequency set. When found the frequency is stopped, it means the frequency is already found, and you can click the sonic test, then the machine can work. If the fault light is on when scanning the frequency, it means that the frequency is not between the maximum and minimum frequencies you set. Please change the maximum and minimum frequency to rescan the frequency.
4) If the overload protection is happened again during use, press the reset button to reset. If there are continuous failures, please check that the connection between the transducer and the steel mold is not loose. In order to ensure your efficiency, the steel mold will change after use. It is recommended to rescan the frequency so that the performance of the product will be more stable.
5) Amplitude adjustment, the default is 30%. This value can be adjusted according to the actual situation. It is not required to adjust too big. The machine is overloaded for a long time and the life is shortened. The appropriate is the best.
6) In the intermittent wave mode, you can use on the LCD screen to start and to stop, or you also can use an
external switch to control the generator. The generator working time is the same as the switch closing time.
7) Use in mode to start, to stop, and remember the last time power on / off. If the last time is the power-on state, the power is on then generator is automatically started, and if the last time is the power-off state, when the
power-on generator is stopped, then must need press the start button to start.
1) First, connect the output wire of transducer to the output wire of the generator, taking care not to connect the positive and negative poles in reverse. (The wire on the transducer communicates with the transducer cabinet is the negative pole, if you are not sure, you can use a multimeter to measure it)
2) Turn on the power switch at the back and wait for 2 seconds for the machine to self-check. The generator displays the default frequency of 20000HZ. If the frequency has been found last time, use them directly to run the previous frequency. If it is the first time to use, it is necessary to scan the frequency. Note that when scanning, please select the intermittent wave mode for the working mode.
3) Steps of frequency scan: First press the reset / scan key for 2-3 seconds, see the display screen shows the maximum frequency set and wait for about 3 seconds. It will start to find the frequency at the lowest frequency set. When found the frequency is stopped, it means the frequency is already found, and you can click the sonic test, then the machine can work. If the fault light is on when scanning the frequency, it means that the frequency is not between the maximum and minimum frequencies you set. Please change the maximum and minimum frequency to rescan the frequency.
4) If the overload protection is happened again during use, press the reset button to reset. If there are continuous failures, please check that the connection between the transducer and the steel mold is not loose. In order to ensure your efficiency, the steel mold will change after use. It is recommended to rescan the frequency so that the performance of the product will be more stable.
5) Amplitude adjustment, the default is 30%. This value can be adjusted according to the actual situation. It is not required to adjust too big. The machine is overloaded for a long time and the life is shortened. The appropriate is the best.
6) In the intermittent wave mode, you can use on the LCD screen to start and to stop, or you also can use an
external switch to control the generator. The generator working time is the same as the switch closing time.
7) Use in mode to start, to stop, and remember the last time power on / off. If the last time is the power-on state, the power is on then generator is automatically started, and if the last time is the power-off state, when the
power-on generator is stopped, then must need press the start button to start.
Item | Feature | Description |
1 | Dimensions | Length×Width×Height 205mm×380mm×202mm |
2 | Net weight of host | 6Kg |
3 | Output power | 100-3200W |

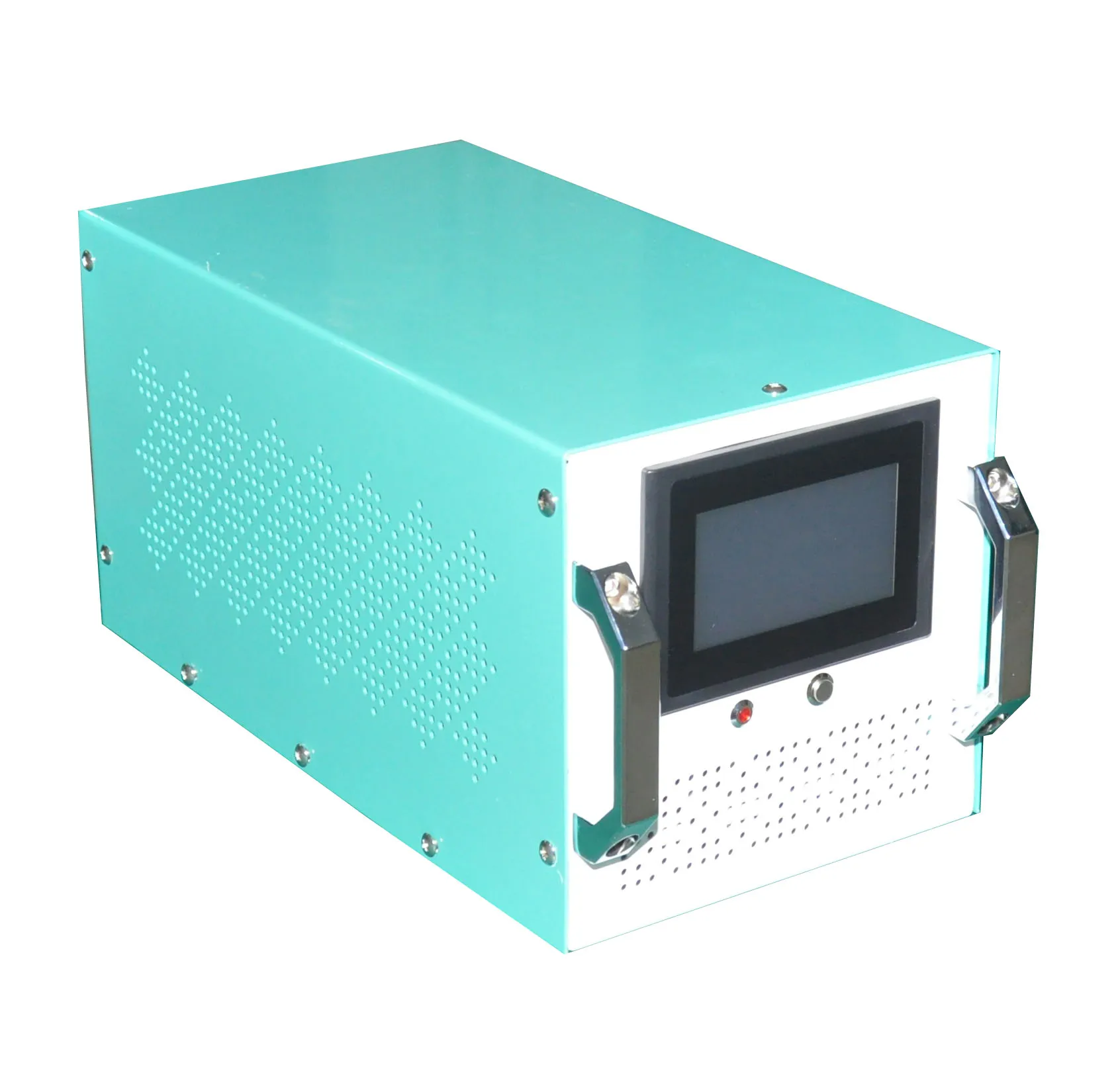

4 | Display | 4.3 inch high resolution color LCD touch screen |
5 | Working temperature | -20℃ ~ +65℃ |
6 | THD | ≤0.2% |
7 | Input power factor | ≥80% |
8 | Working frequency | 14-30KHz |
9 | Working power | AC190-AC240V 50Hz/60Hz |
10 | Mold frequency range | 4000Hz（Taking 20KHz ultrasonic as an example, the mold frequency can be automatically tracked at 22500-18500KHz） |
11 | Automatic frequency tracking accuracy | 0.1Hz |
12 | Power repeat consistency | ≥97% |
13 | Remote terminal dynamic response time | ≤10ms |
14 | communication method | CAN, RS485communication |
