Латунная медная бронзовая Труба индивидуальная литейная

Описание и отзывы

Трекер стоимости

Характеристики

Product Application

 Production Line Machines & Parameters:

1. 300KG Melting and Temperature holding Furnaces

No.	Parameters:	Qty
1	Rated Power: 80Kw	1 set
2	Type:  Melting Brass Scrap/Temperature Holding
3	Model: GYT300
4	Input voltage: 380 VAC
5	Furnace Content Capacity: 1~2T each
6	Input phase: 3 phase (ABC)
7	Power Factor: 0.95
8	Input Frequency: 50 Hz
9	Melting Rate: 300KG/Hour
10	Max Working Temperature: 1250 ℃
11	Hook: 1pc
12	Cooling System: Water cooling
13	Voltage Regulating: Autotransformer
14	Temperature Measurement: Thermocouple
15	Electric Cabinet: 1 set Electron component brand: CHINT



Note: Price is different with different brand of electric control system, if you need Siemens or Schneider, we can also provide



Furnace Picture: (picture just for reference, yours will customized)



Electric Cabinet Picture: (picture just for reference, yours will customized)

CHINT Electric Control System:



2. Drawing/Traction Machine

No.	Parameters:	Qty
1	Power Supply: 1.5kw	2 sets
2	Rod Size: Φ8-65mm
3	Wheel Size:Φ138mm
4	Spare wheel inner shaft size:Φ35mm
5	Machine Size:730*730*1200mm



Drawing Machine Picture: (picture just for reference, yours will customized)



3. Cutting Machine

No.	Parameters:	Qty
1	Power: 4kw	2 sets
2	Cutting Diameter: Φ8-70mm/
3	Guide: Hard line rail
4	Pressure:0.7mpa
5	Rotate Speed: 2200r/min
6	Machine Size: 1150*650*1500mm

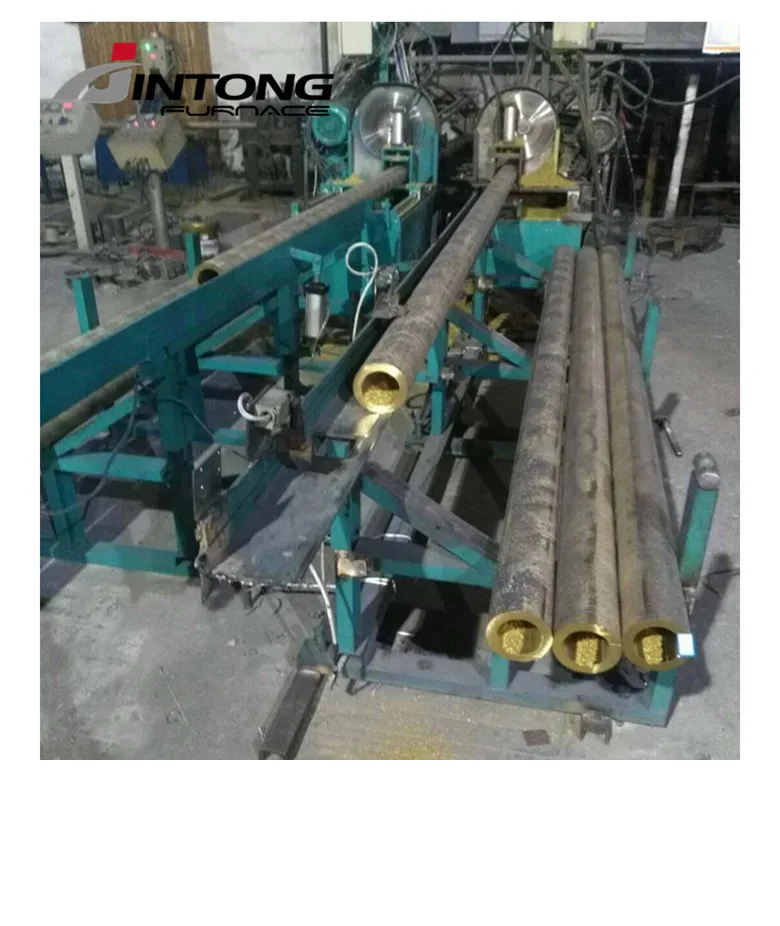

Cutting Machine Picture: (picture just for reference, yours will customized)

With rod holding shelf







4. Straightening Machine

No.	Parameters:	Qty
1	Power/Input voltage: 7.5kw  380kv	1 set
2	Straightening Diameter: Φ10-35mm
3	Straightening Speed : 20m/min
4	Straightness Accuracy : ≤1mm/M
5	Machine Size: 2100*700*1250mm
6	Roller number: 10 rollers



Straightening Machine Picture: (picture just for reference, yours will customized)



5. Crystallizer and Graphite Mold

(picture just for reference, yours will customized)



Packaging & Shipping







Our Services



Company Information





       Wuxi Jintong Furnace Co., Ltd. called Wuxi Xinlian Furnace Factory before was established since year 2004, having 10+ years experience in metal melting and metal heat treatment area. Jintong Manufacturing Corp. is specialized in manufacturing induction melting furnace(copper scrap brass scrap, aluminium scrap, zinc scrap, bronze scrap, steel, iron, stainless steel, carbon steel scrap and precious metal like gold or silver). Our furnaces can be applied to many fields such as copper/brass rod/pipe continuous casting, zinc ingot, aluminum rod continuous casting or power resistance.

       We sincerely invite you to visit our factory and offer your valuable guidance. Looking forward to cooperating with you.



Our Customers:



FAQ



Q. What is your MOQ?

A. 1 set.



Q. Your company is a trading firm? or Factory?

A. We are a factory with 10+ years experience in industrial melting feild. We currently have three branches: main frequency furnace production, medium frequency furnace production, component machine production. You are warmly welcomed to visit our factories.



Q. How is your products quality?

A. As a manufacturer, we have our own R&D team. Basing on several years of technical innovation, we have accumulated successful experience in induction heating, temperature holding, fast melting. We've customized so many furnaces with all positive feedbacks.



Q. What kind of material our furnace can melting?

A. Jintong is able to supply a melting production line such as copper/zinc/aluminum melting line.Jintong medium frequency furnace can also melt iron, steel, gold, silver and so on.



Q. I am not so familiar with your machine now. I am not sure I can use it well if I buy it from you.

A. Don't worry about this. With the machine, we will send you a brochure with detailed information of our machine operation. In addition, we will send you videos of machine set up and using. Our engineers are always available for consultation. Engineers can support at your place if it is needed.
