Параллельный Гибридный солнечный инвертор 5000 Вт 5KW48V с входным напряжением 450 в

Описание и отзывы

Трекер стоимости

Характеристики

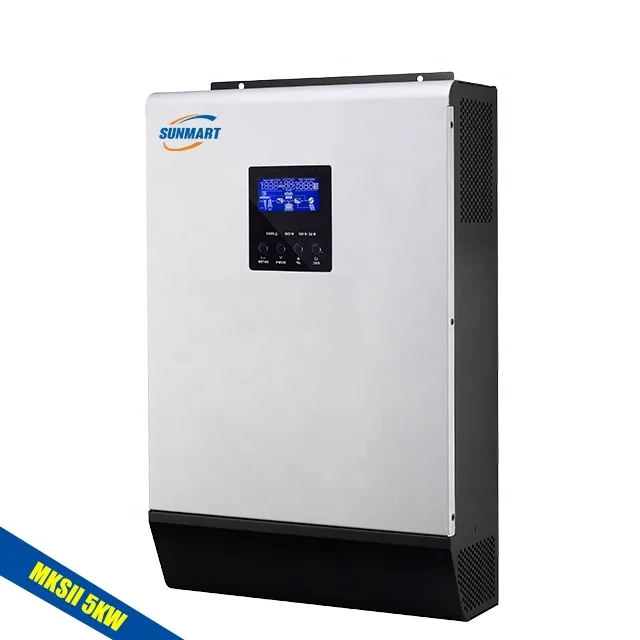

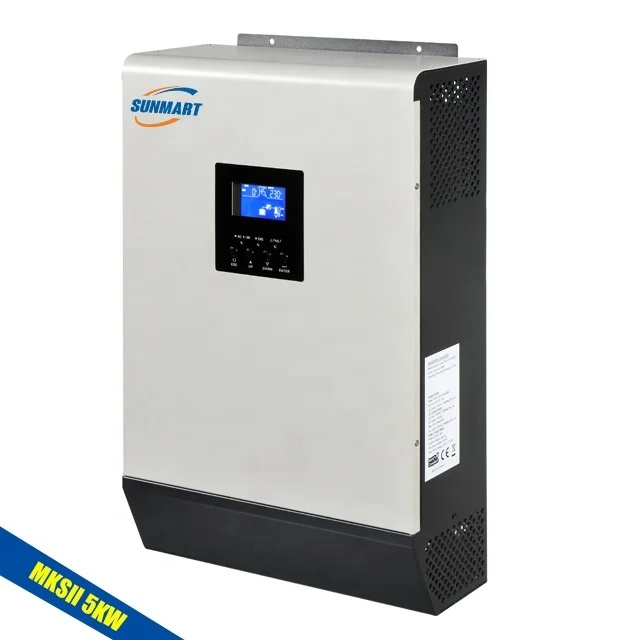

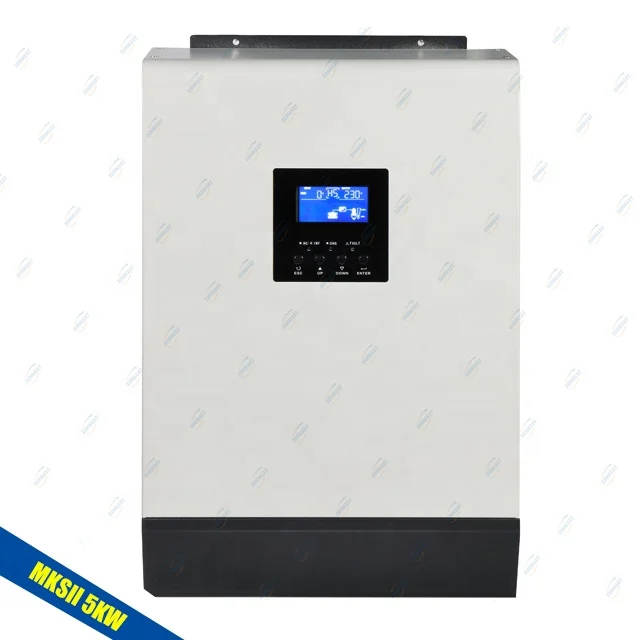

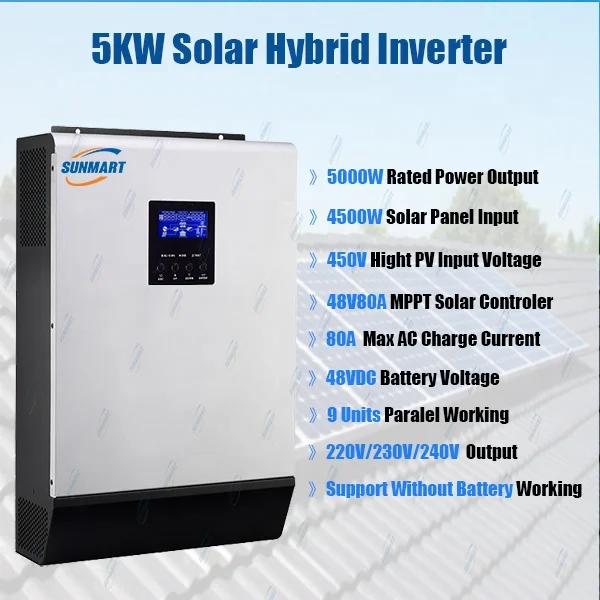

 Parallel function 5000W 5KW48V Solar Hybrid Inverter with 450V PV input voltage

Application:

Small PV plants

Home solar system



Feature:

1.Pure sine wave inverter

2.Support without battery working in good sun

3.Built-in MPPT 48V80A solar charge controller

4. MPPT Voltage Range 120V ~ 430V

5.Max PV input voltage :450V

6..Max PV input power 4500W

7. Max AC grid Charging current 80A

8.Charging current is setable according to your battery type

9.Supports LiFePo4 Battery  and lead acid battery type

10.Configurable AC/Solar input priority via LCD setting

11.Compatible to mains voltage or generator power

12.Auto restart while AC is recovering

13.Overload and short circuit protection

14.Smart charging system optimizes battery performance

15.Cold start function

16.Parallel operation with up to 9 units

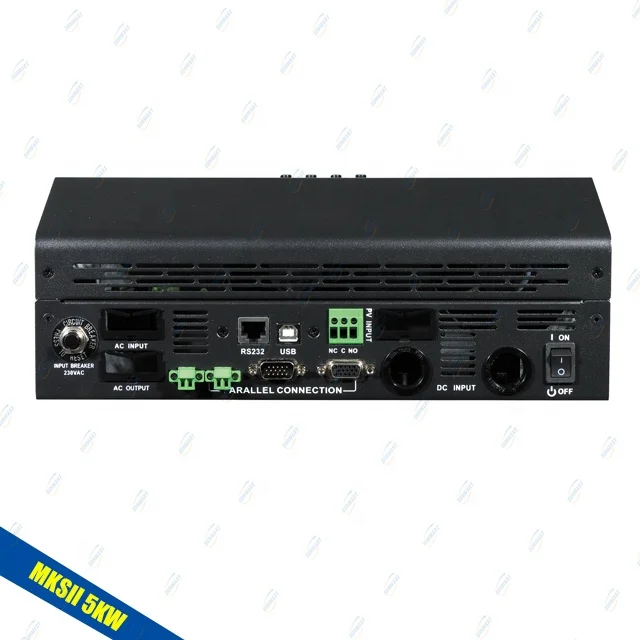

17. RS232 & Wifi monitor



Specifications:



Model No.		MKSII -5KW
Parallel Capability		Yes, 9units
Rated power		5000VA /5000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power (5 seconds)	10000VA
	efficiency (peak)	93%
	transfer time	10ms(for personal computers);   20ms (for home appliances)
	waveform	pure sine wave
Battery&       AC charger	battery voltage	48VDC
	floating charge voltage	54VDC
	overcharge protection	66VDC
	maximum charge current	10A /20A/30A /40A/50A/60A/70A/80A
	MAX PV array power	4500W
	MPPT range@ operating voltage	120 ~ 430V
	maximum PV array open circuit voltage	450VDC
	MPPT charging current	80A
	maximum efficiency	98%
	standby power consumpsion	2W
Physical	Dimension, D*W*H(mm)	155*295*455
	Net weight (kgs)	12KG
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃



















  FAQ

Q1. What's the payment term?

A. We accept TT,30% deposit and 70% balance before shipment.



Q2. How's the delivery time?

A. usually it will take about 5 days for production 50pcs



Q3. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.



Q5. Would you accept to use our logo?

A. Yes, But MOQ should be more than 100pcs



Q6. We want to know month capacity.

A. It depends on which model. For example for relay type small capacity , month capacity can reach near 2000pcs   and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



Q8. Does the inverter connect with solar system ?

A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..



Q9. What kind of certificate you have ?

A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .
