Лазерная Маркировочная гравировальная машина Yihui для литья ювелирных

Описание и отзывы

Трекер стоимости

Характеристики

Technical parameter



Model	M.SW.DKL20C-Z	M.SW.DKL30C-Z	M.SW.DKL50C-Z	M.SW.DKL80C-Z	M.SW.DKL100C-Z
Laser Source	Ytterbium Fiber laser
Laser Power	20W	30W	50W	80W	100W
Laser Wave length	1064nm
Beam Quality M2	<1.3
Laser Lifespan	10000hours
Min Line Width	0.01mm
Min Charater Height	0.2mm
Repeatability	0.001mm
Cooling system	Air cooling

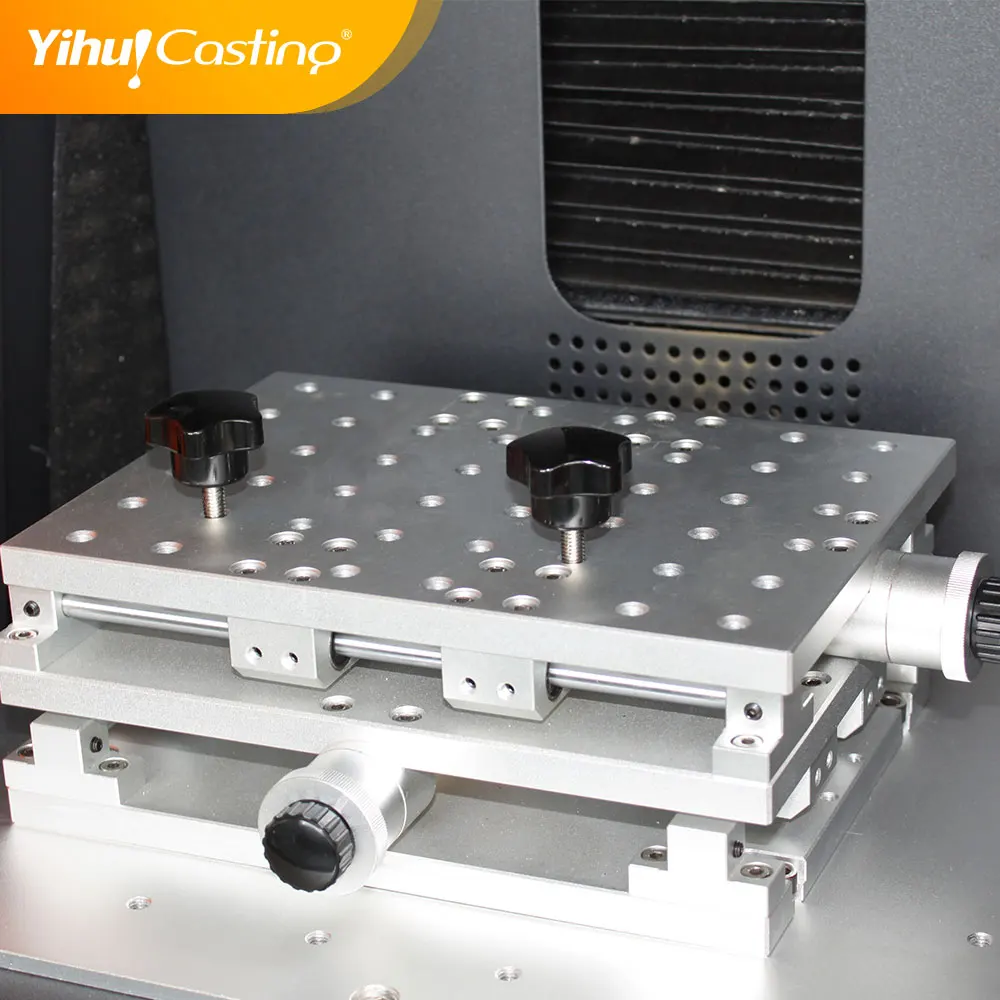

Working platform	X,Y,Z direction
Working Area	100mm*100mm(Standard),50mm*50mm or 150mm*150mm available
Cutting depth	<0.9mm	<1.2mm	<2.2mm	<2.4mm	<2.6mm
Marking depth	>1.0mm
Marking speed	<7000m/s
Max Power	8000W			1000W
Voltage	110,60HZ,1Phase   Or 220V,50HZ,1Phase
Machine details	900*460*820mm,78KGS
Package details	1040*860*1080mm,135KGS





Company information



Yihui Casting Technology Co., Ltd, established in March, 2003, through more than10 years effort, has developed as

a professional supplier in providing integrated lost wax casting solutions, manufacturing jewelry casting machines

and materials, specializing in casting technology research & development and application. Under Yihui brand, we

own Shenzhen Yihui Casting Technology Co., Ltd, Guangzhou Ruihui Casting Machinery Co., Ltd, Shenzhen Xinhui

Casting Material Co., Ltd., Dongguan  Yihui Casting Technology Co., Ltd, Guangzhou Yihui Jewelry Tools Co., Ltd,

and other manufacturing and selling companies.



Additionally, Yihuicasting have graphite products making factory, ceramic products making factory, machines making

factory. Relying on Yihui brand, centering on casting realted products, complete products supplying system has been

 formed, meanwhile, we are agent of world known brand jewlery tools and consumables. Products range covers all

the jewelry making procedures, which are widely used in jewelry, watches, glasses, dental, glaze, and other precision

loss wax casting industry, which have been exported  far to South-east Asia, Mid-east, European and American

countries.
