Product Description

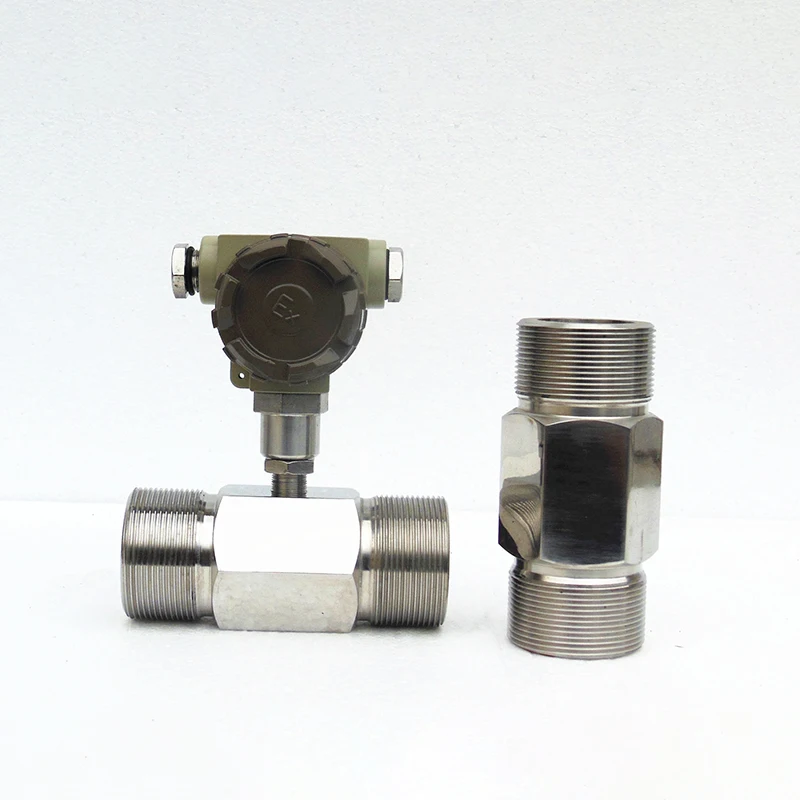

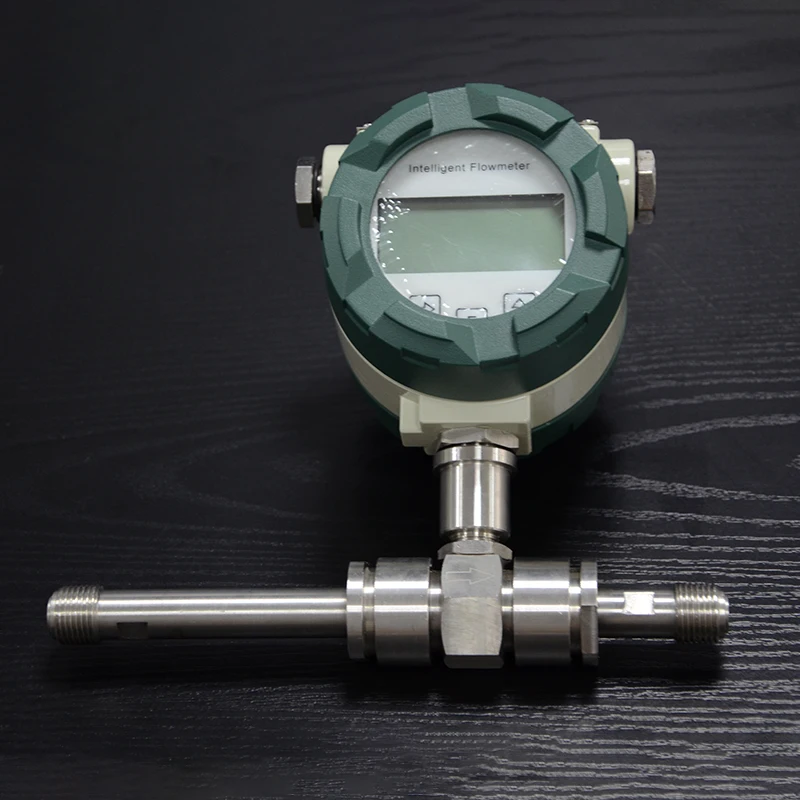

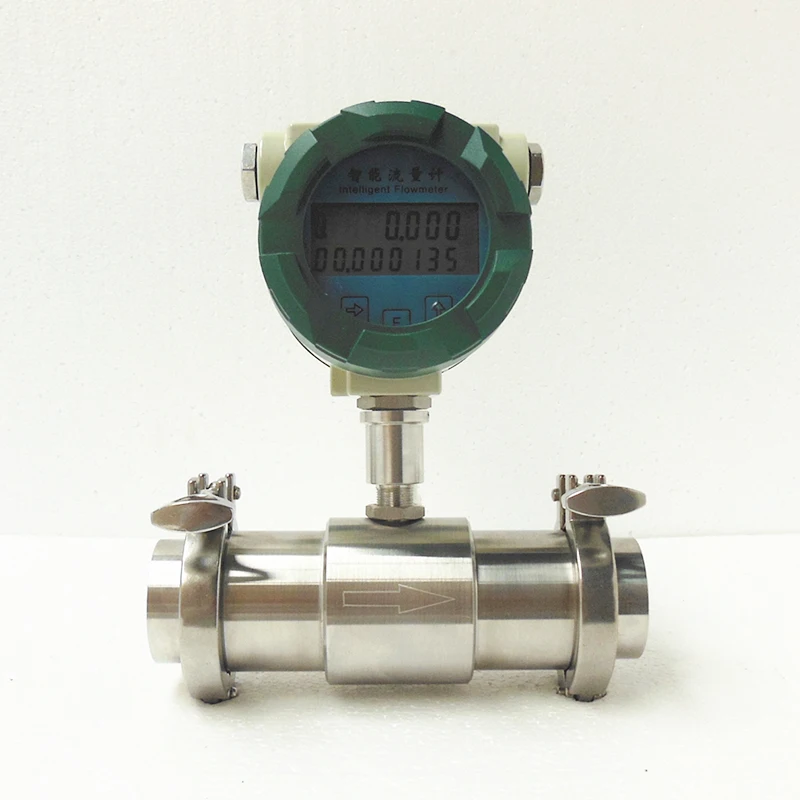

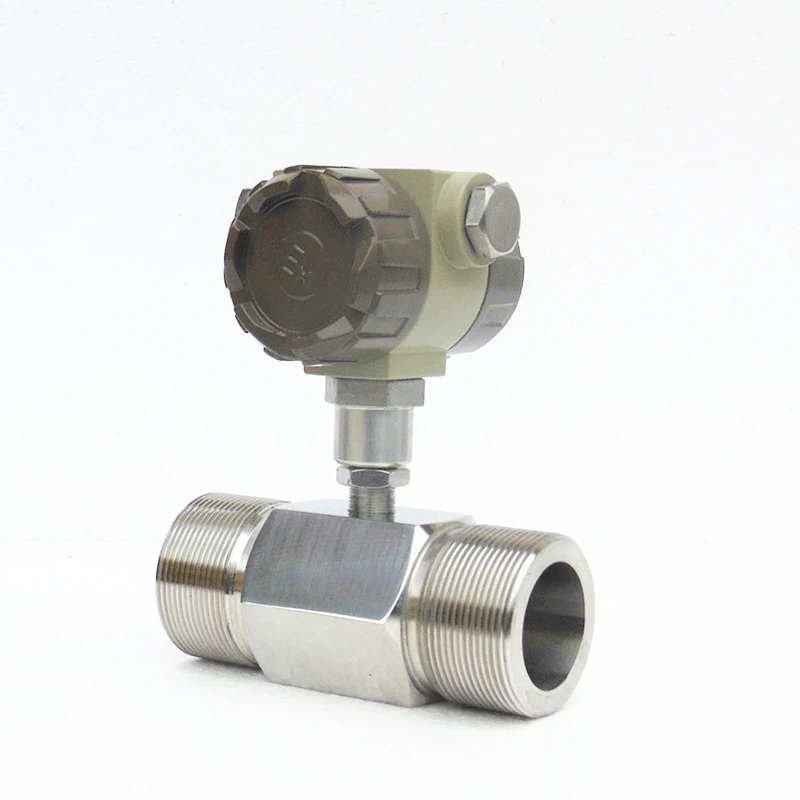

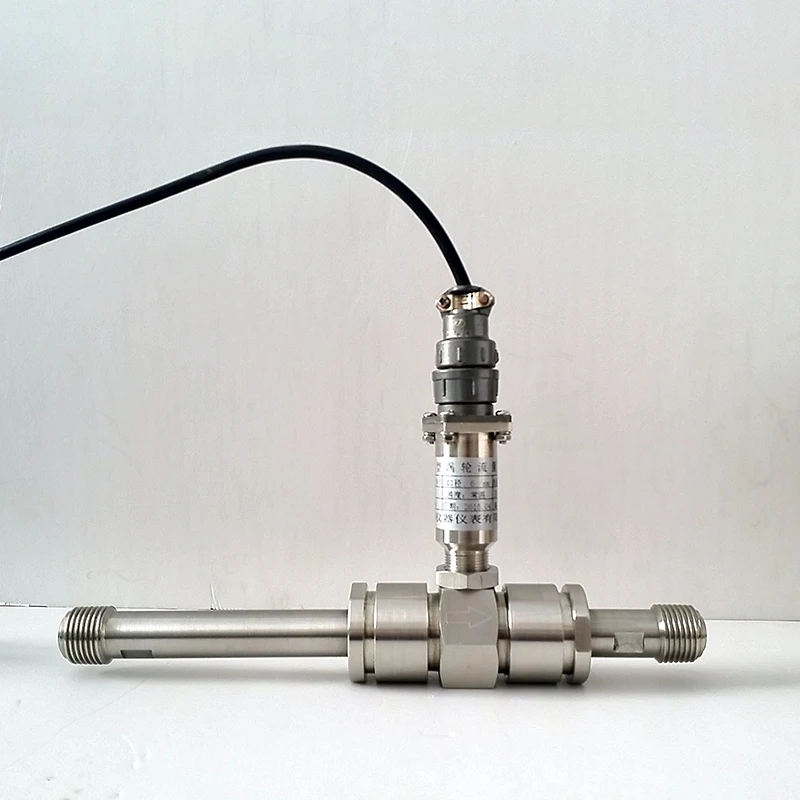

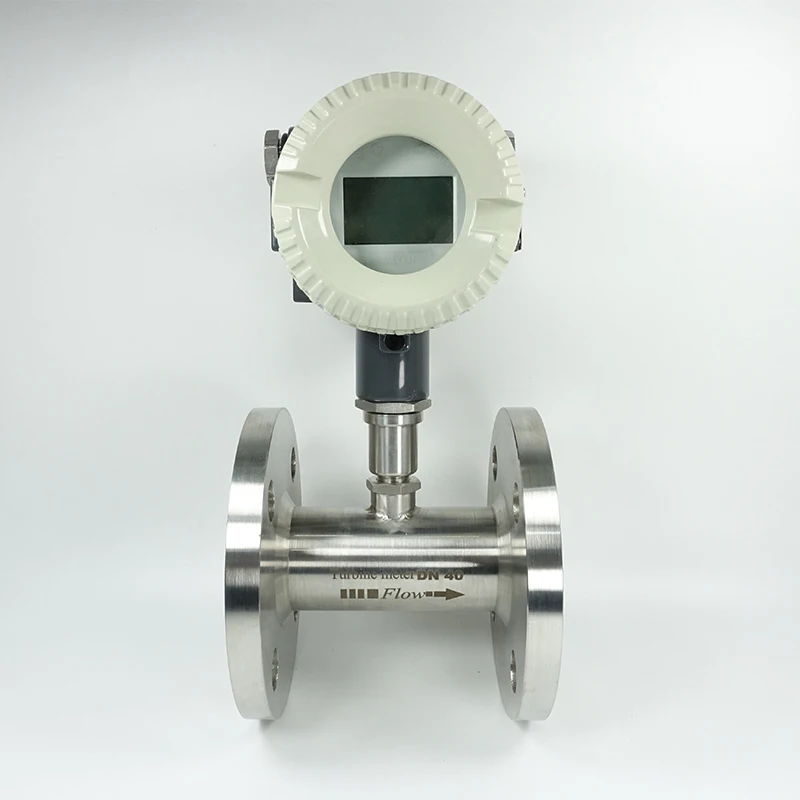

Turbine Flow Meter
A.[Features of turbine flow meter]
Prefessional flow meter for edible oil.
For water,the lwgy turbine flow meter with large flow ratio and higher accuracy.
Achieved The Dosing Function
The flowmeter with high accuracy and output,With displayment can achieve the Dosing function.
The High Accuracy
Theedible oil flow meter with three kinds accuracy,The 1%,0.5%,0.2%,The standard type is 1.0%
The Min Size
The min size is DN2mm,the min flow range is 0.03m3/h
The Variety connection
The vegetable oil flow meter with flange ,thread and clamp on type connection for you reference.
The Application of edible oil turbine flow meter
Dosing industry,water industry,high pressure industry and Hudraulic system.
A.[Features of turbine flow meter]
Prefessional flow meter for edible oil.
For water,the lwgy turbine flow meter with large flow ratio and higher accuracy.
Achieved The Dosing Function
The flowmeter with high accuracy and output,With displayment can achieve the Dosing function.
The High Accuracy
Theedible oil flow meter with three kinds accuracy,The 1%,0.5%,0.2%,The standard type is 1.0%
The Min Size
The min size is DN2mm,the min flow range is 0.03m3/h
The Variety connection
The vegetable oil flow meter with flange ,thread and clamp on type connection for you reference.
The Application of edible oil turbine flow meter
Dosing industry,water industry,high pressure industry and Hudraulic system.
B.[Parameter] | ||
Production Name | Turbine flow meter | |
Accuracy | The standard type is 1%,Customized for 0.5% and 0.2% | |
Temperature | Medium:-20~120℃ Environment:-20~55℃ | |
Material | The standard material is SS304,Customized for SS316L | |
Display | local LCD Dsiplay | |
Output | 4~20mA Or Pulse output | |
Power supply | 12~24V or battery supply | |
Protection | Can save all data while power off | |
Amplifier | Alminium alloy material | |
Protection class | IP65;Waterproof and dustproof | |
Explosion-proof | Ex ib Ⅰ or Ex ib Ⅱ BT4 | |
The turbine flowmeter's flow range chart | ||||||||||||||||
Normal Size (mm) | Flow Range (m3/h) | Flow Range(m3/h) | Normal Pressure(Mpa) | Loss(Mpa) | ||||||||||||
0.2% Accuracy | 0.5% Accuracy | 1% Accuracy | ||||||||||||||
Min | Max | Min | Max | Min | Max | |||||||||||
2 | 0.03 | 0.16 | 6.3 | 0.15 0.12 | ||||||||||||
4 | 0.04 | 0.25 | ||||||||||||||
6 | 0.1 | 0.6 | 0.1 | 0.6 | 6.3 1.6 25 32 | 0.08 0.05 0.035 | ||||||||||
10 | 0.5 | 1.2 | 0.2 | 1.2 | ||||||||||||
15 | 1.2 | 6 | 0.6 | 4 | 0.6 | 6 | ||||||||||
25 | 2 | 10 | 1.6 | 10 | 1 | 10 | ||||||||||
40 | 4 | 20 | 3 | 20 | 2 | 20 | 1.6 2.5 | 0.025 | ||||||||
50 | 6 | 40 | 4 | 40 | 4 | 40 | ||||||||||
80 | 16 | 100 | 10 | 100 | 10 | 100 | ||||||||||
100 | 25 | 160 | 20 | 160 | 20 | 200 | 1.6 2.5 | |||||||||
150 | 50 | 300 | 40 | 300 | 40 | 400 | ||||||||||
200 | 150 | 750 | 100 | 600 | 80 | 800 | ||||||||||
250 | 200 | 1000 | 160 | 1000 | 120 | 1200 | 1.6 | |||||||||
300 | 260 | 1600 | 180 | 1800 | ||||||||||||
C.[Application]
* For water treatment;
* Dosing control;
* Chemical industry;
* High pressure and Hydraulic system;
* For water treatment;
* Dosing control;
* Chemical industry;
* High pressure and Hydraulic system;
