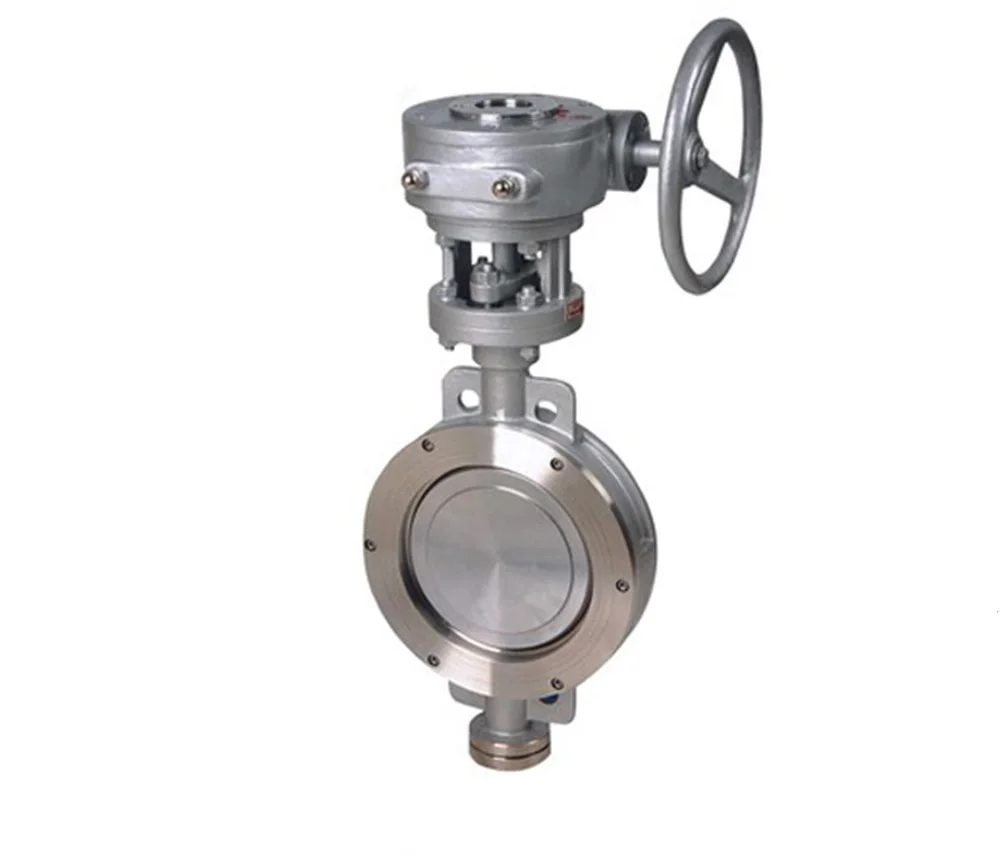

D343H-10C большой размер двойной фланцевый Шестеренчатый
- Категория: Дроссельные клапаны >>>
- Поставщик: Baoding,Valvula,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 29.18 $* | 30.99 $* |
| Jul-16-2025 | 24.61 $* | 24.65 $* |
| Jun-16-2025 | 29.18 $* | 30.57 $* |
| May-16-2025 | 29.7 $* | 30.69 $* |
| Apr-16-2025 | 23.49 $* | 23.92 $* |
| Mar-16-2025 | 28.65 $* | 29.33 $* |
| Feb-16-2025 | 28.76 $* | 29.99 $* |
| Jan-16-2025 | 28.33 $* | 29.33 $* |
Характеристики
Product Description
1. The structure of D343H-10C large size double flange butterfly valve gear operated butterfly valve
2. The Material of D343H-10C large size double flange butterfly valve gear operated butterfly valve
| Parts name | Materail |
| Valve body,Disc | WCB |
| Stem | 2Cr13 |
| Seal ring | Stainless steel |
| Shifting fork, Hysteresis loop | WCB |
3. The Function and Specification of D343H-10C large size double flange butterfly valve gear operated butterfly valve
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| D343H-6C D393H-6C | 0.6 | 0.9 | 0.66 | -29~425 | Water, Vapour, oil |
| D343H-10C D393H-10C | 1.0 | 1.5 | 1.1 | ||
| D343H-16C D393H-16C | 1.6 | 2.4 | 1.8 | ||
| D343H-25 D393H-25 | 2.5 | 3.8 | 2.8 | ||
4. More product details
